Article-No.:
94448
CorDuo
Cable system
Sheela Basic Set
GU5,3 max. 5x10W 230/12V Chrome matt
GU5,3 max. 5x10W 230/12V Chrome matt

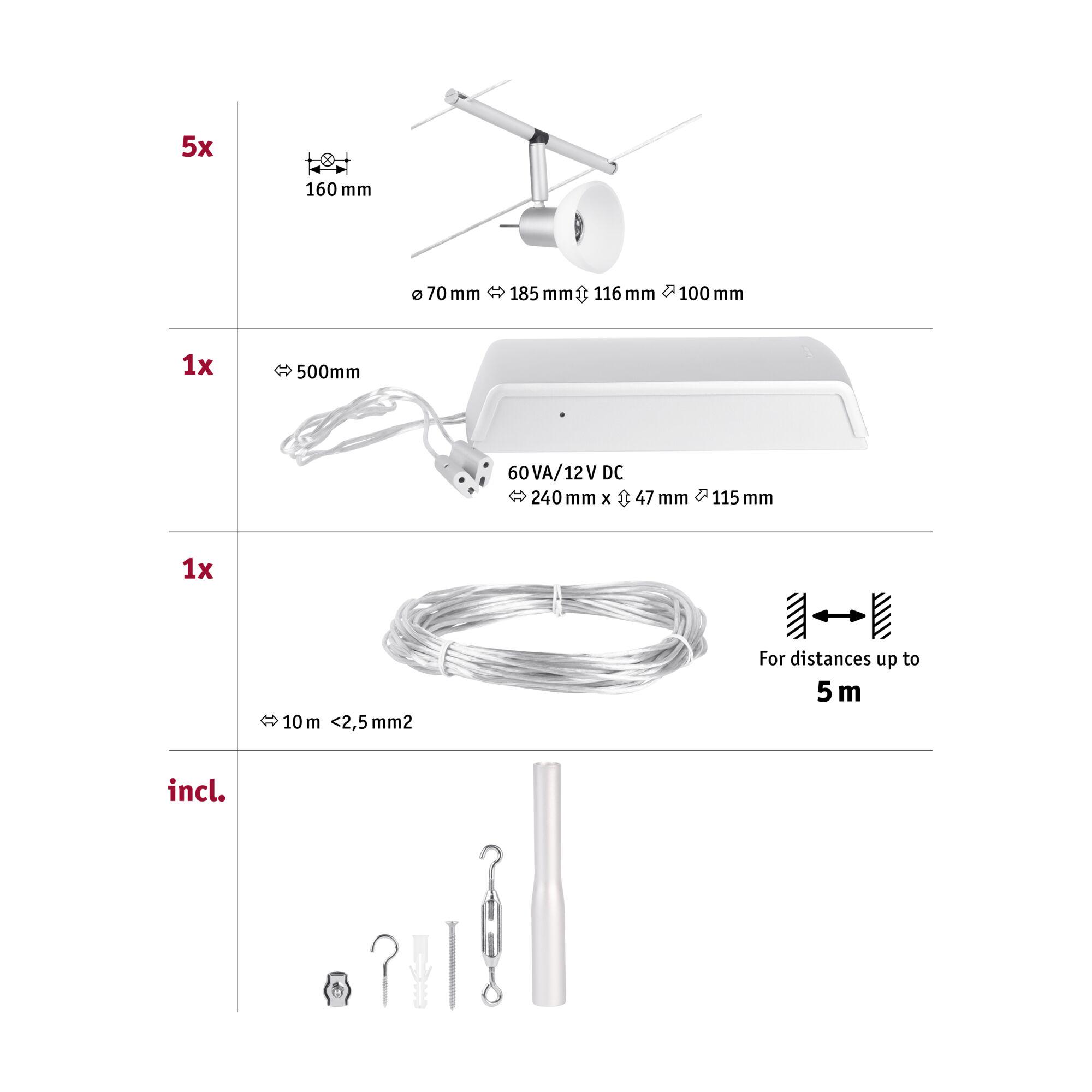

- Complete set consisting of transformer, cable, spots and installation instructions
- Suitable for wall and ceiling mounting
- Freely selectable lamps

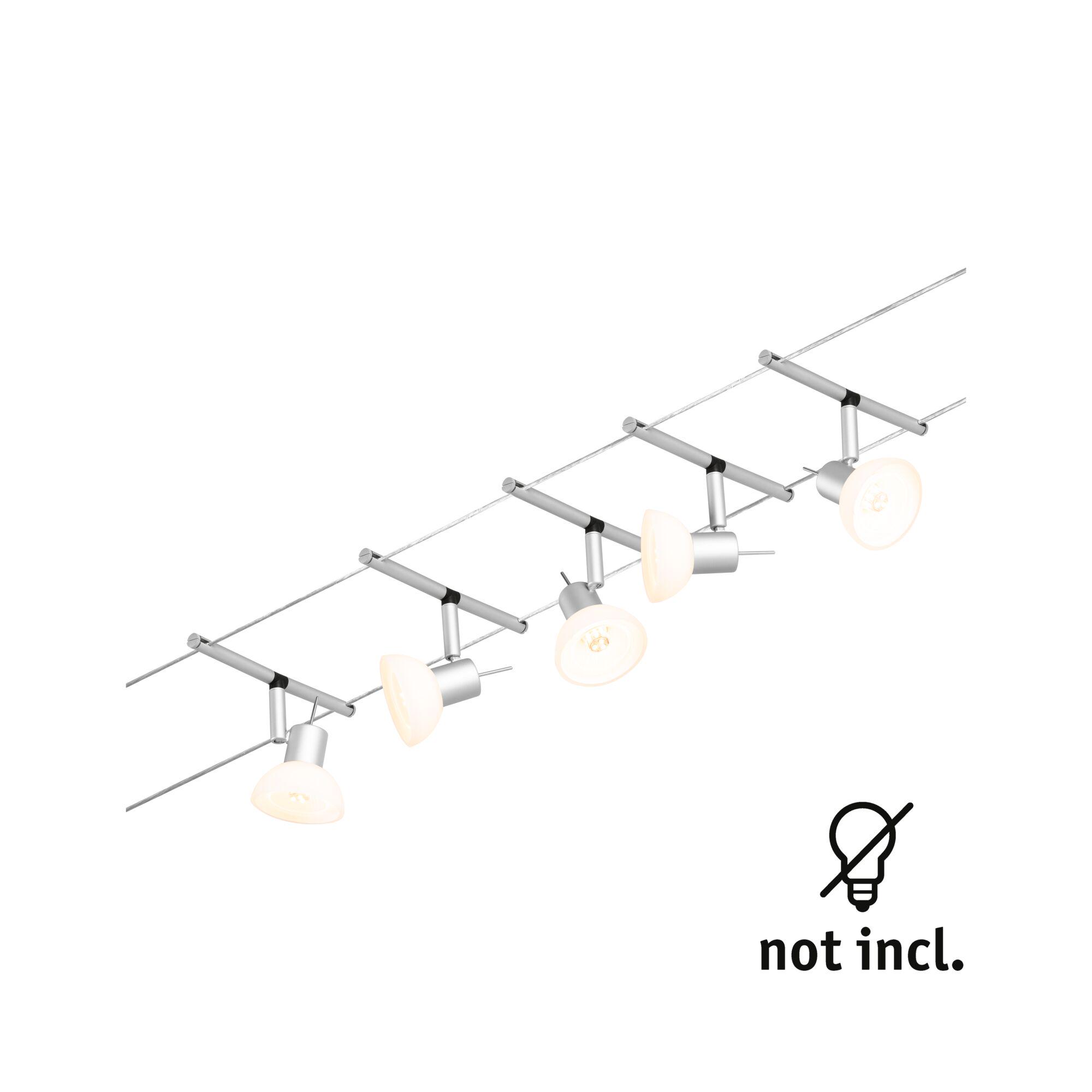

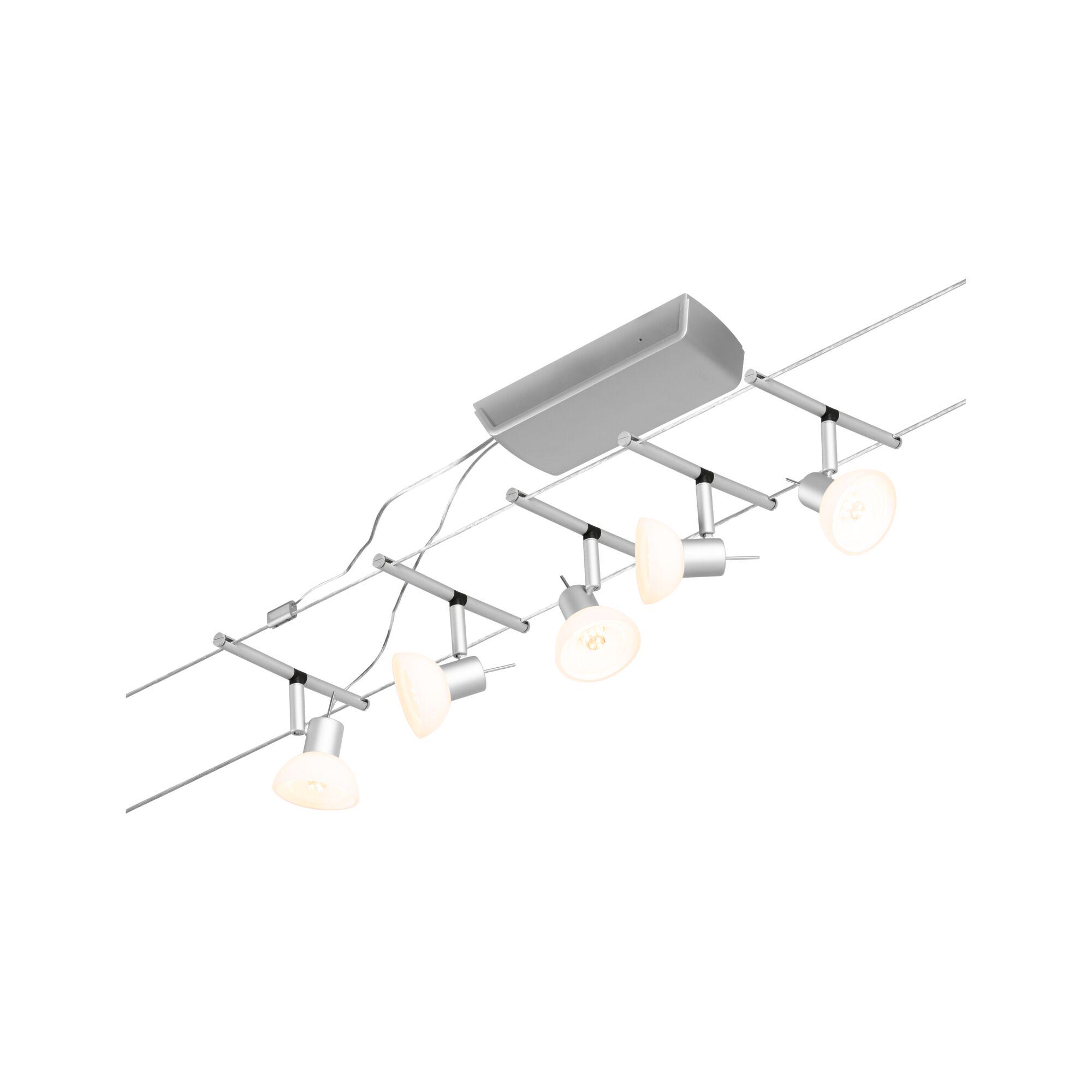

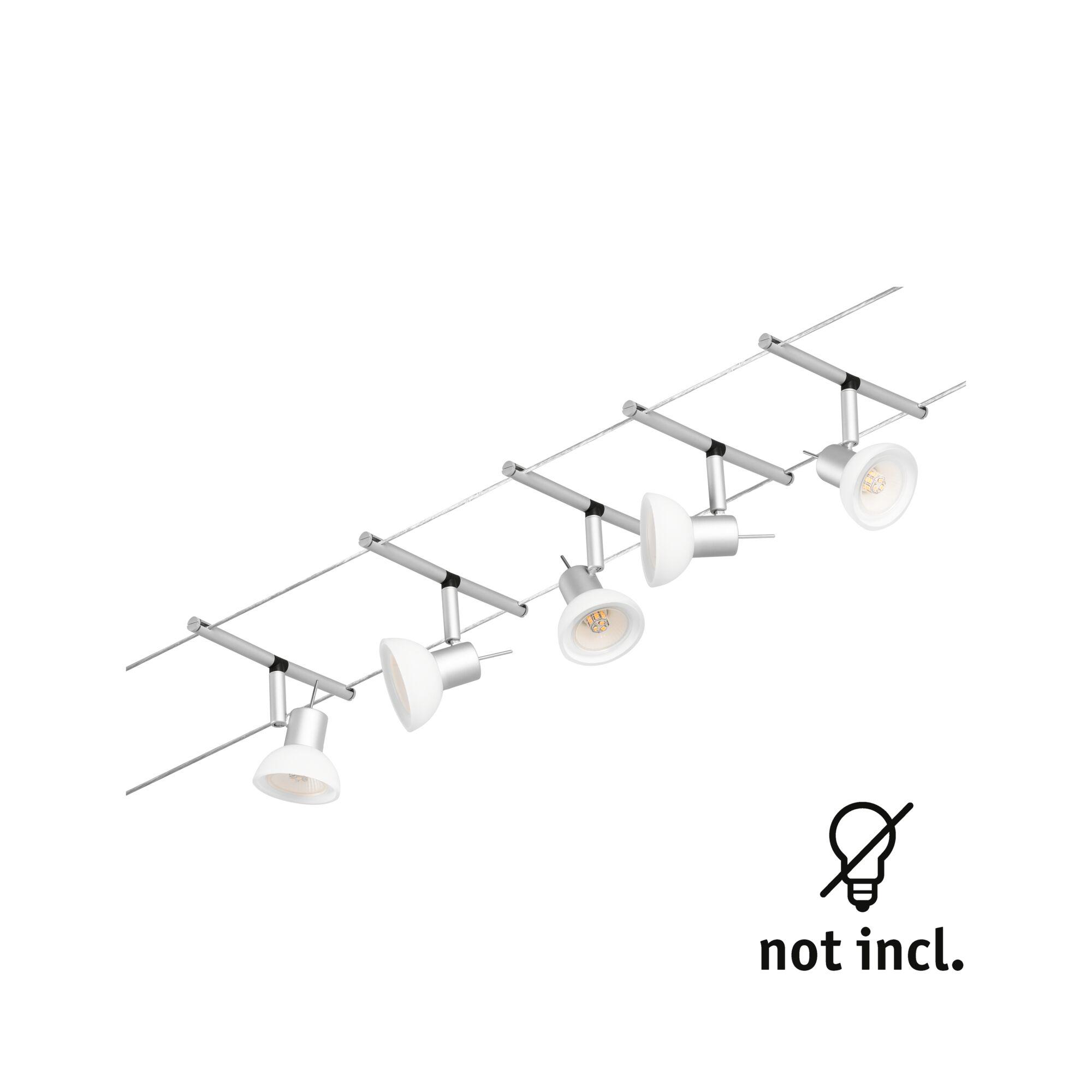

CorDuo Cable system Sheela Basic Set GU5,3 max. 5x10W 230/12V Chrome matt
The Sheela series in Chrome matt can be installed on the wall or on the ceiling for unlimited design possibilities. Whether straight, sloped or angled – wire systems are suitable for any room and are the ideal problem solver for tricky installation conditions. The basic set can be supplemented with individual spots, deflectors and other accessories. The wire, with a length of 10 m, can be separated in the middle so the system can be suspended across a max. distance of 5 m. The system enables optimum light distribution, and can easily be expanded if more lighting is needed. Only one power outlet is needed for the distribution of luminaires throughout the room. Systems with 12 V DC (direct current) technology cannot be dimmed using a wall dimmer switch.
- Complete set consisting of transformer, cable, spots and installation instructions
- Suitable for wall and ceiling mounting
- Freely selectable lamps
- Don’t forget: Include a suitable lamp in your order!
- Not suited for operation to 12 V AC
| Dimension | |
|---|---|
| Wire distance | 160 mm |
| Span width | 5 m |
| Length | 10 m |
| Design and Material | |
|---|---|
| Colour | Chrome matt |
| Material | Plastic |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Technique | LED |
| Socket | GU5,3 |
| Dimmable | No |
| Inclusive lamp | no |
| Maximum wattage range | max. 5x10 W |
| Number of component parts | 5x |
| protection class | protection class II |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Transformer | |
|---|---|
| Transformer power | 60 VA |
| Transformer height | 47 mm |
| Transformer width | 240 mm |
| Transformer depth | 15 mm |
