Article-No.:
99974

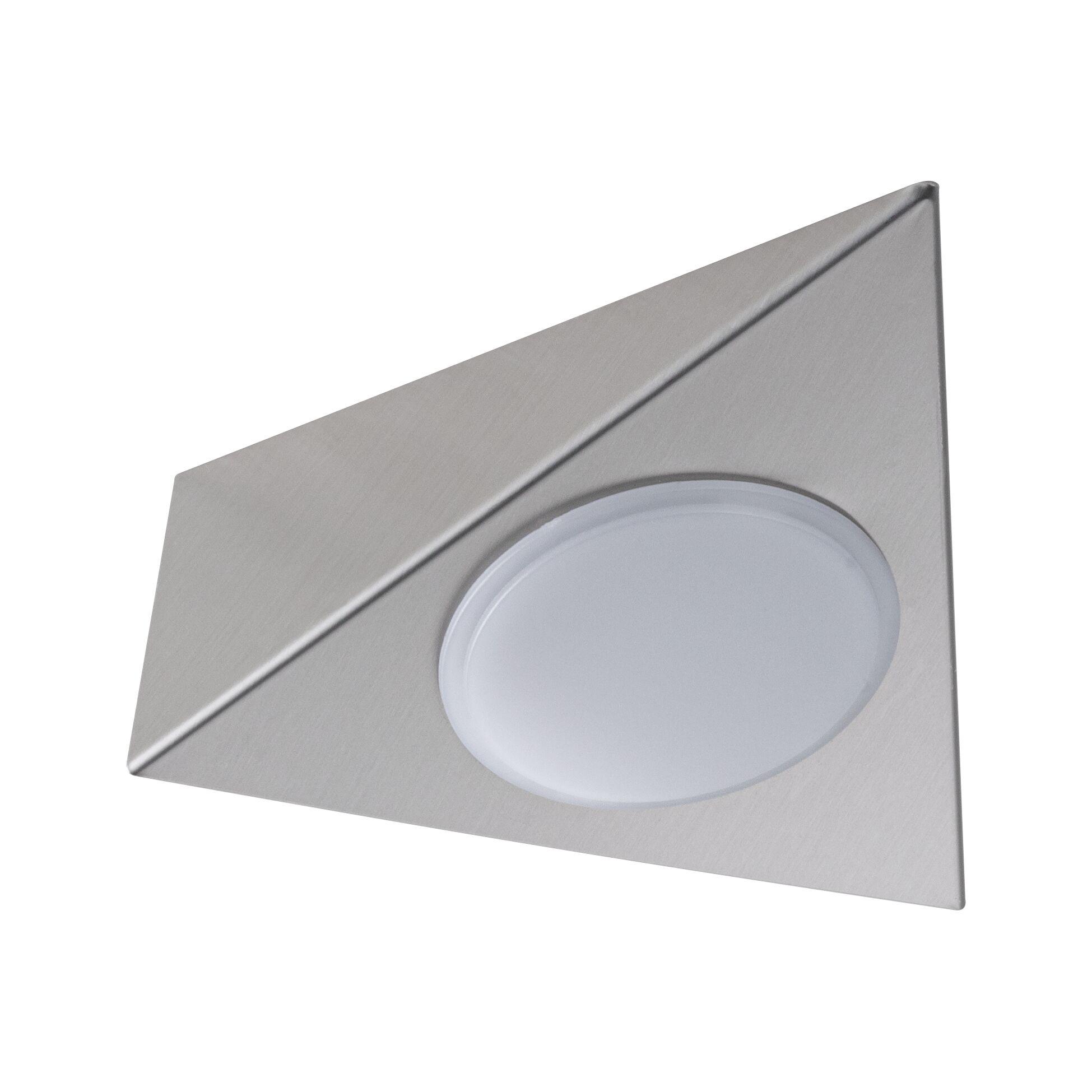

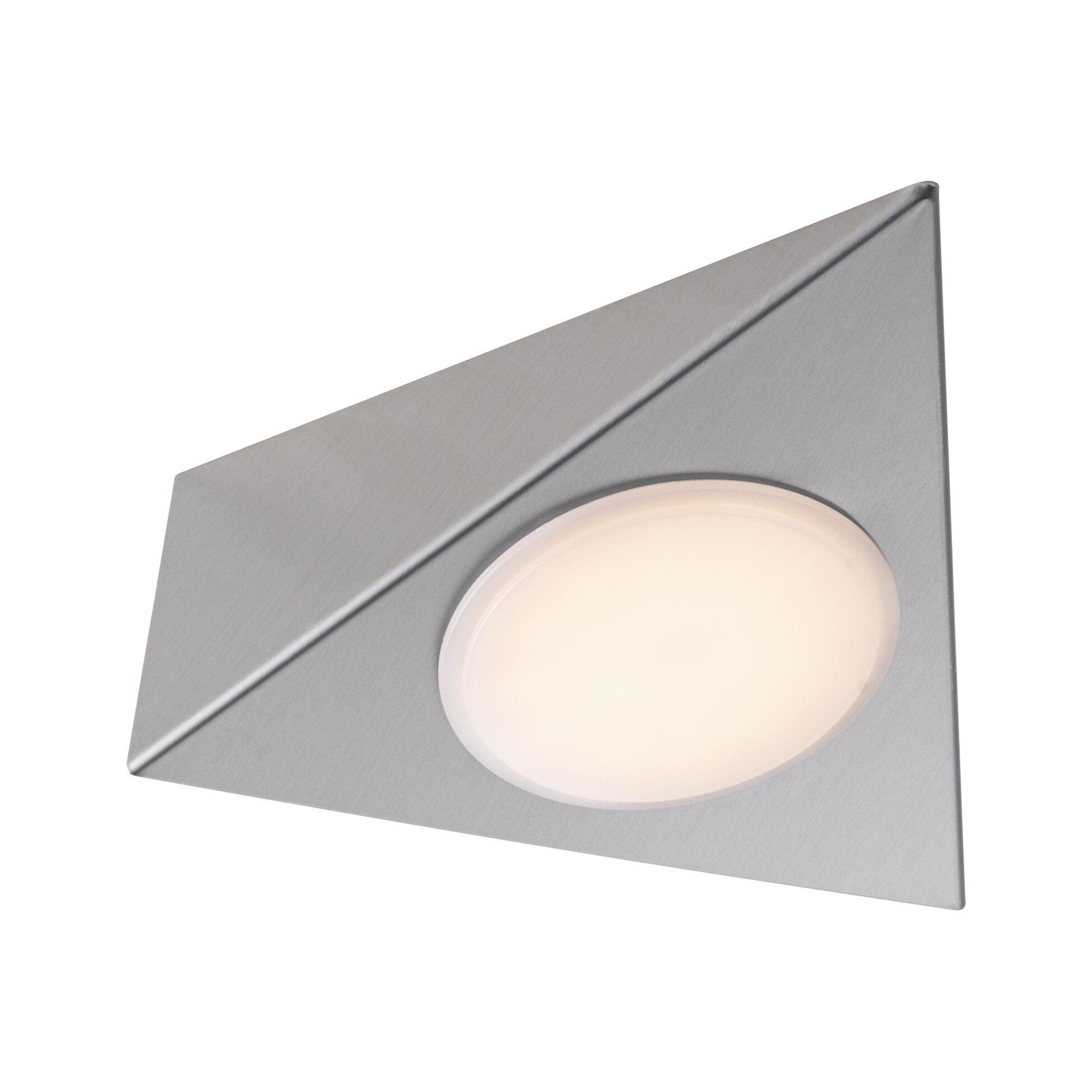

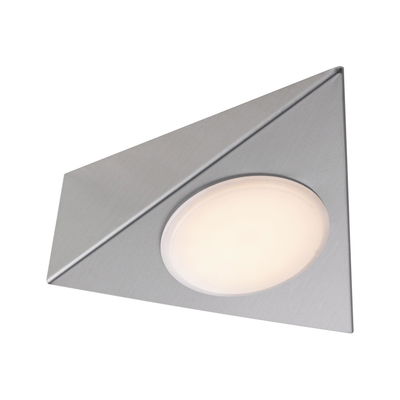

Clever ConnectLED Spot
Trigo
Tunable White 3x2,1W 12VA Brushed nickel
Tunable White 3x2,1W 12VA Brushed nickel

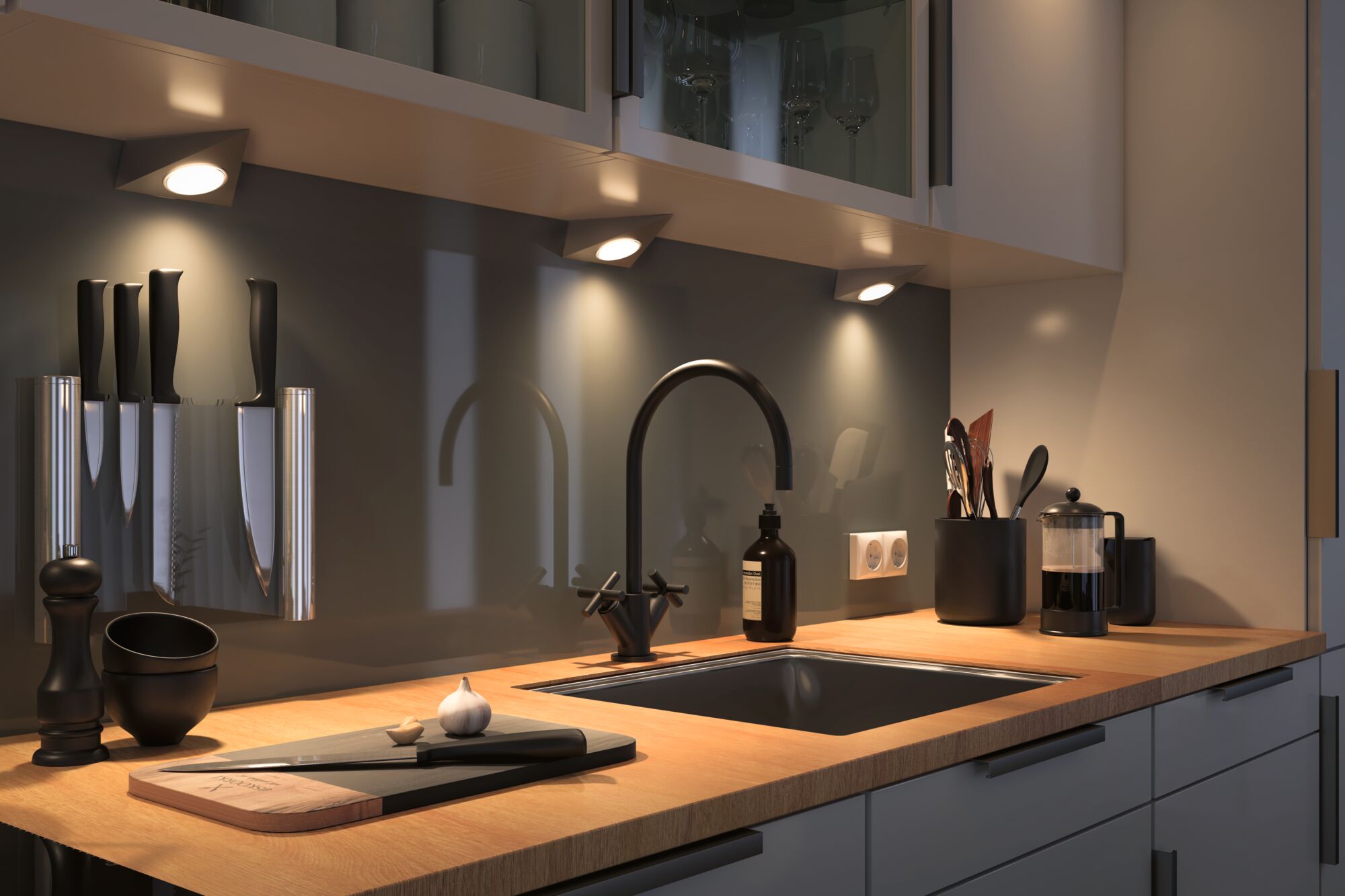

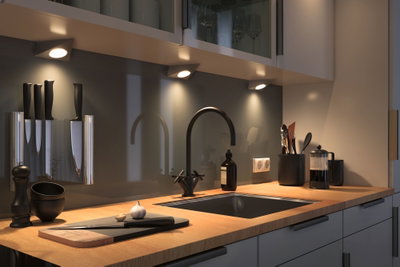

- Cabinet light incl. installation instructions

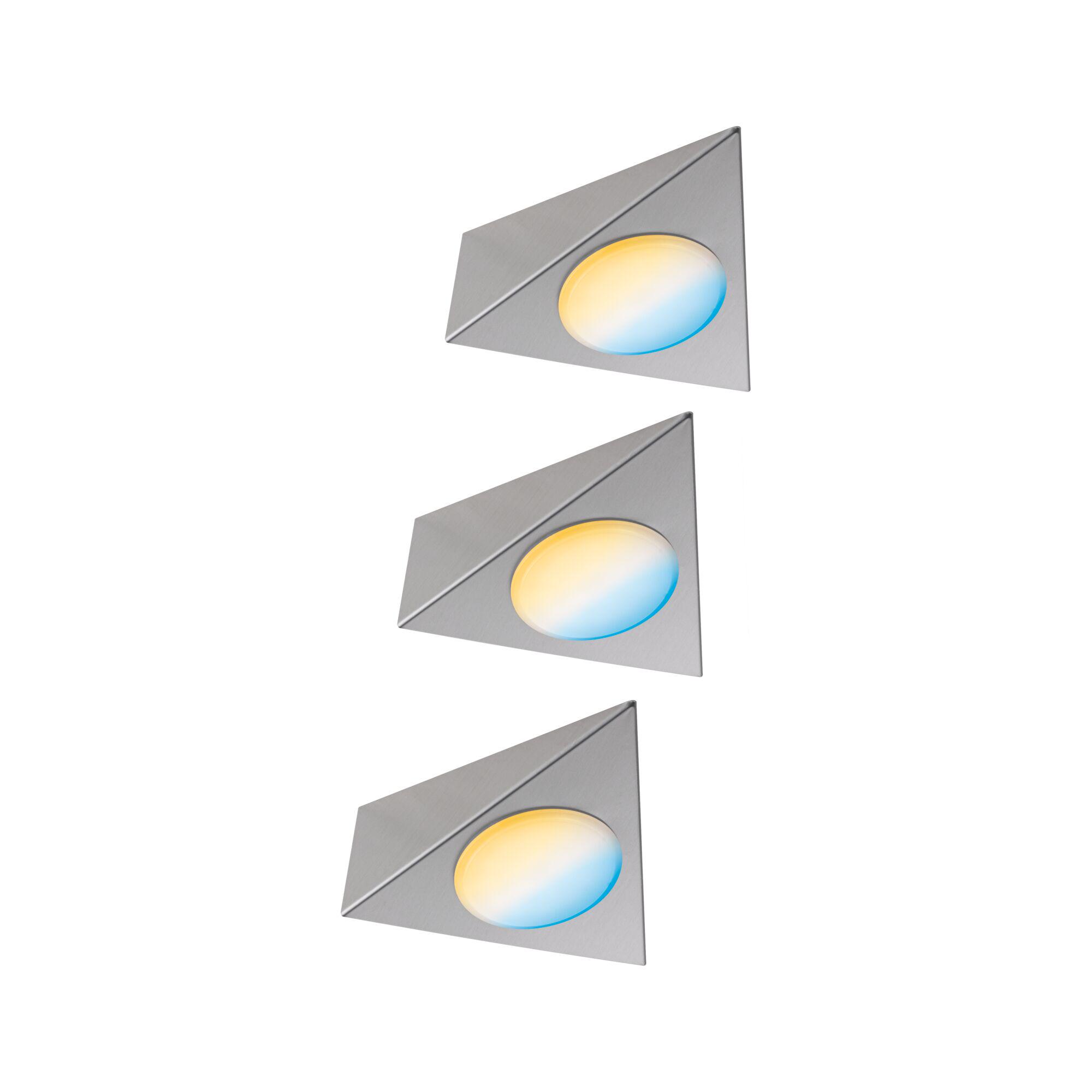

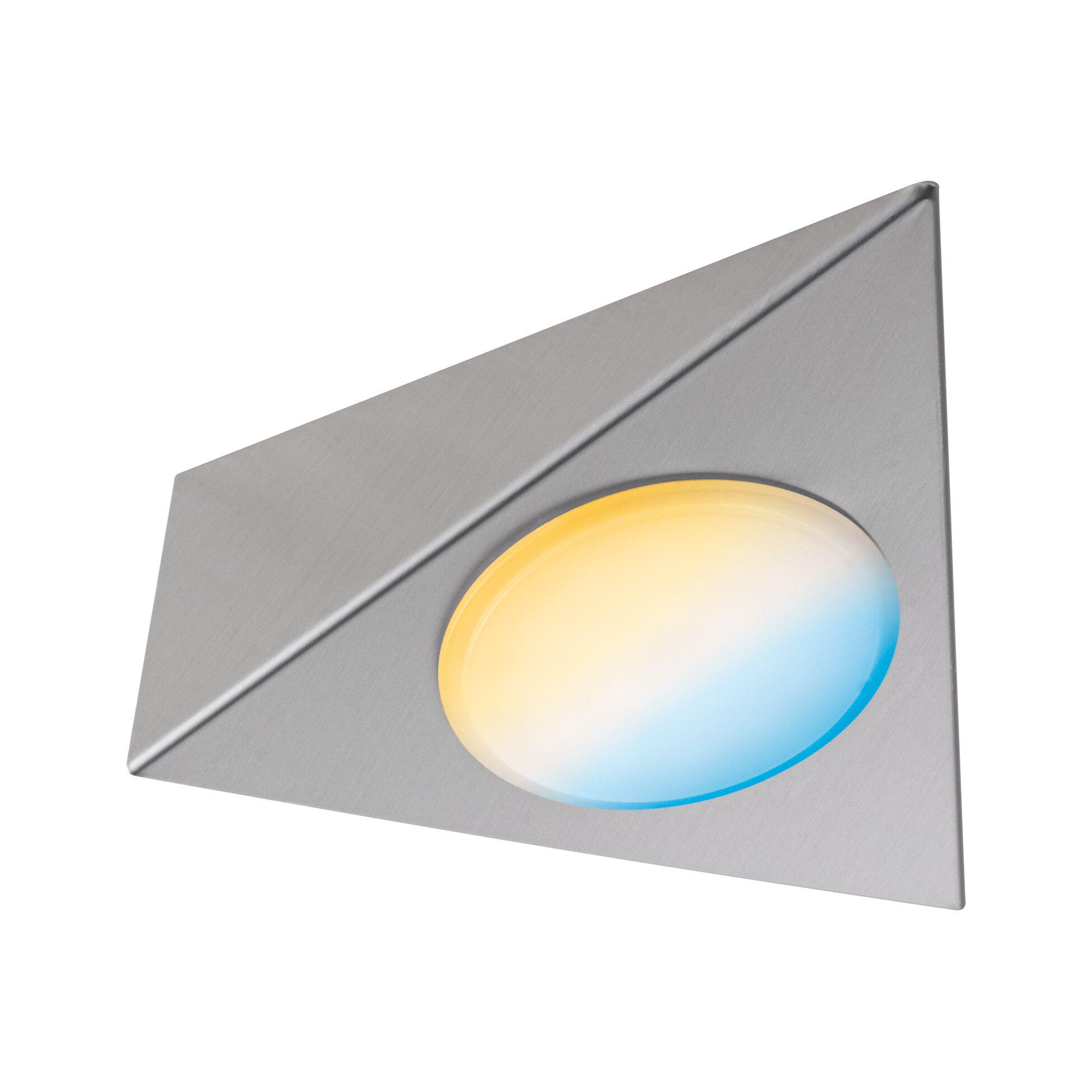

- Color temperatur: 2700K - Warm white - 6500K -Daylight white
- Easy plug-in system for hassle-free assembly
Clever Connect LED Spot Trigo Tunable White 3x2,1W 12VA Brushed nickel

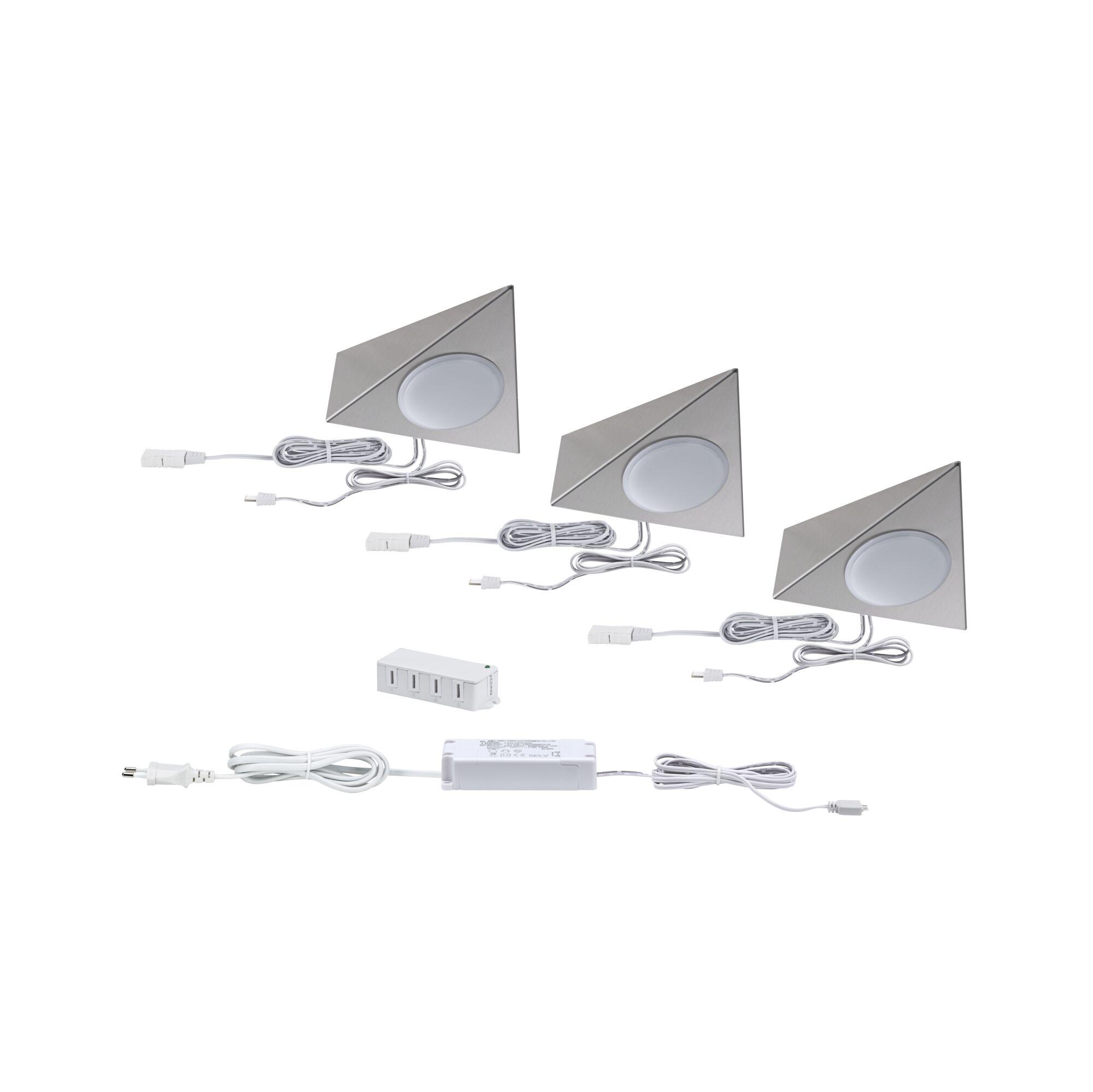

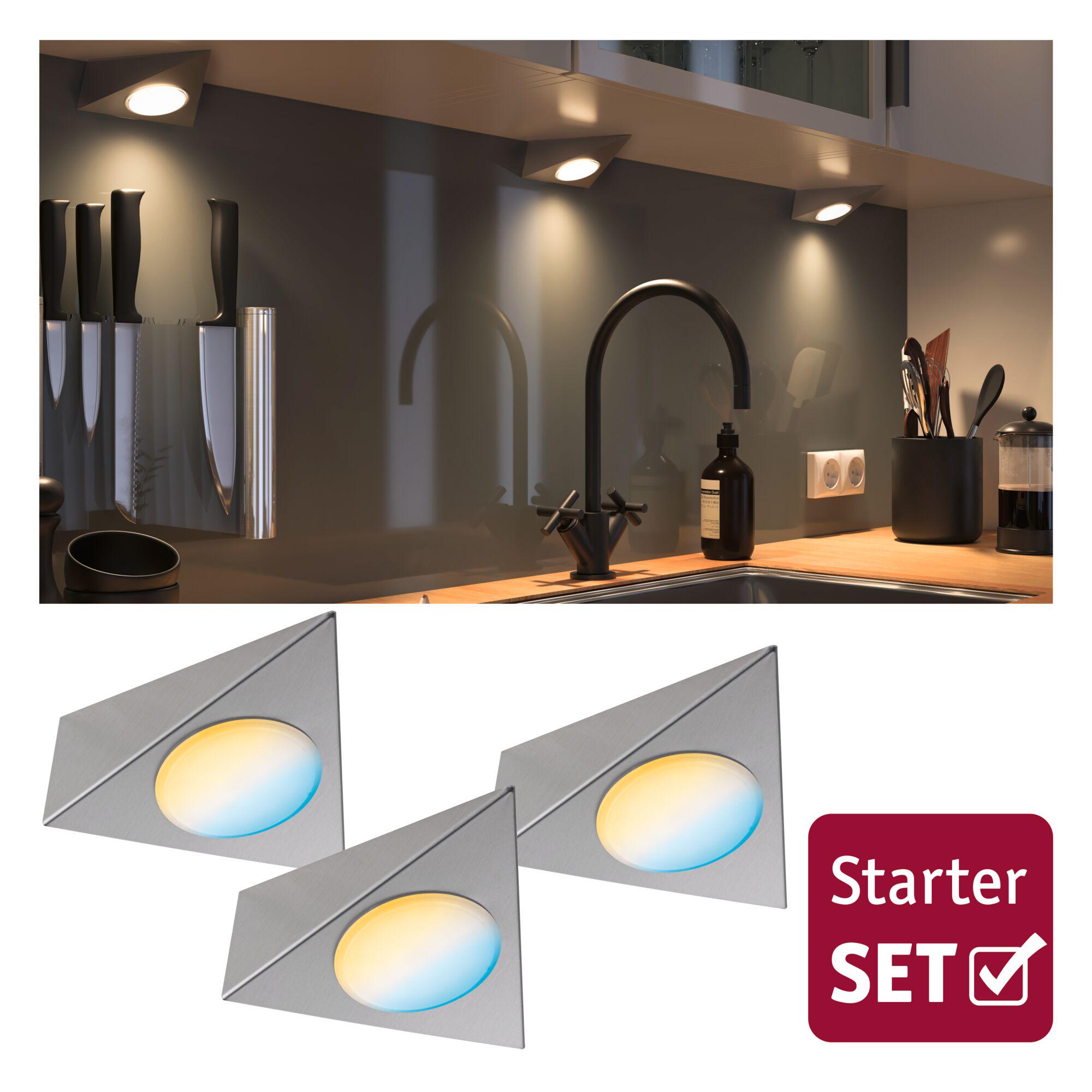

The Trigo starter set is preconfigured for an easy introduction to the system for beginners. Clever Connect offers individual furniture lighting in one system. The luminaires, driver and accessories can be freely combined and are easy to install. The tunable white function combines "work" and "mood lighting” to create a custom lighting mood. Thanks to unlimited cable length, the system can be endlessly expanded.
- Cabinet light incl. installation instructions
- Color temperatur: 2700K - Warm white - 6500K -Daylight white
- Easy plug-in system for hassle-free assembly
- Remote control not included, please order separately if required.
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 45 x B: 124 x T: 141 mm |
| Design and Material | |
|---|---|
| Colour | Brushed nickel |
| Material | Metal |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 2700 K |
| Nominal luminous flux | 120 lm |
| Luminous flux LED module | 190 lm |
| Color rendering index | > 80 Ra |
| Colour change | Tunable White |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with remote control |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 17 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 2,1 W |
| Number of component parts | 3x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 8,2 W |
| Adjustability | fixed |
| Voltage | 230/12 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| apparent power | 10 VA |
| Transformer power range | 12 VA |
| Transformer height | 21 mm |
| Transformer width | 46 mm |
| Transformer depth | 100 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
