Article-No.:
99975
Clever Connect
LED Spot
Disc
Tunable White 3x2,1W 12VA Matt white
Tunable White 3x2,1W 12VA Matt white

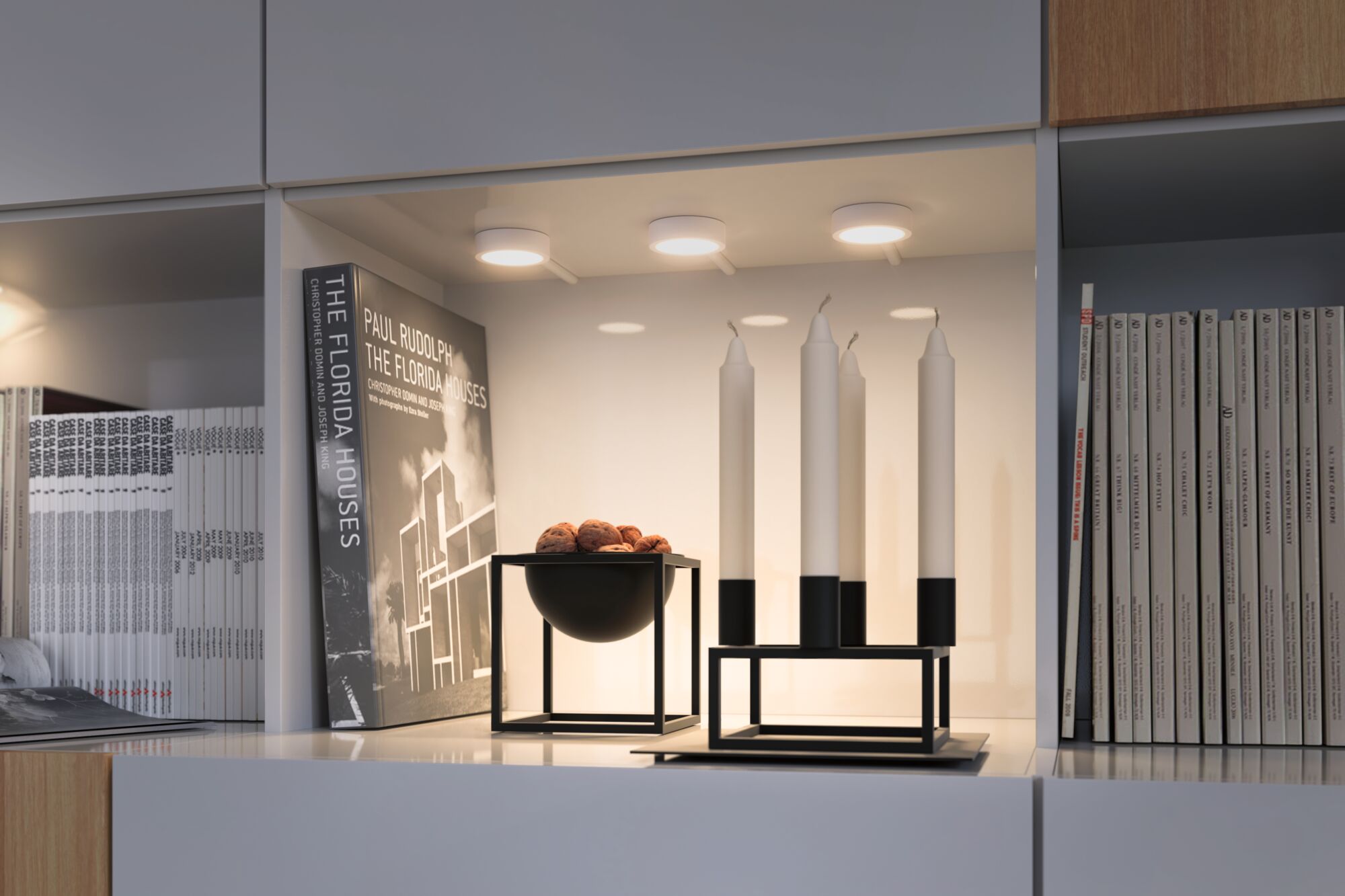

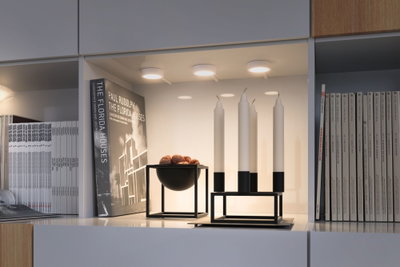

- Cabinet light incl. installation instructions
- Color temperatur: 2700K - Warm white - 6500K -Daylight white
- Easy plug-in system for hassle-free assembly

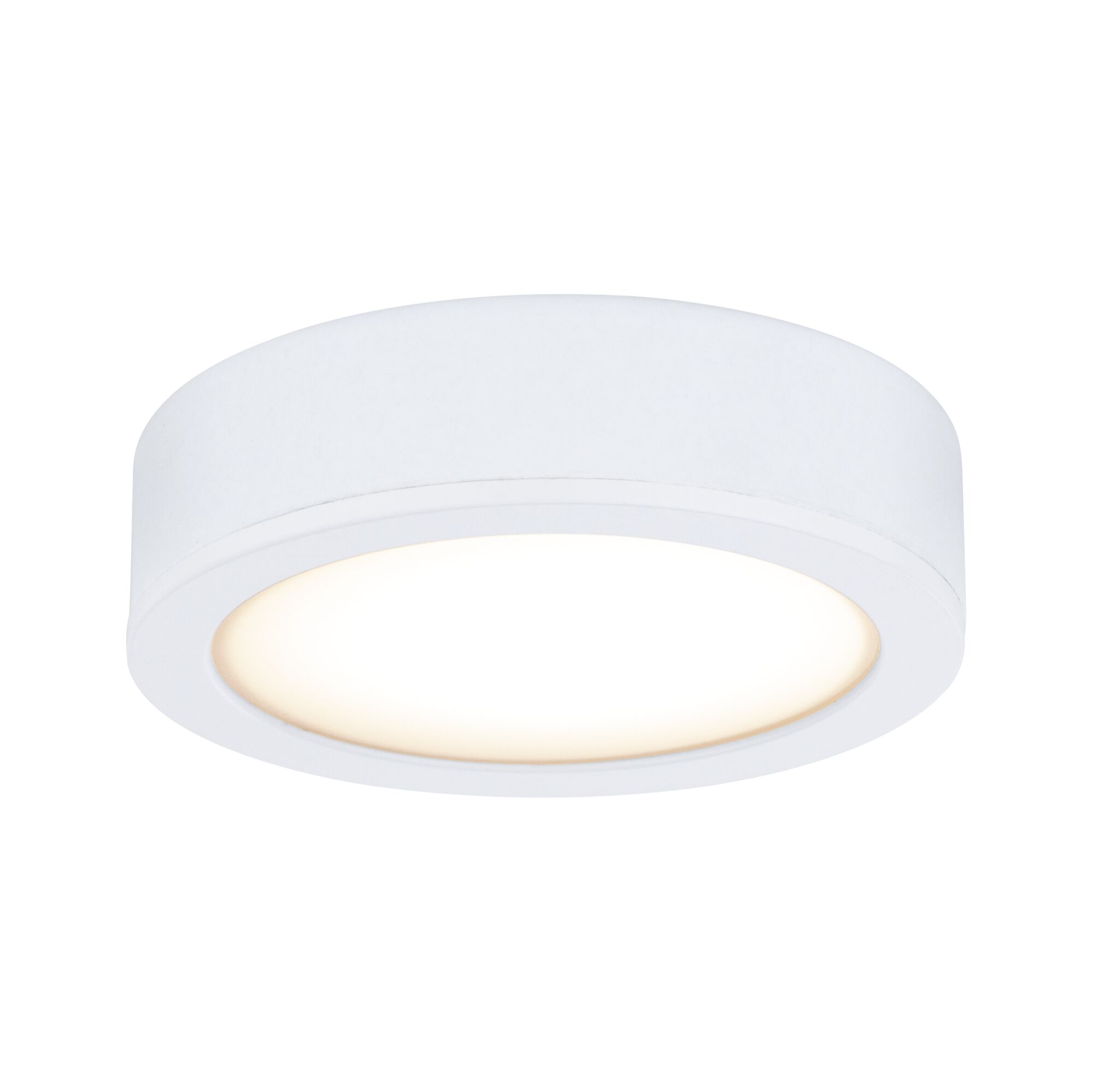

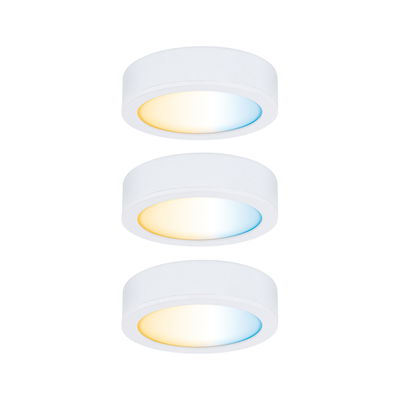

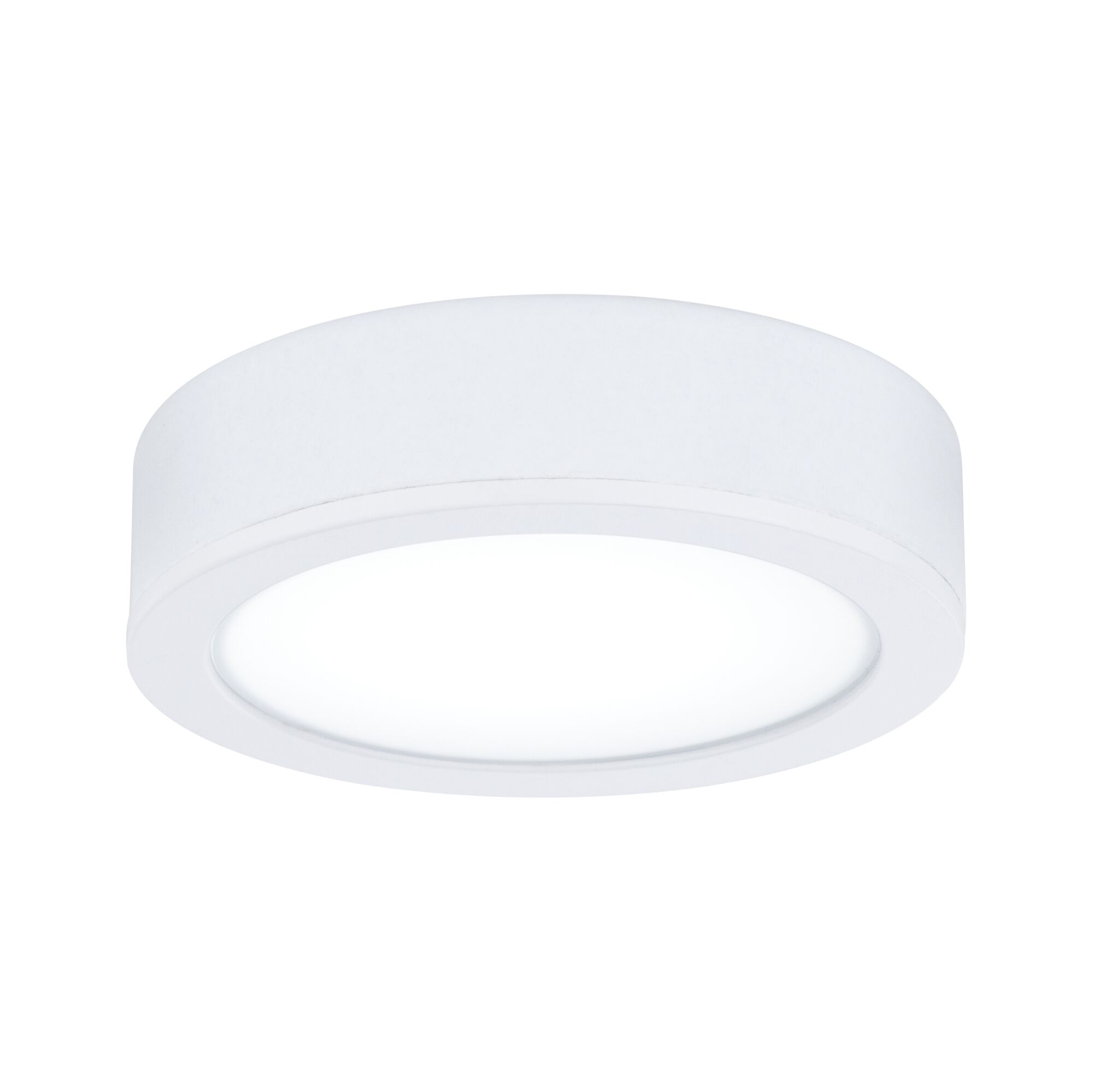

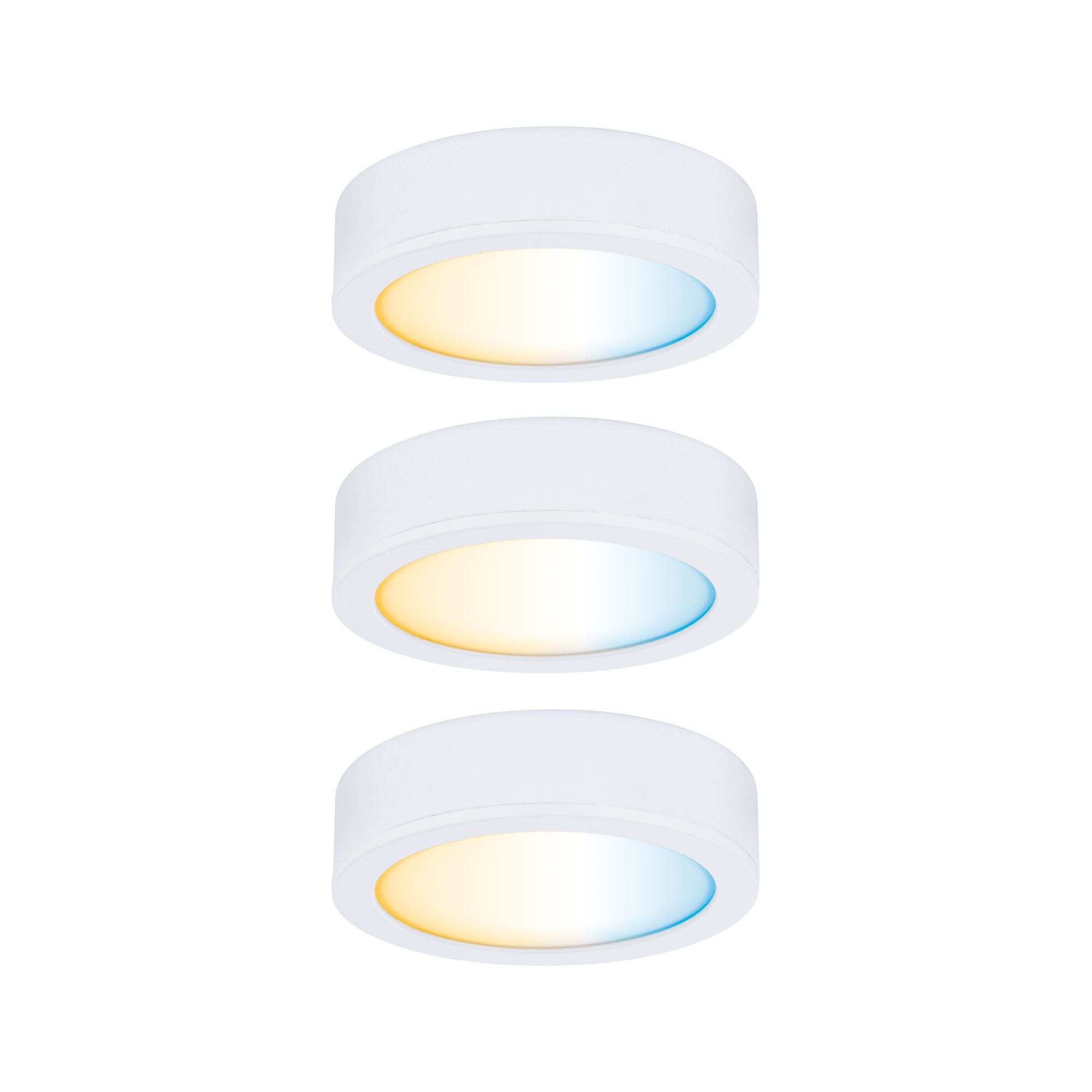

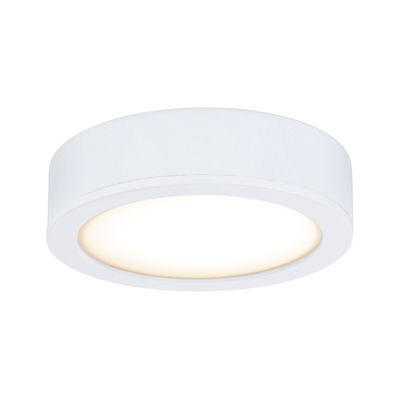

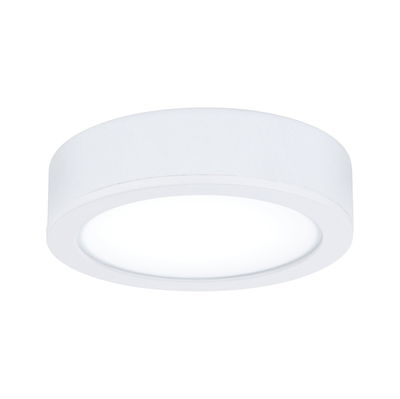

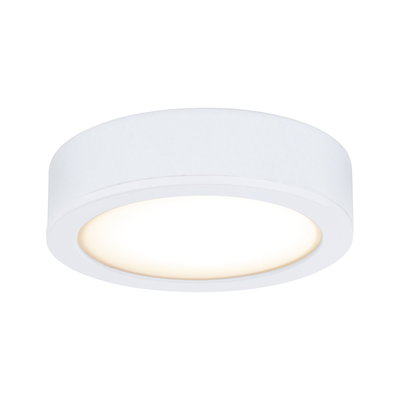

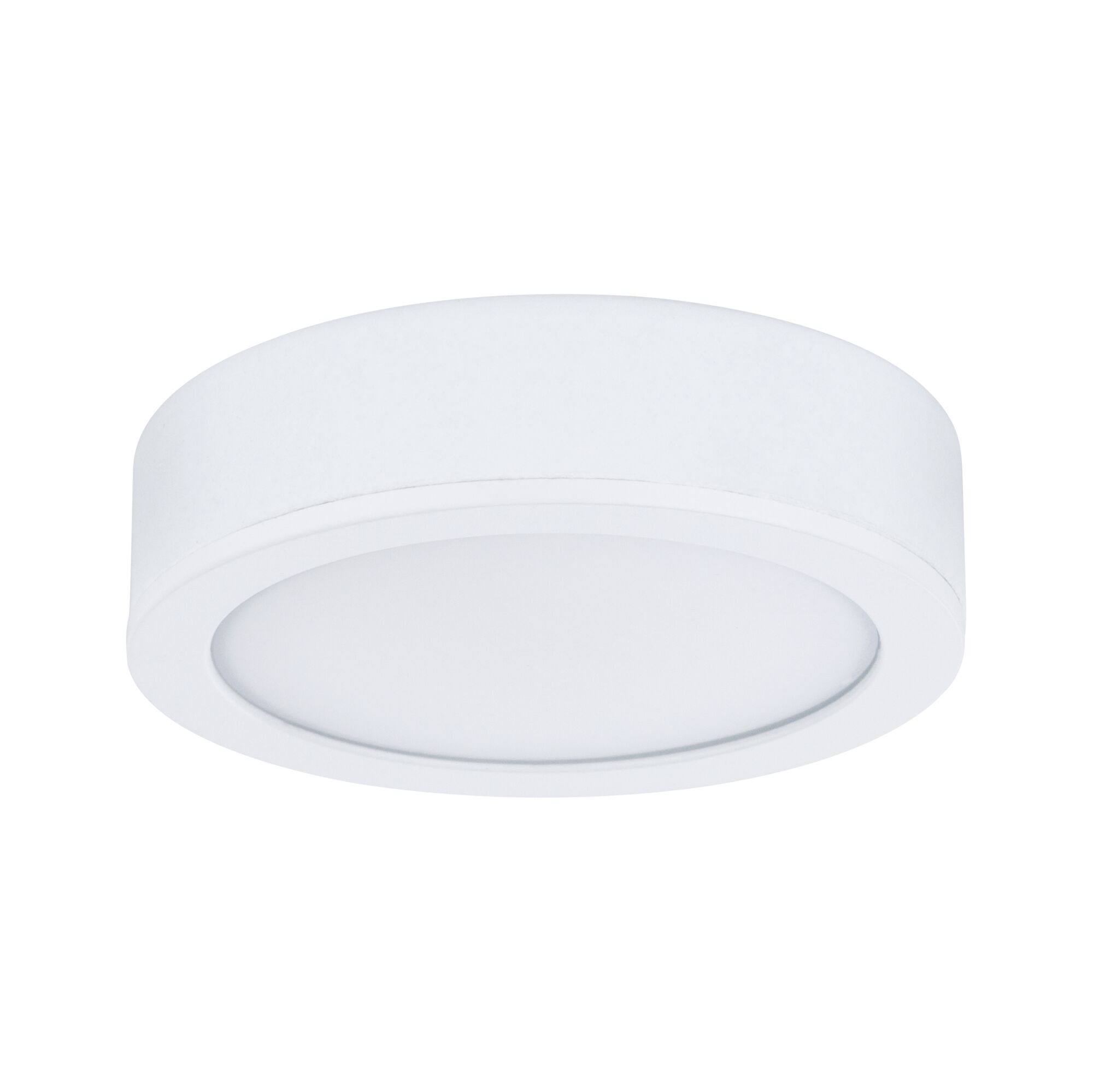

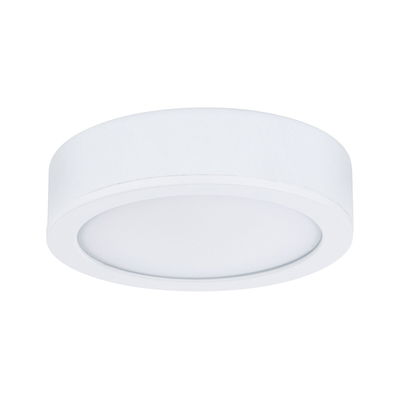

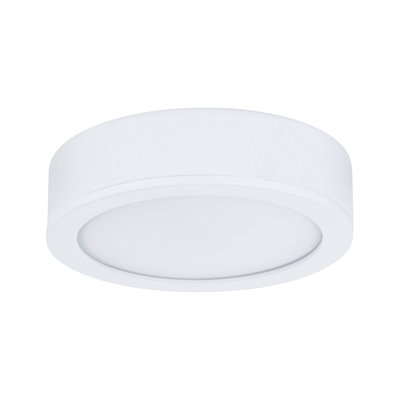

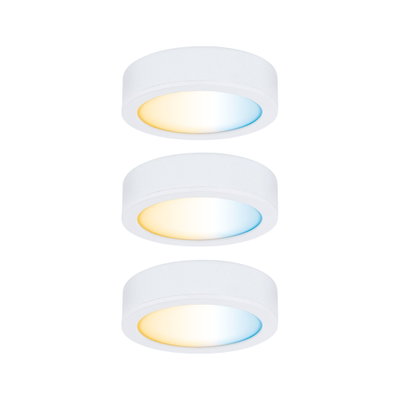

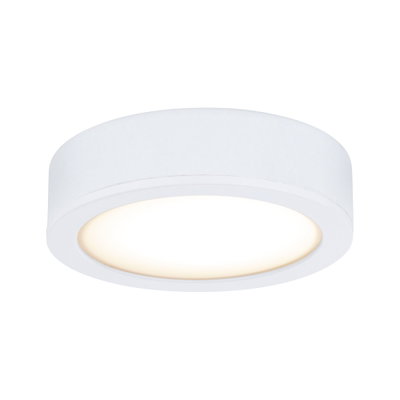

Clever Connect LED Spot Disc Tunable White 3x2,1W 12VA Matt white

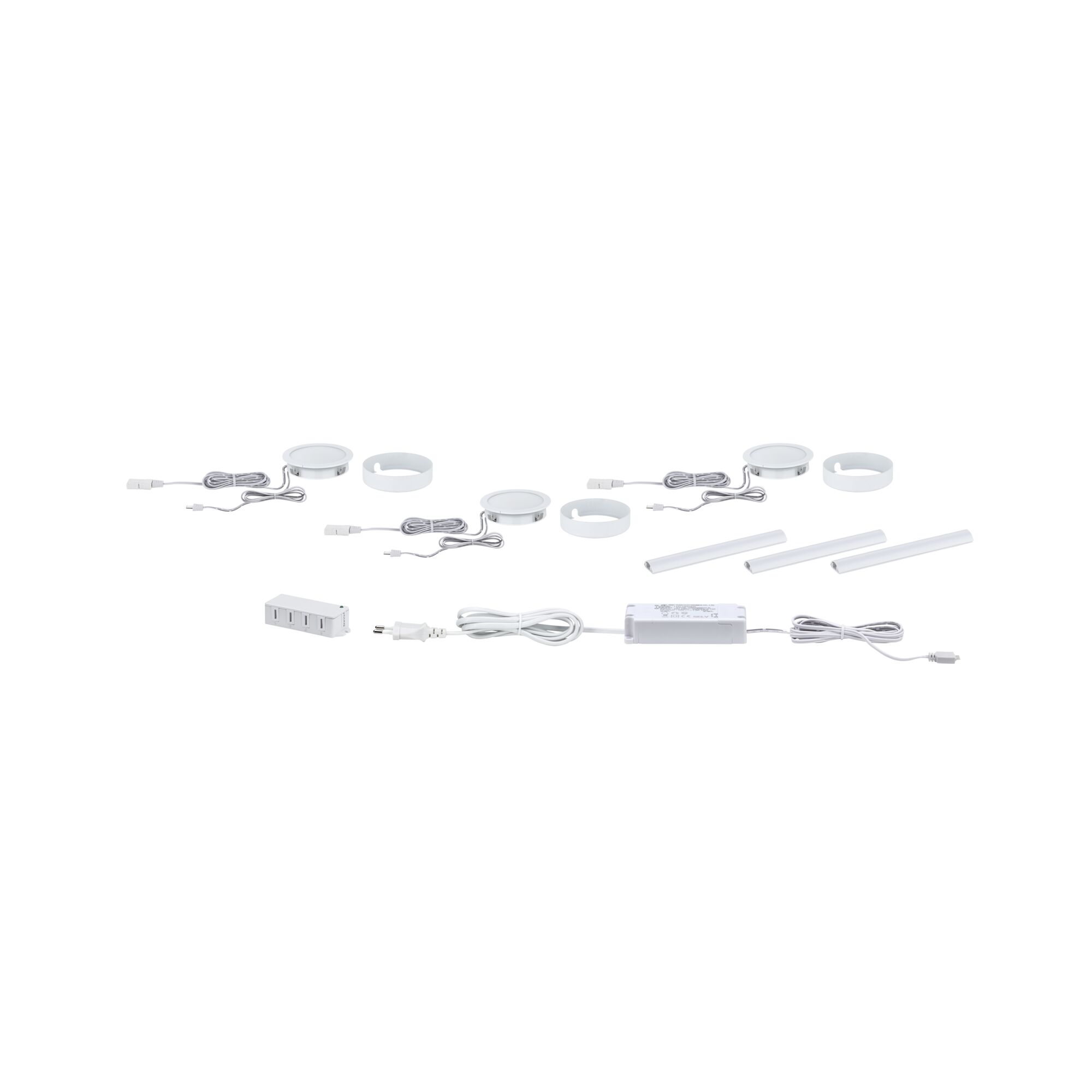

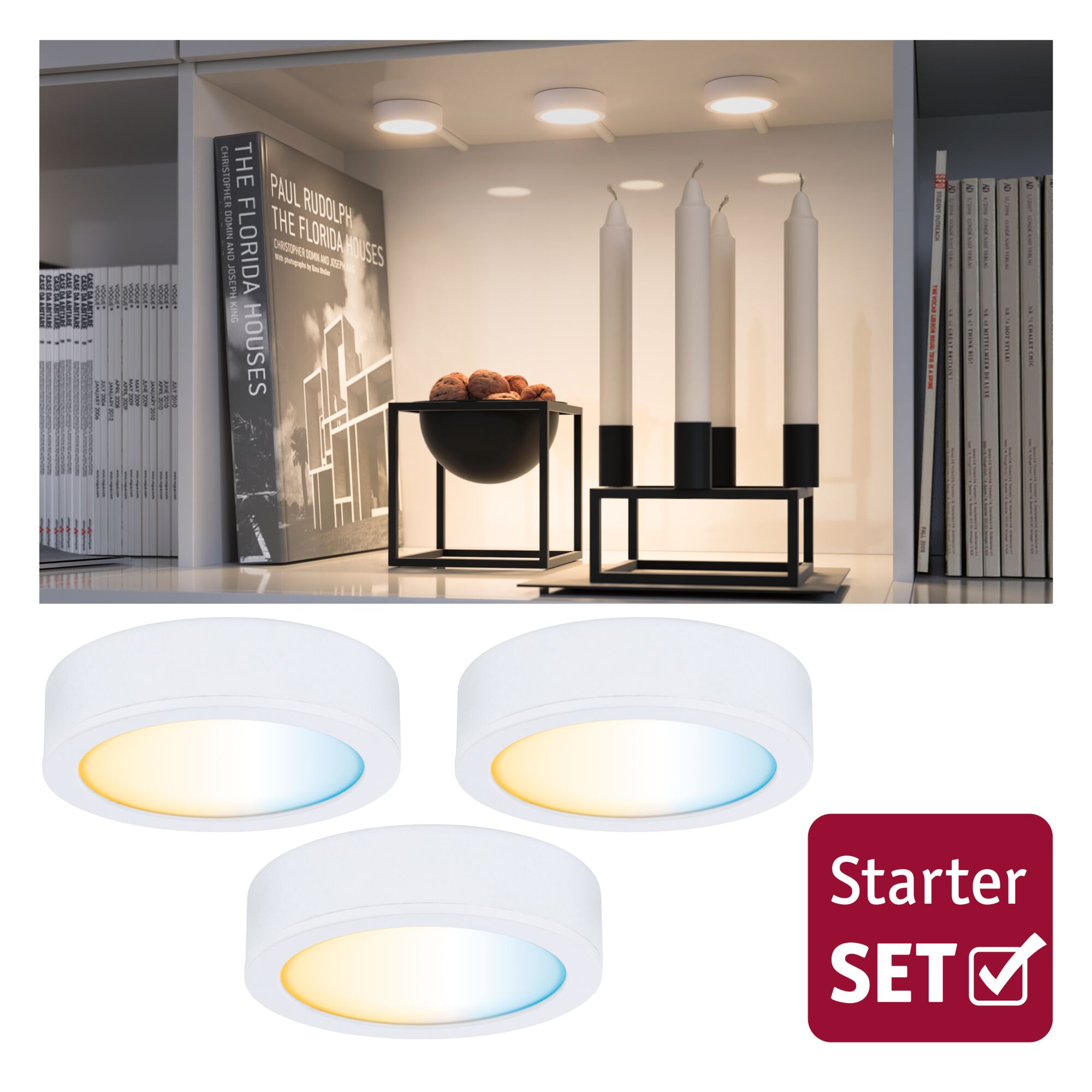

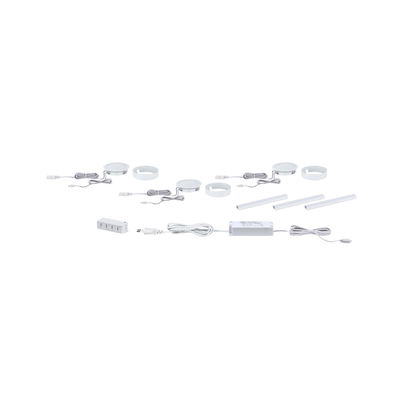

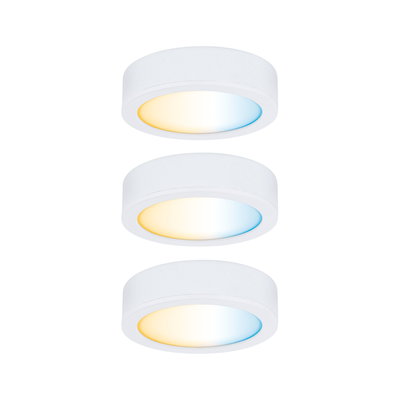

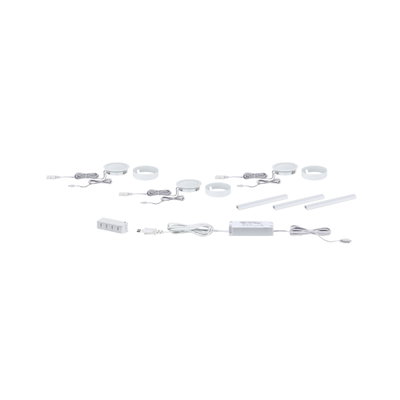

The Disc starter set is preconfigured for an easy introduction to the system for beginners. Clever Connect offers individual furniture lighting in one system. The luminaires, driver and accessories can be freely combined and are easy to install. The tunable white function combines "work" and "mood lighting” to create a custom lighting mood. Thanks to unlimited cable length, the system can be endlessly expanded.
- Cabinet light incl. installation instructions
- Color temperatur: 2700K - Warm white - 6500K -Daylight white
- Easy plug-in system for hassle-free assembly
- Remote control not included, please order separately if required.
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 17 mm |
| Ø | 65 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Matt white |
| Material | Plastic |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Colour change | Tunable White |
| Usable luminous flux | 85 lm |
| Luminous flux LED module | 175 lm |
| color temp | 2700 - 6500 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 2,1 W |
| Technique | LED |
| IP protection | IP20 |
| Dim | with remote control |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 18 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 8 W |
| Transformer | |
|---|---|
| Transformer power | 12 VA |
| apparent power | 9.66 VA |
| Transformer height | 21 mm |
| Transformer width | 46 mm |
| Transformer depth | 100 mm |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
