Article-No.: 94136

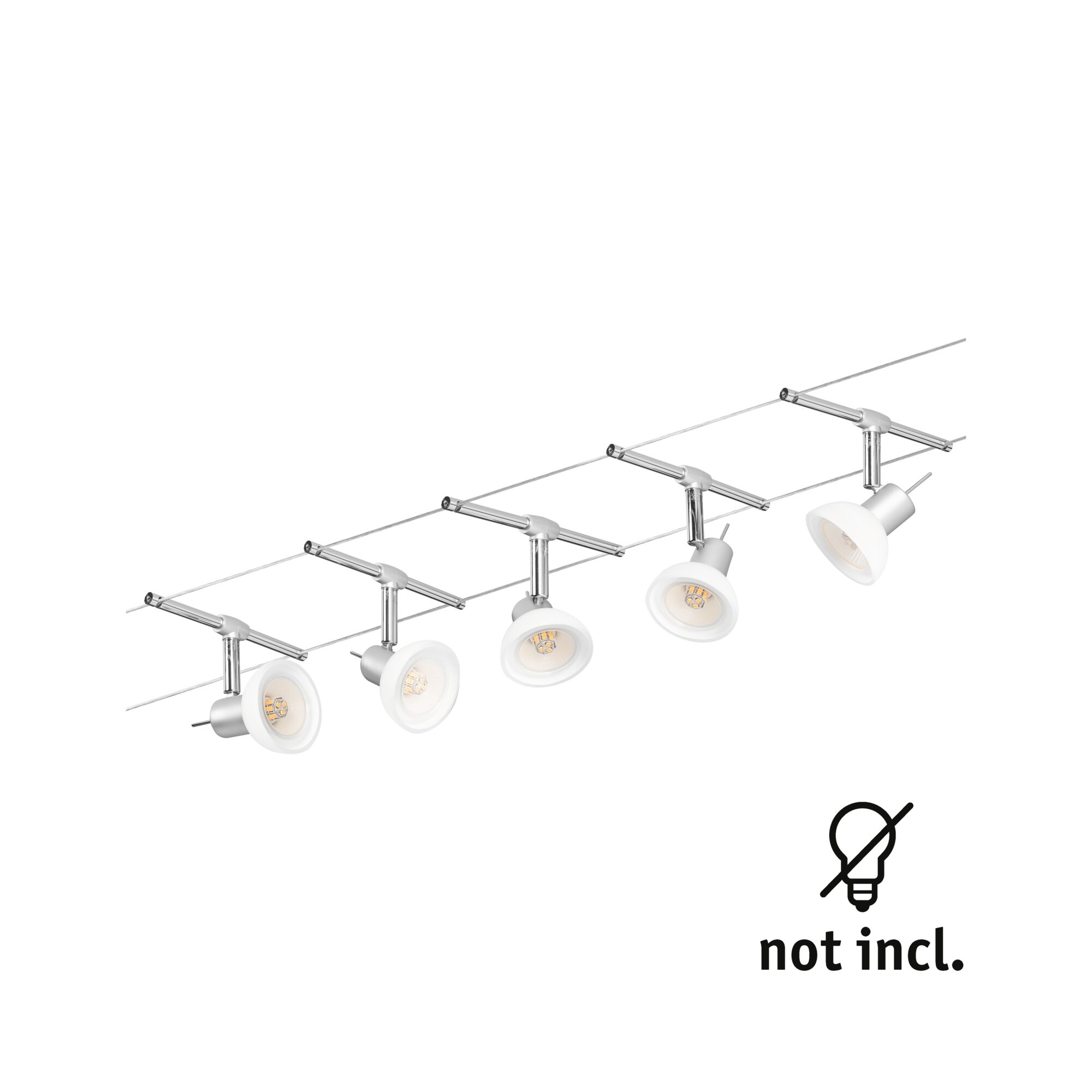

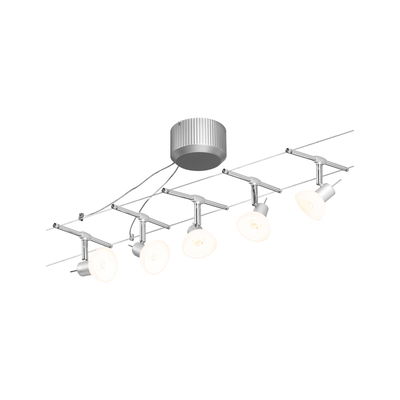

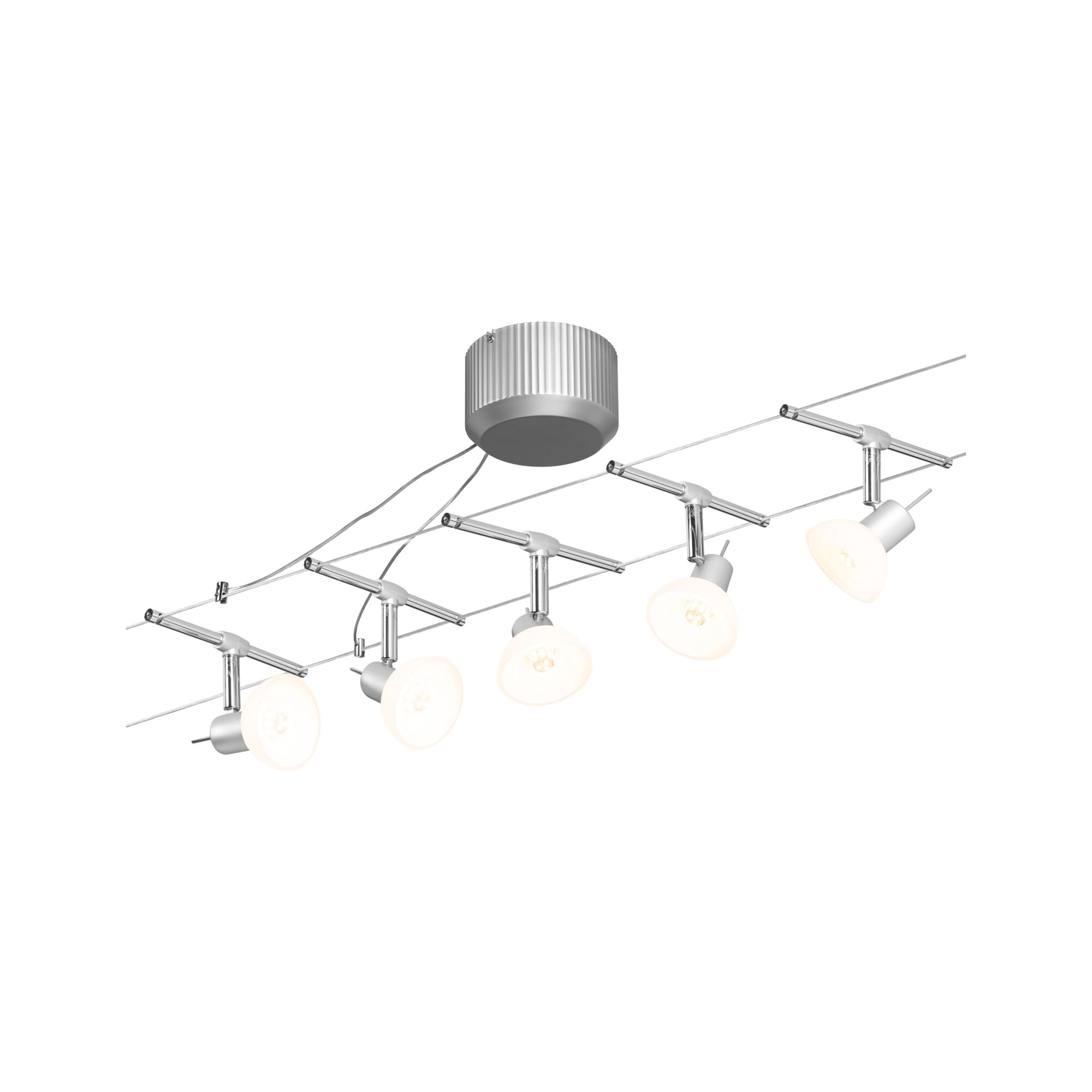

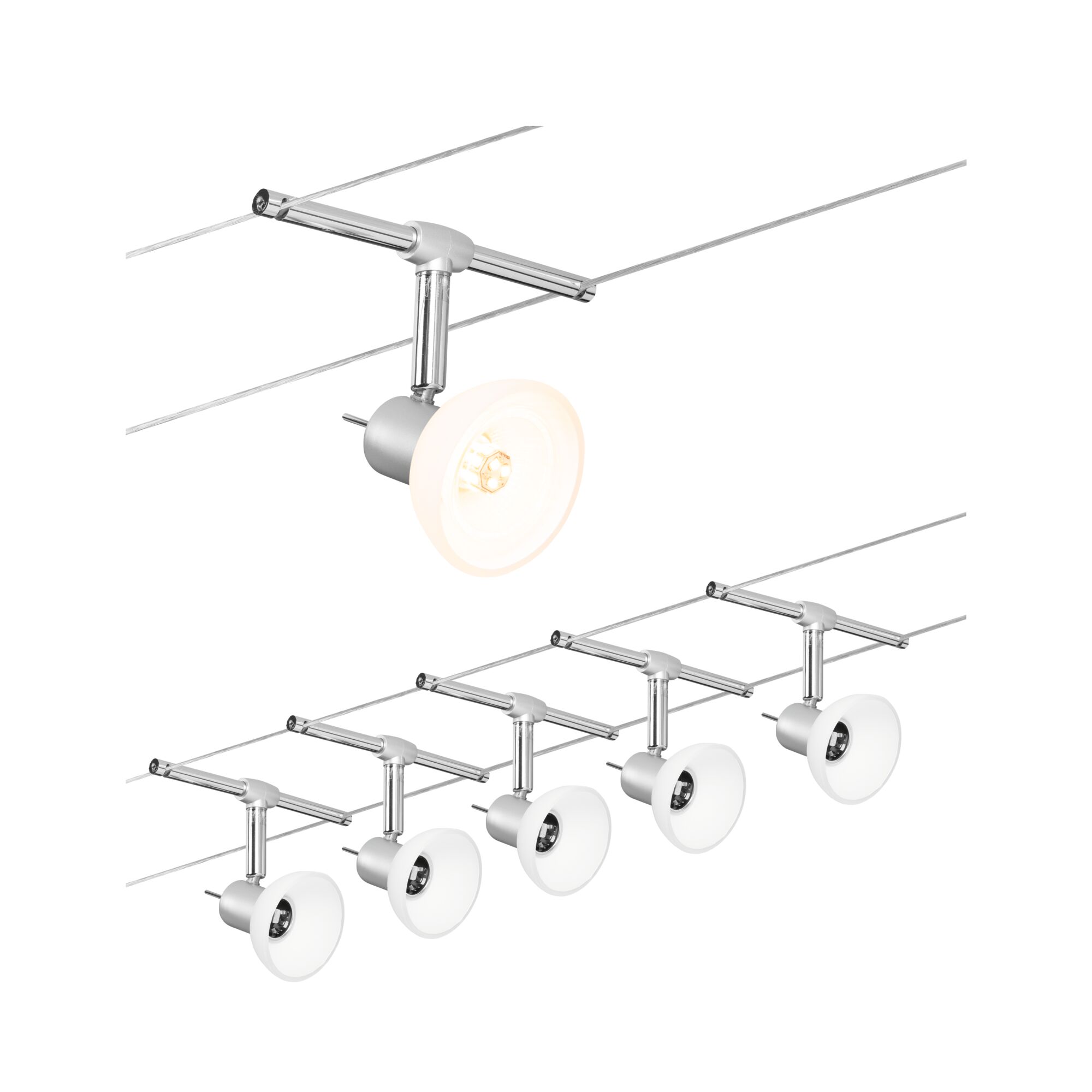

Cable system Sheela Basic Set
GU5,3 max. 5x10W dimmable 230/12V Chrome matt/Opal

Version: 5 spots

5 spots

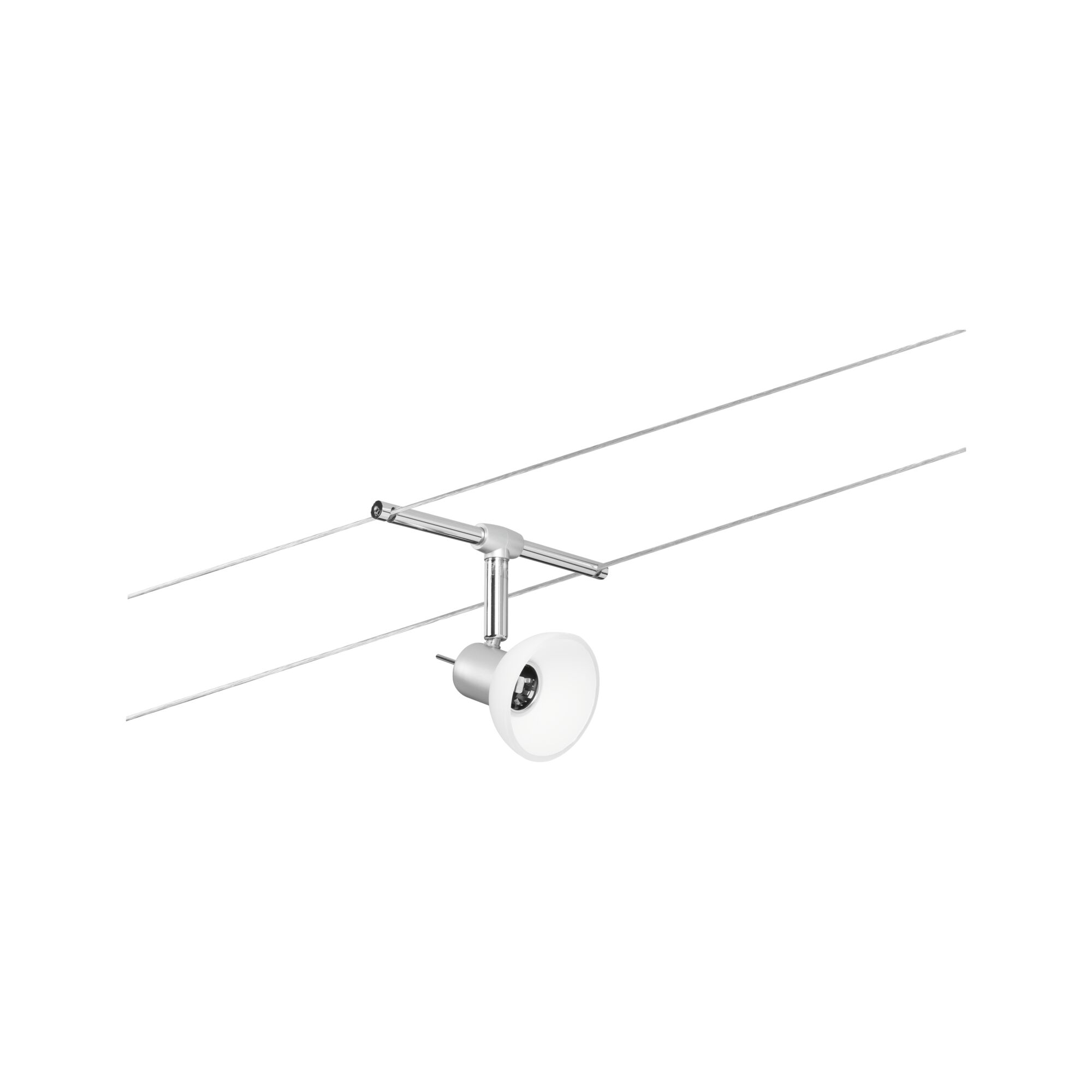

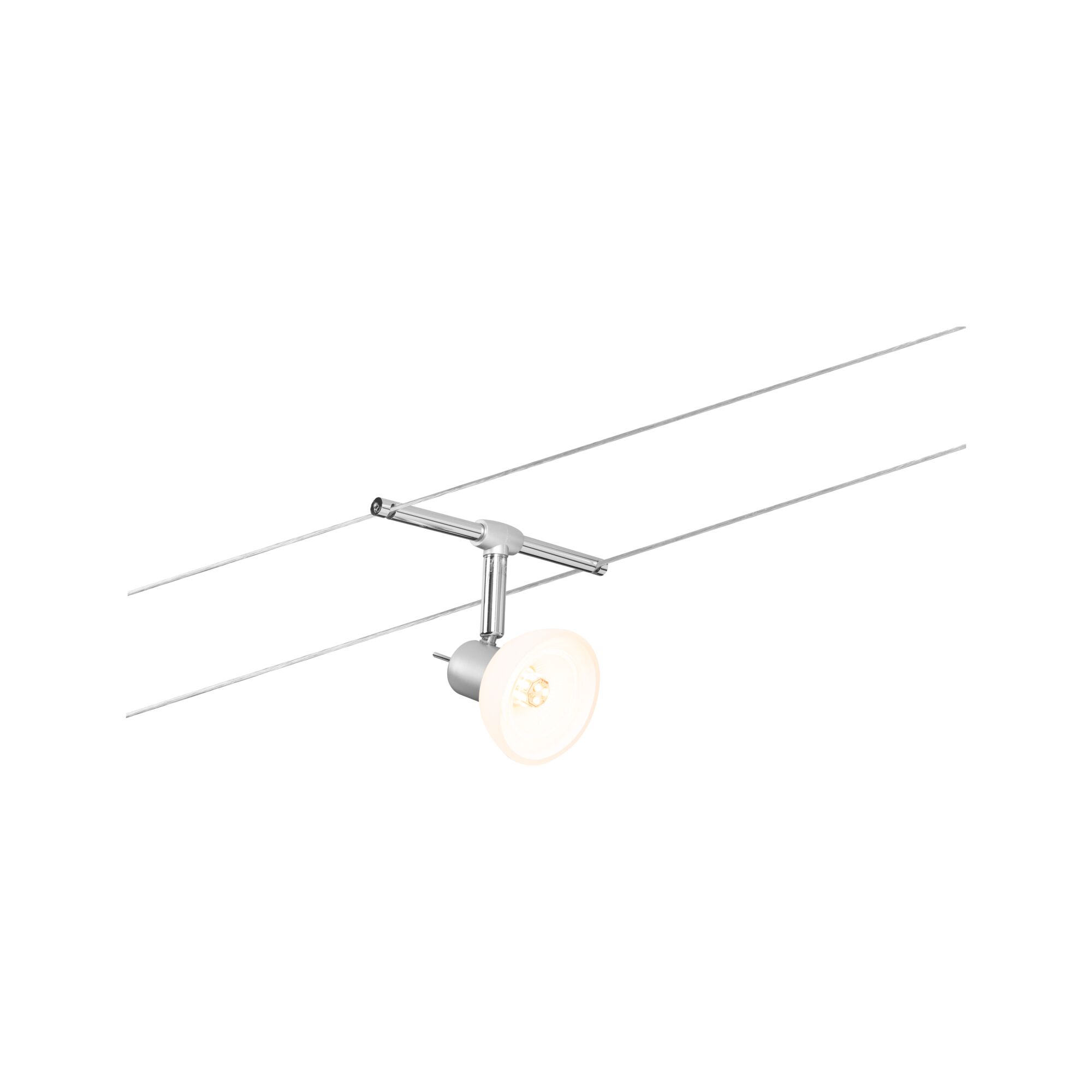

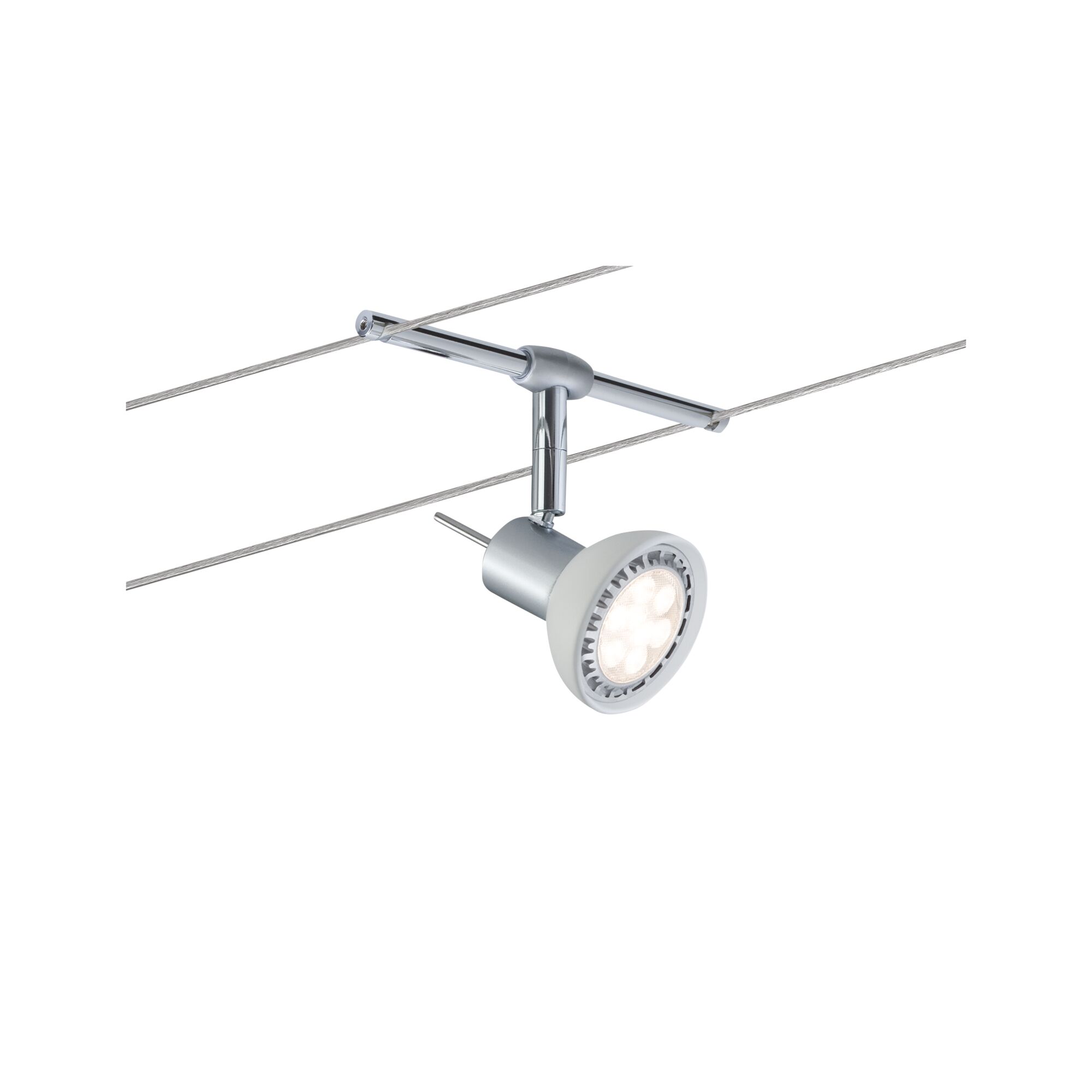

Individual Spot

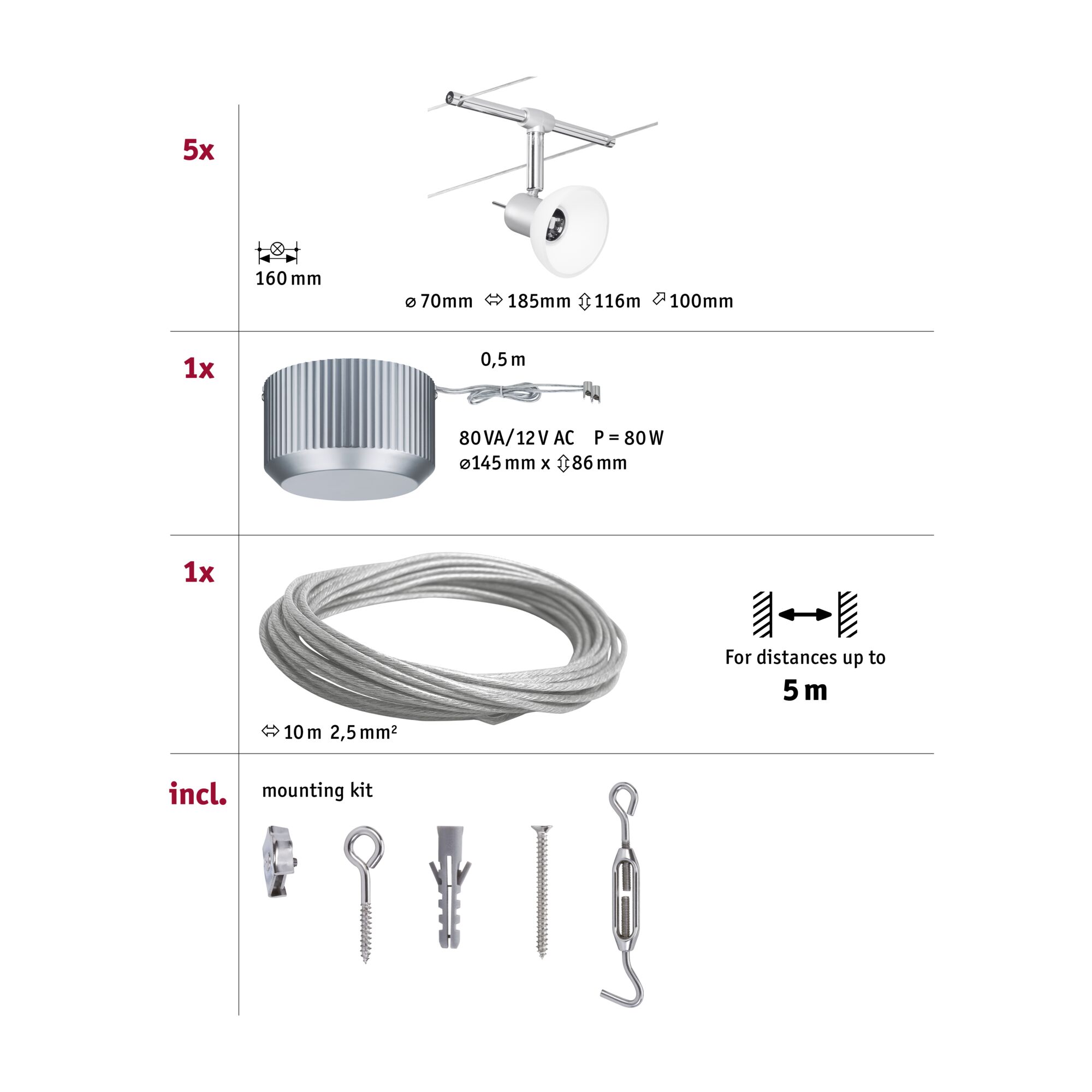

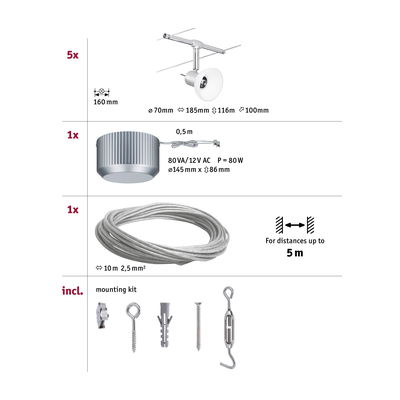

Complete set consisting of transformer, cable, spots and installation instructions
Ideal for illuminating large and angled spaces
Freely selectable lamps

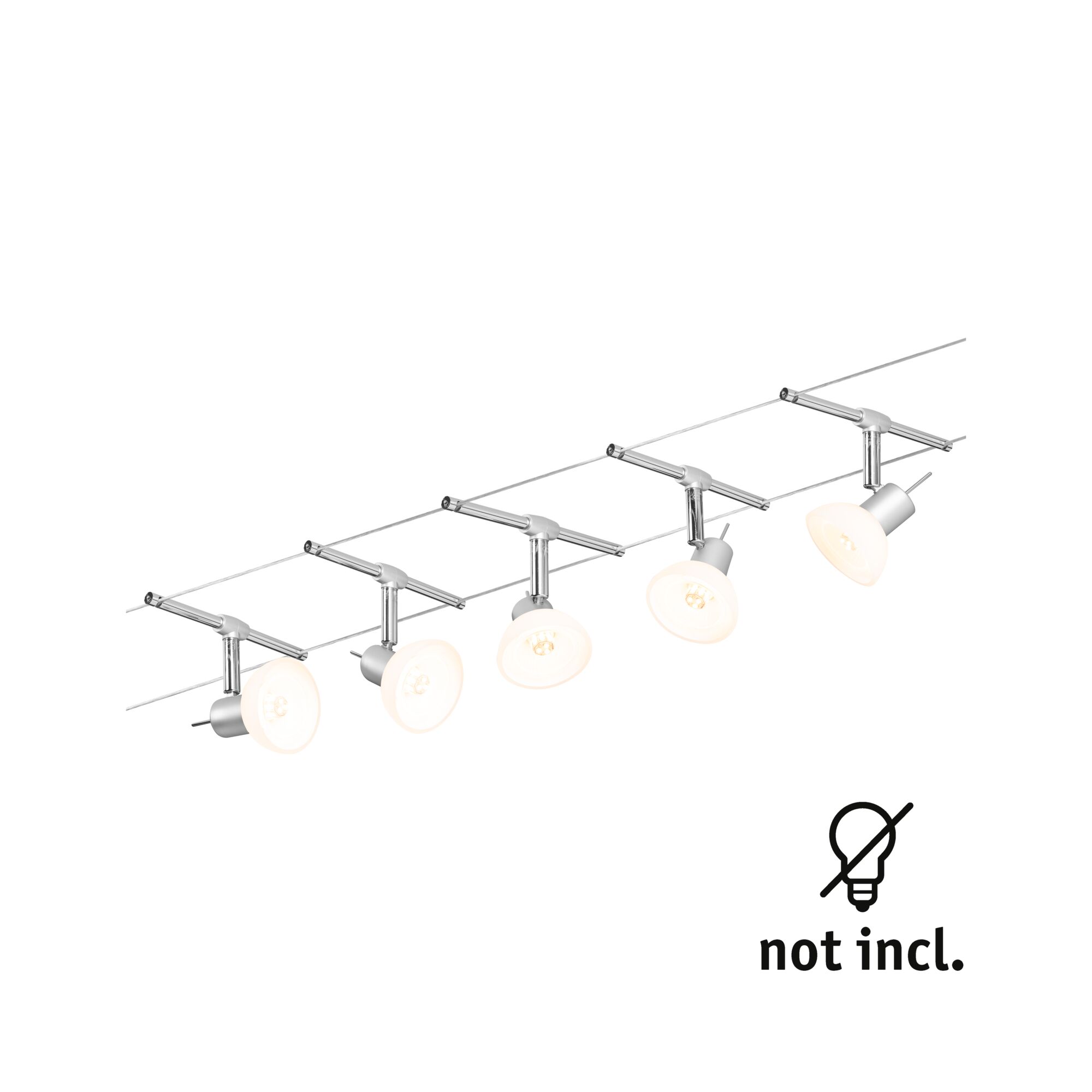

Cable system Sheela Basic Set GU5,3 max. 5x10W dimmable 230/12V Chrome matt/Opal

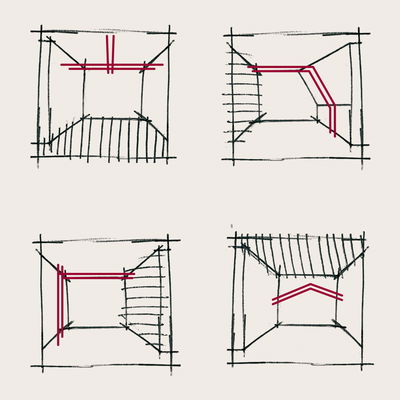

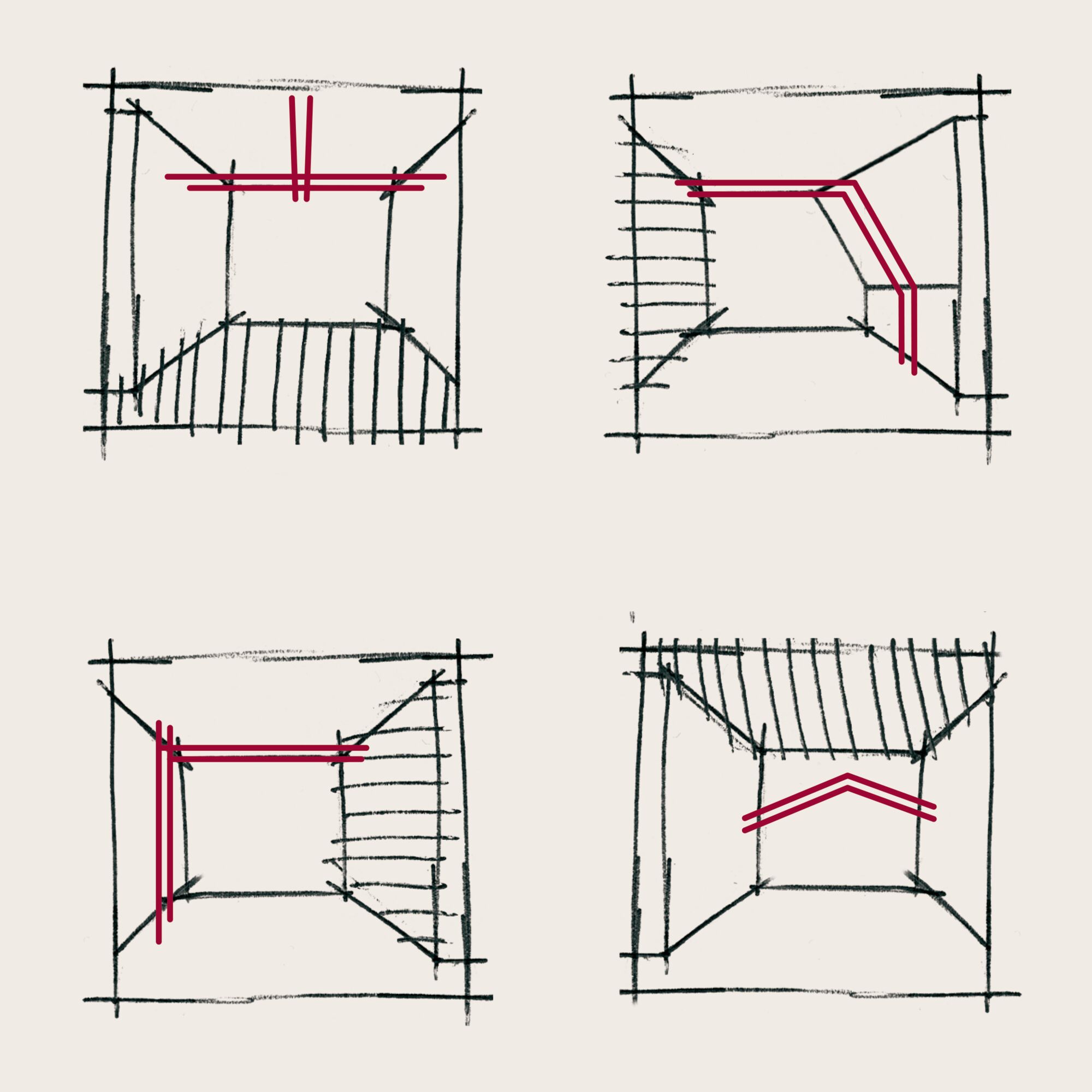

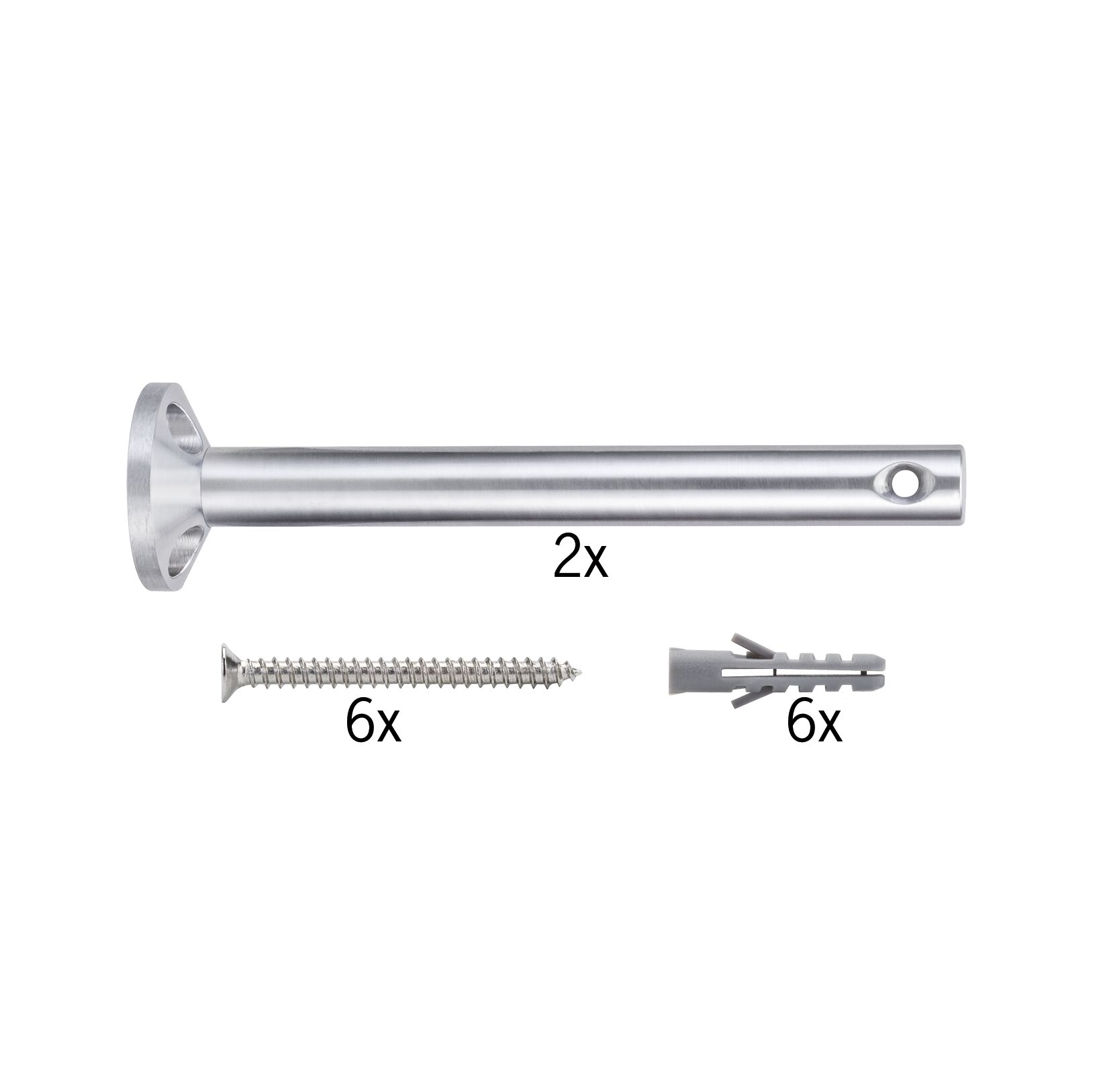

Whether straight, pitched or angled - cable systems fit into every room. The Sheela series can be installed on the wall or on the ceiling, thus offering unlimited design possibilities. The basic set can be individually supplemented with individual spots, deflectors and other accessories - please note the maximum transformer load.

Complete set consisting of transformer, cable, spots and installation instructions
Ideal for illuminating large and angled spaces
Freely selectable lamps

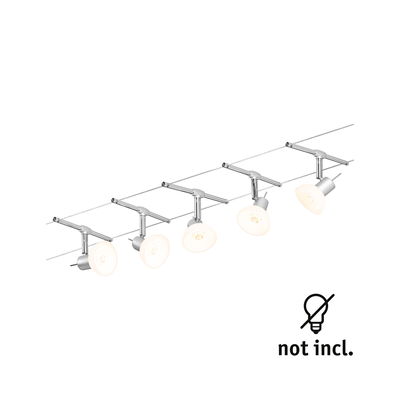

Don’t forget: Include a suitable lamp in your order!
Suitable for wall and ceiling mounting

Dimension
glass length	30 mm
Wire distance	160 mm
Span width	5 m
Ø glass	65 mm
Dimensions (Height x Width x Depth)	H: 116 mm
Length	10 m

Design and Material
Colour	Opal, Chrome matt
Material	Metal, Glass

Installation
Installation site (recommendation)	Wall and ceiling mounting

Lamp Features
Technique	Lamp without bulb
Socket	GU5,3
Dimmable	The luminaire is dimmable, and the dimming capability depends on the type of lamp used.
Inclusive lamp	no
Maximum wattage range	max. 5x10 W
Number of component parts	5x
Replacable	1 Lightsource is replaceable without damage the lighting fixture by enduser.\|5 Control gear is replaceable without damage the lighting fixture by electrician.

Transformer
Transformer power	60 VA

Labelling
WEEE-Reg.-No	DE 39236390

Downloads

Manuals

Download Installation/Montage

Flyer and Safety instructions

Safety instructions
