Article-No.:
29099
230 V Standard
LED Pin base 1-piece set Dim
800lm 7,2W 2700K dimmable Clear
800lm 7,2W 2700K dimmable Clear
- Uncomplicated replacement: Simply plugged in thanks to G9 socket
- Color temperatur: 2700K - Warm white
- Dimmable

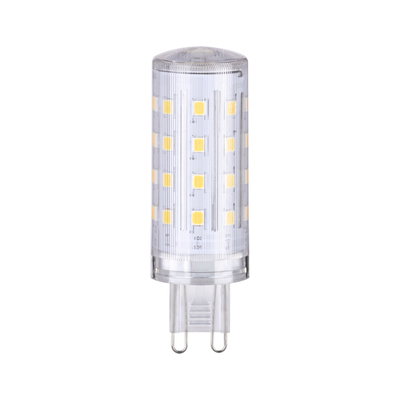

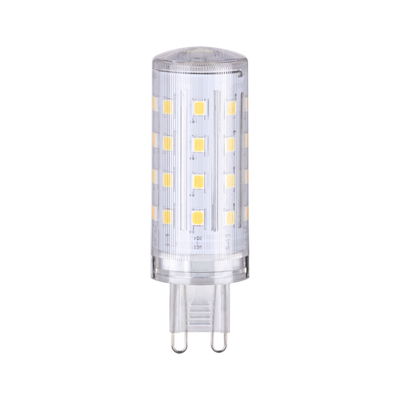

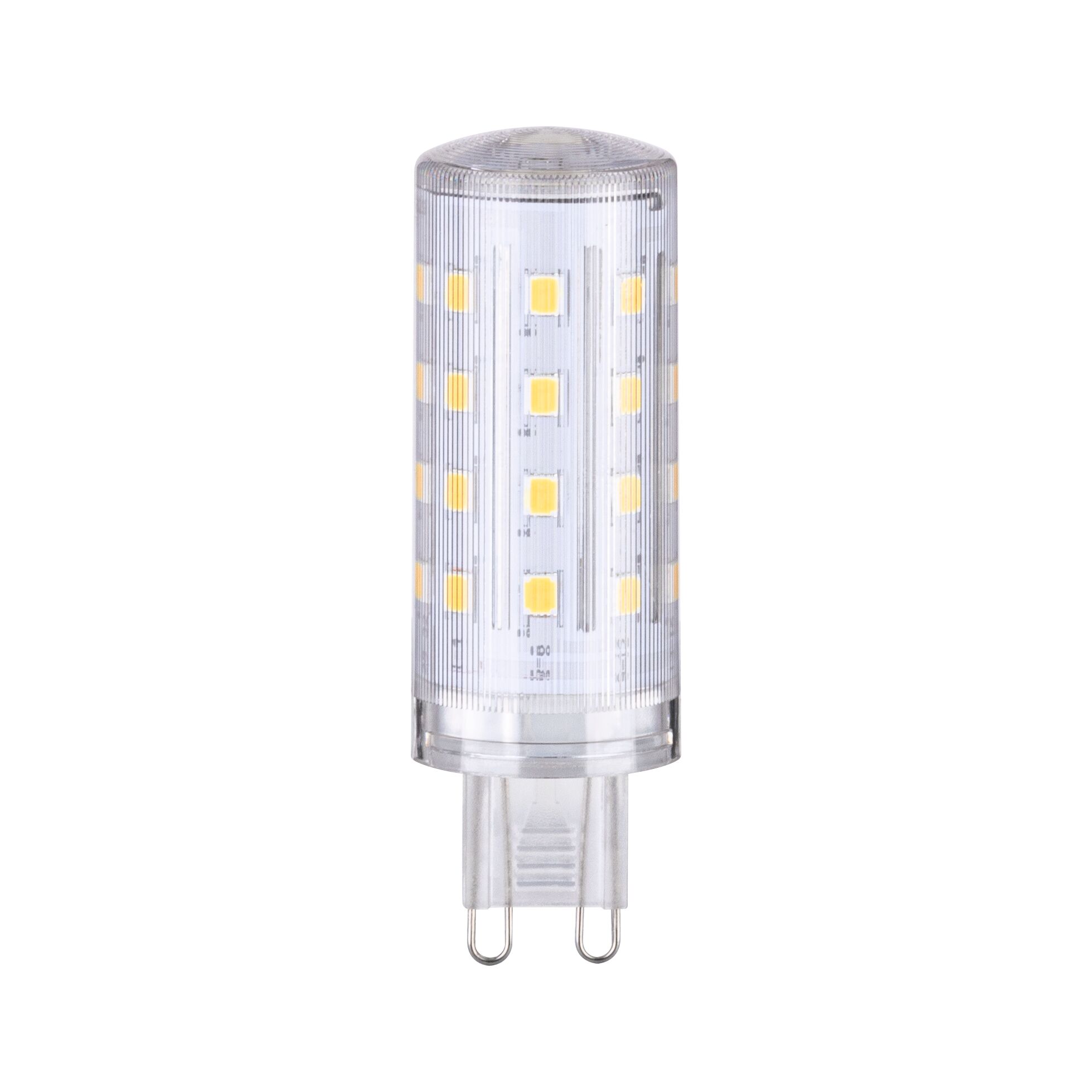

230 V Standard LED Pin base G9 1-piece set Dim 800lm 7,2W 2700K dimmable Clear
The dimmable LED pin base lamp is small, compact and powerful, achieving an output of 800 lumen with a mere 7.2 watts. It is particularly suitable for use in the smallest luminaires or spot heads and ensures effective and uniform light distribution. It is primarily used as a replacement for halogen lamps. The Paulmann LED lamps with the Eye friendly label emit gentle-on-the-eyes, comfortable light. Luminaires help create eye comfort – while working, reading, or relaxing.
- Uncomplicated replacement: Simply plugged in thanks to G9 socket
- Color temperatur: 2700K - Warm white
- Dimmable
- all-around light
- Small and bright
| Dimension | |
|---|---|

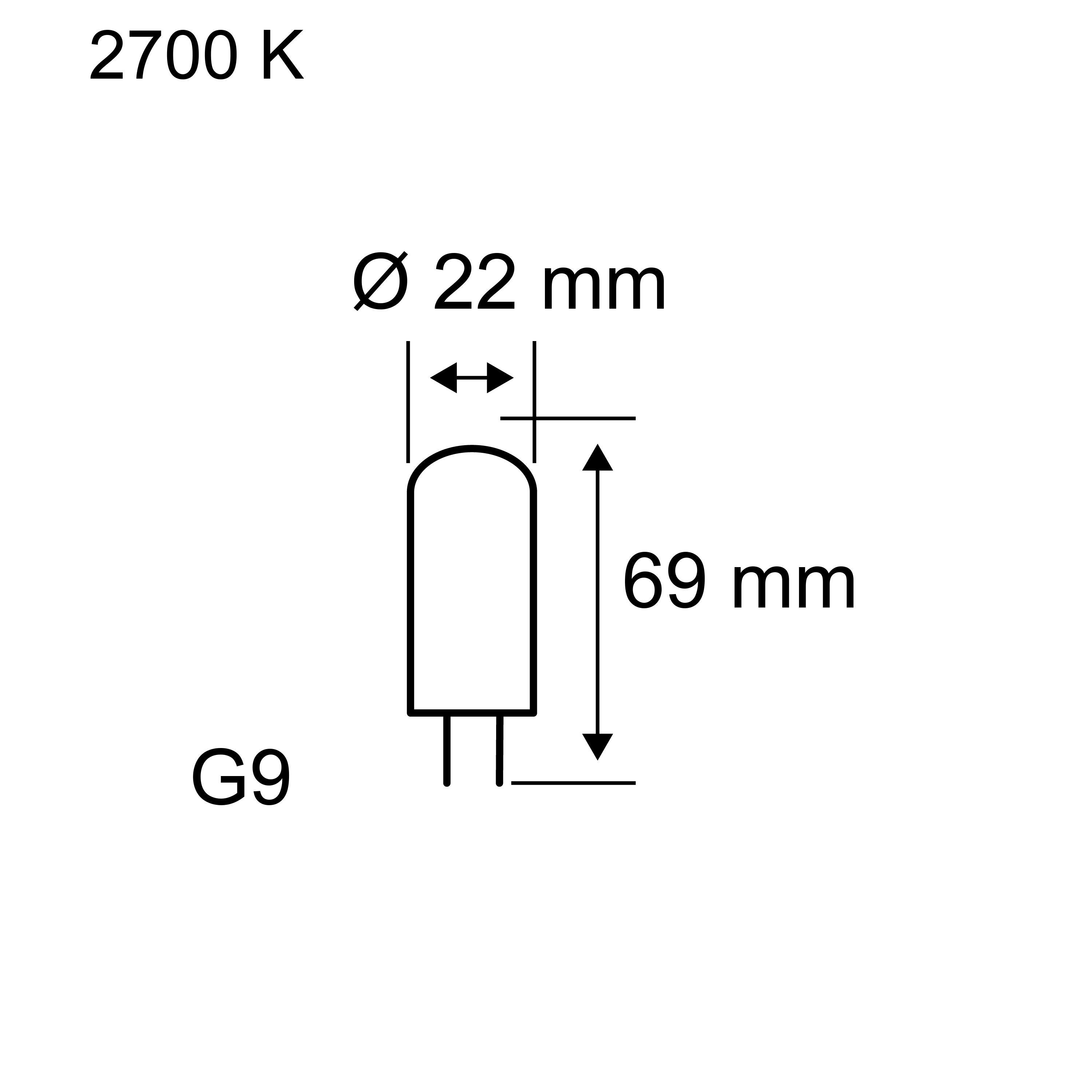

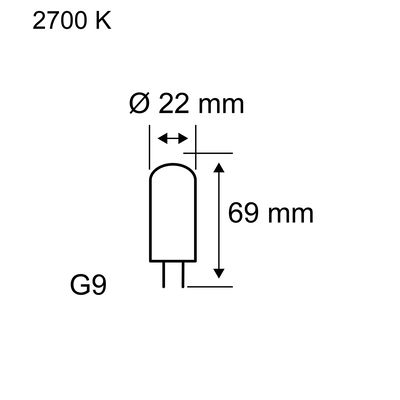

| Dimensions (Height x Width x Depth) | H: 69 mm |
| Ø | 22 mm |
| Design and Material | |
|---|---|
| Colour | Clear |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | RC REV Ritter 501448551, RC Merten M, RC Merten MEG 5136-0000, RLC GIRA 2450 00, RLC Müller Paladin 873 030 LED, RC Jung 225 T DE, RC Gira 0307 00/I02, RLC Busch-Jäger 6523-U-102, RC Busch-Jäger 6513U-102, RLC Eltako EUD61NP |
| Energy consumption | |
|---|---|

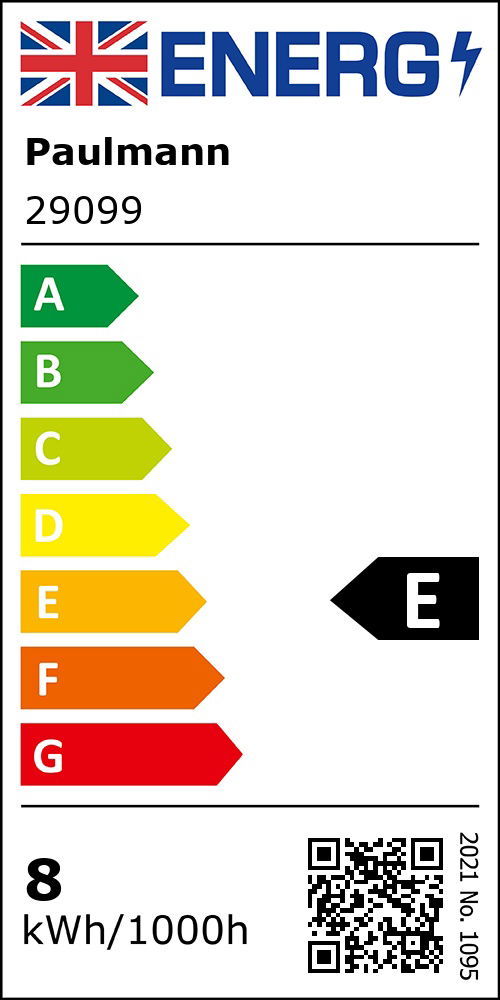

| Energy efficiency (A to G) | E |
| Energy consumption | 8 kWh_1000h |
| Service life | |
|---|---|
| luminous flux at the end of lamplife | 93 % |
| Number of switching cycles >= | 50000 |
| Lifetime | 15000 h |
| Rated life time | 15000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | 2700 K |
| Farbtemperatur_Text | Warmweiß |
| Usable luminous flux | 800 lm |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Rated luminous flux (Lumen) | 800 lm |
| Lamp Features | |
|---|---|
| Component parts | 7,2 W |
| Technique | LED |

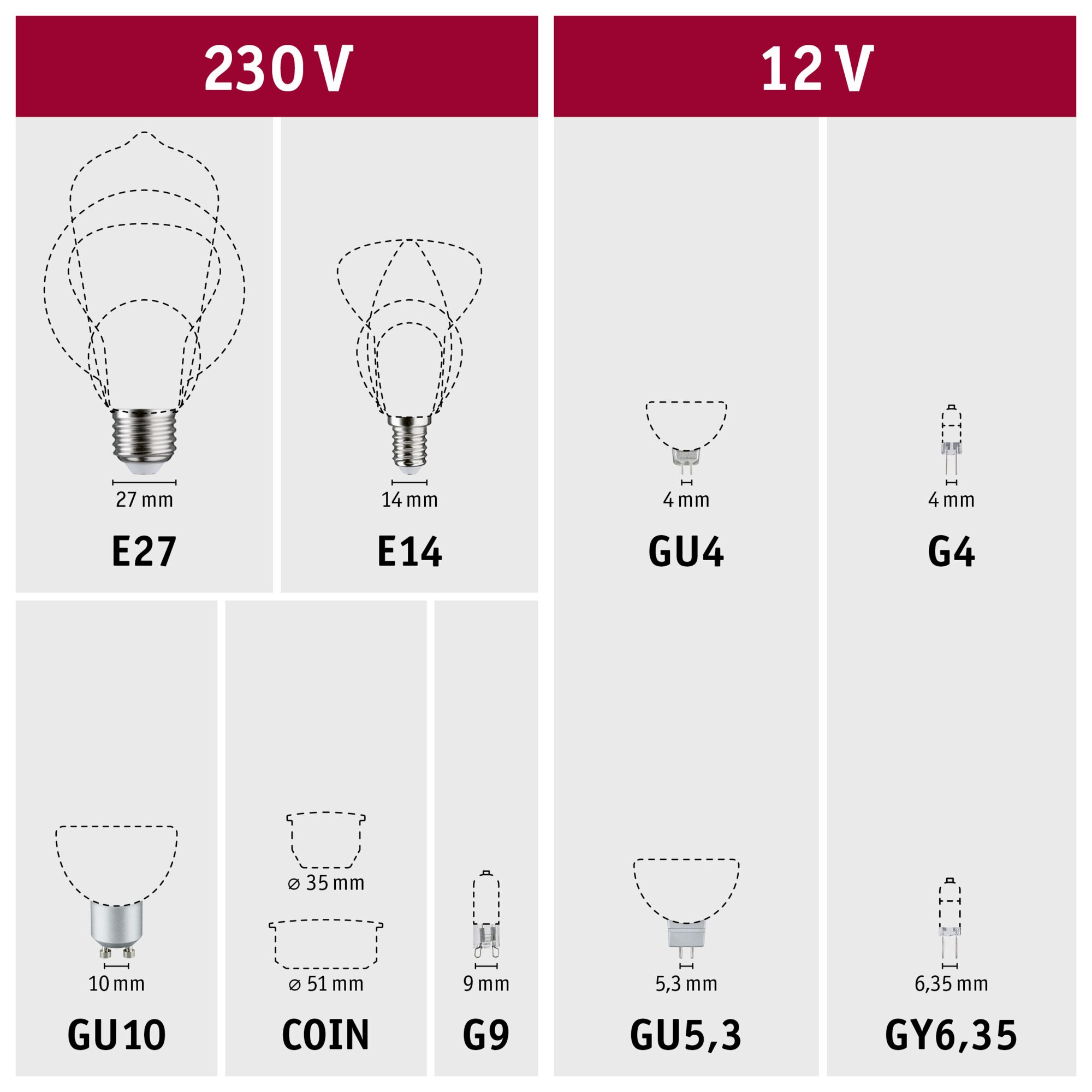

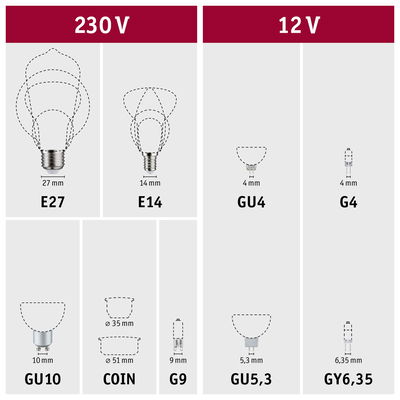

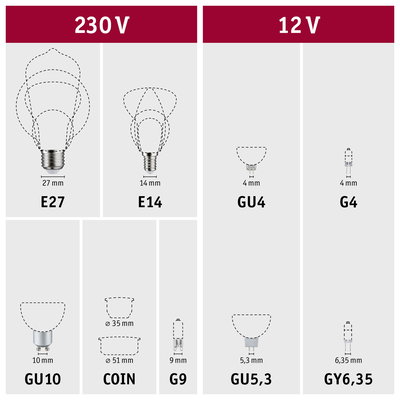

| Socket | G9 |
| Type | Bipin |
| Dimmable | with dimmer R, L, C (universal compatibility) |
| Inclusive lamp | yes |
| Incandescent Equivalent | 60 W |
| Adjustability | fixed |
| Number of component parts | 1x |
| Replacable | 7 not concerned. |
| Transformer | |
|---|---|
| apparent power | 8.3 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
