Article-No.:
93993

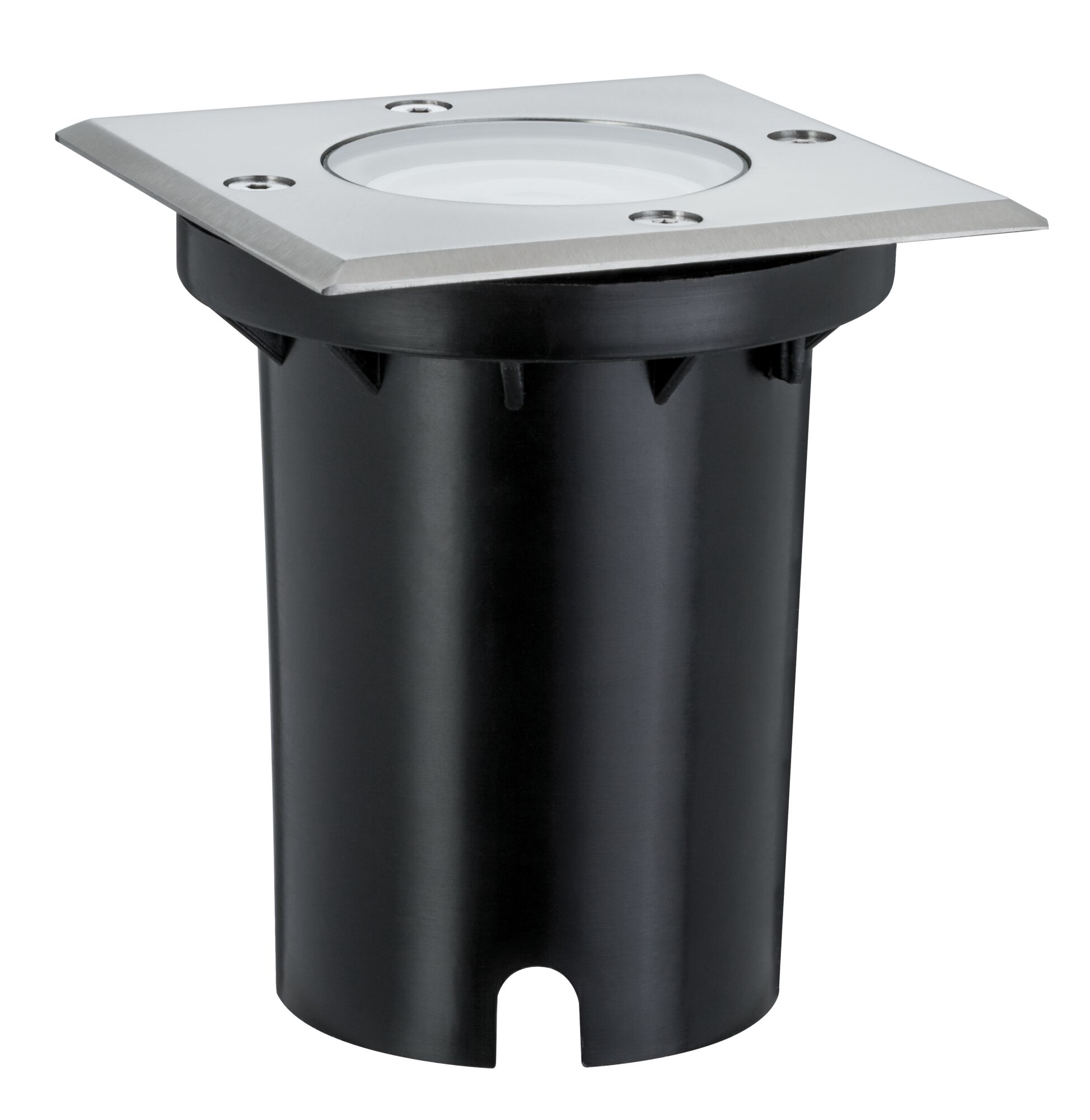

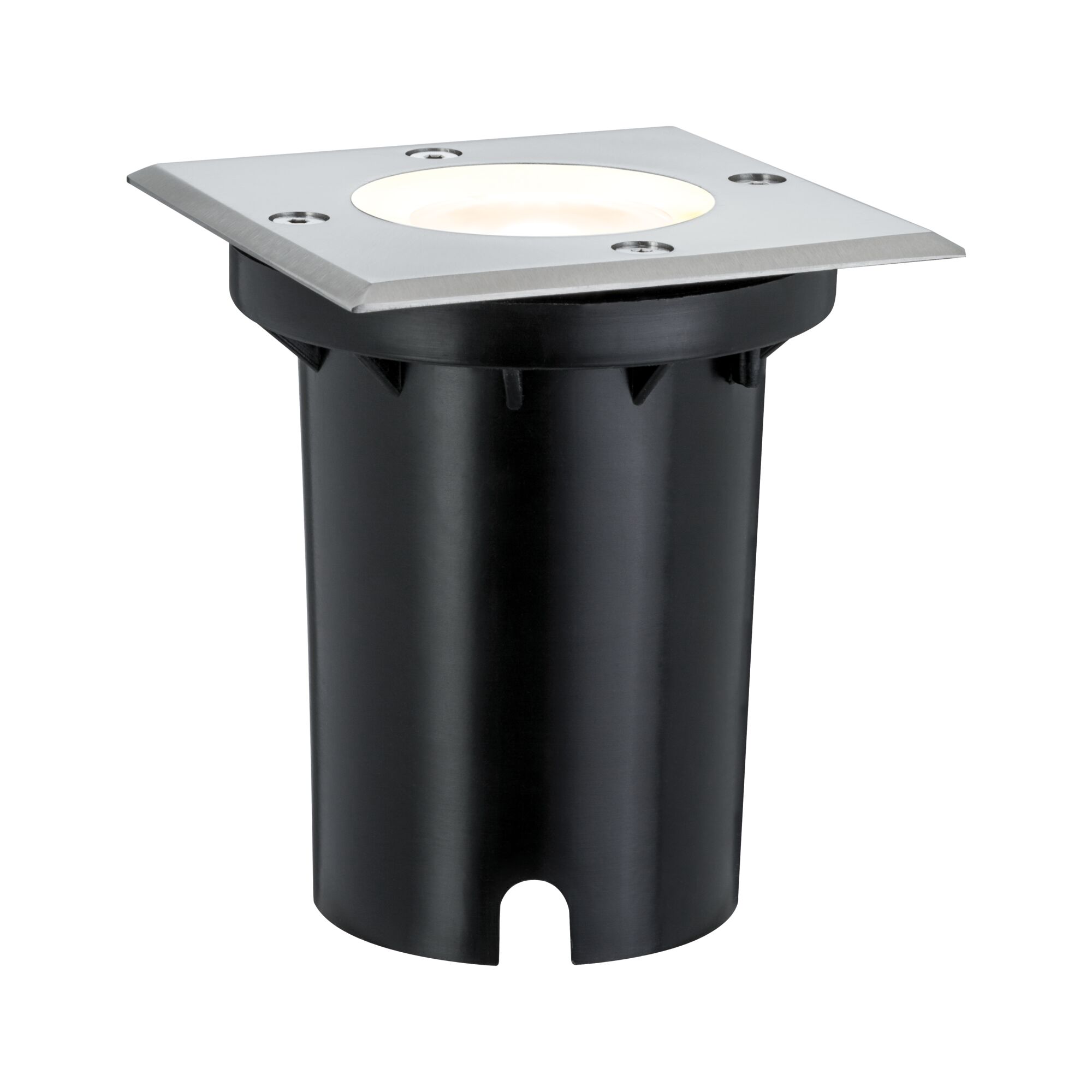

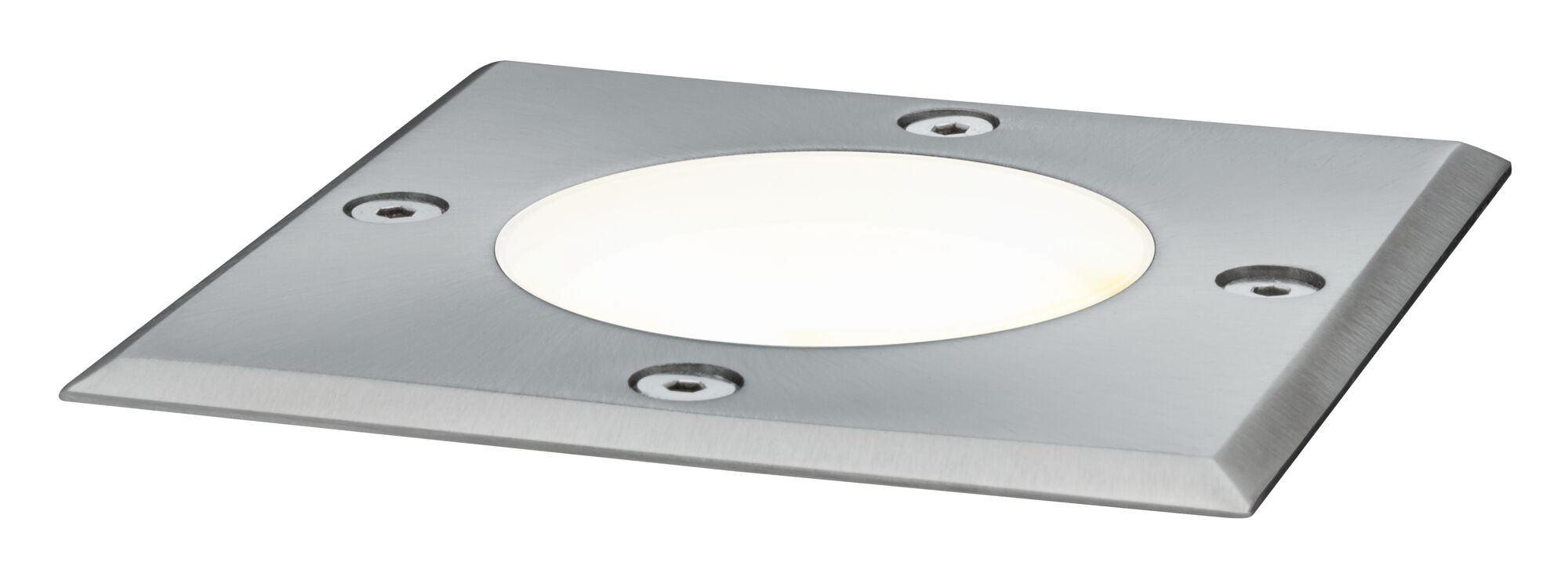

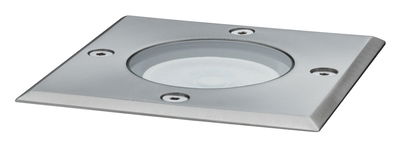

LED Recessed floor luminaire
LED Recessed floor luminaire
IP67 angular 108x108mm 3000K 3,5W 230lm 230V Stainless steel Metal
IP67 angular 108x108mm 3000K 3,5W 230lm 230V Stainless steel Metal
- IP Protection: IP67 - protected against temporary immersion
- Incl. replaceable LED lamp
- For 230 V direct connection
LED Recessed floor luminaire IP67 angular 108x108mm 3000K 3,5W 230lm 230V Stainless steel Metal

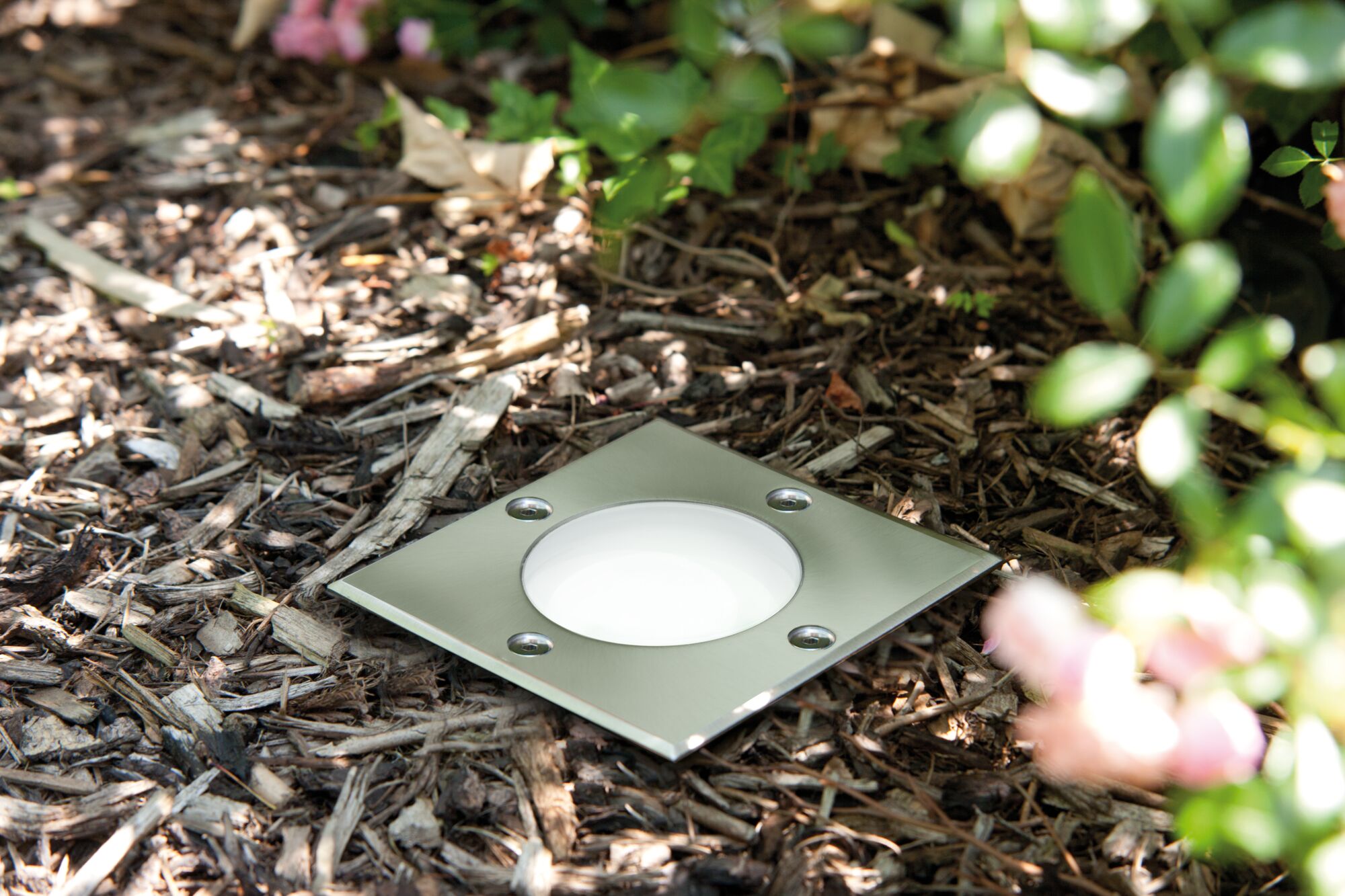

This rectangular floor recessed spotlight can bear loads of up to 500 kilograms, making it suitable for walkable outdoor spaces. Corrosion-resistant, waterproof and dust-proof, it emits warm white light in all weather conditions. The lamp supplied on delivery can be changed as required.
- IP Protection: IP67 - protected against temporary immersion
- Incl. replaceable LED lamp
- For 230 V direct connection
- Max. load up to 500 kg
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 124 x B: 108 x T: 108 mm |
| Einbaudurchmesser | 105 mm |
| Mounting depth | 115 mm |
| Depth of hollow wall | 100 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Stainless steel |
| Material | Metal |
| Form | angular |
| Installation | |
|---|---|
| Installation site (recommendation) | Floor mounting |
| Energy consumption | |
|---|---|
| Energy consumption | 4 kWh_1000h |
| Energy efficiency | G |
| Service life | |
|---|---|
| Lifetime | 15000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 38 ° |
| Nominal luminous flux | 230 lm |
| Color rendering index | > 80 Ra |
| color temp | Warm white |
| Colour consistency (SDCM) | 6 |
| Lamp Features | |
|---|---|
| Component parts | 3,5 W |
| Technique | LED |
| Base/Socket | GU10 |
| Inclusive lamp | yes |
| Adjustability | fixed |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Dimmable | No |
| Maximum wattage range | max. 10 W |
| IP protection | IP67 |
| Number of component parts | 1x |
| protection class | Protection class I |
| Maximum load | 500 kg |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
