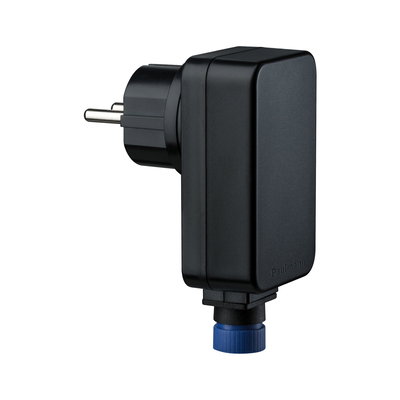

Plug & Shine power supply IP44 21 W 24 V DC With black plug
- Order number: 988.48
- 24 V power supply
- IP protection: IP44 splash-protected

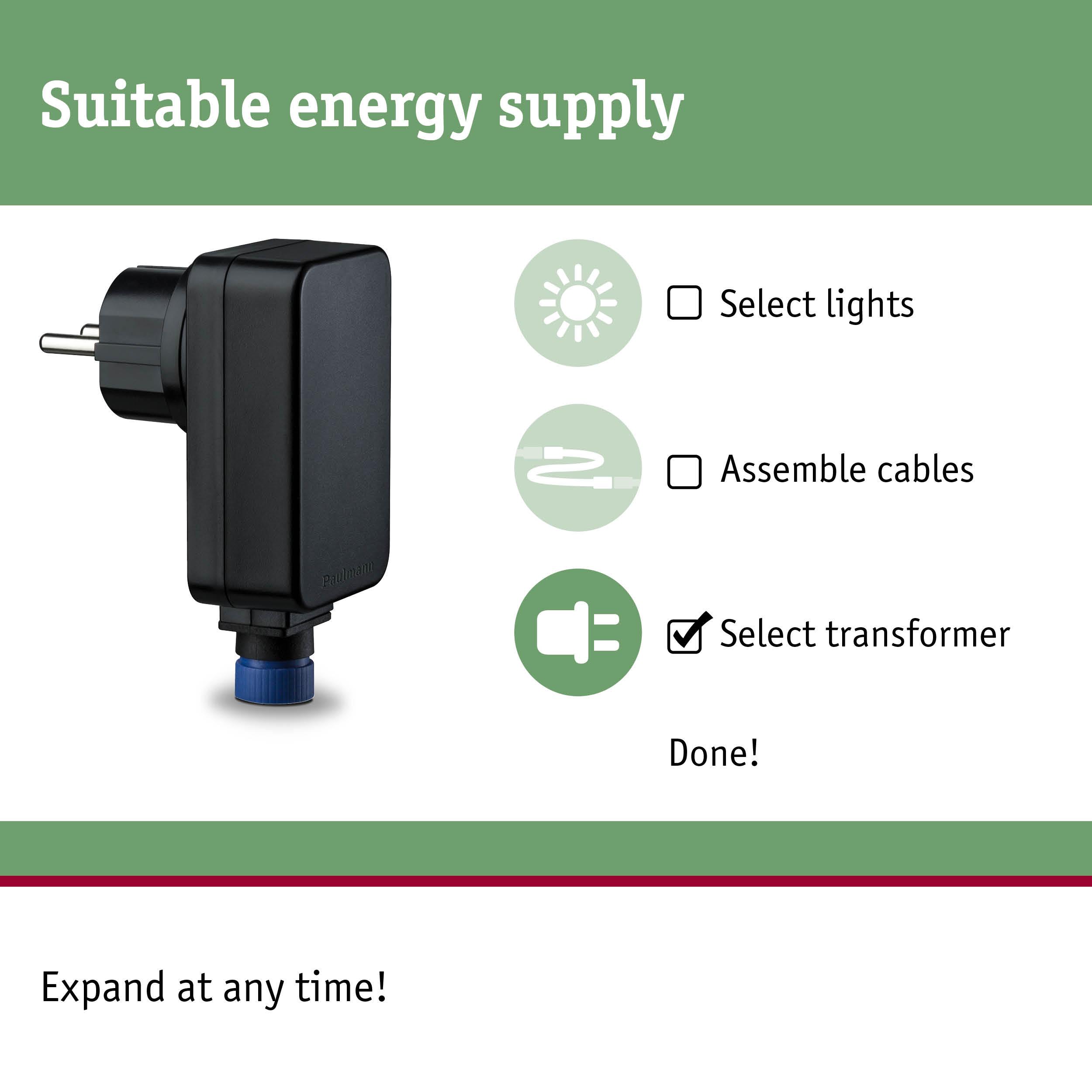

- Compatible with all luminaires and accessories in the Plug & Shine series
The Plug & Shine transformer with 21 watts is the ideal base for your outdoor lighting...more
Plug & Shine power supply IP44 21 W 24 V DC With black plug

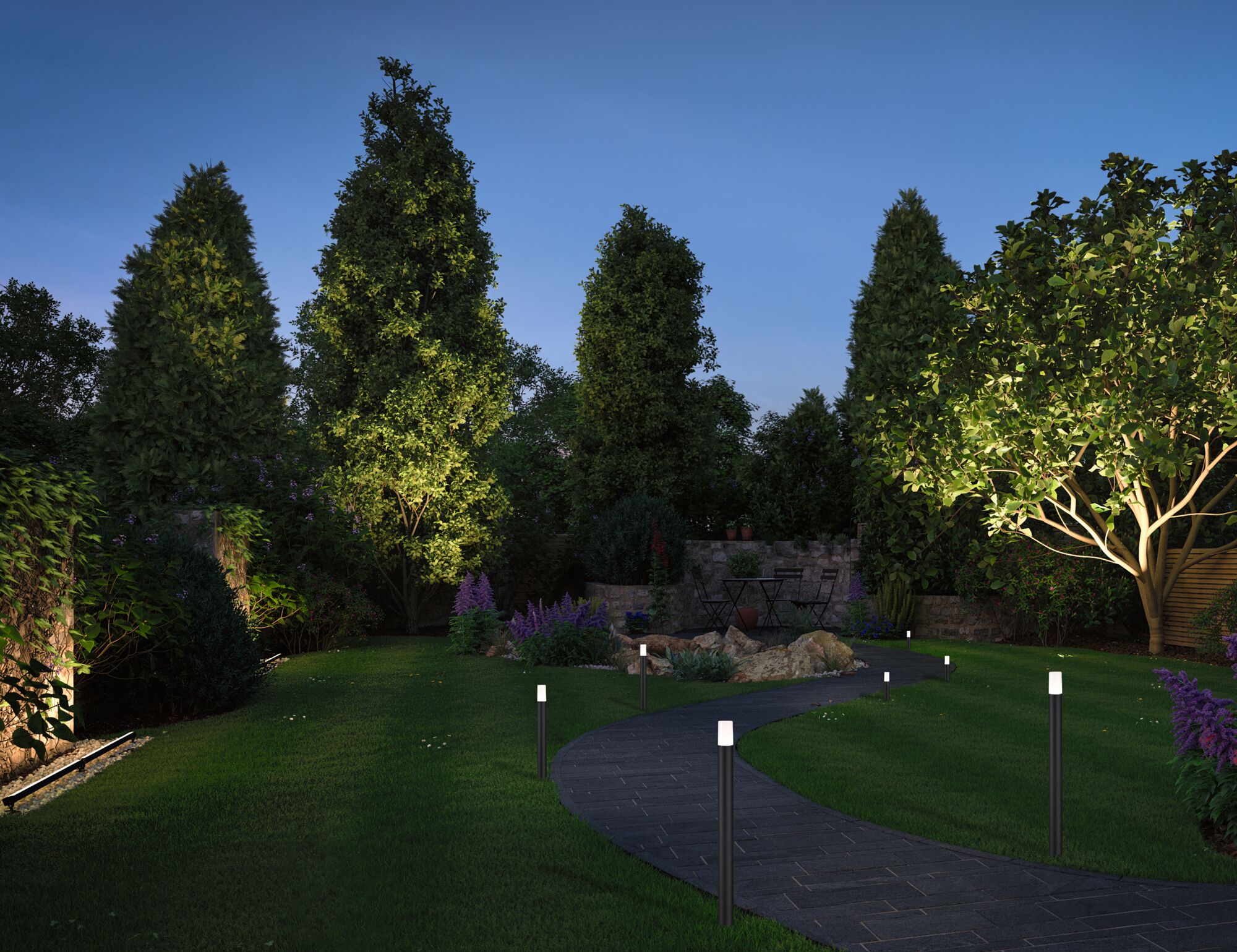

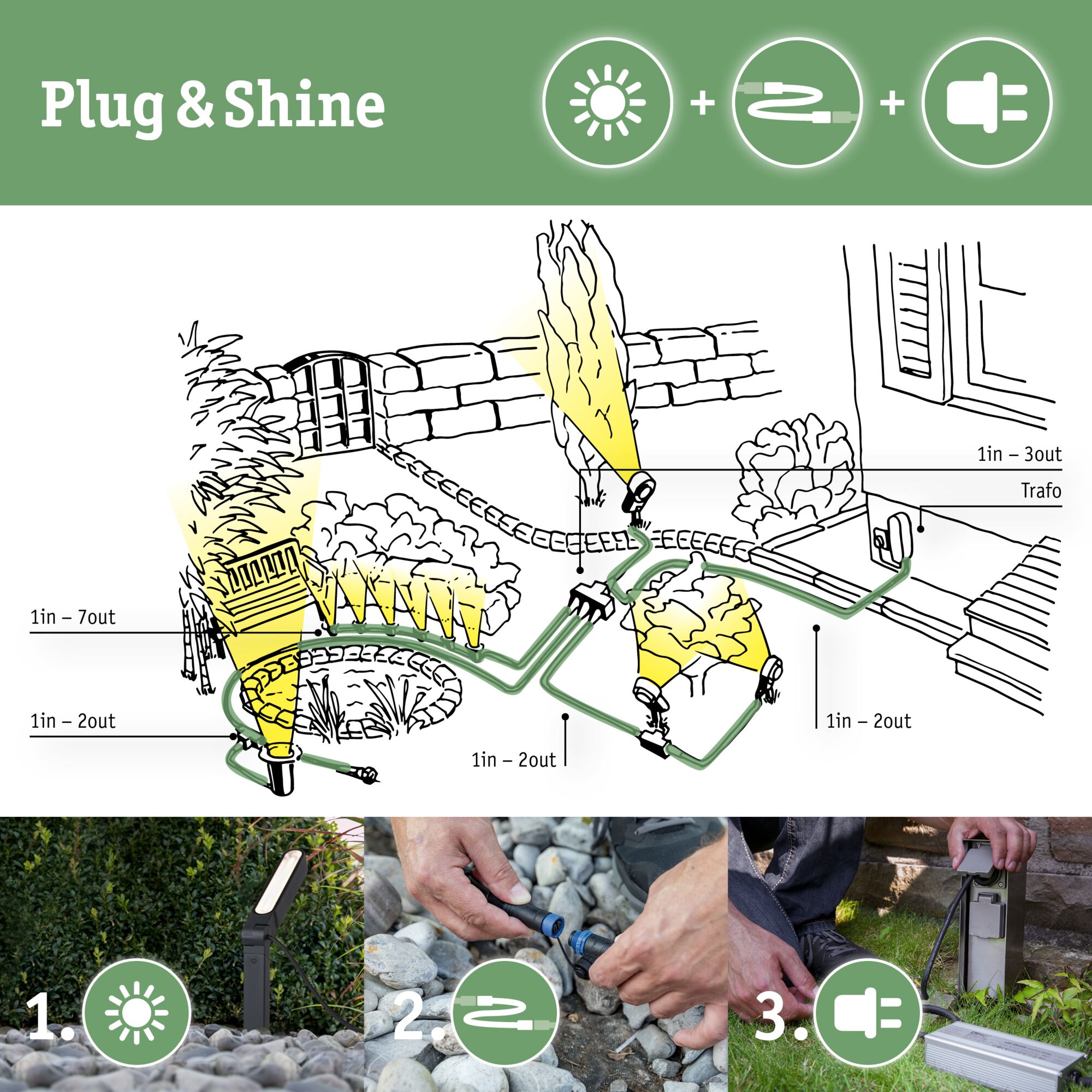

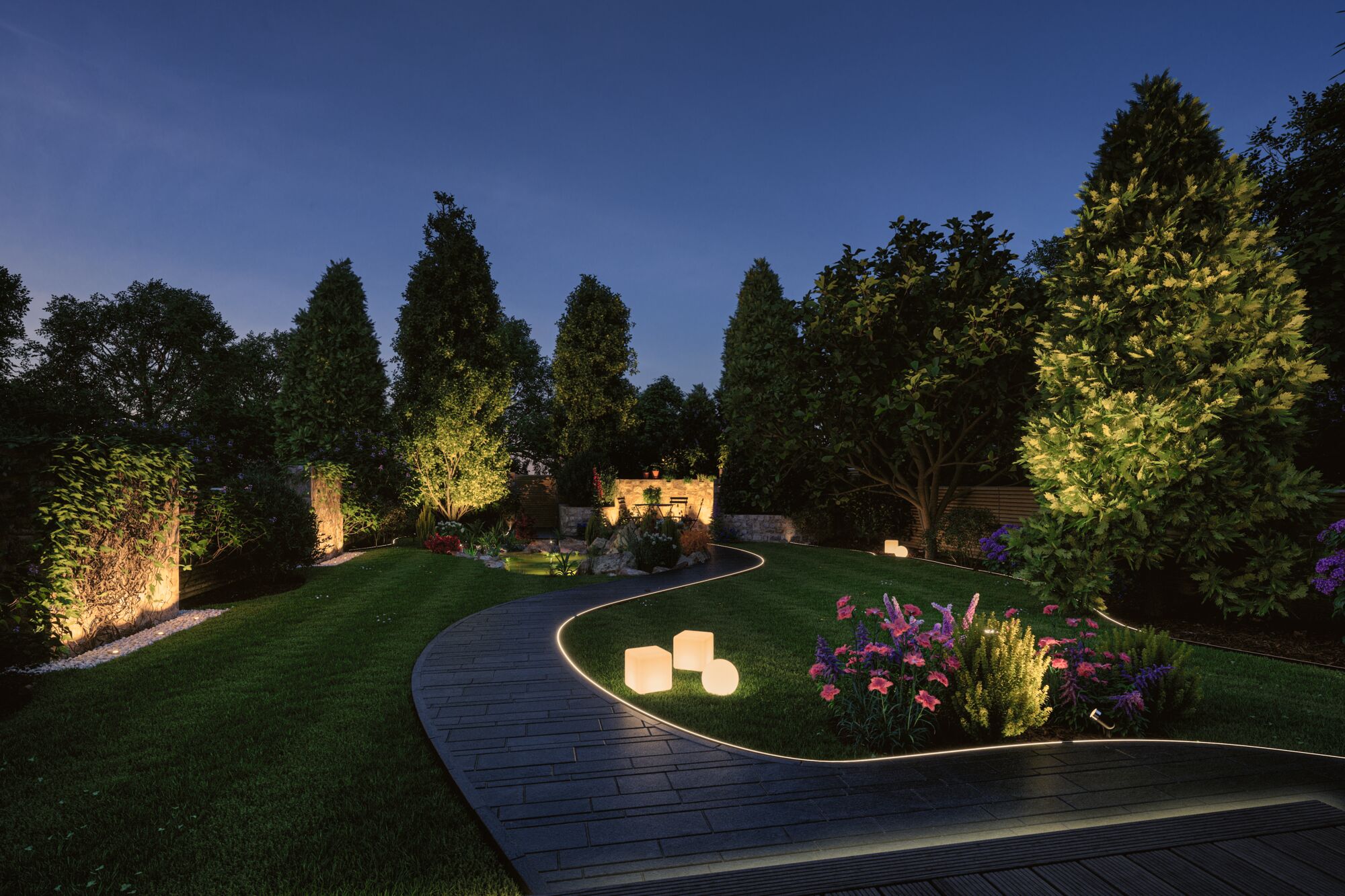

The Plug & Shine transformer with 21 watts is the ideal base for your outdoor lighting installation around the house, patio and garden. Combine different Plug & Shine luminaires and connectors any way you like, up to a maximum system length of 50 metres.
- 24 V power supply

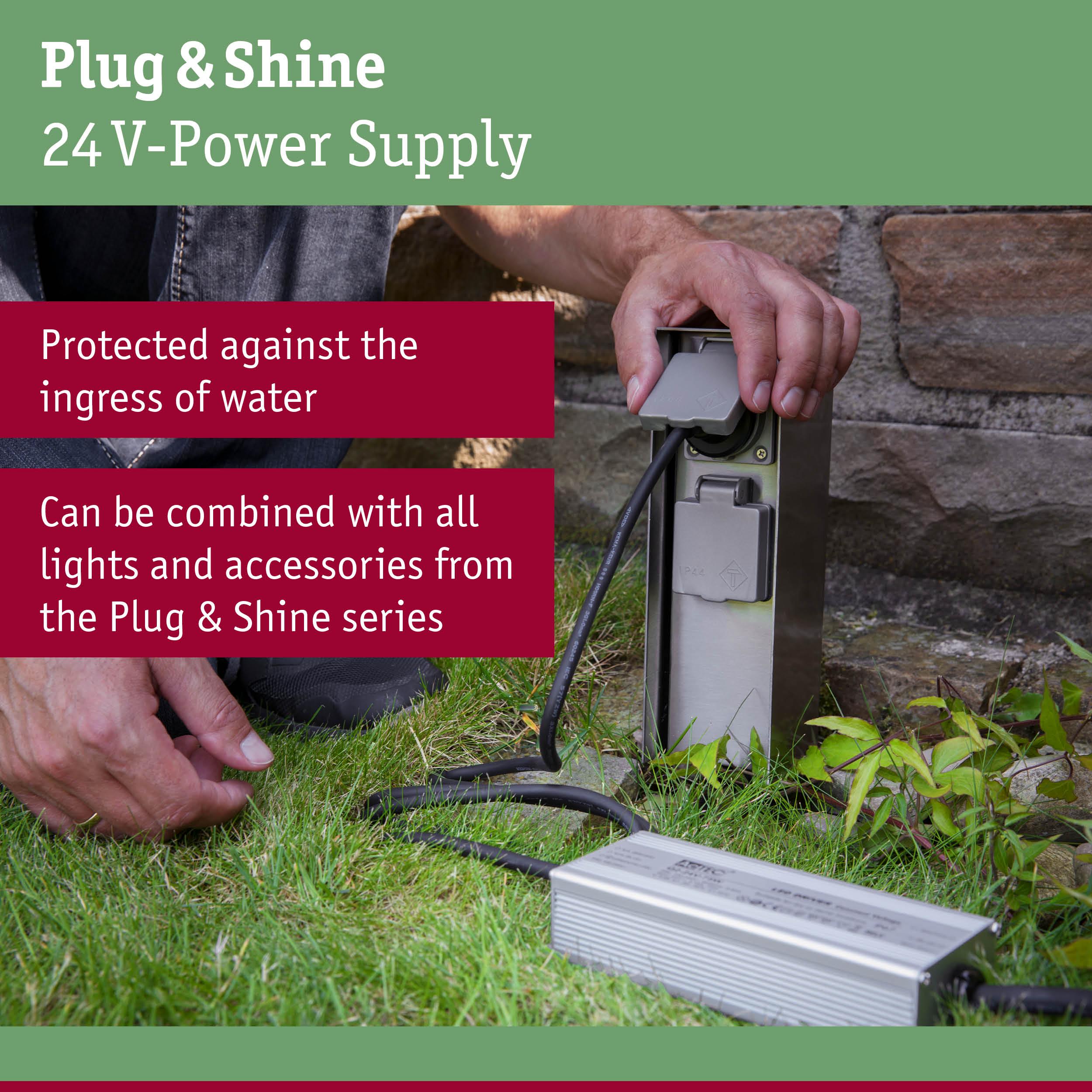

- IP protection: IP44 splash-protected
- Compatible with all luminaires and accessories in the Plug & Shine series
Advice & Downloads:
Technical details "Plug & Shine power supply IP44 21 W 24 V DC With black plug"
| Transformer width: | 50 mm |
| Transformer depth: | 30 mm |
| Transformer height: | 103 mm |
| Maximum cable length: | 50 m |
| Maximum wattage: | max. 21 W |
| Plug depth: | 48 mm |
| Plug: | Contour Plug (Typ C-CEE 7/17) |
| Dimensions (Height x Width x Depth): | H: 103 x B: 50 x T: 30 mm |
| starting time <: | 0 s |
| Integrated short circuit protection: | Integrated short circuit protection |
| WEEE-Reg.-No: | DE 39236390 |
| Transformer power: | 21 VA |
| lifetime: | 30.000 h |
| Material: | Plastic |
| operating voltage: | 230/24 V |
| Dimmable: | No |
| protection class: | protection class II |
| Colour: | Black |
| IP protection: | IP44 |
| marketing type: | Set |
| integrated overload protection: | integrated overload protection |
| Integrated temperature monitor and electronic fuse: | Integrated temperature monitor and electronic fuse |
| transformator plug: | transformator plug |
| Installation site (recommendation): | Universal |
| Technique: | LED |
