Article-No.:
50044
Controller
Smart Home Zigbee 3.0
Cephei
230V max. 400W White/Grey
230V max. 400W White/Grey
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
Controller Smart Home Zigbee 3.0 Cephei 230V max. 400W White/Grey

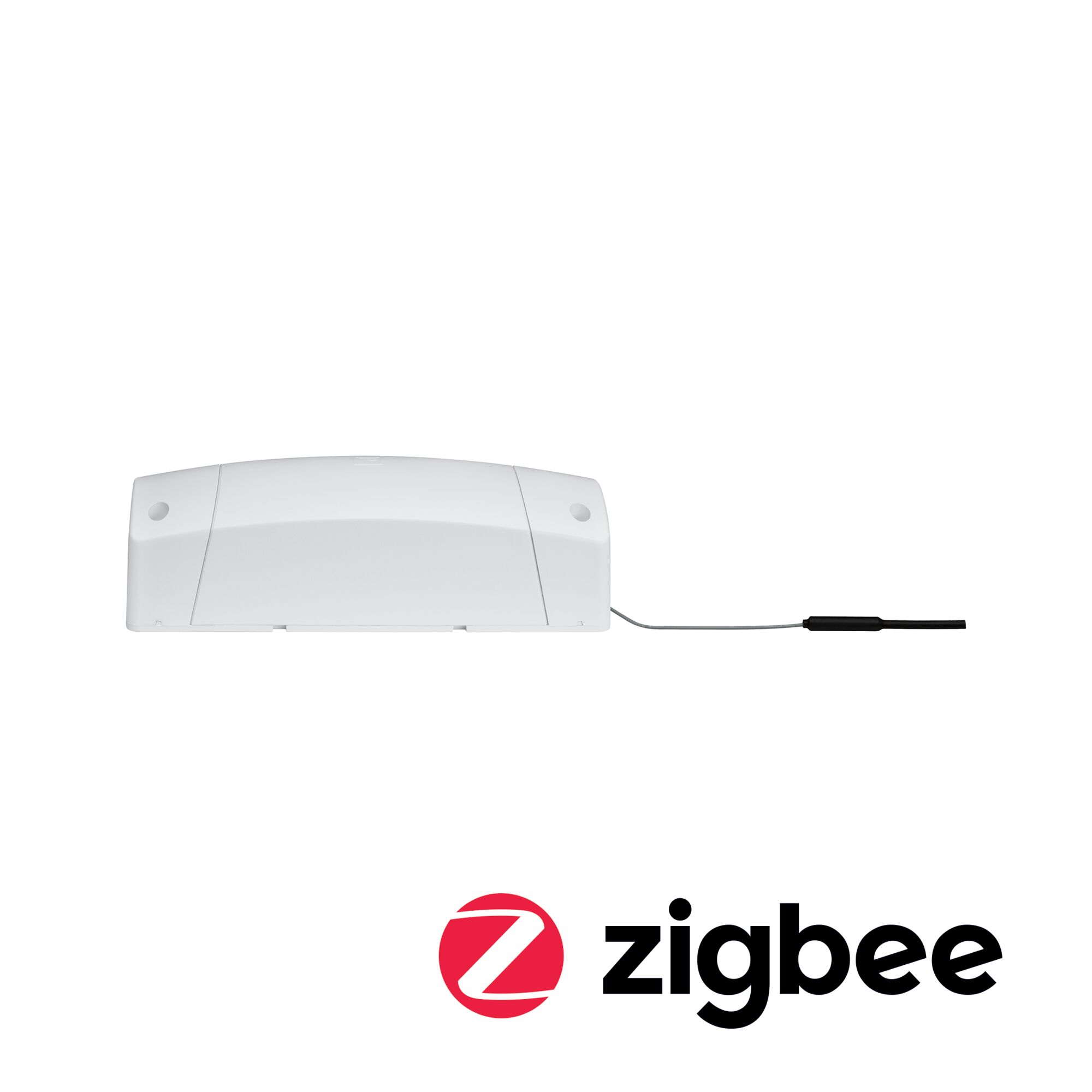

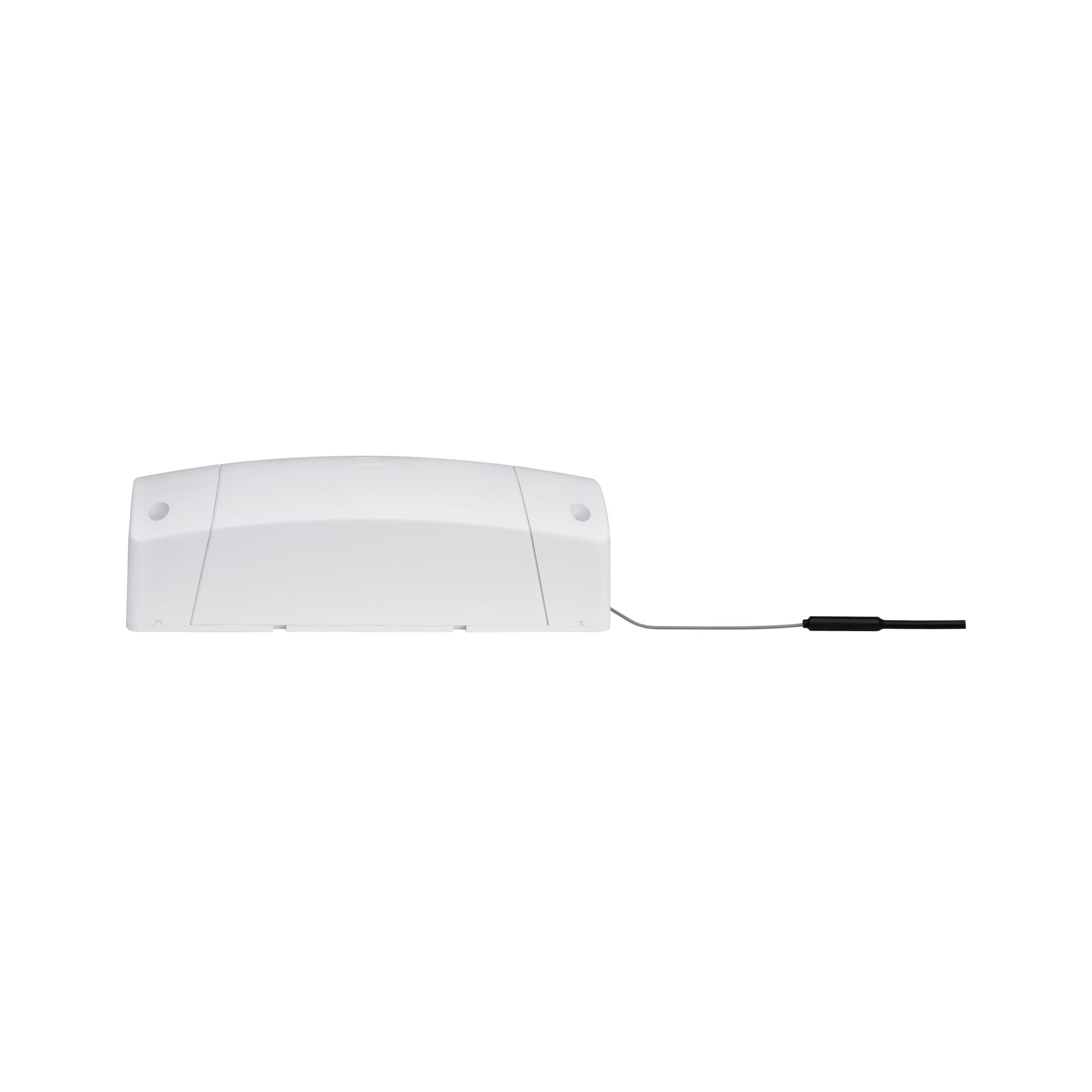

With the Cephei dimming and switching controller, you can switch and dim any lights. It is simply fitted between the 230 V connection and the light or ballast. The controller is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol which links up the devices of several manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. To operate the control, you can choose between the Smart Friends Box, a gateway for the same standard by a different manufacturer, or a Smart Home Zigbee 3.0 hand-held transmitter. Specific individual components can be addressed, or switched in groups as lighting scenarios.
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
- Bidirectional data transfer
- Mesh-capable: range increases from product to product
- For the wireless control of lights
- Max. 400 W resistive load (halogen and incandescent lamps)
- Max. 150 W capacitive load (electronic ballasts)
- With strain relief and aerial
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 53 x B: 163 x T: 60 mm |
| net weight | 217 g |
| Design and Material | |
|---|---|
| Colour | White, Grey |
| Material | Plastic |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Dimming Control | with Smart Home |
| Inclusive lamp | no |
| light source property | Without light source |
| Compatible Smart Home technology | Zigbee |
| Technique | Accessories without bulbs |
| Adjustability | fixed |
| Dimmable | Yes |
| Maximum wattage range | max. 400 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Replacable | 7 not concerned. |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| Capacitive load | 150 W |
| Resistive load | 400 W |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_inside (not certified) |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
| Compatible smart home systems | Amazon Echo Smart Speaker with Zigbee 3.0 interface|Philips Hue Bridge 2 and Pro (excluded Hue Entertainment) |
