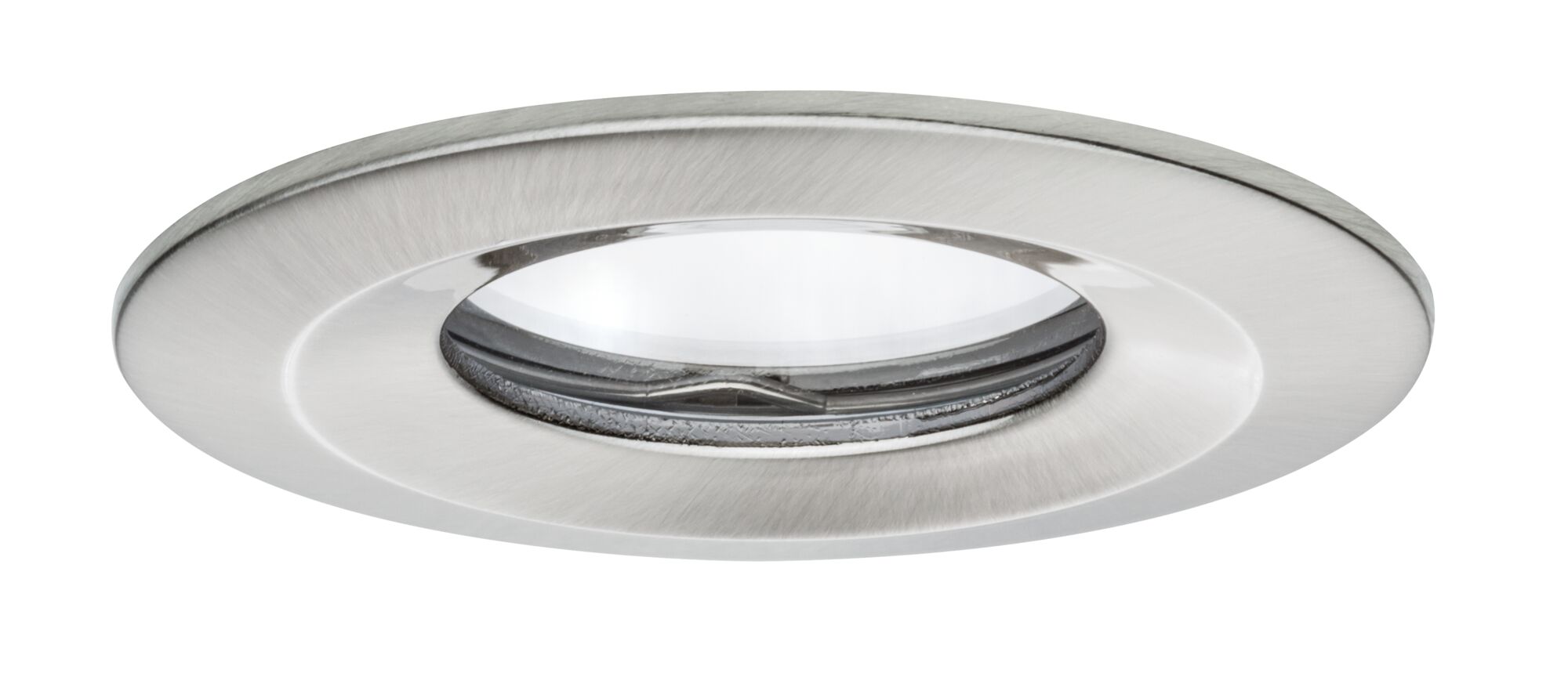

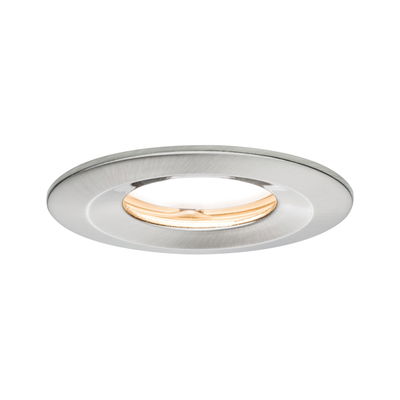

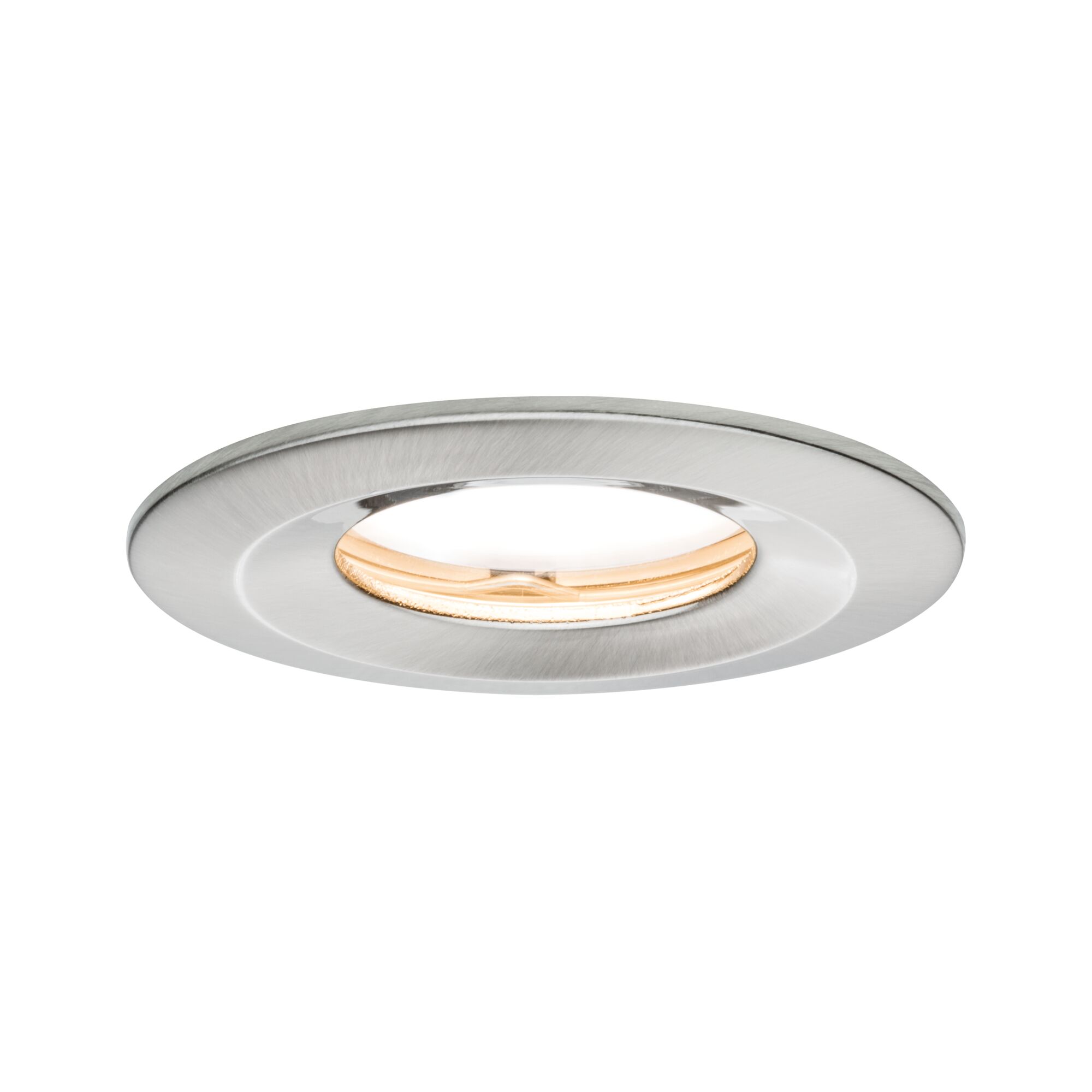

Recessed luminaire LED Coin Slim IP65 round 6.8 W iron 1-piece set, dimmable
- Order number: 938.82
- Set of 1 luminaire incl. LED module
- Color temperatur: 2700K - Warm white
- with satined protective glass
IP65 jet protected|The Slim Coins serve as innovative and user-friendly recessed spotlights that...more
Recessed luminaire LED Coin Slim IP65 round 6.8 W iron 1-piece set, dimmable
IP65 jet protected
IP65 jet protected
The Slim Coins serve as innovative and user-friendly recessed spotlights that are suitable for new installations as well as for replacing existing installations. They are exceptionally flat, and can therefore be installed in ceilings with a cavity of only 30 millimetres. From 50 centimetres to 5 metres or more — you determine the spacing between the lights! The simple and tool-free linking of single luminaires using quick clips saves more than just time and stress – thanks to energy-efficient LED technology with very low power consumption, the Slim Coins are also easy on the wallet. The dimming function enables you to adjust the brightness to your individual mood and ensures bright light to work in and a cosy living atmosphere.
- Set of 1 luminaire incl. LED module
- Color temperatur: 2700K - Warm white
- with satined protective glass
- Very flat – can also be mounted in small cavities of only 30 mm depth
- for 230 V direct connection

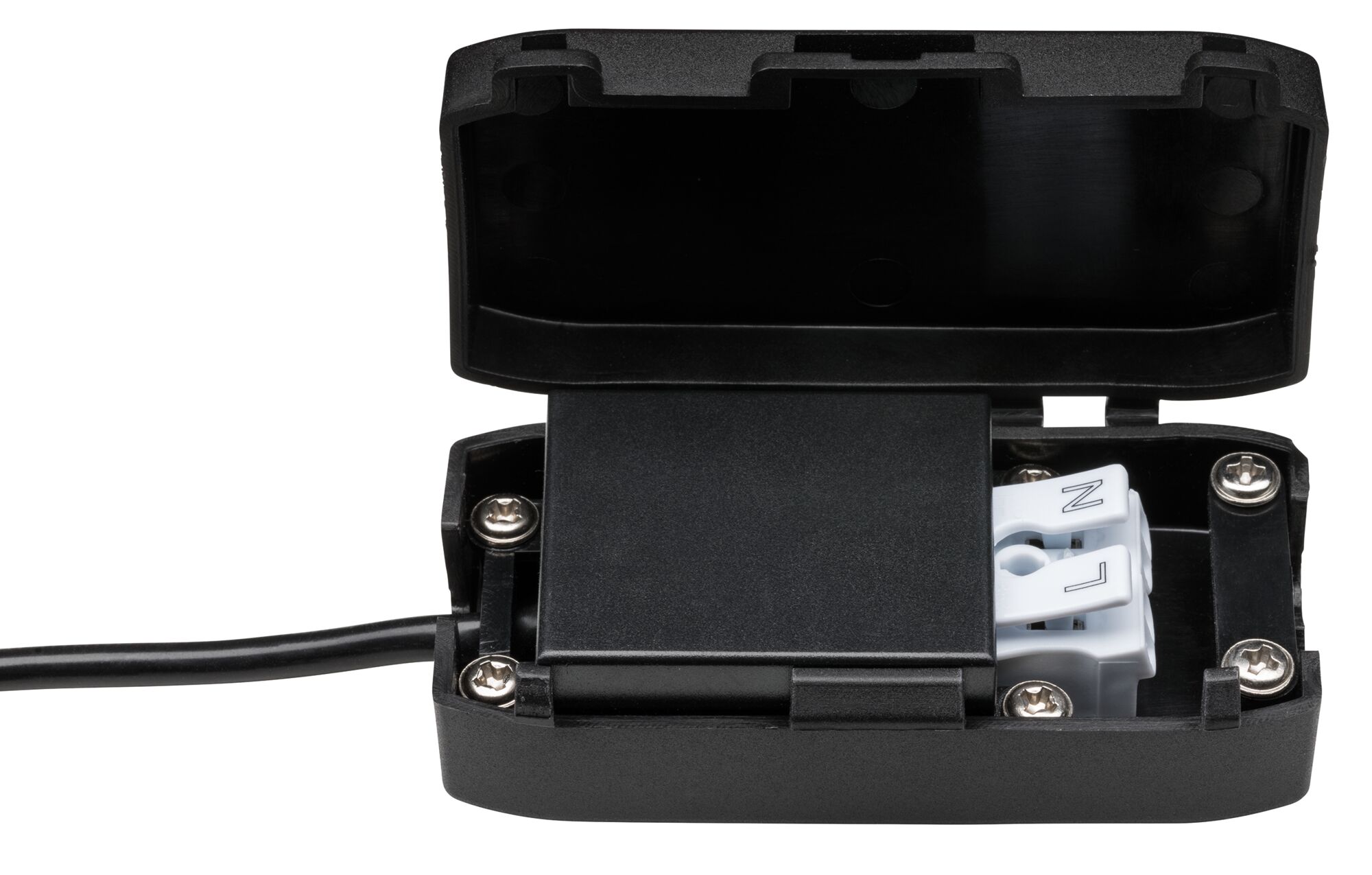

- Incl. junction box with double quick clamp for feeding through wires
- IP protection: IP65 – water jet-protected
- Dimmable





Advice & Downloads:

Technical details "Recessed luminaire LED Coin Slim IP65 round 6.8 W iron 1-piece set, dimmable"
Rated power: | 6,8 W |
Mounting depth: | 45 mm |
useful luminous flux: | 425 lm |
lifetime: | 30.000 h |
Inclusive lamp: | ✓ |
depth of hollow wall: | 30 mm |
Ø: | 78 mm |
MM symbol: | MM symbol |
can be used with the following dimmers: | RC Busch-Jäger 6513U-102, RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED |
WEEE-Reg.-No: | DE 39236390 |
starting time <: | 0 s |
socket: | Coin |
color temp: | 2.700 K |
depth of hollow wall: | 30 mm |
Rated luminous flux (Lumen): | 1x425 lm |
form: | round |
Installation site (recommendation): | Ceiling mounting |
Mounting hole: | 68 mm |
protection class: | protection class II |
Dimmable: | with dimmer R+C f.elect.trafos+230V bulbs |
Number of component parts: | 1x |
component parts: | 6,8 W |
Technique: | LED |
Colour: | Brushed iron |
energy efficiency (A++ to E): | A |
Material: | Aluminium zinc |
colour consistency: | <= 6 Step of the MacAdam ellipse |
Color rendering index: | > 80 Ra |
Incandescent Equivalent: | 37 W |
marketing type: | Set |
stainless: | stainless alu |
operating voltage: | 230 V |
IP protection: | IP65 |
