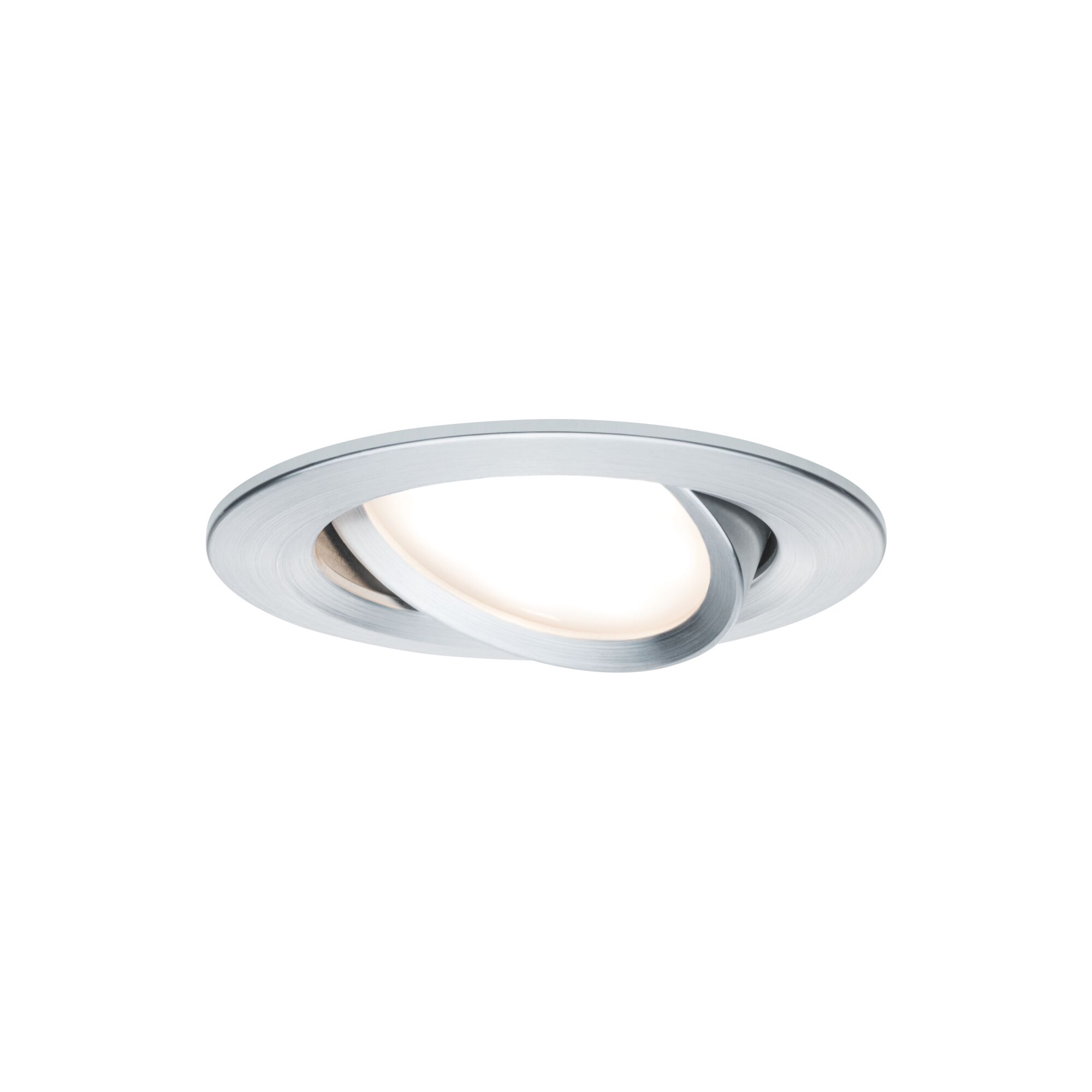

Recessed luminaire LED Coin Slim IP23 round 6.8 W aluminium 3-piece set, dimmable and swivelling

  • 939.03

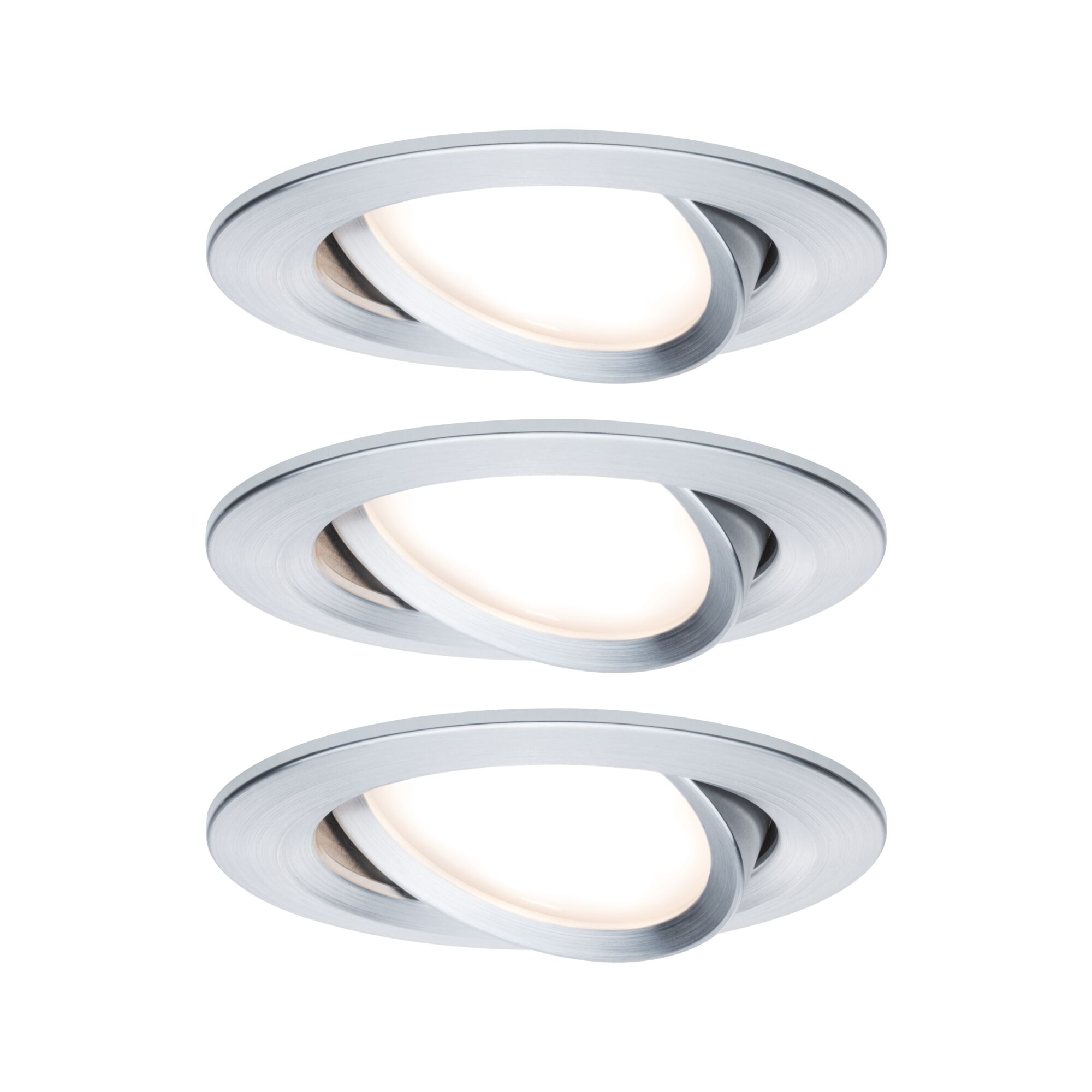

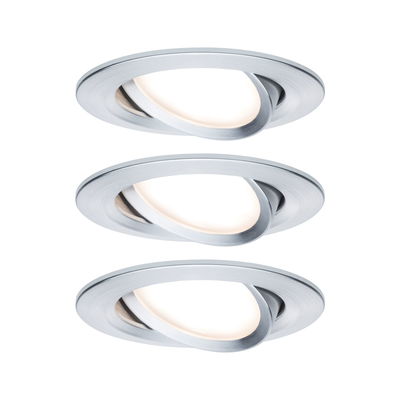

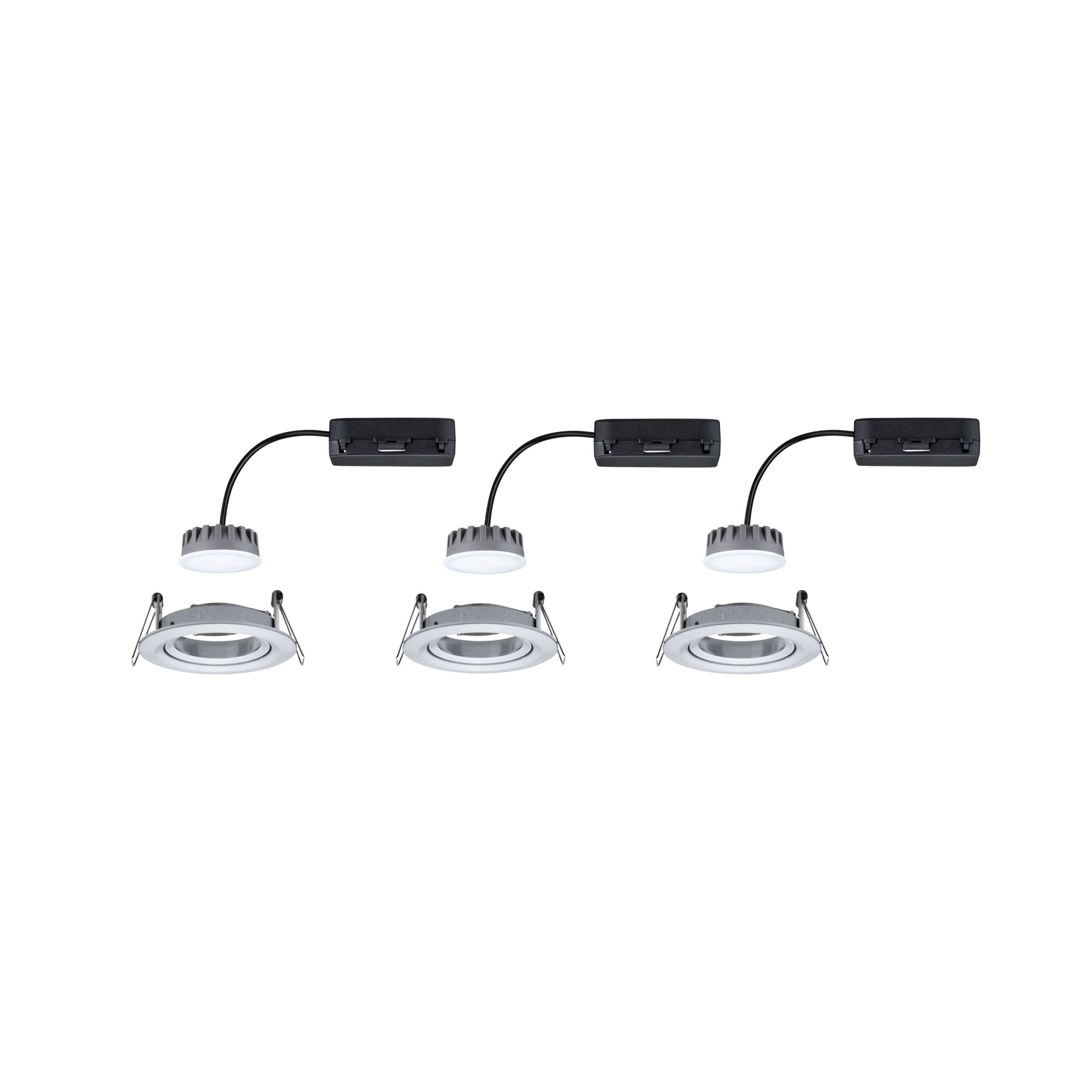

  • Set of 3 luminaires incl. LED module
  • Color temperatur: 2700K - Warm white
  • with satined protective glass
IP23 spray protected|The Slim Coins serve as innovative and user-friendly recessed spotlights...more
Recessed luminaire LED Coin Slim IP23 round 6.8 W aluminium 3-piece set, dimmable and swivelling
IP23 spray protected
The Slim Coins serve as innovative and user-friendly recessed spotlights that are suitable for new installations as well as for replacing existing installations. They are exceptionally flat, and can therefore be installed in ceilings with a cavity of only 30 millimetres. From 50 centimetres to 5 metres or more — you determine the spacing between the lights! The simple and tool-free linking of single luminaires using quick clips saves more than just time and stress – thanks to energy-efficient LED technology with very low power consumption, the Slim Coins are also easy on the wallet. The dimming function enables you to adjust the brightness to your individual mood and ensures bright light to work in and a cosy living atmosphere.
  • Set of 3 luminaires incl. LED module
  • Color temperatur: 2700K - Warm white
  • with satined protective glass
  • Very flat – can also be mounted in small cavities of only 30 mm depth
  • With swivelling spots for ideal illumination
  • for 230 V direct connection

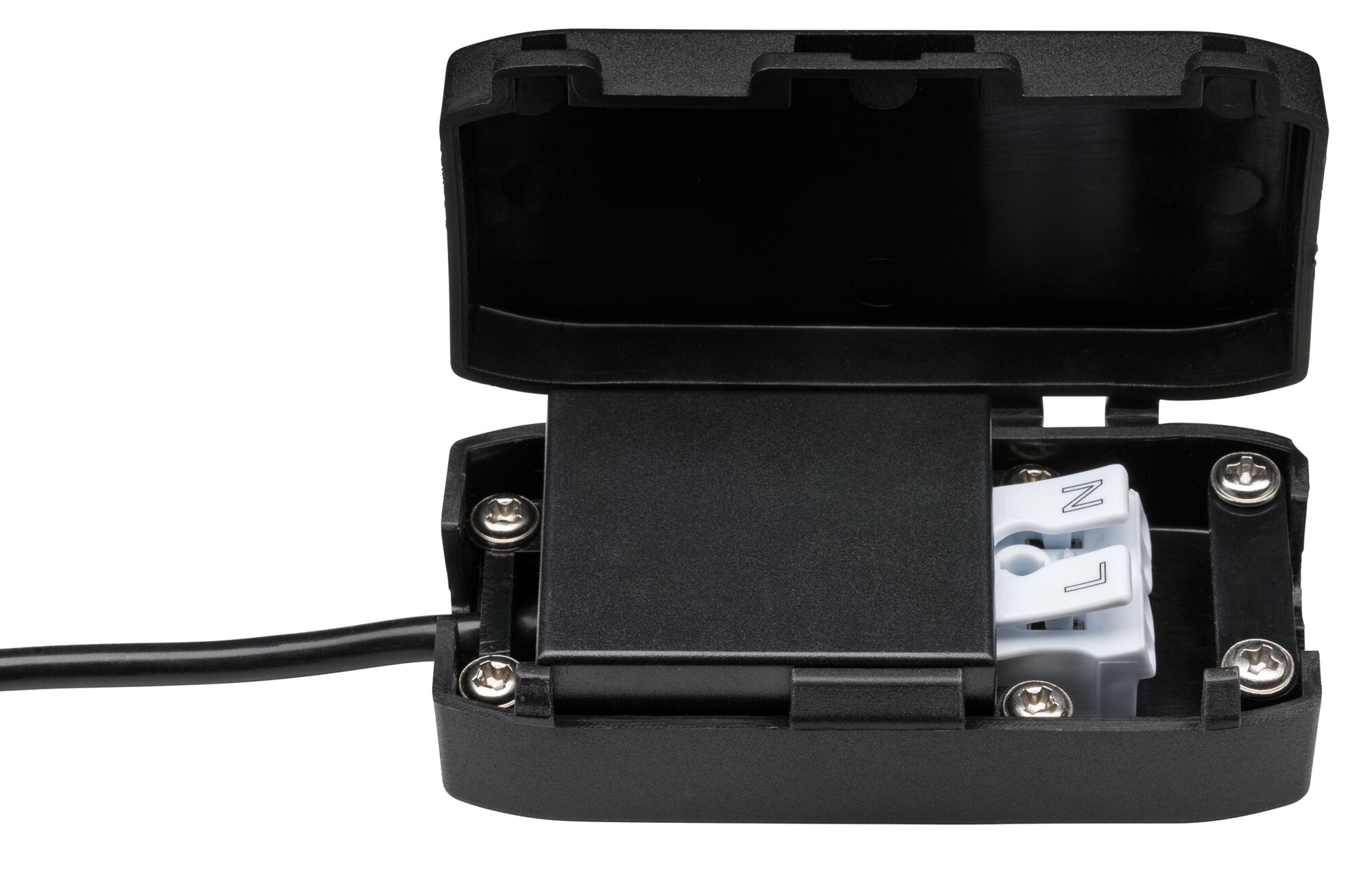

  • Incl. junction box with double quick clamp for feeding through wires
  • IP protection: IP23 - spray-protected
  • Dimmable
color temp: 2.700 KDimmable: with dimmer R+C f.elect.trafos+230V bulbsInclusive lamp: ✓IP protection: IP23 ceiling mountingInstallation site (recommendation): Ceiling mounting
Technical details "Recessed luminaire LED Coin Slim IP23 round 6.8 W aluminium 3-piece set, dimmable and swivelling"
Rated power: 6,8 W
Mounting depth: 45 mm
useful luminous flux: 425 lm
lifetime: 30.000 h
Inclusive lamp:
depth of hollow wall: 30 mm
Ø: 84 mm
MM symbol: MM symbol
can be used with the following dimmers: RC Busch-Jäger 6513U-102, RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED
WEEE-Reg.-No: DE 39236390
starting time <: 0 s
socket: Coin
color temp: 2.700 K
depth of hollow wall: 30 mm
Rated luminous flux (Lumen): 3x425 lm
form: round
Installation site (recommendation): Ceiling mounting
protection class: protection class II
Dimmable: with dimmer R+C f.elect.trafos+230V bulbs
energy efficiency (A++ to E): A
Mounting hole: 68 mm
Number of component parts: 3x
Technique: LED
Colour: Turned aluminium
component parts: 6,8 W
Swivel range: 50 °
Material: Aluminium zinc
colour consistency: <= 6 Step of the MacAdam ellipse
Color rendering index: > 80 Ra
Incandescent Equivalent: 37 W
marketing type: Set
stainless: stainless alu
operating voltage: 230 V
IP protection: IP23 ceiling mounting
