Article-No.:
92535

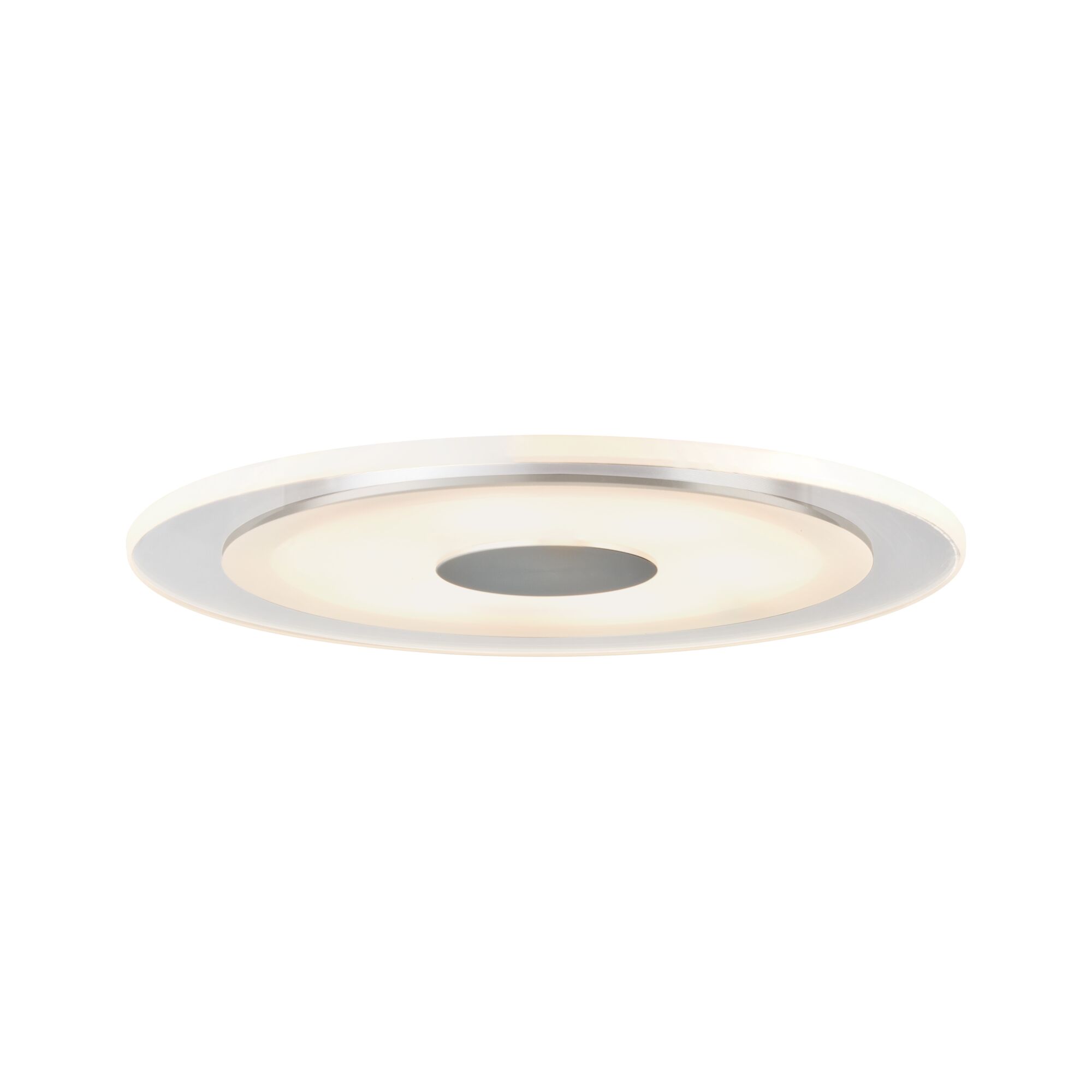

PremiumLED Recessed luminaire
Whirl Single Luminaire
round 150mm 6,9W 450lm 230V 3000K Turned aluminium/Satin
round 150mm 6,9W 450lm 230V 3000K Turned aluminium/Satin
- Set of 1 lamp including LED, 1x6W and transformer
- Material: Alu / Acryl
- Color: Aluminium rotated / Satin
Premium LED Recessed luminaire Whirl Single Luminaire round 150mm 6,9W 450lm 230V 3000K Turned aluminium/Satin
Elegant material – high-quality finish. The decorative LED recessed lights of the Premium Line offer efficient but homelike warm white LED light and meet the most stringent standards for material quality and design.
- Set of 1 lamp including LED, 1x6W and transformer
- Material: Alu / Acryl
- Color: Aluminium rotated / Satin
- Energy-saving LED technology (conserves up to 80% energy in comparison to conventional light bulbs)
- Type of protection: IP23 (ceiling mounting)
- Diameter: 150mm
- Easy connection with plug-in connectors
- protection class II
- Color temperatur: 3000K - Warm white
- Incl. transformer
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 10 mm |
| Diameter | 150 mm |
| Built-in diameter | 100 mm |
| Mounting depth | 40 mm |
| Depth of hollow wall | 25 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Turned aluminium, Satin |
| Material | Aluminium, Acrylic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 450 lm |
| Luminous flux LED module | 655 lm |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| IP protection | IP23 ceiling mounting |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 6,9 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 8,5 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| Transformer power range | 6 VA |
| Transformer height | 23 mm |
| Transformer width | 38 mm |
| Transformer depth | 80 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
