Article-No.:
70670
MaxLED 1000
LED Strip
Basic set 3m Warm white
coated 35W 1100lm/m 2700K 60VA
coated 35W 1100lm/m 2700K 60VA
- Coating protects against splashing water and dust
- In conjunction with a shrink-on sleeve, can also be used in wet rooms
- Can be shortened as required
MaxLED 1000 LED Strip Basic set 3m Warm white coated 35W 1100lm/m 2700K 60VA

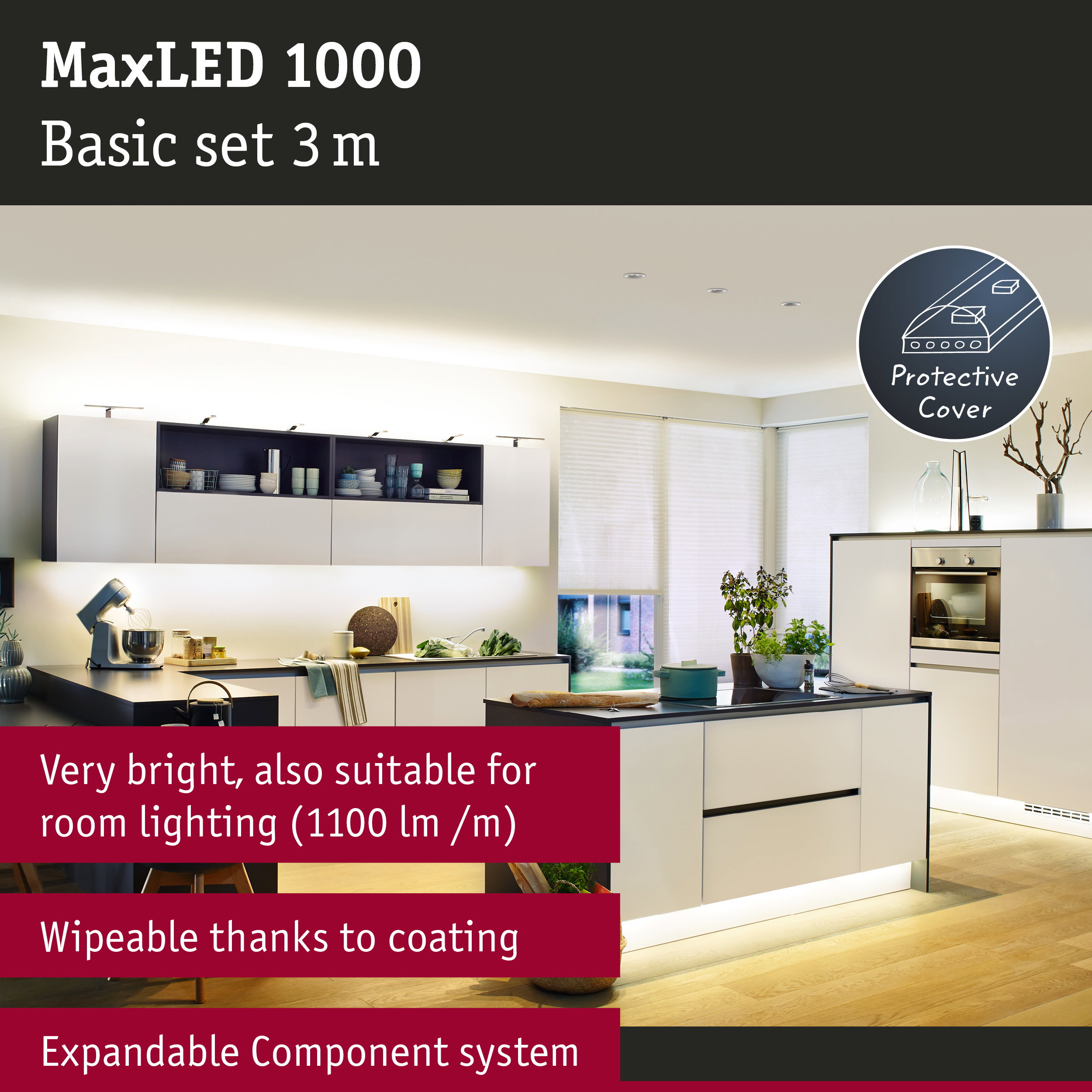

MaxLED strips are so powerful that they can easily be used as room lighting. They are real highlights especially in profiles. Warm white strips provide a cosy and relaxed room and workplace light. Where required, you can extend your basic set using single strips. Please note in your planning the maximum length specified for the basic set, which must not be exceeded.

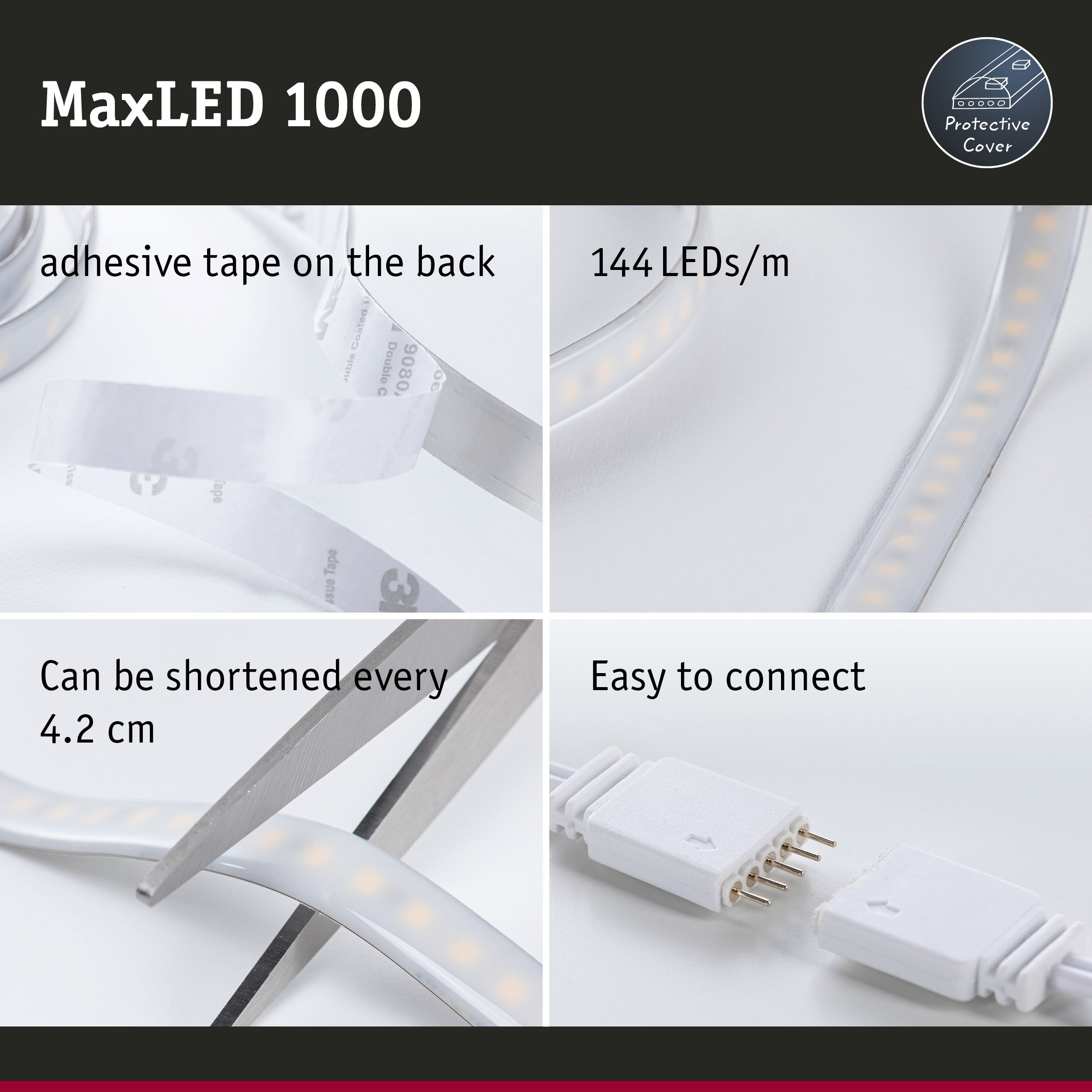

- Coating protects against splashing water and dust
- In conjunction with a shrink-on sleeve, can also be used in wet rooms
- Can be shortened as required
- Rear self-adhesive for simple installation
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Dimmable with MaxLED dim/switch controller
- Incl. 5-pin plug for easy connection of the strips
- Simple plug-in system for easy installation
- Colour temperature: 2700K - Warm white
- Flexible material for mounting on flat or curved surfaces

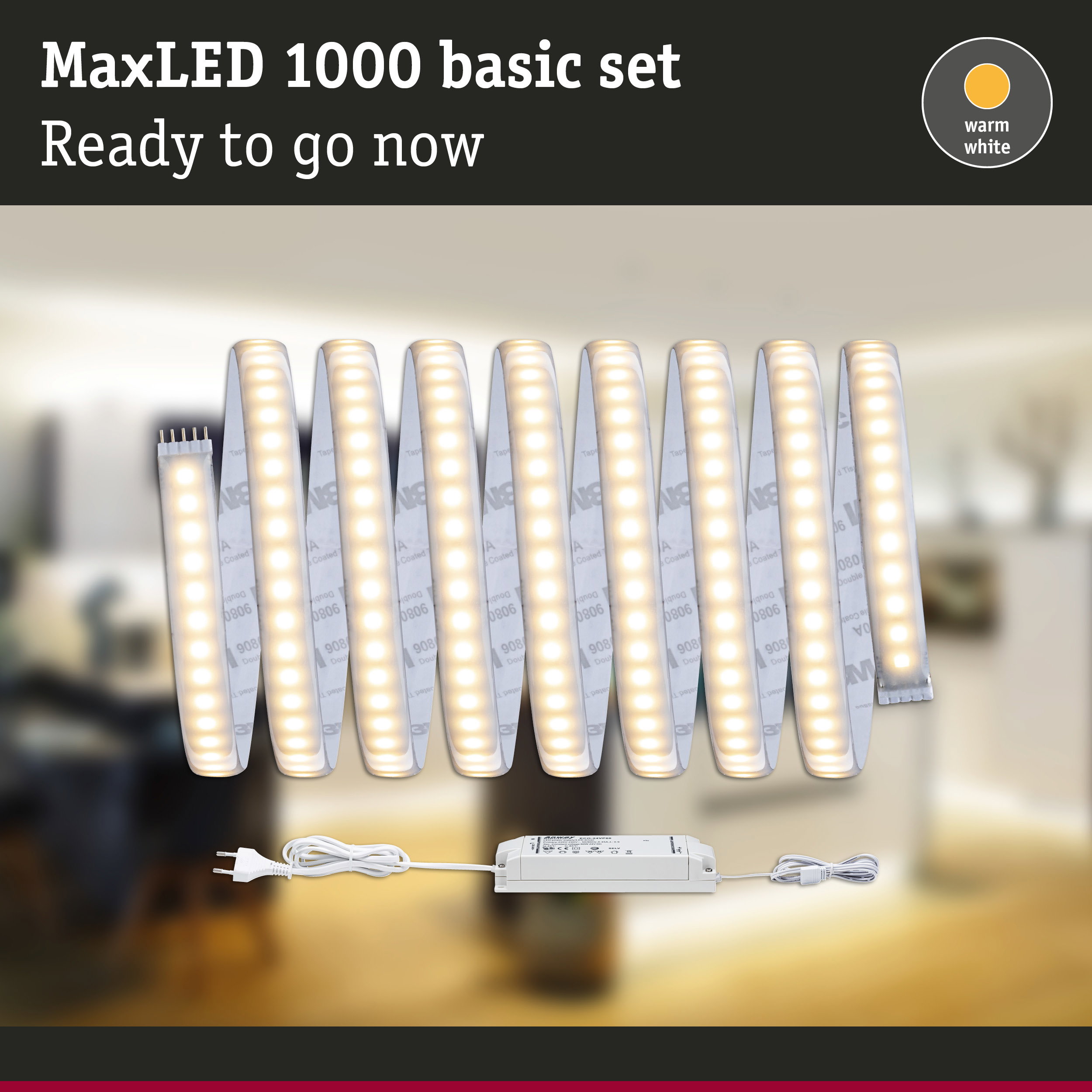

- Complete set incl. strip and power supply
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 4 x T: 12,5 mm |
| Length | 3 m |
| Shortenability Strips | 41.5 mm |
| Net weight | 429 g |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 5,5 m |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 35 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 190 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP44 |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Number of LED's per meter | 144 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 40 W |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 60 VA |
| Transformer height | 32 mm |
| Transformer width | 50 mm |
| Transformer depth | 166 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 2640 lm |
| Color rendering index | > 80 Ra |
| Lumens per metre | 1100 lm/m |
| Colour temperature | Warm white, 2700 K |
| Luminous flux LED module | 3300 lm |
| Rechargeable battery / battery data | |
|---|---|
| Dimensions (Height x Width x Depth) | 4 x 12,5 mm |
