Article-No.: 99940

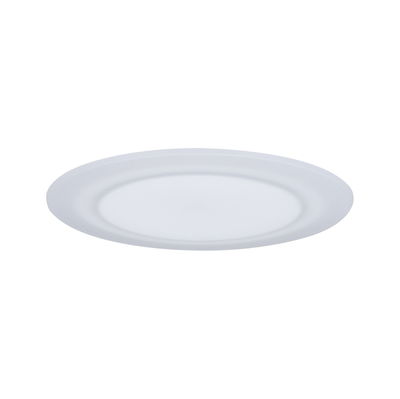

Premium LED Recessed luminaire Suon Basic Set

IP44 round 90mm 3x5W 3x450lm 230V dimmable 2700K Satin/White

Version: 3-piece set

3-piece set

Single luminaire

Light colour: Warm white

Dim to warm

Warm white

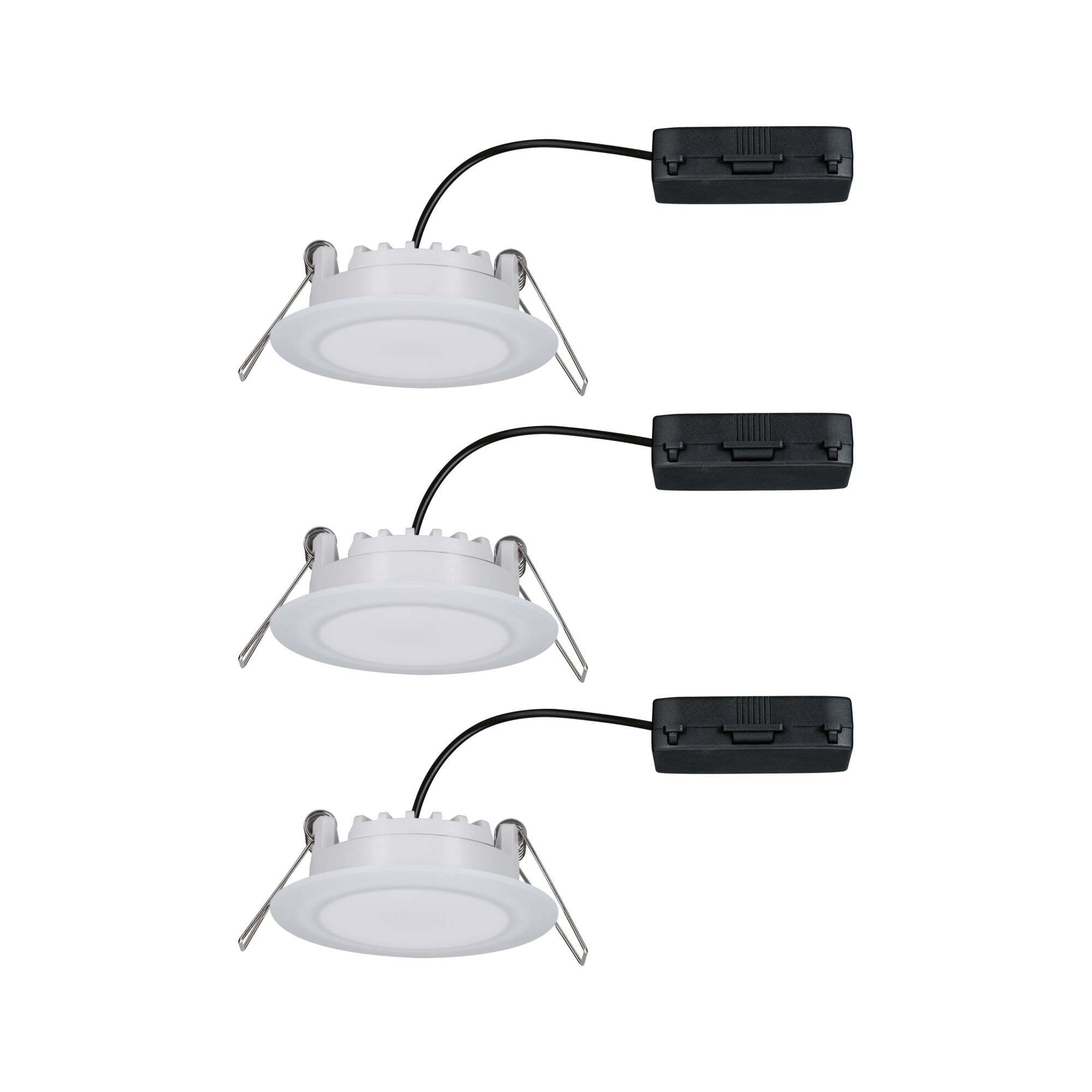

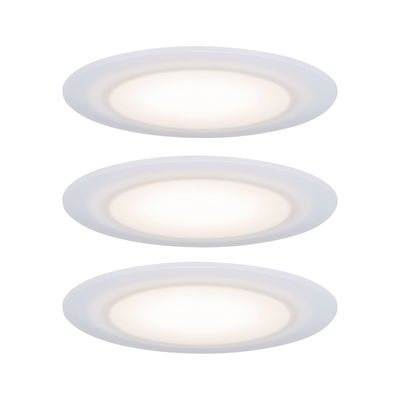

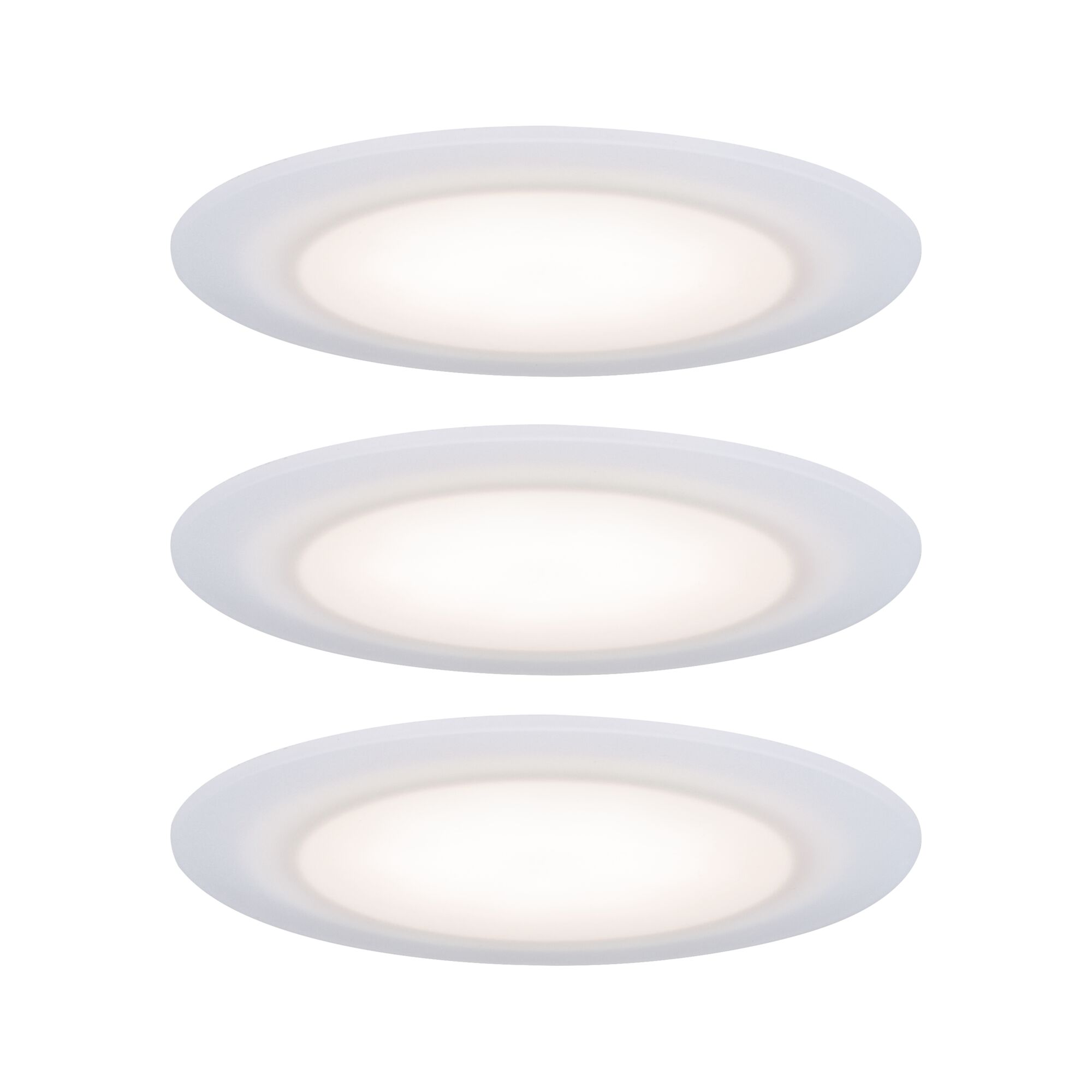

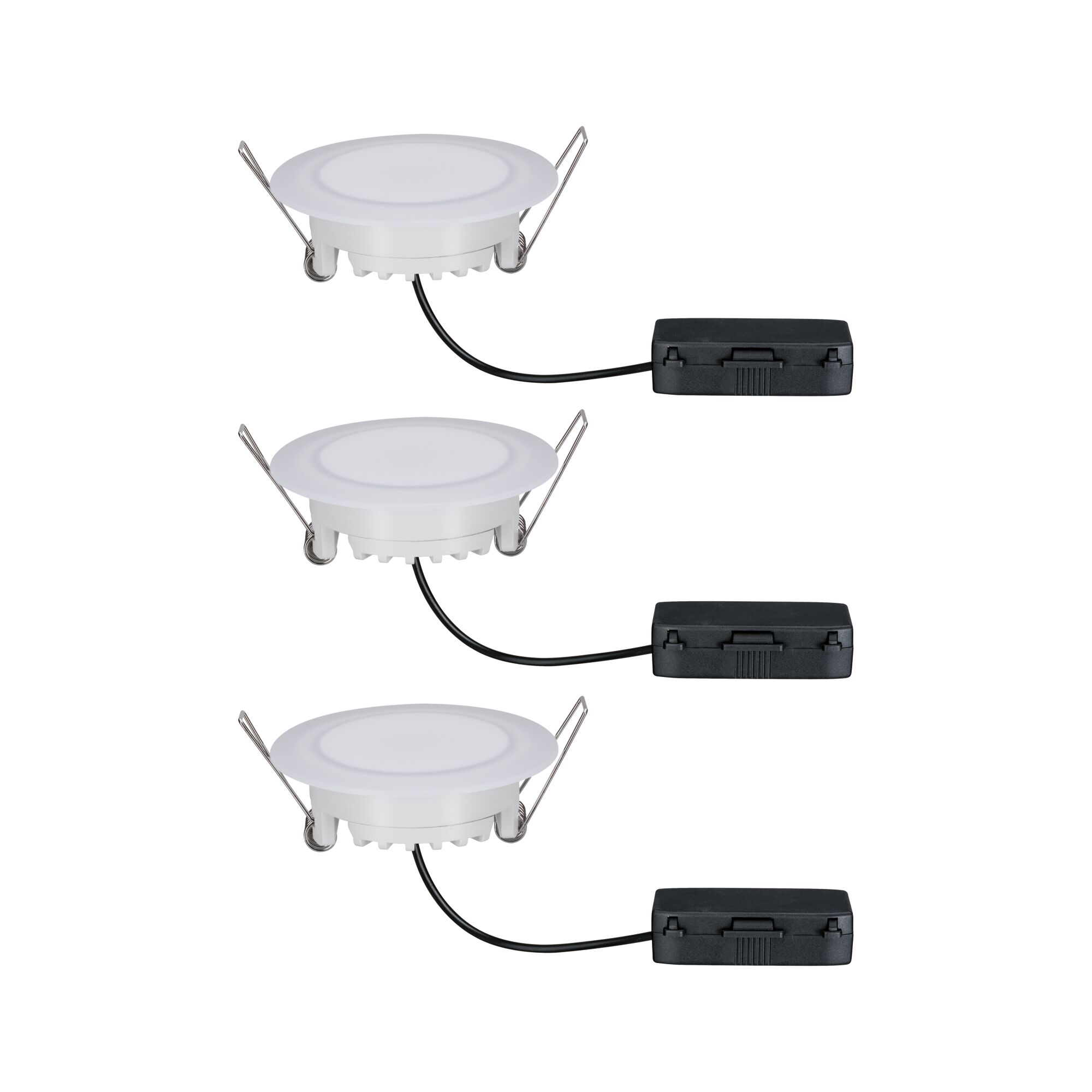

Set of 3 luminaires incl. LED module
Dimmable
Color temperatur: 2700K - Warm white

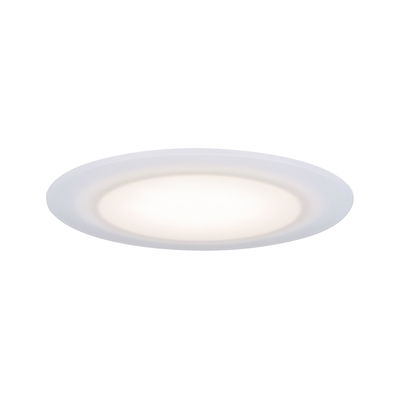

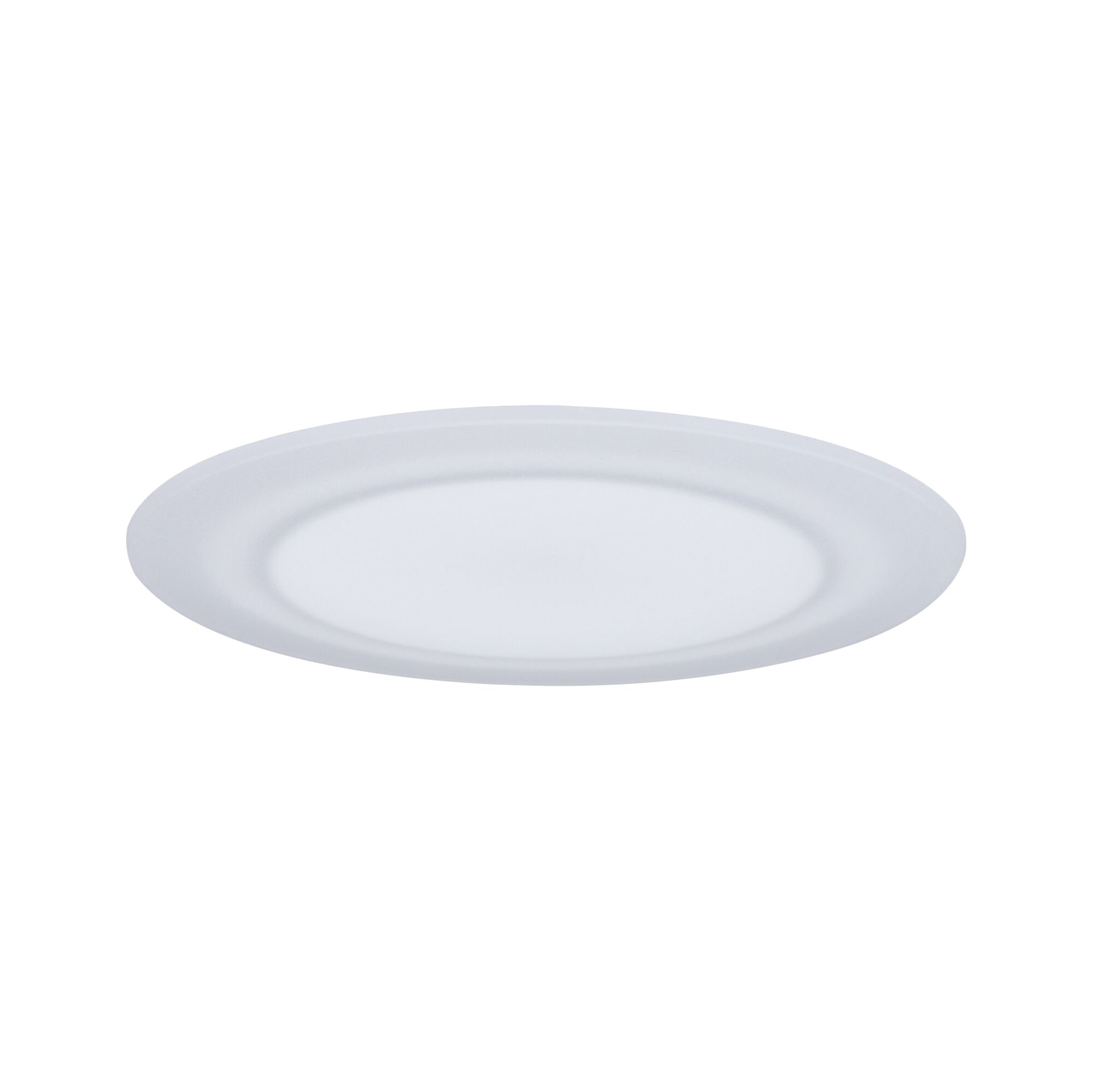

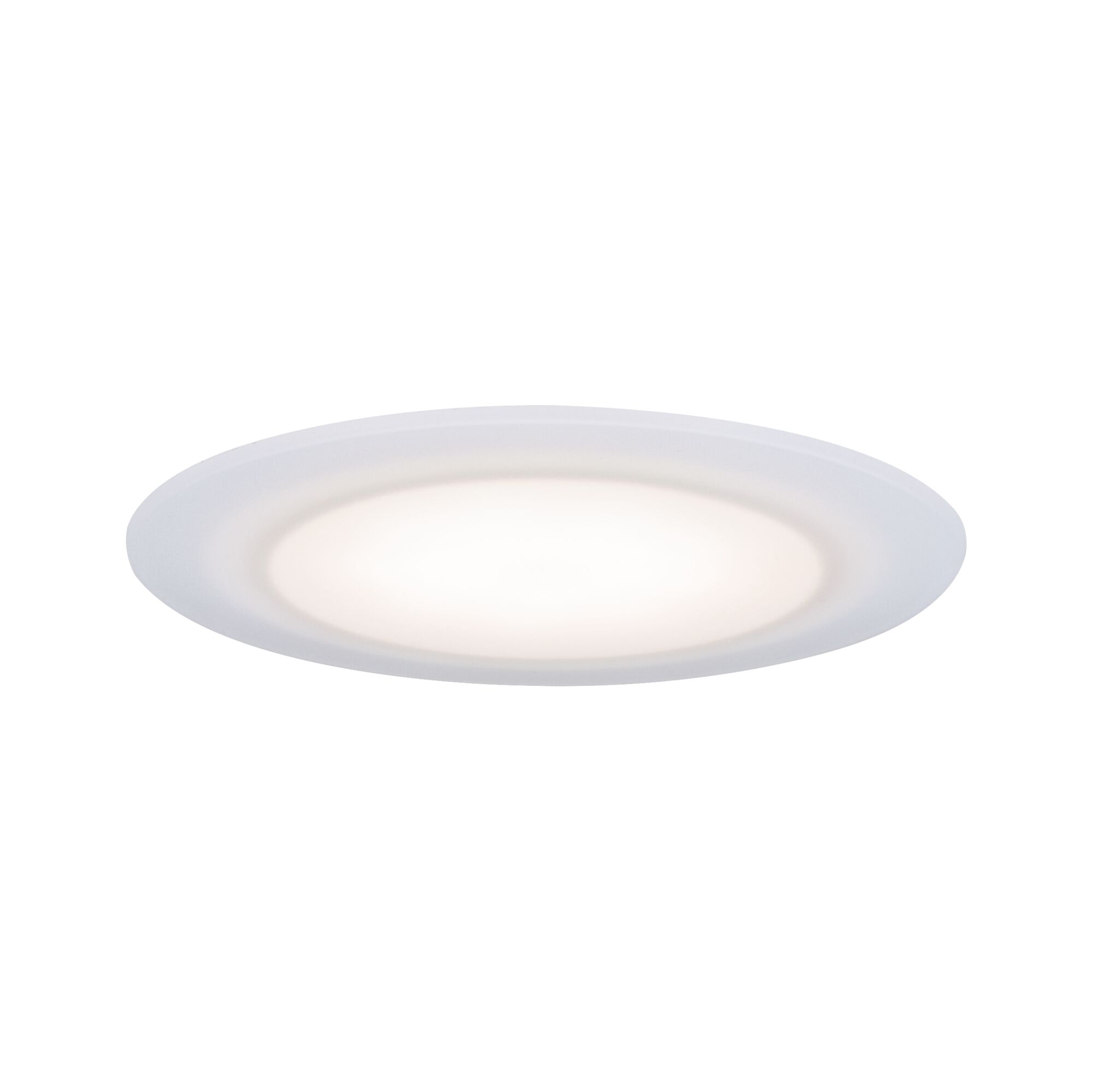

Premium LED Recessed luminaire Suon Basic Set IP44 round 90mm 3x5W 3x450lm 230V dimmable 2700K Satin/White

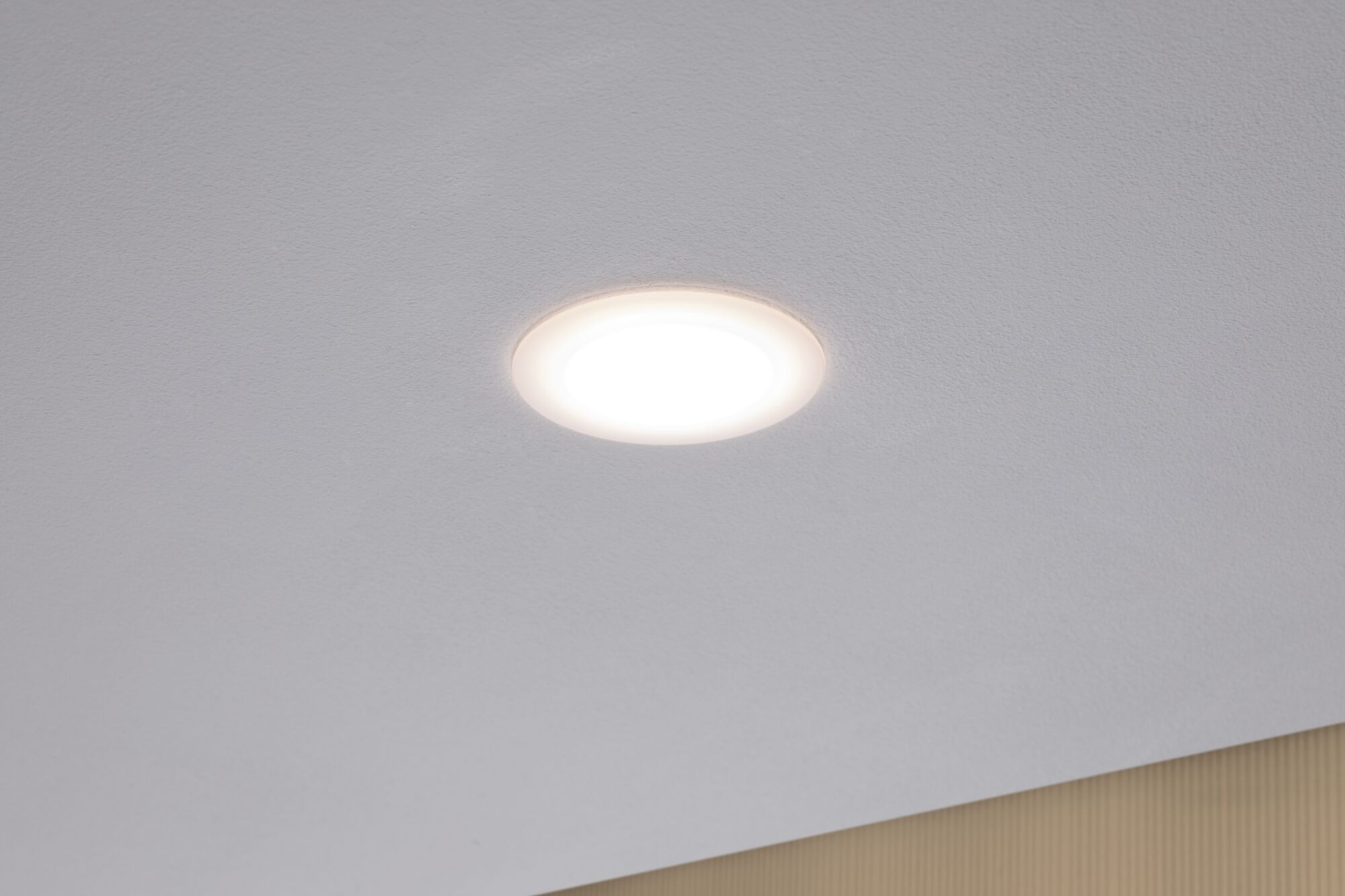

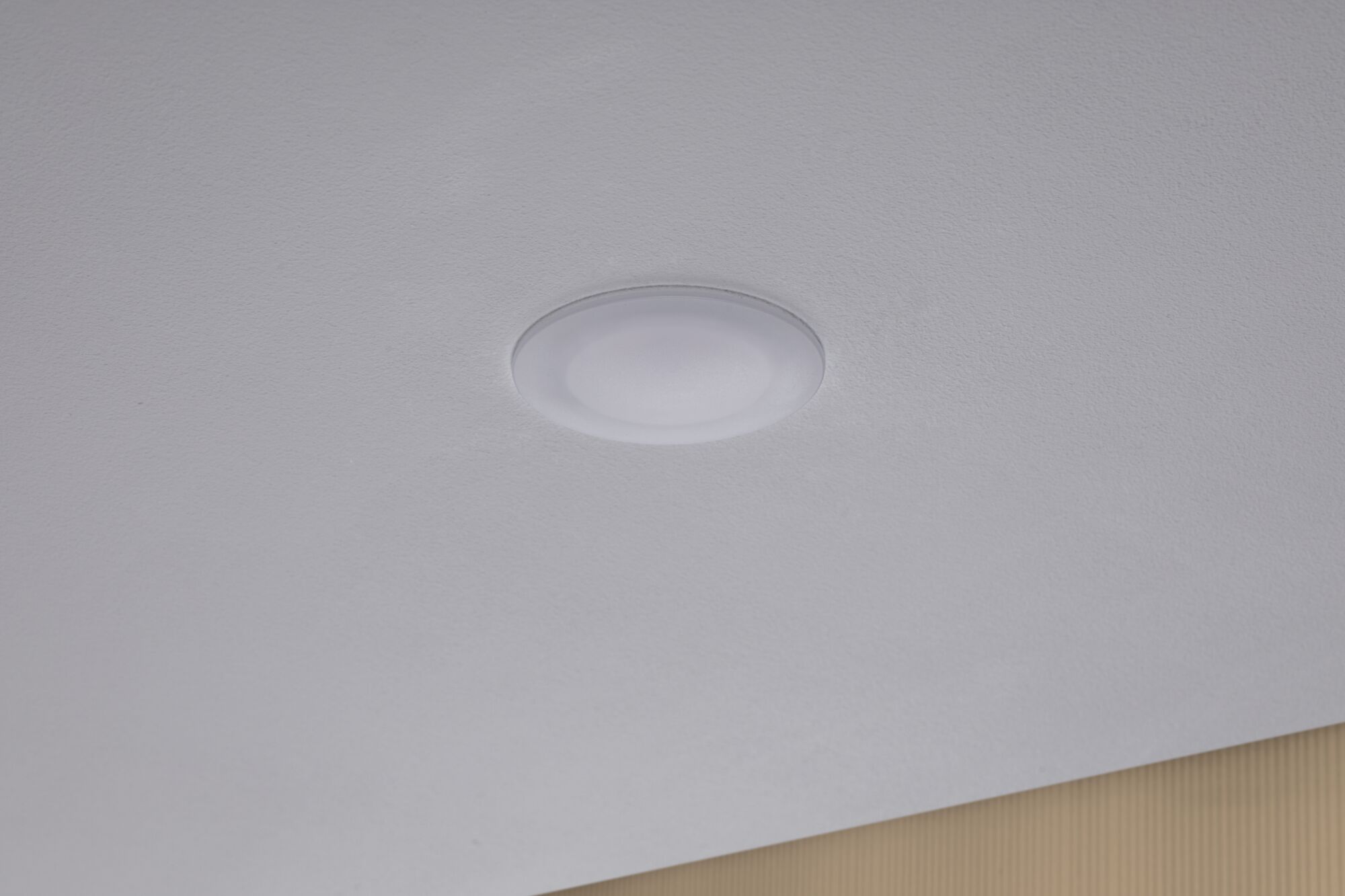

100% minimalist – Courtesy of their transparent materials, Suon premium frameless recessed luminaires are almost invisible while switched off. The entire lighting body forms a single lighting source spread over its entire surface, achieving a uniform light distribution.

Set of 3 luminaires incl. LED module
Dimmable
Color temperatur: 2700K - Warm white
IP protection: IP44 splash-protected

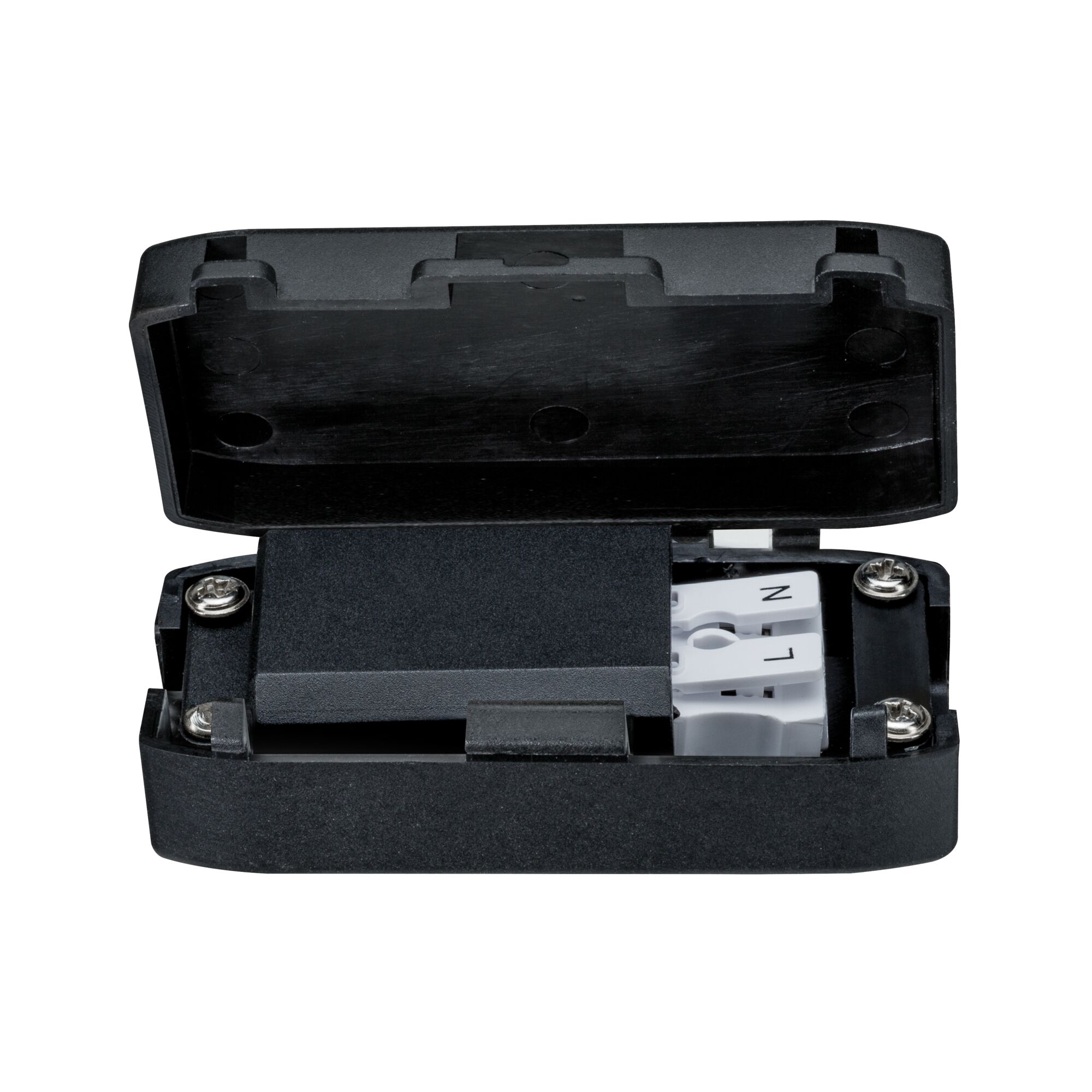

For 230 V direct connection

Dimension
Depth of hollow wall	30 mm, 30 mm
Total Mounting depth	45 mm
Dimensions (Height x Width x Depth)	H: 5 mm
Ø	90 mm
Mounting hole	68 mm
Form	round

Design and Material
Colour	White, Satin
Material	Plastic

Installation
can be used with the following dimmers	RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED

Energy consumption
Energy efficiency (A to G)	E

Service life
Lifetime	30000 h

Light Characteristics
Colour temp.	2700 K
Usable luminous flux	450 lm
Luminous flux LED module	650 lm
color temp	2700 K

Lamp Features
Component parts	5 W
Technique	LED
IP protection	IP44 ceiling mounting
Dimmable	with dimmer R+C f.elect.trafos+230V bulbs
Inclusive lamp	yes
Incandescent Equivalent	48 W
Number of component parts	3x
protection class	protection class II
Replacable	3 Lightsource is not replaceable, the complete lighting must be replaced.\|6 Control gear is not replaceable, the complete lighting must be replaced.

Transformer
apparent power	8 VA

Labelling
MM symbol	MM symbol
WEEE-Reg.-No	DE 39236390

Downloads

Manuals

Download Installation/Montage
