Article-No.:
93037
VariFit
LED Recessed panel
Areo
IP44 round 118mm 6,5W 500lm 4000K Chrome matt
IP44 round 118mm 6,5W 500lm 4000K Chrome matt

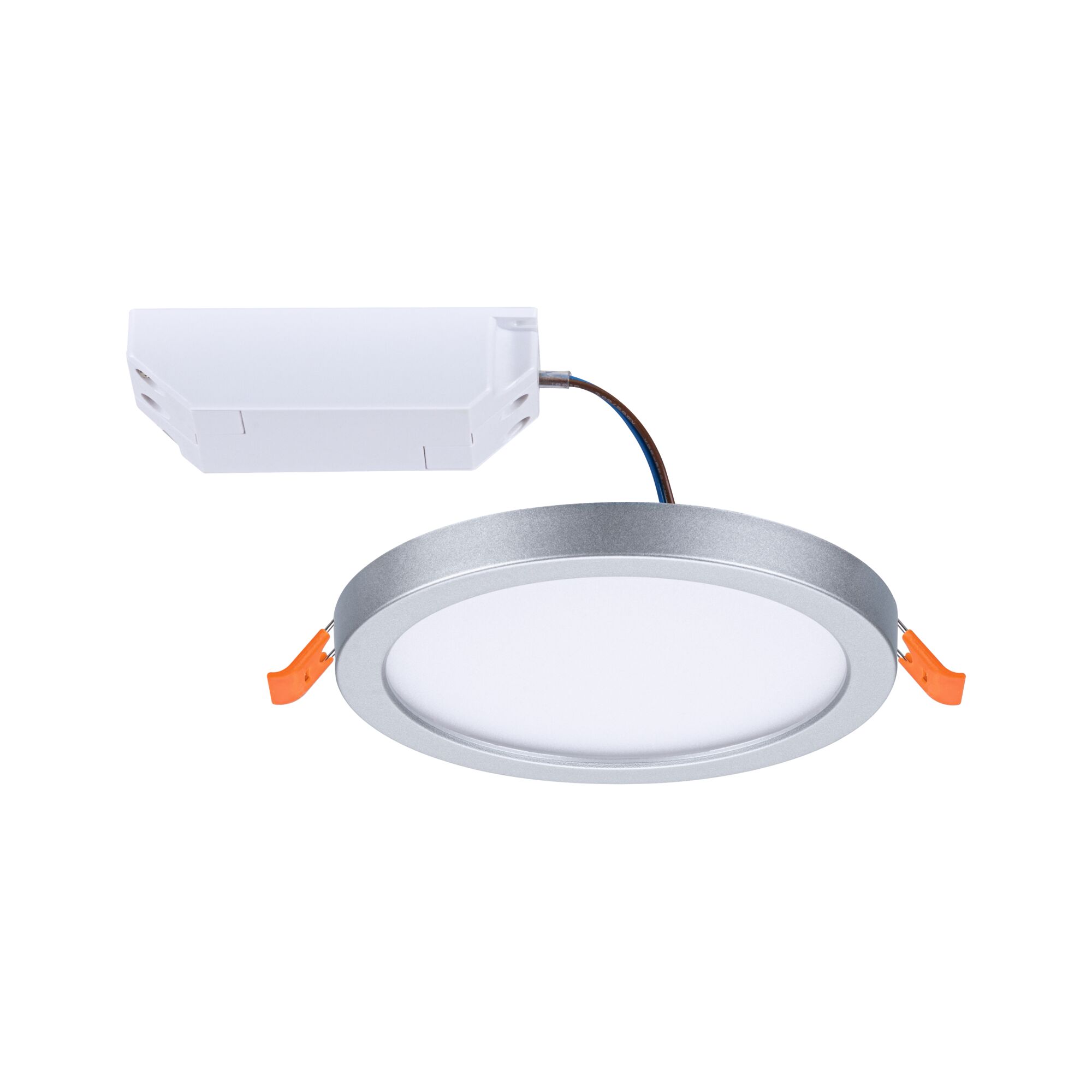

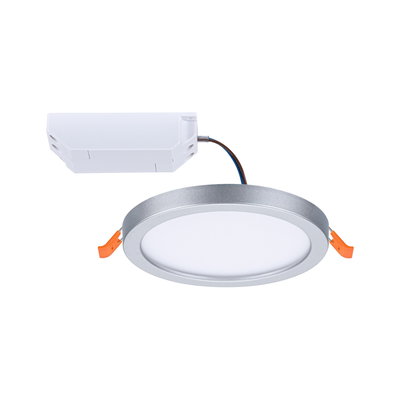

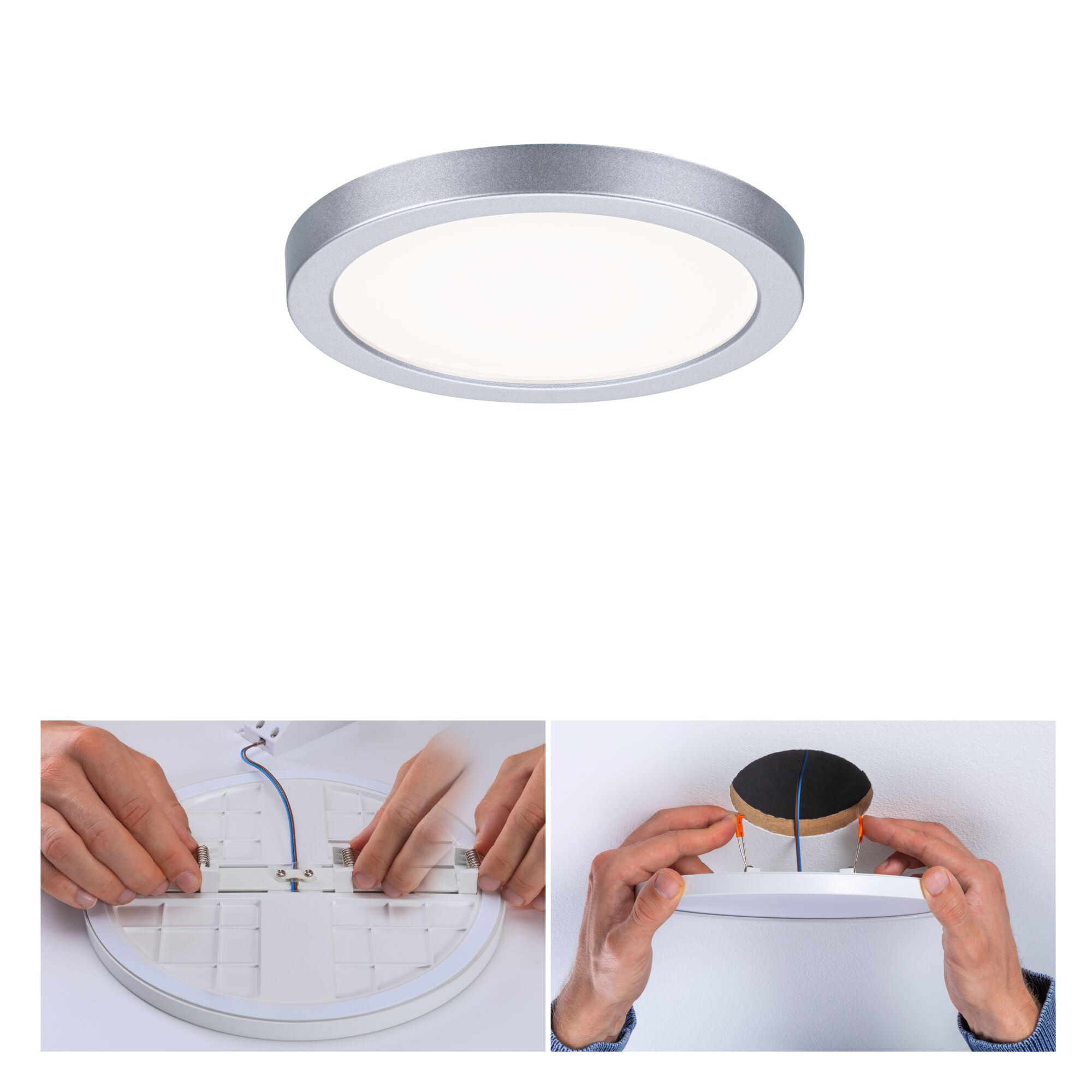

- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Made of easy-care plastic

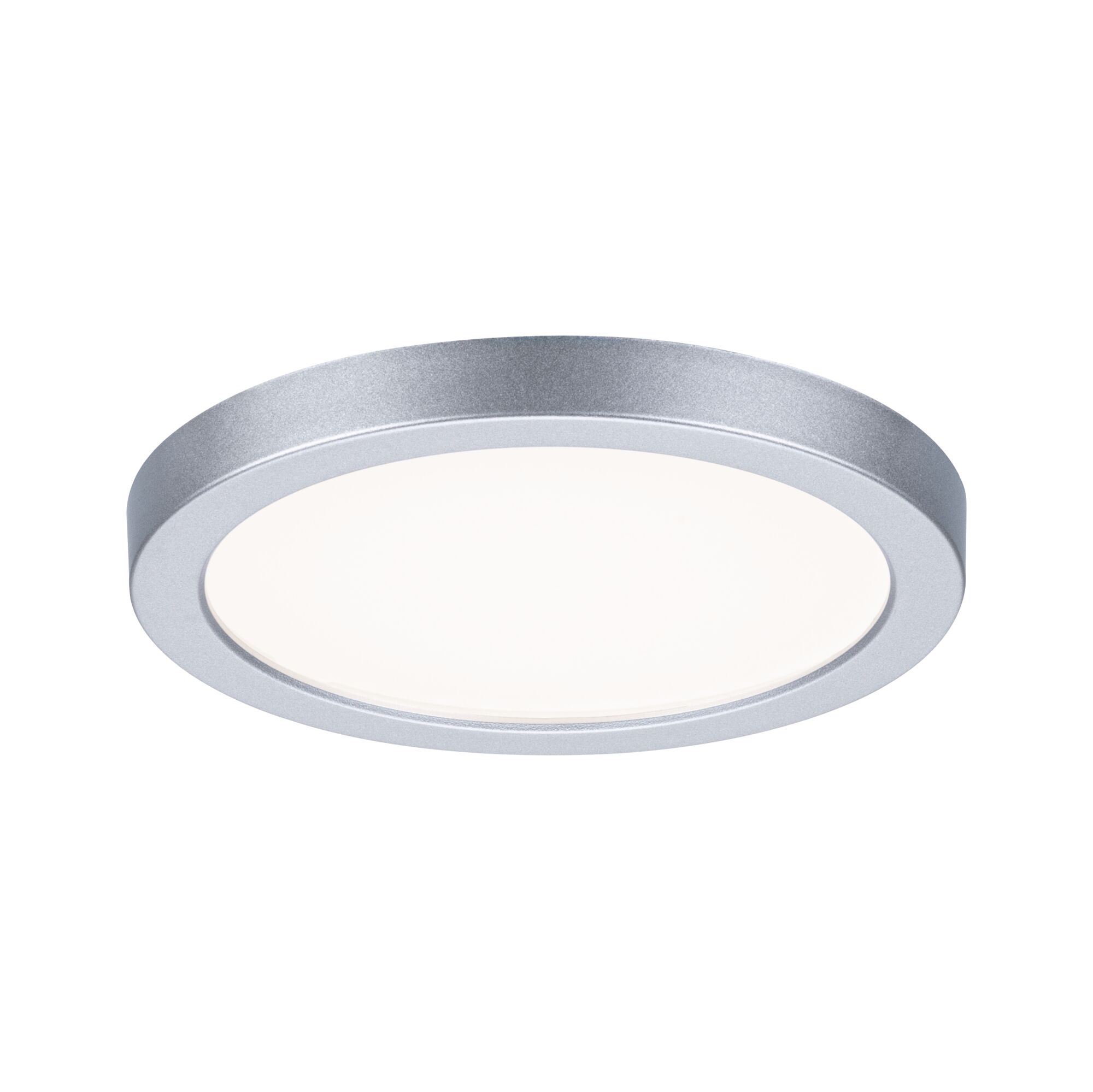

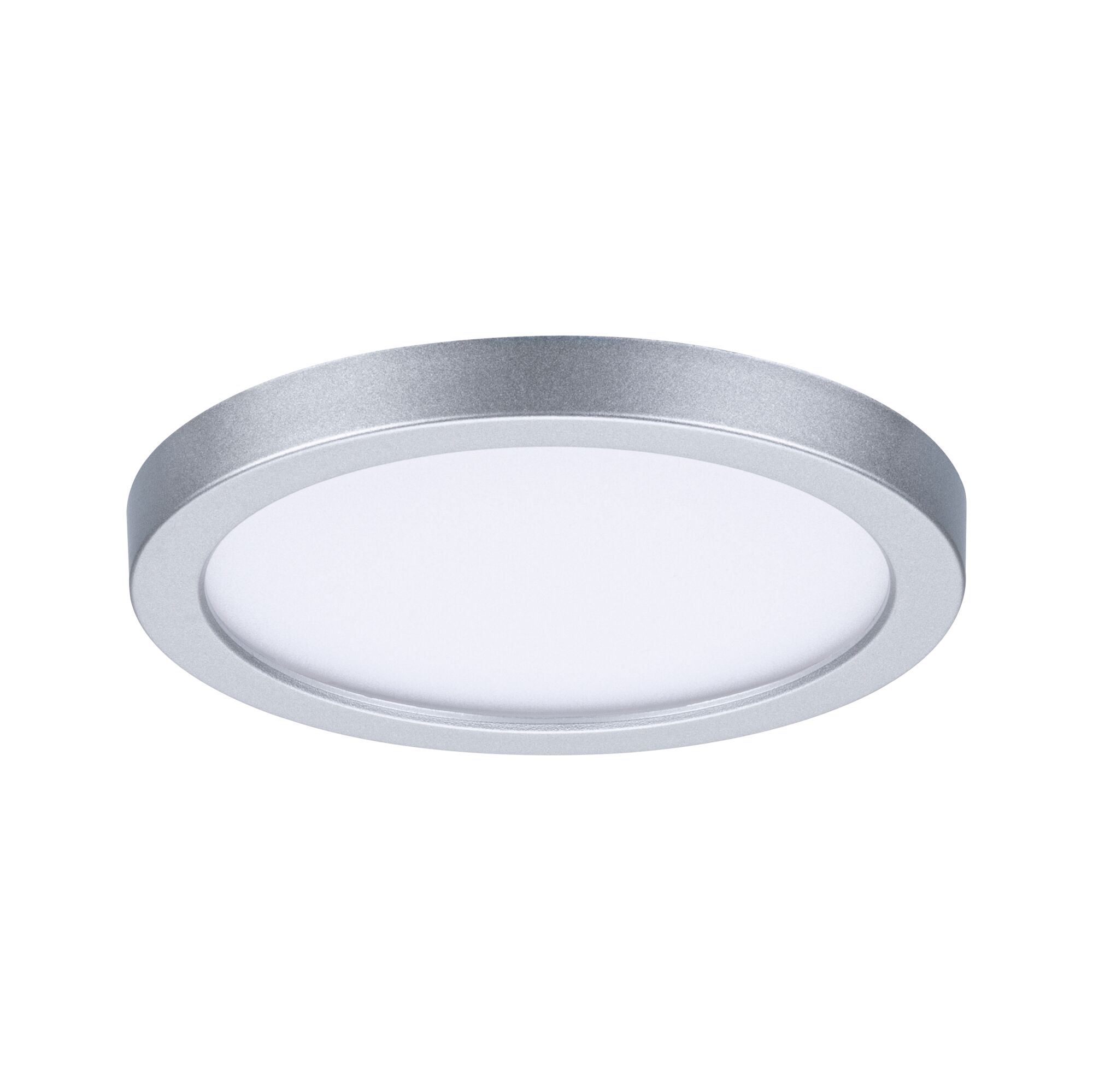

VariFit LED Recessed panel Areo IP44 round 118mm 6,5W 500lm 4000K Chrome matt

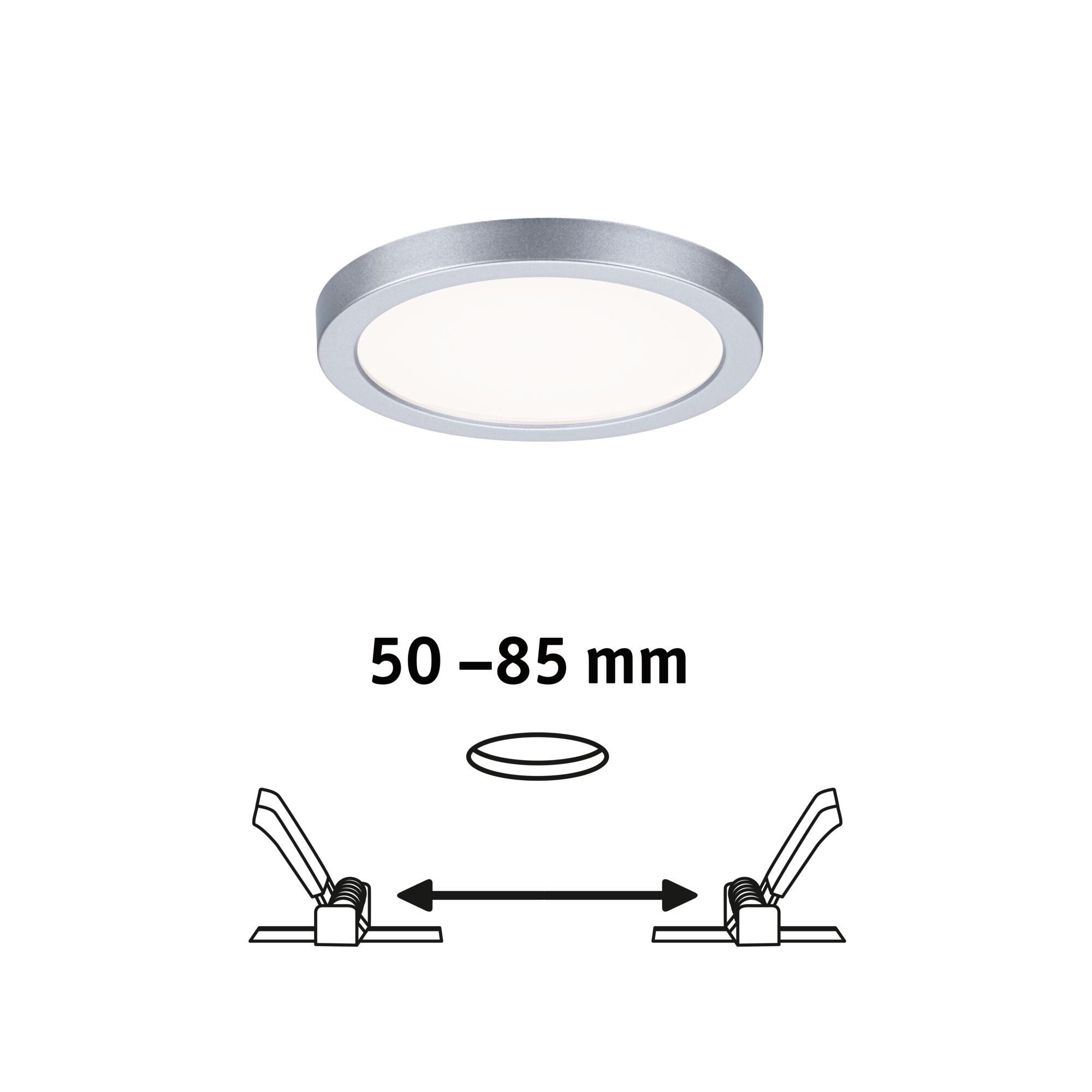

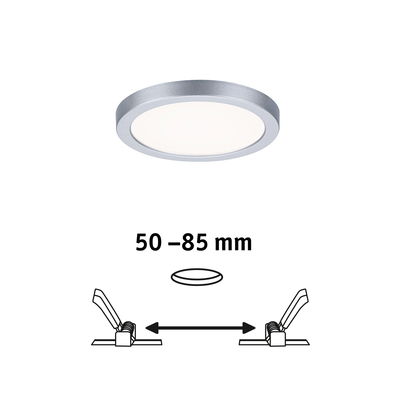

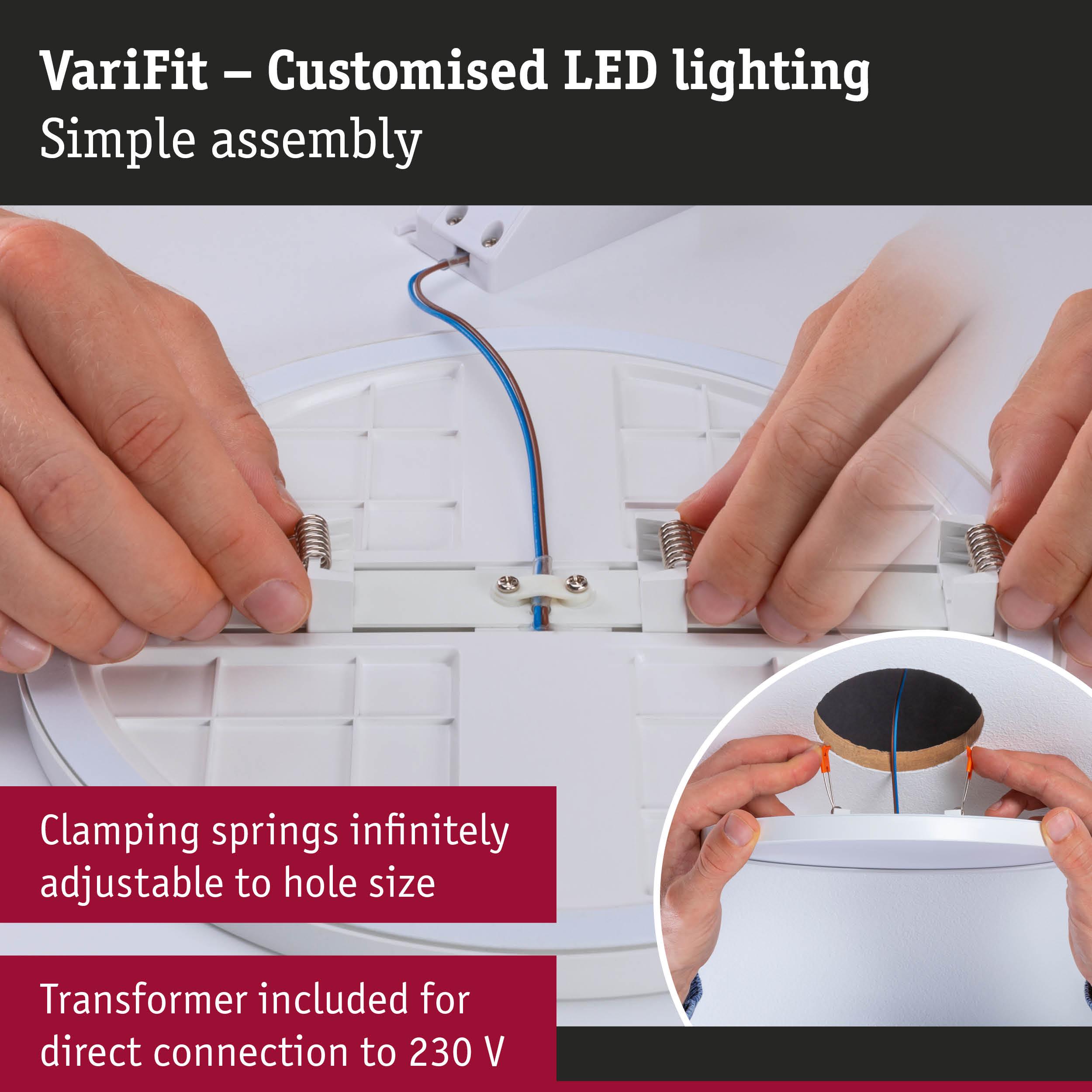

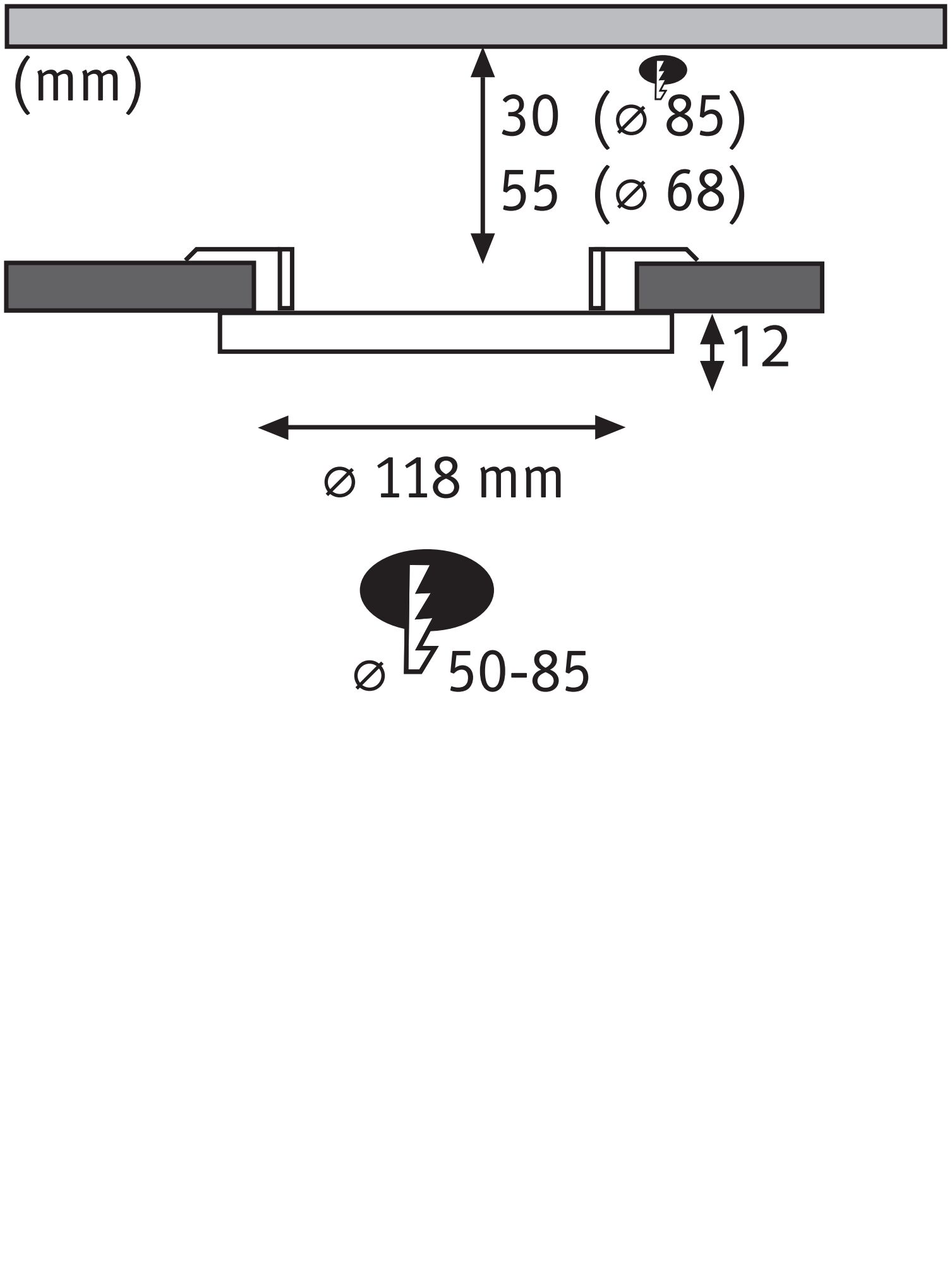

The round Areo recessed panel with a diameter of 118 mm and an output of 6,5 watts in Chrome matt provides extensive warm white light. Thanks to flexible VariFit technology, the clamping springs can be freely adjusted between 50 and 85 mm for installation. The panel can therefore be installed both in existing boreholes and new ones created with standard drill bits.For hole diameters larger than 85 mm, a cavity depth of at least 30 mm is needed. For hole diameters larger than 68 mm, a depth of at least 55 mm is needed.
- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Made of easy-care plastic

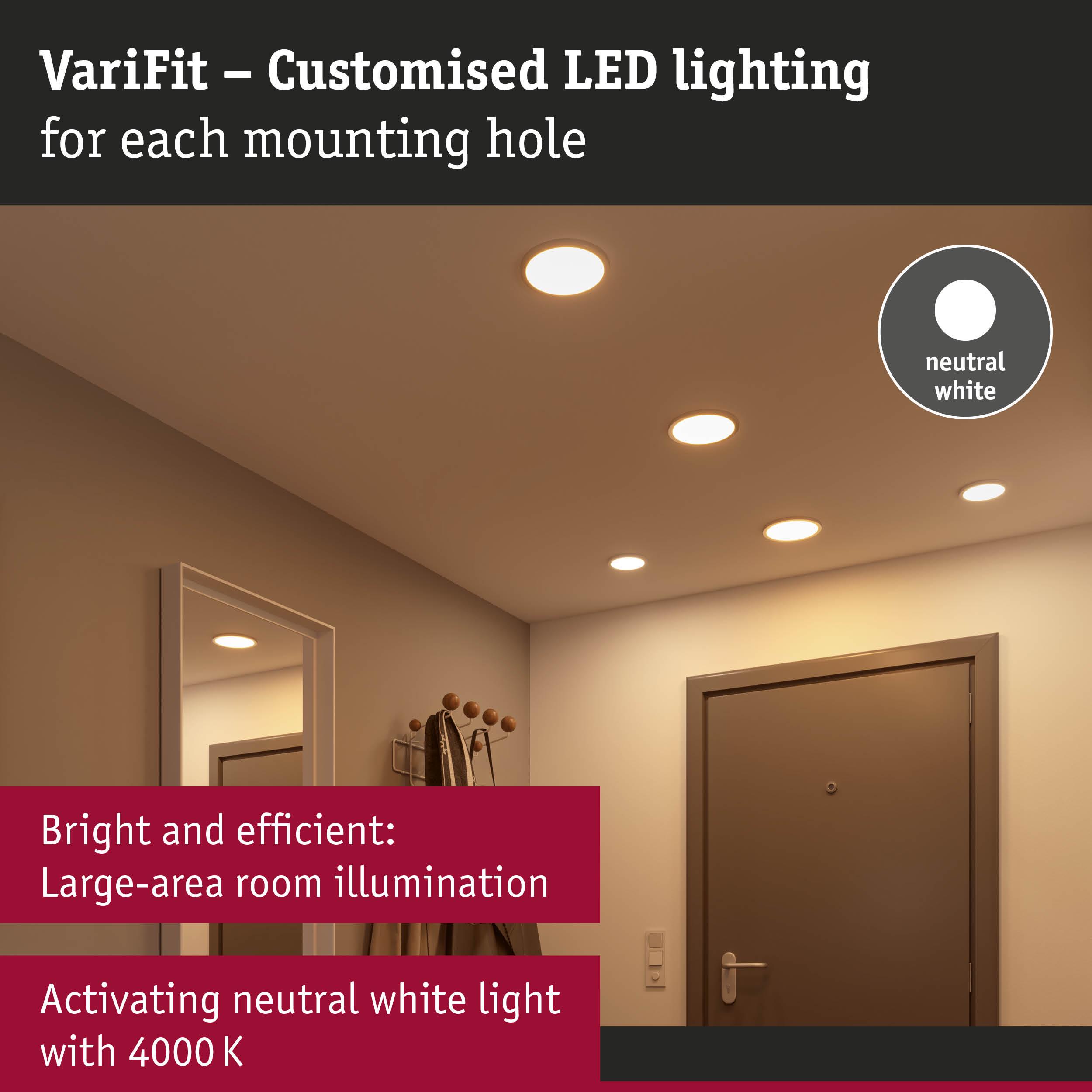

- Color temperatur: 4000K - Neutral white
- For 230 V direct connection
- IP protection: IP44 splash-protected
| Dimension | |
|---|---|
| mounting hole 2 | 85 mm |
| Depth of hollow wall | 30-55 mm, 30 mm |
| Total Mounting depth | 45-70 mm |
| Dimensions (Height x Width x Depth) | H: 12/26 mm |
| Ø | 118 mm |
| Mounting hole | 50 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Chrome matt |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 4000 K |
| Usable luminous flux | 500 lm |
| Luminous flux LED module | 850 lm |
| color temp | 4000 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 6,5 W |
| Technique | LED |
| IP protection | IP44 |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 63 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 8 W |
| Transformer | |
|---|---|
| apparent power | 14 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
