Article-No.:
78861
SimpLEDLED Strip
Full-Line COB Complete Set
1,5m 7W 500lm/m 384 LEDs/m 3000K 12VA
1,5m 7W 500lm/m 384 LEDs/m 3000K 12VA
- Ready-to-use set including 230/12V power supply with power cable and plug
- Color temperatur: 3000K - Warm white
- Rear self-adhesive for simple installation
SimpLED LED Strip Full-Line COB Complete Set 1,5m 7W 500lm/m 384 LEDs/m 3000K 12VA
The warm white SimpLED Full-Line COB complete set contains the strip with a length of 1.5 m, a mains plug, and is therefore ready for use. Whether as mood lighting, orientation light or for indirect room lighting – the strip is suitable for a range of applications. It produces completely uniform light without visible light points. The wide beam angle of 180° optimally distributes the light without creating shadows. The full cover phosphor coating protects against dust and moisture.
- Ready-to-use set including 230/12V power supply with power cable and plug
- Color temperatur: 3000K - Warm white

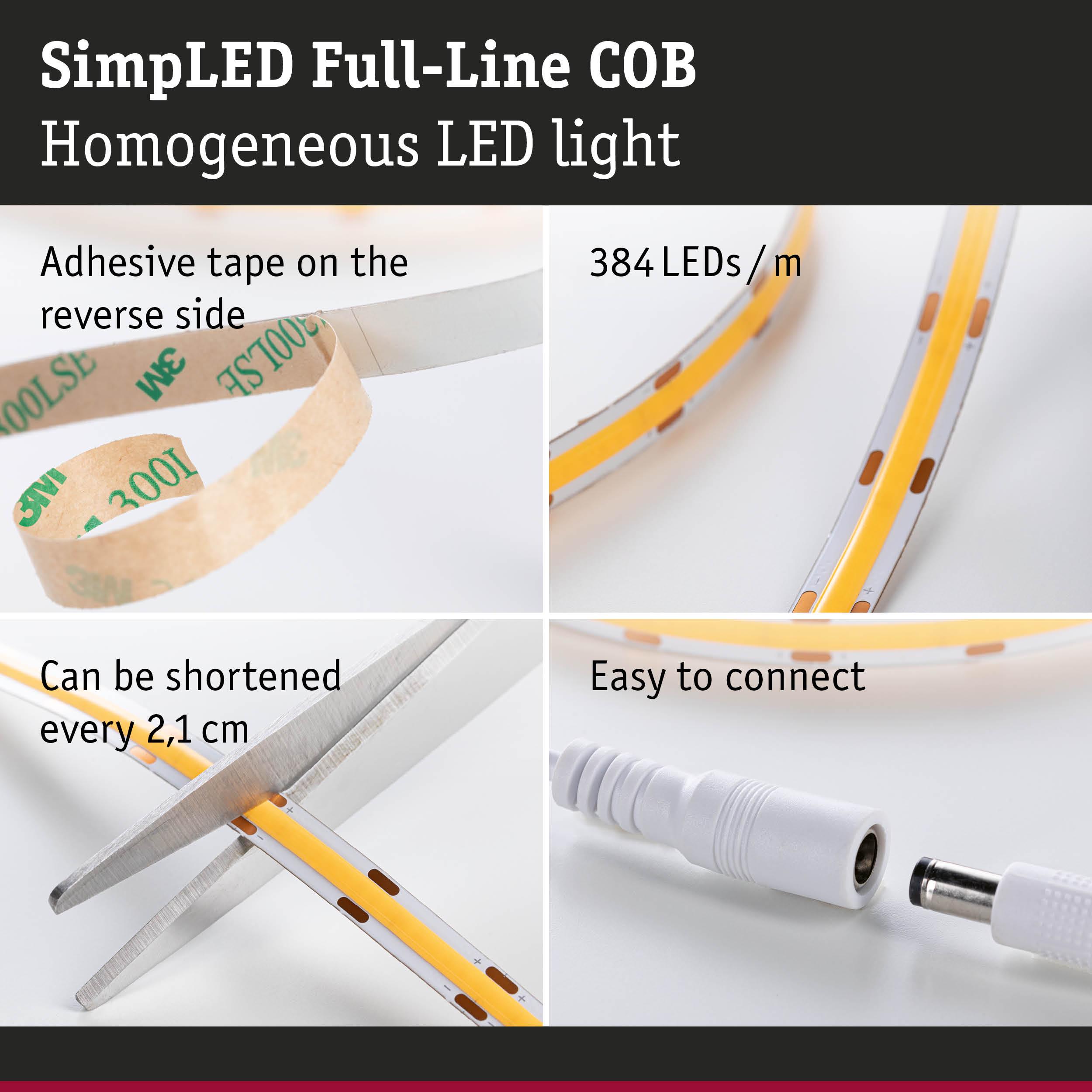

- Rear self-adhesive for simple installation
- Simple plug-in system for easy installation
- Flexible material for installation on flat or arched base surfaces
- Coating protects against splashing water and dust
- Cannot be extended
- Cannot be combined with YourLED and MaxLED strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 1,6 x B: 8 mm |
| Length | 1,5 m |
| Shortenability Strips | 21 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Metal |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 750 lm |
| Luminous flux LED module | 750 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 180 ° |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 7 W |
| Number of component parts | 1x |
| Number of LED's per meter | 384 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 11 W |
| Adjustability | fixed |
| Voltage | 230/12 V |
| Transformer | |
|---|---|
| apparent power | 14.5 VA |
| Transformer power range | 12 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
