LED Panel Atria Shine Backlight IP44 round 190mm 11,2W 850lm 3000K White

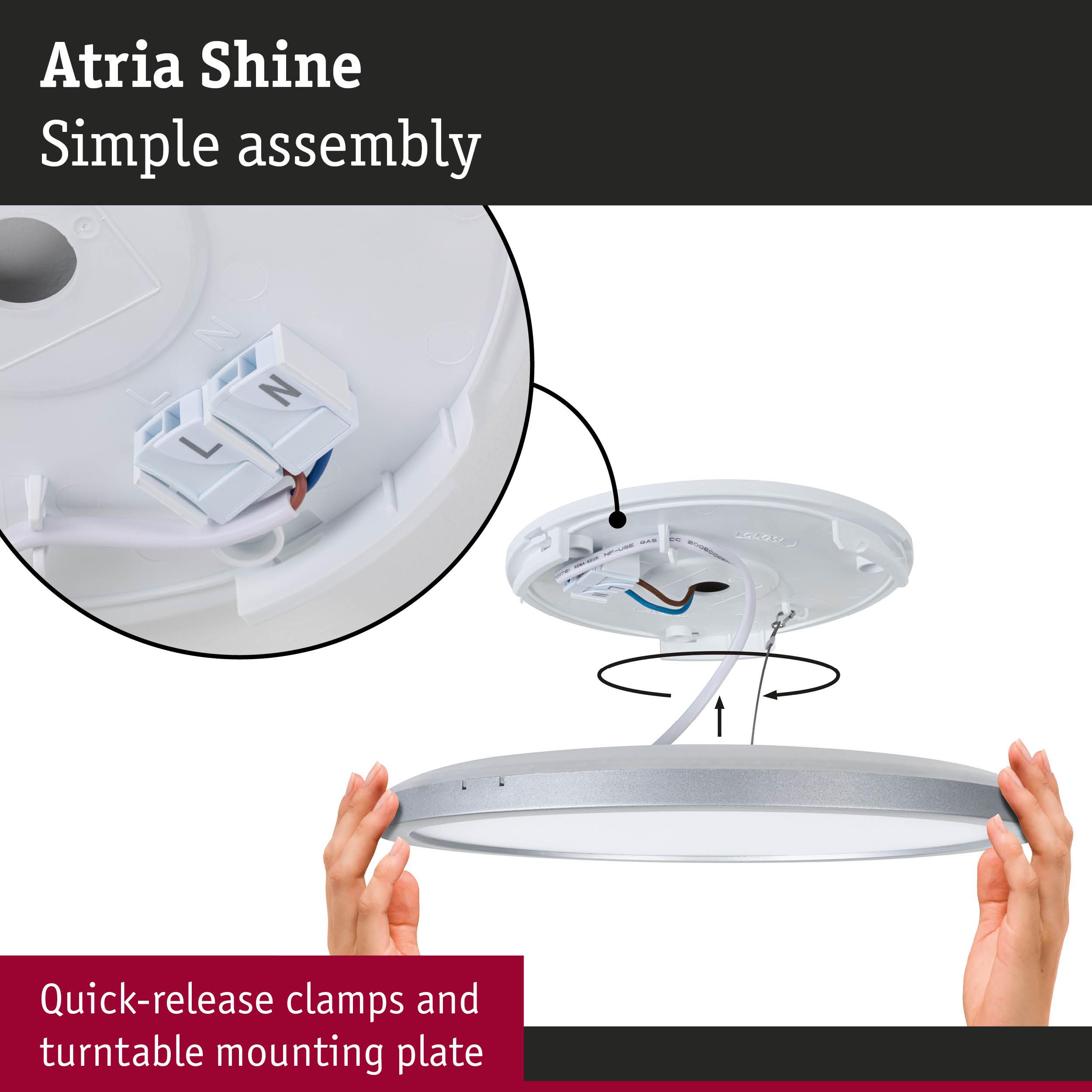

With an output of 11,2W, the rounde Atria Shine LED panel in White and 190mm is ideal for basic lighting in living rooms, bedrooms and kitchens. The warm white light of the panel creates uniform and wide-area room illumination. Additional backlight technology produces a magical feel-good atmosphere and gives the panel an almost floating luminous appearance. With a quick clip, a special twist lock and an ultra-flat installation height of 28 mm, the panel is very easy to install.

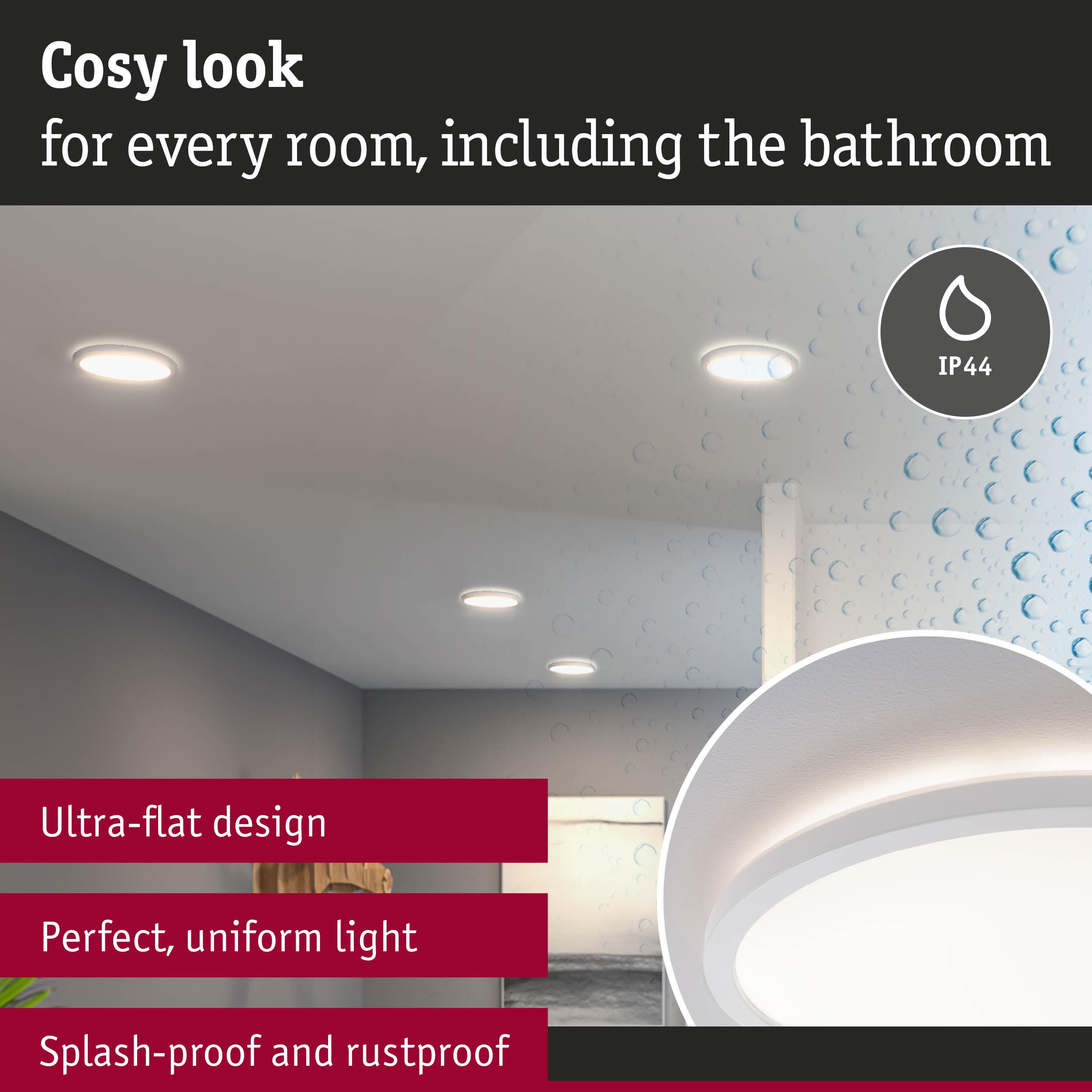

IP44 splash-protected for bathrooms and similar rooms

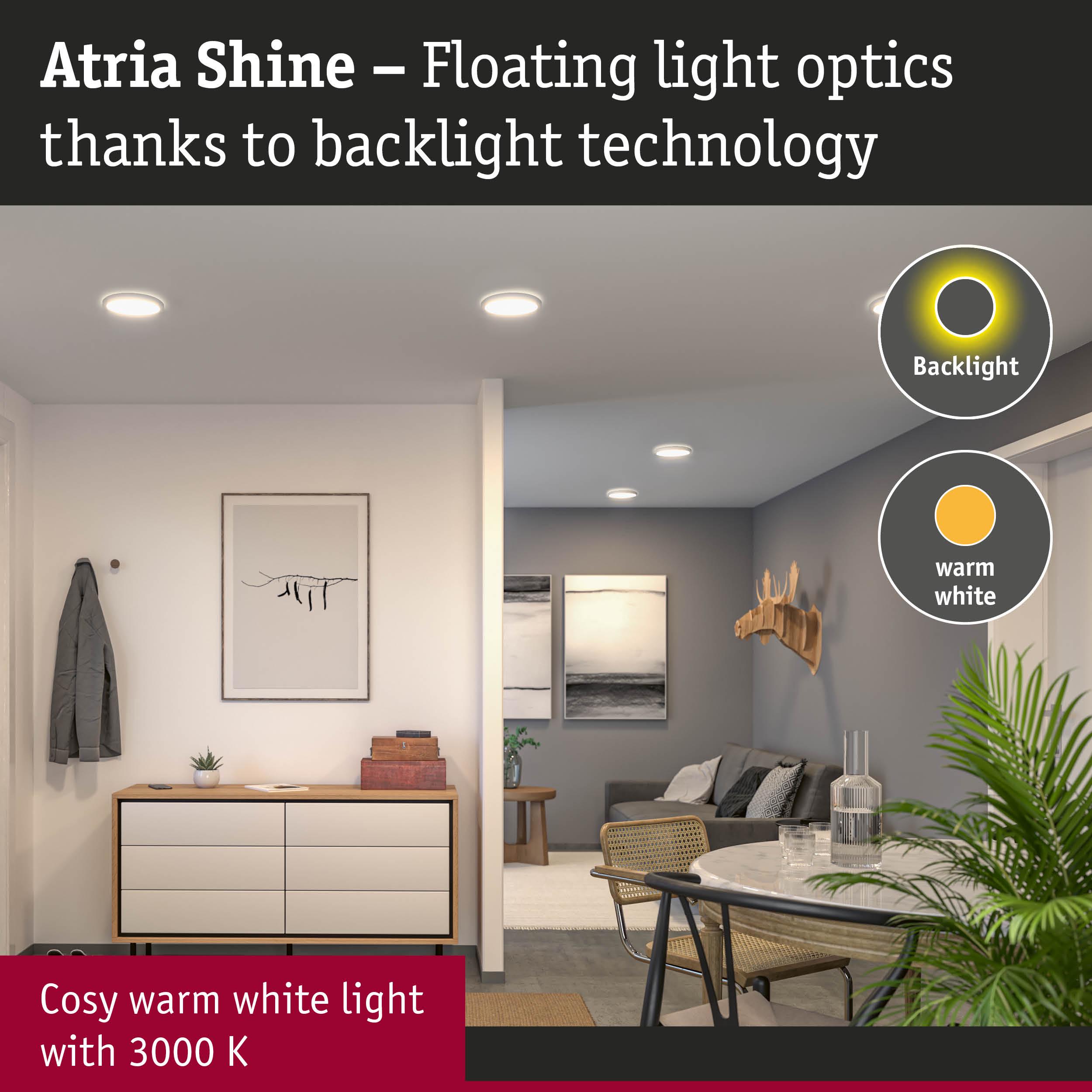

Backlight technology for subtle, almost floating appearance of the luminaire
Ultra-flat design: Installation height of only 28 mm
Color temperatur: 3000K - Warm white
Can be mounted on wall or ceiling
Even room light based on cutting-edge LED technology
Especially flat construction

Dimension
Dimensions (Height x Width x Depth)	H: 30 mm
Ø	190 mm
Form	round

Design and Material
stainless	stainless
Colour	White
Material	Plastic

Energy consumption
Energy efficiency (A to G)	E

Service life
Lifetime	30000 h

Light Characteristics
Colour temp.	3000 K
Usable luminous flux	850 lm
Luminous flux LED module	1340 lm
color temp	3000 K
Color rendering index	> 80 Ra

Lamp Features
Component parts	11,2 W
Technique	LED
IP protection	IP44 ceiling mounting
Dimmable	No
Inclusive lamp	yes
Incandescent Equivalent	90 W
Number of component parts	1x
protection class	protection class II
Replacable	3 Lightsource is not replaceable, the complete lighting must be replaced.\|6 Control gear is not replaceable, the complete lighting must be replaced.
Power consumption	12,5 W

Transformer
Transformer power	18 VA

Labelling
WEEE-Reg.-No	DE 39236390

Downloads

Manuals

Download Installation/Montage

LED Panel Atria Shine Backlight

IP44 round 190mm 11,2W 850lm 3000K White
