Article-No.:
93086
LED Recessed luminaire3-Step-Dim
Turnal
round 60mm 90° Coin 6W 470lm 230V dimmable 2700K Matt white
round 60mm 90° Coin 6W 470lm 230V dimmable 2700K Matt white

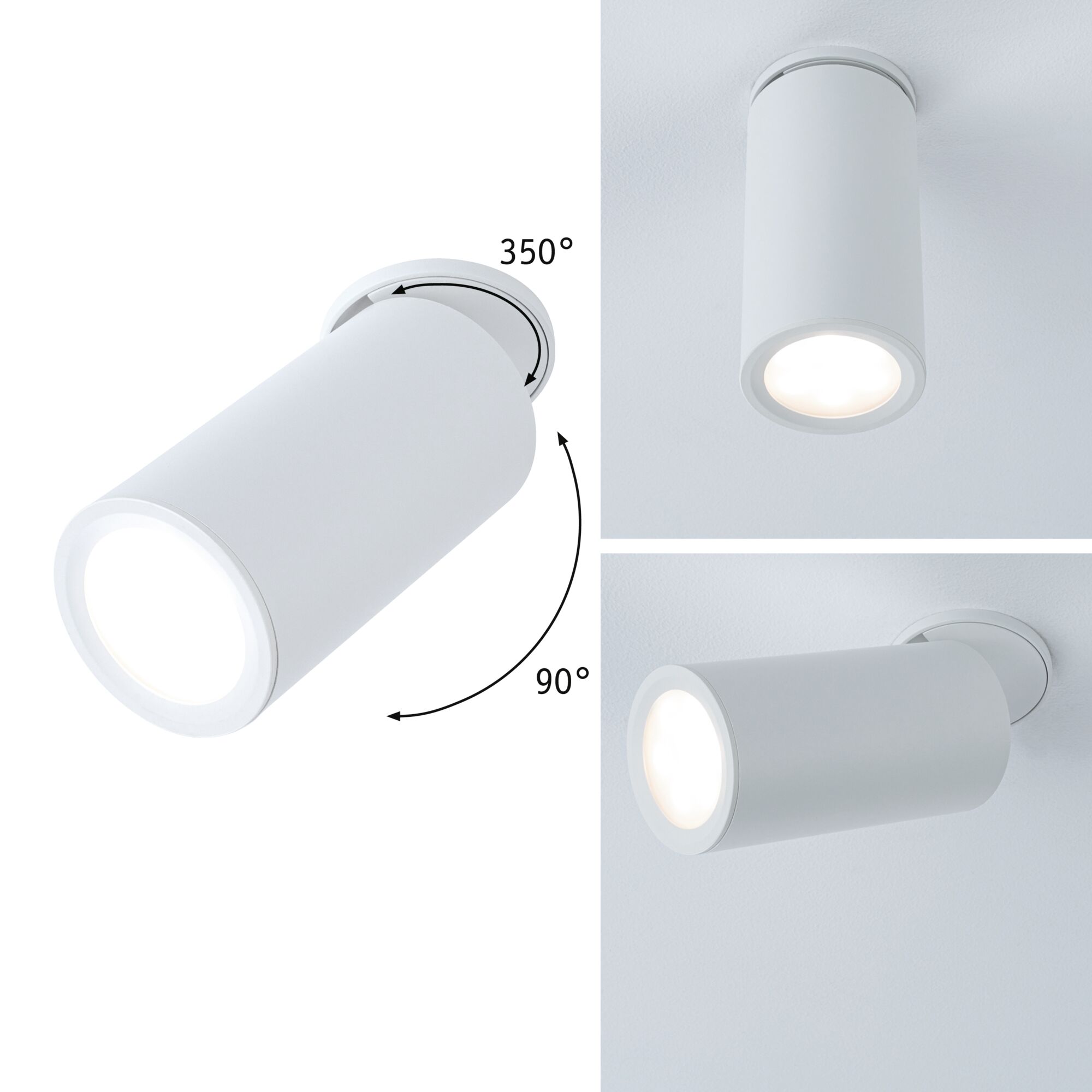

- Swivelling spot head makes it easy to reposition the light
- Directional light sets light accents by shining on objects.
- Color temperatur: 2700K - Warm white
LED Recessed luminaire 3-Step-Dim Turnal round 60mm 90° Coin 6W 470lm 230V dimmable 2700K Matt white
The white recessed luminaire set Turnal Coin in an industrial look provides targeted illumination of zones and objects in your living space. With its simple design, the luminaire fits in with any interior style and can be flexibly aligned using its rotating and swivelling function to highlight your favourite decorative features.
- Swivelling spot head makes it easy to reposition the light
- Directional light sets light accents by shining on objects.
- Color temperatur: 2700K - Warm white
- Incl. replaceable LED lamp
- 3 brightness levels
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 115 mm |
| Diameter | 60 mm |
| Built-in diameter | 48 mm |
| Mounting depth | 45 mm |
| Depth of hollow wall | 30 mm |
| Design and Material | |
|---|---|
| Form | round |
| Type | Coin |
| Colour | Matt white |
| Material | Metal |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 470 lm |
| Colour consistency (SDCM) | 6 |
| Color rendering index | > 85 Ra |
| Beam angle | 100 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | Dimmable in 3 steps with normal light switch |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Swivel range | 90 ° |
| Incandescent Equivalent | 40 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Base/Socket | Coin |
| Technique | LED |
| Component parts | 6 W |
| Number of component parts | 1x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Adjustability | rotating and tilting |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 6 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
