Article-No.:
79825

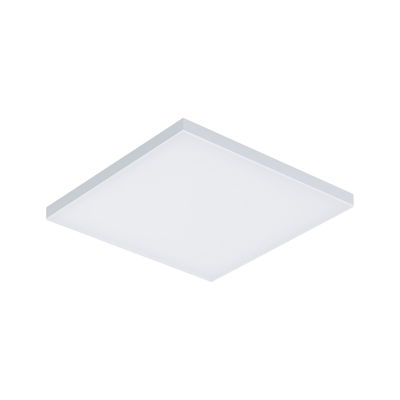

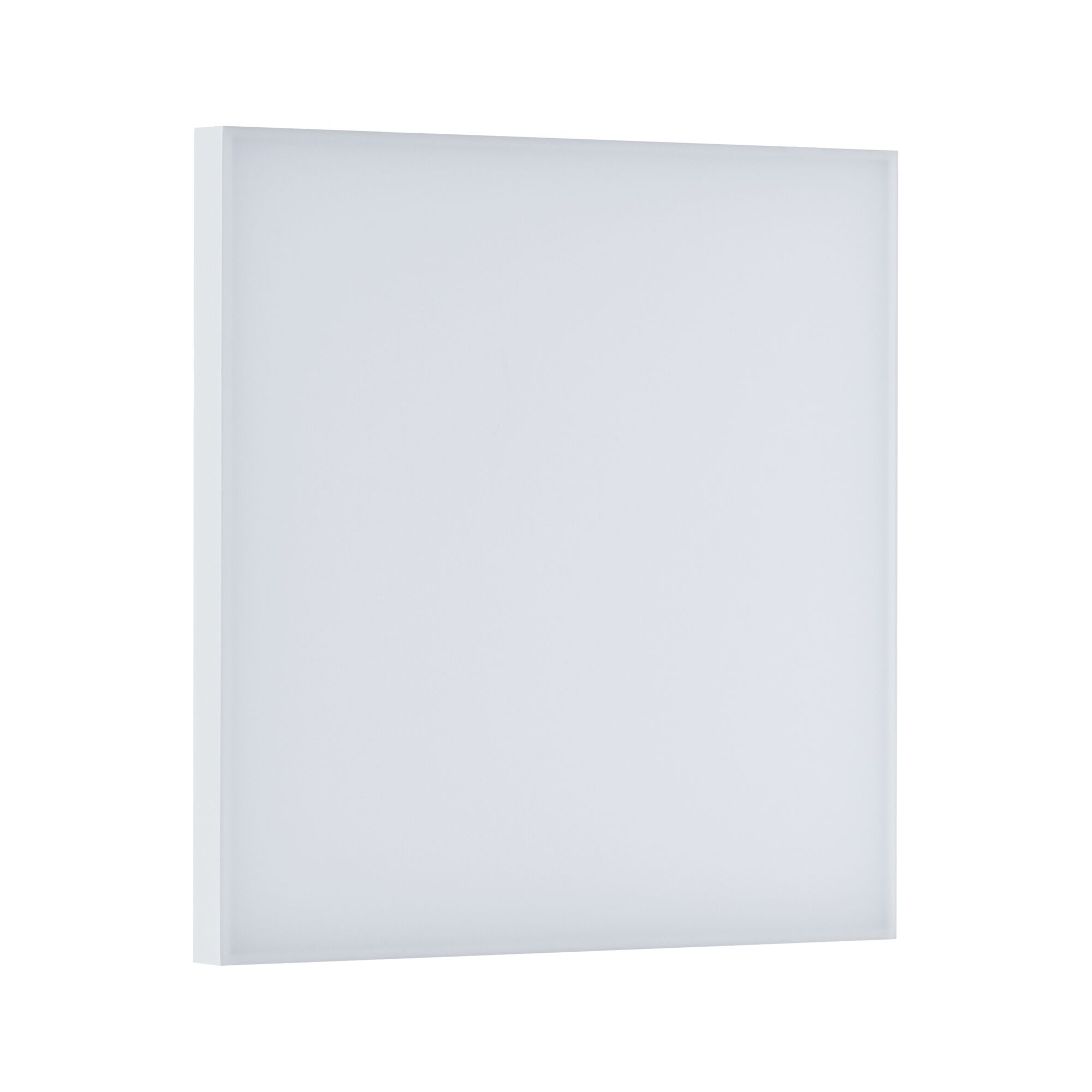

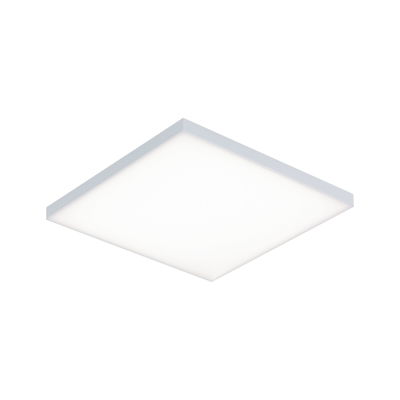

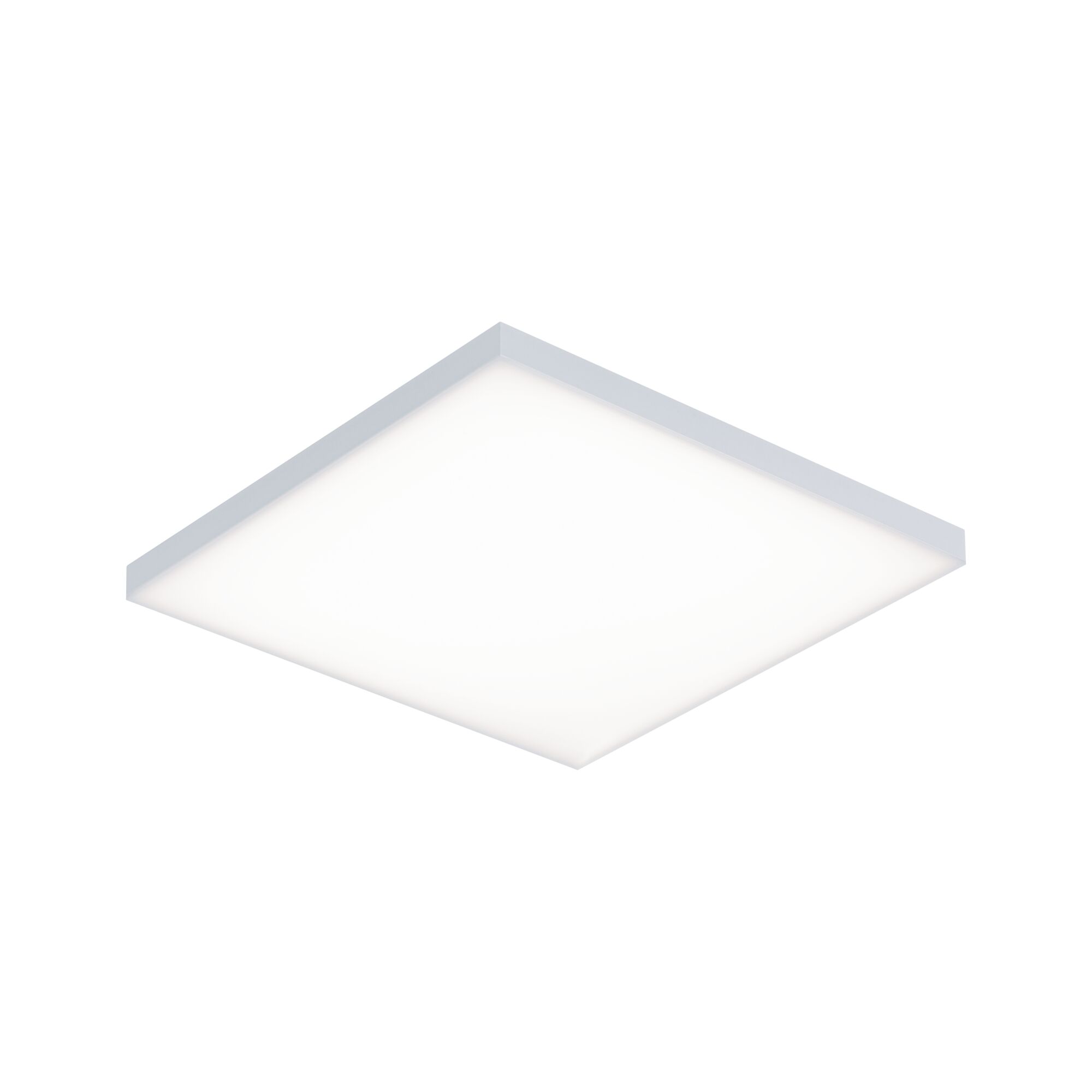

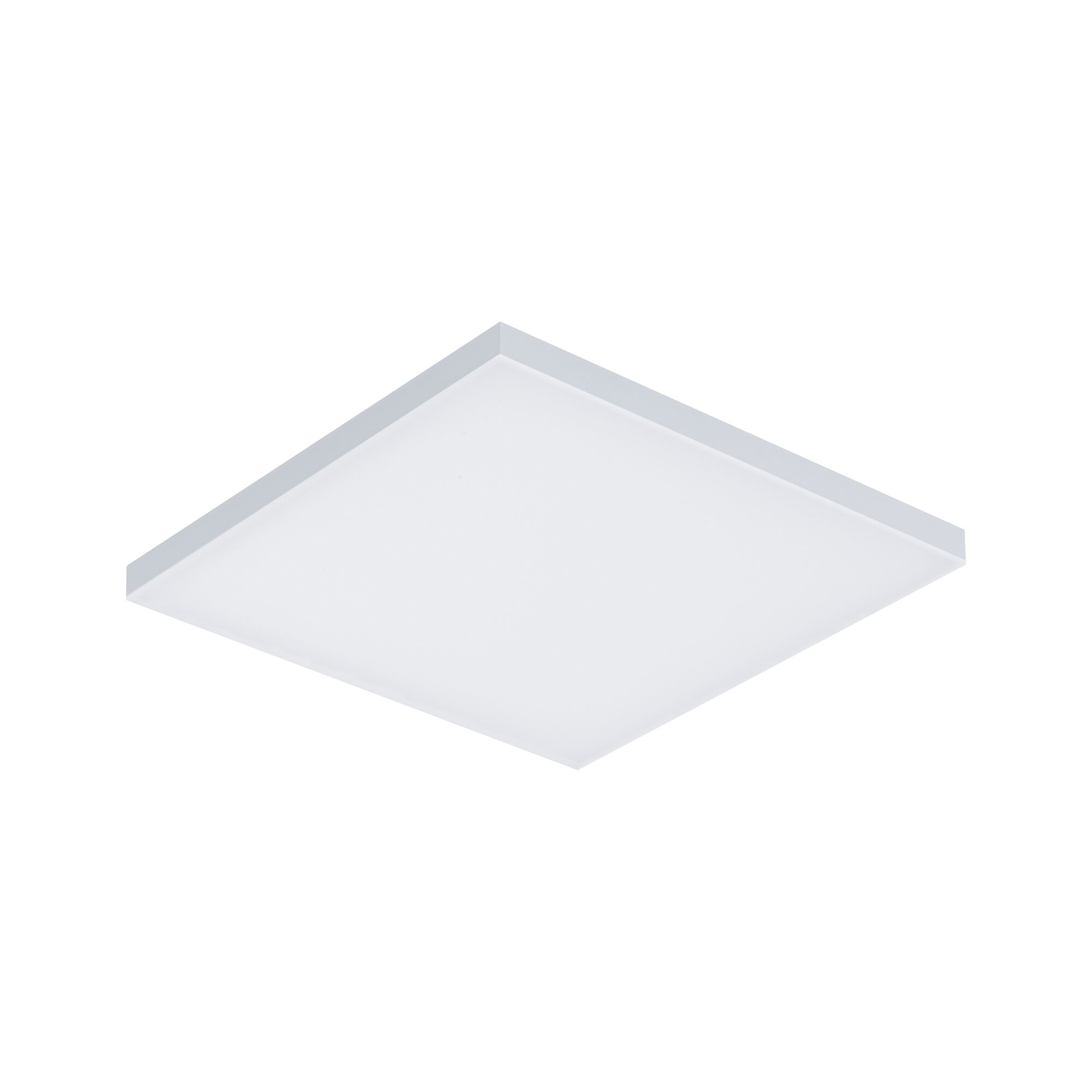

LED Panel
Smart Home Zigbee 3.0
Velora
square 295x295mm 10,5W 1100lm Tunable White Matt white dimmable
square 295x295mm 10,5W 1100lm Tunable White Matt white dimmable
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch

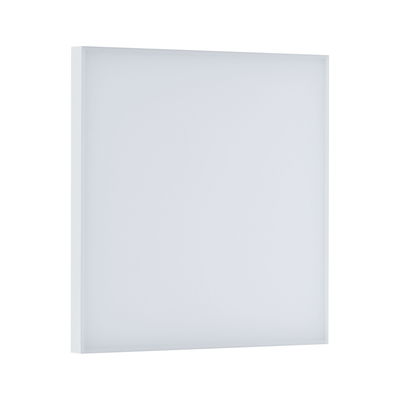

LED Panel Smart Home Zigbee 3.0 Velora square 295x295mm 10,5W 1100lm Tunable White Matt white dimmable
Measuring 295x295mm, the frameless Velora Zigbee 3.0 panel is particularly understated due to its ultra-flat design. The satined finish of the diffuser plate provides pleasant wide-area room lighting. The tunable white function allows the light colour to be adjusted as required: from daylight-white working light to relaxing, warm white light. The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that links devices from different manufacturers. Thanks to the sturdy metal substructure, installation is extremely easy and the panel appears to float.
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch

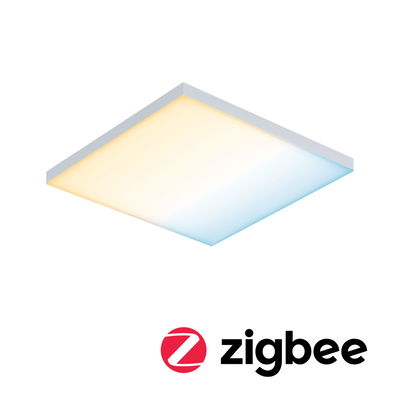

- Color temperatur: 2700K - Warm white - 6500K -Daylight white
- Even room light based on cutting-edge LED technology
| Dimension | |
|---|---|

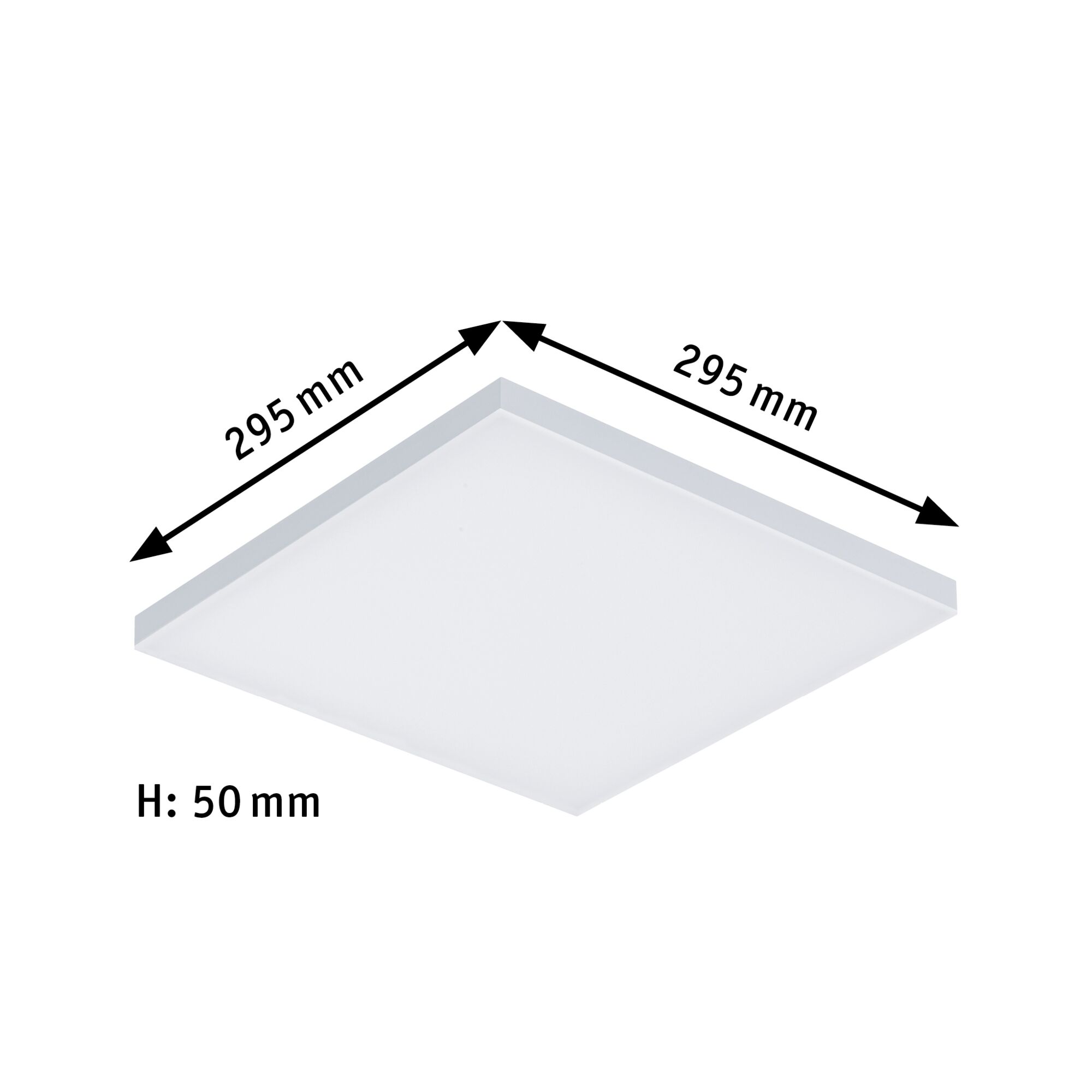

| Dimensions (Height x Width x Depth) | H: 50 x B: 295 x T: 295 mm |
| Form | square |
| Design and Material | |
|---|---|
| Colour | Matt white |
| Material | Metal |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Colour change | Tunable White |
| Usable luminous flux | 1100 lm |
| Luminous flux LED module | 1330 lm |
| color temp | 2700 - 6500 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 10,5 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| IP protection | IP20 |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Total Width | 295 mm |
| Incandescent Equivalent | 90 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 14 W |

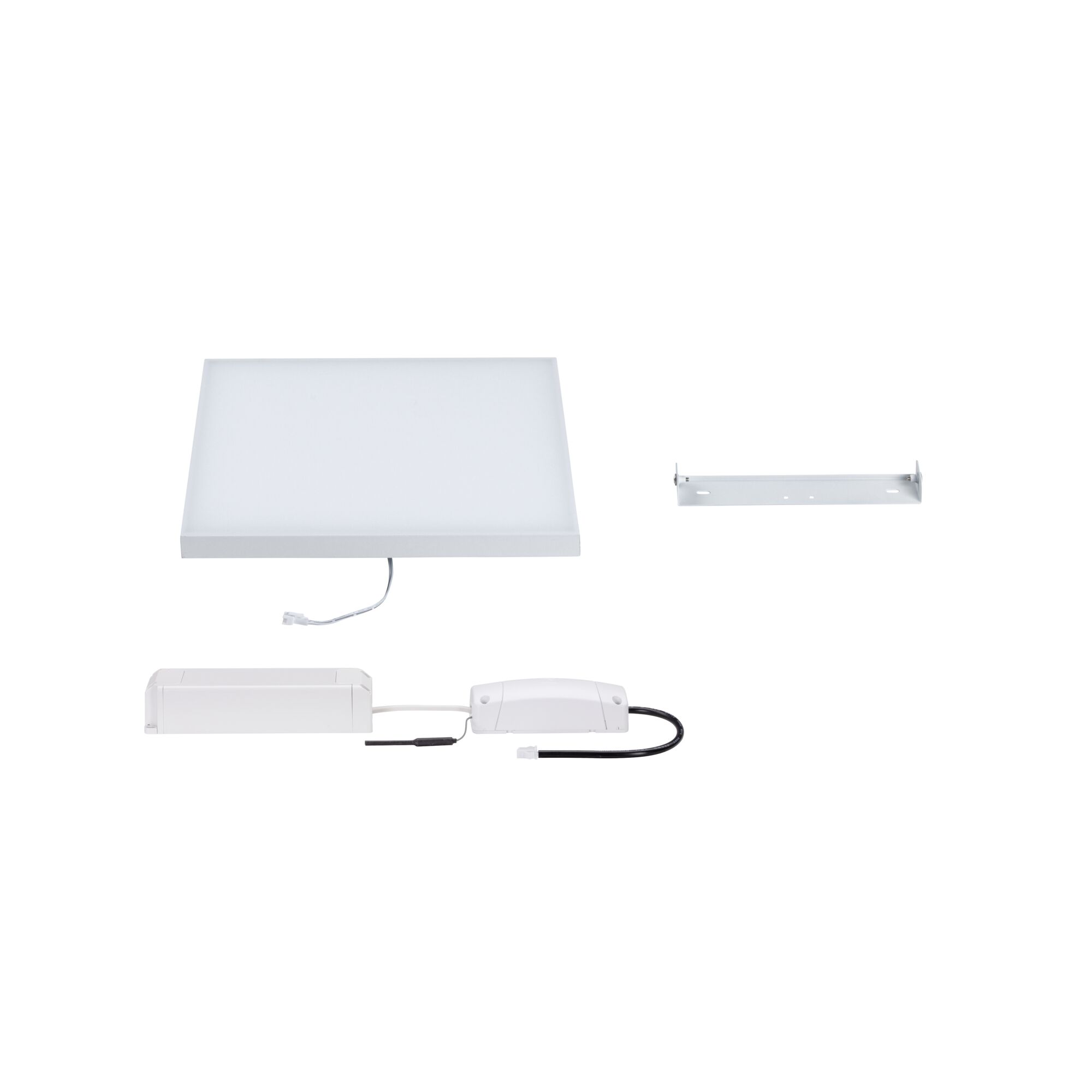

| Transformer | |
|---|---|
| Transformer height | 18 mm |
| Transformer width | 39 mm |
| Transformer depth | 122 mm |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
