Article-No.:
79925
LED Panel
Atria Shine
angular 580x200mm 22W 1800lm 3000K White
angular 580x200mm 22W 1800lm 3000K White

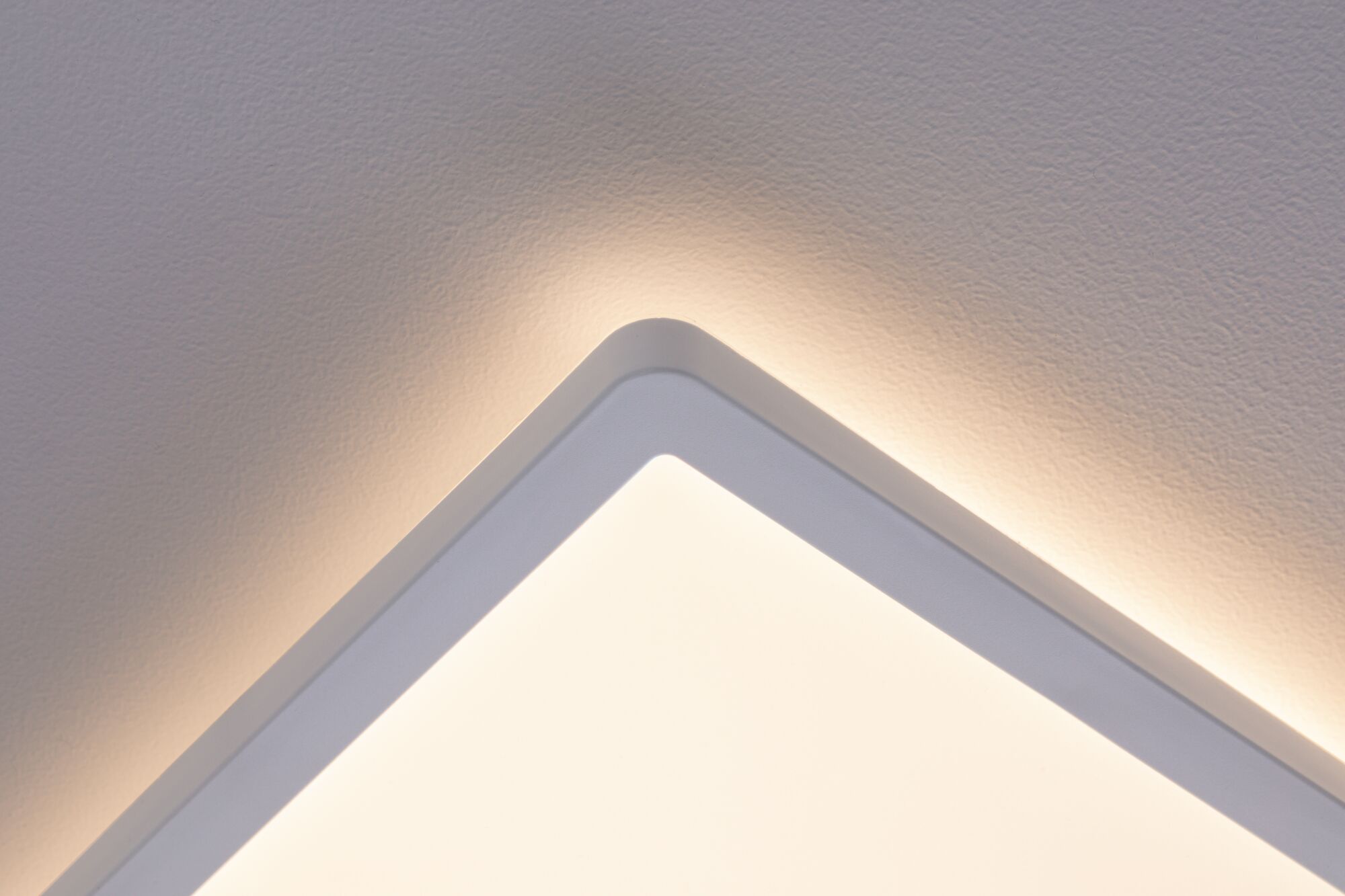

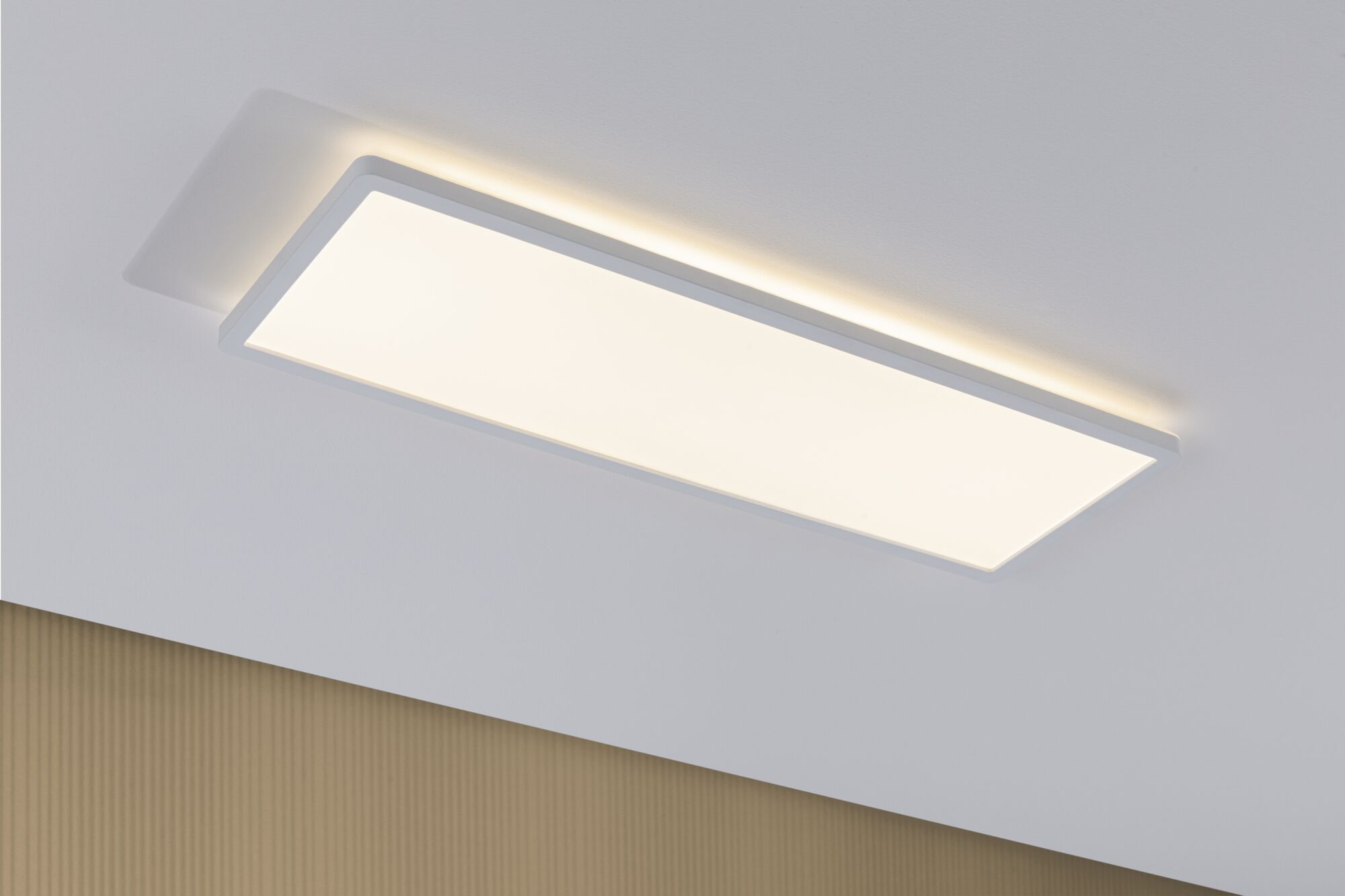

- Backlight technology for subtle, almost floating appearance of the light
- Ultra-flat design: Installation height of only 28 mm
- Color temperatur: 3000K - Warm white

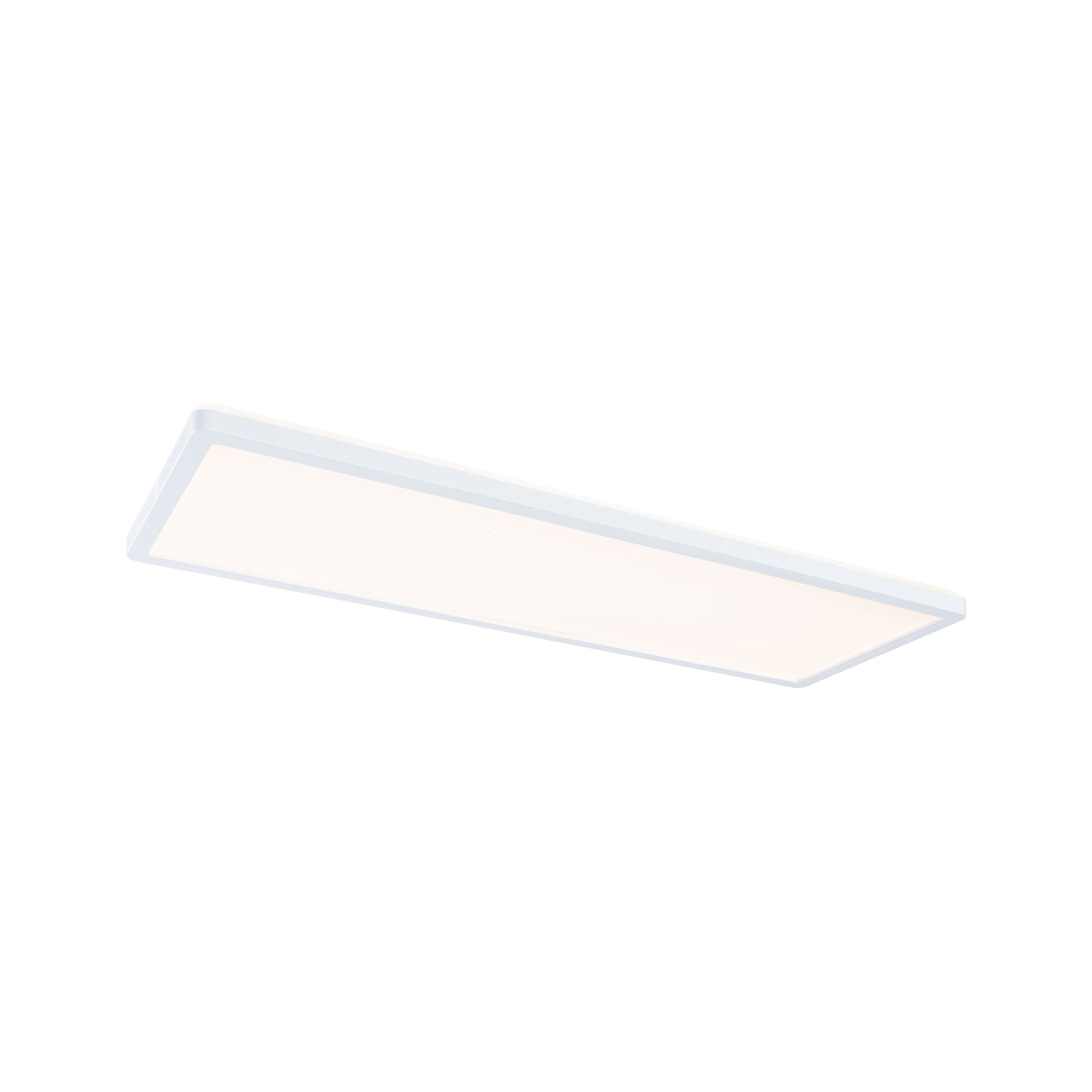

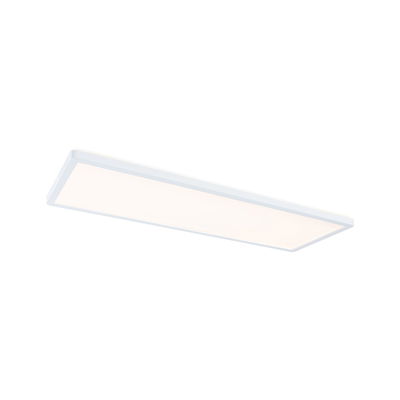

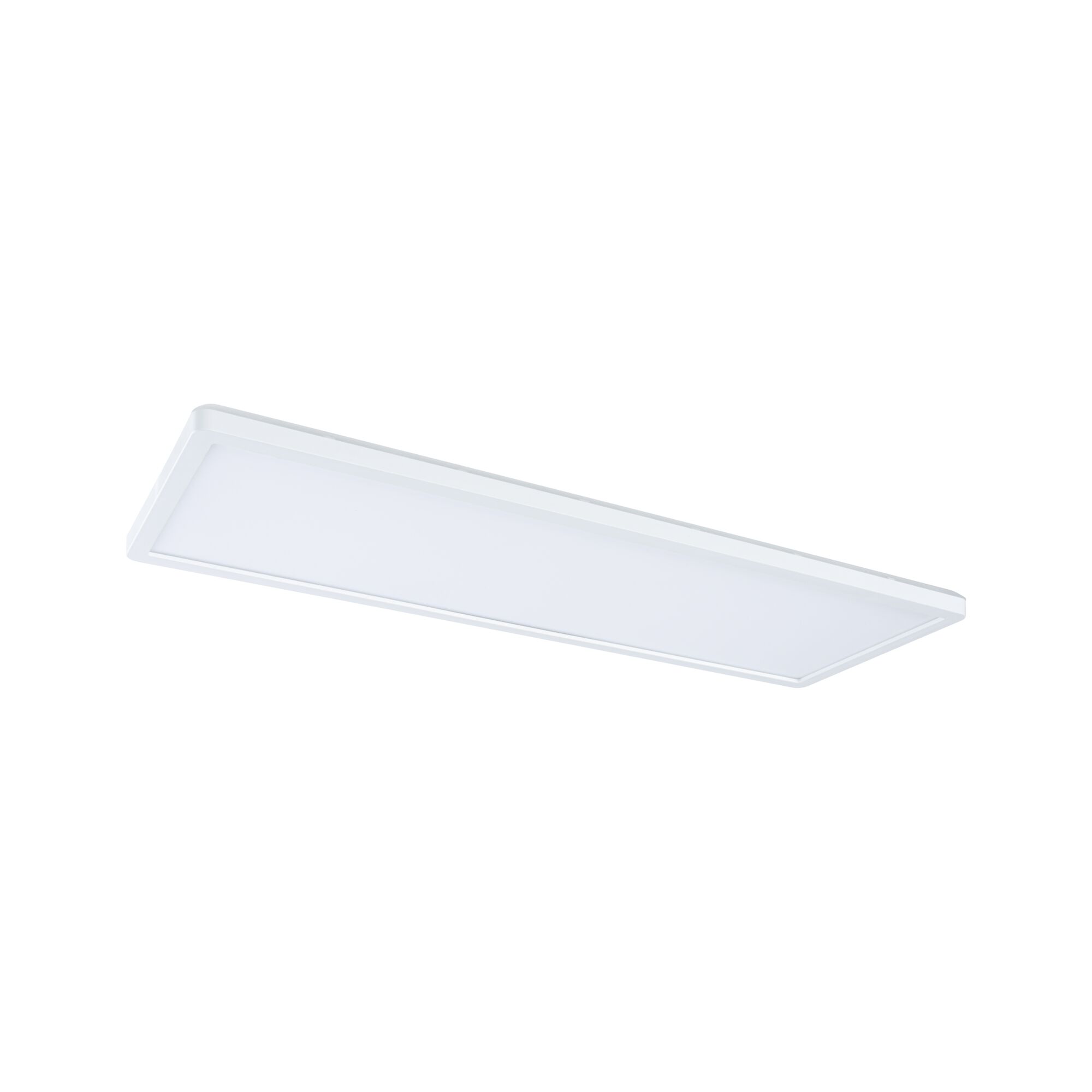

LED Panel Atria Shine Backlight angular 580x200mm 22W 1800lm 3000K White

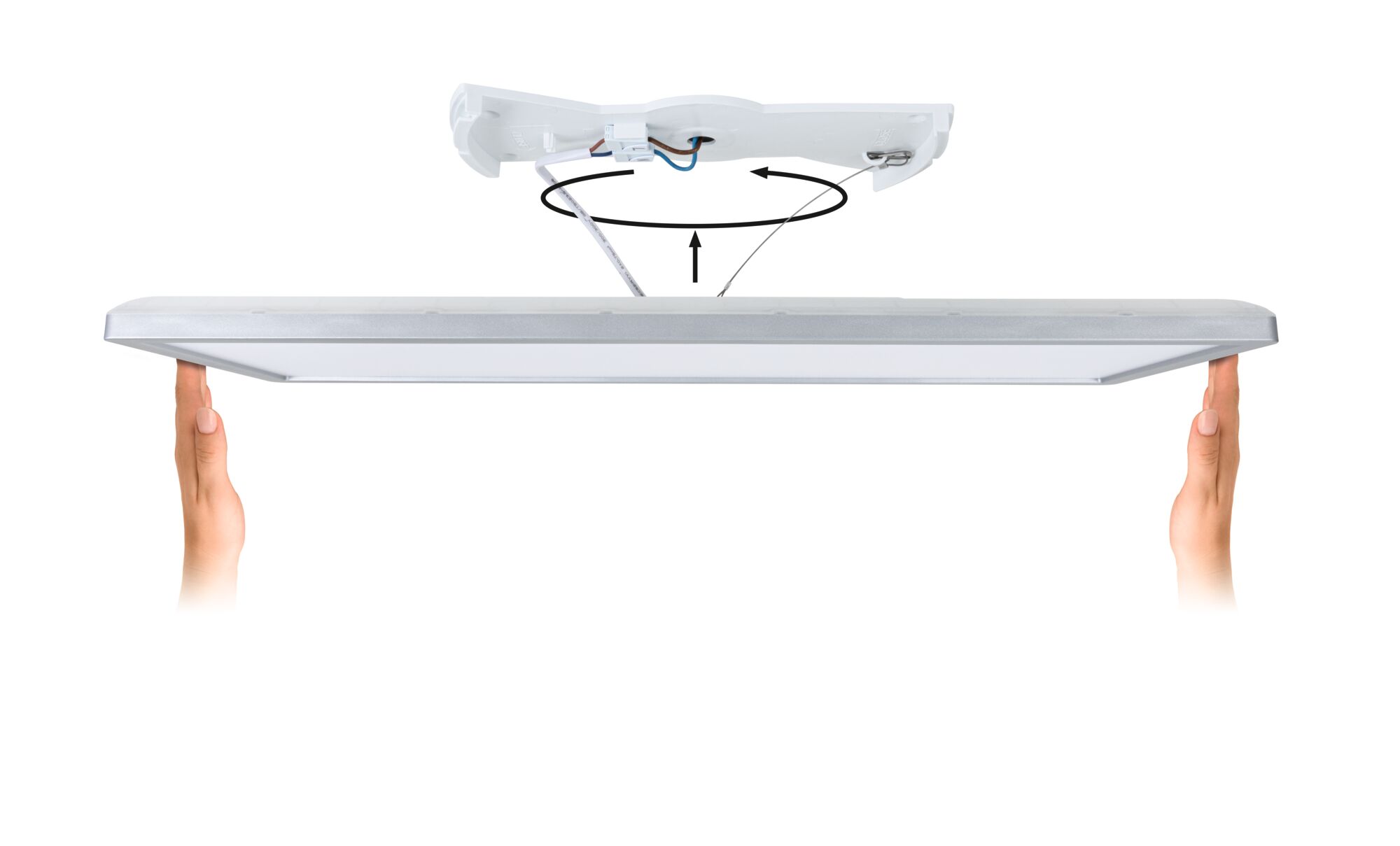

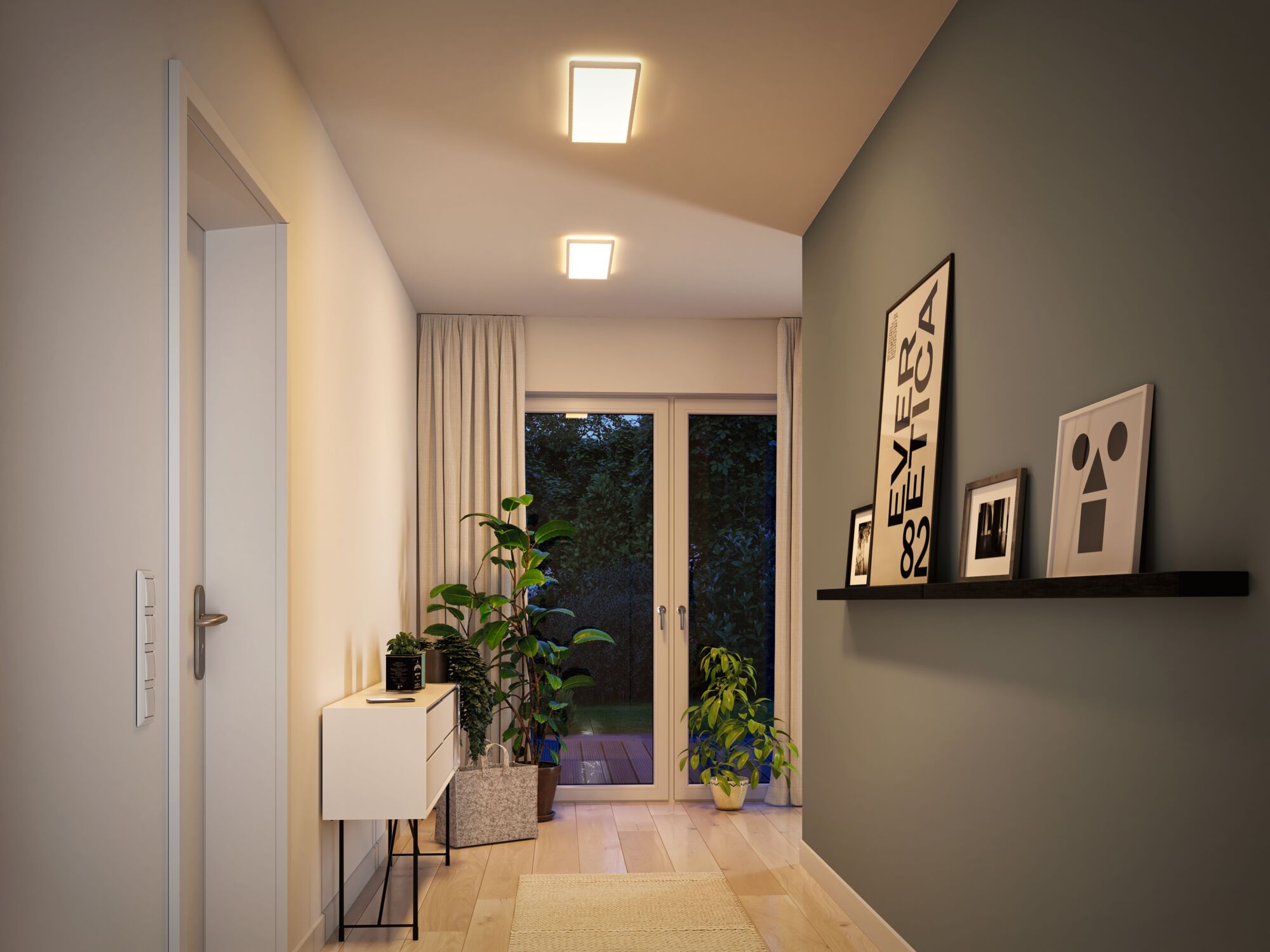

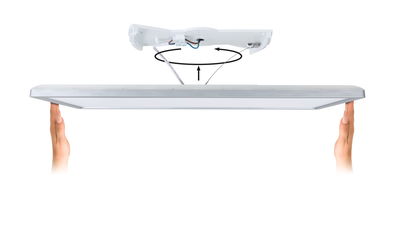

With a power rating of 22W, the square Atria Shine LED panel in white, measuring 580x200mm, is ideal for general lighting in living rooms, bedrooms or kitchens. The panel’s warm white light creates uniform, diffuse room illumination. The additional Backlight technology conjures up a special, cosy atmosphere and gives the panel an almost floating appearance. Thanks to the quick-release clamp and the special twist lock, the panel – with its ultra-slim profile of 28 mm – is very easy to install.
- Backlight technology for subtle, almost floating appearance of the light
- Ultra-flat design: Installation height of only 28 mm
- Color temperatur: 3000K - Warm white
- Can be mounted on wall or ceiling
- Even room light based on cutting-edge LED technology
- Especially flat construction
| Dimension | |
|---|---|

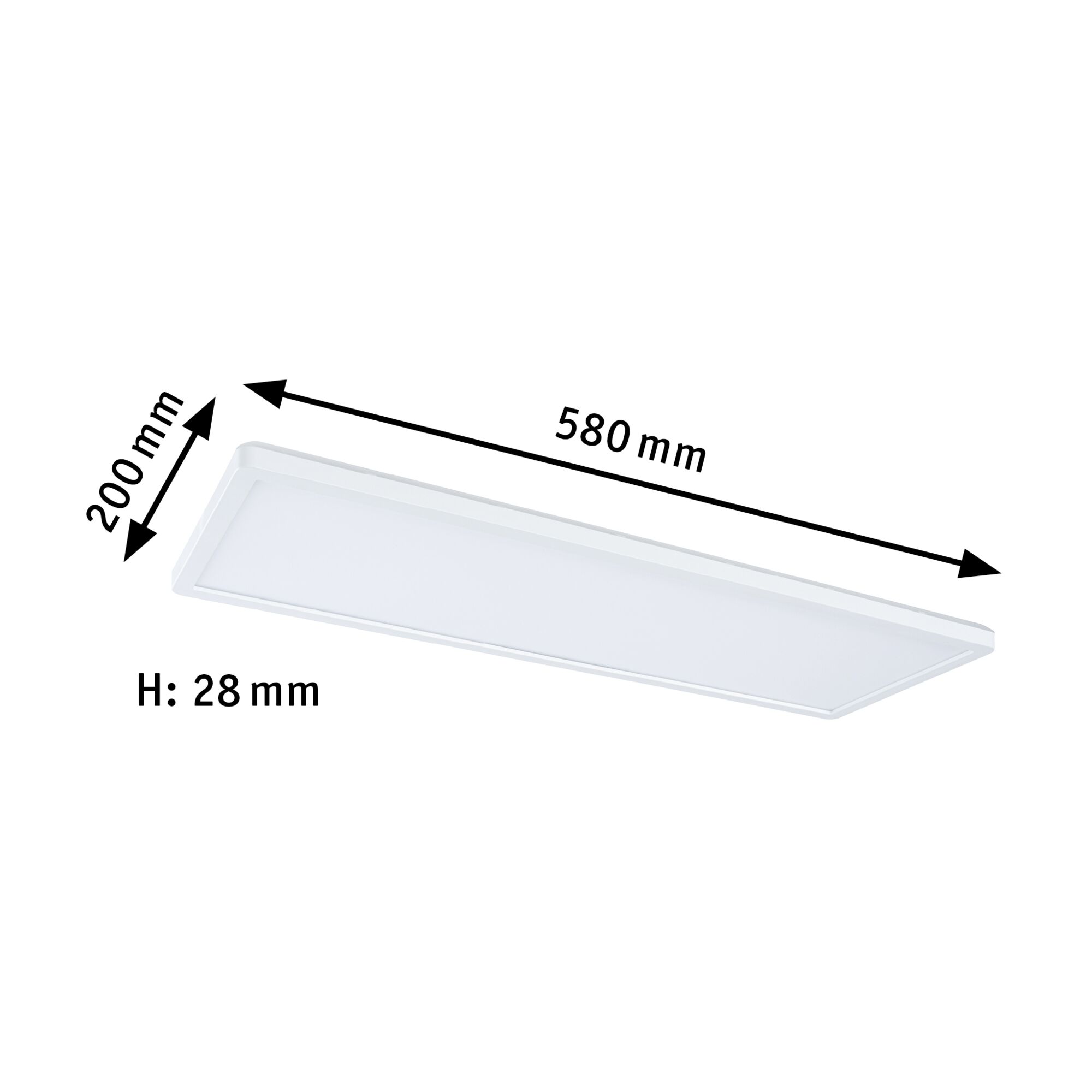

| Dimensions (Height x Width x Depth) | H: 28 x B: 580 x T: 200 mm |
| Net weight | 1004 g |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| Mounting location | Ceiling |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | E |
| Features | |
|---|---|
| Backlight | Backlight |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 22 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 160 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 23 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 40 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 1800 lm |
| Color rendering index | > 80 Ra |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 2700 lm |
| Rechargeable battery / battery data | |
|---|---|
| Dimensions (Height x Width x Depth) | 28 x 580 x 200 mm |
