Article-No.:
93448
LED Recessed luminaire
Nova Coin Single Luminaire Swivelling
round 84mm 50° Coin 6W 470lm 230V 2700K Matt white
round 84mm 50° Coin 6W 470lm 230V 2700K Matt white
- For 230 V direct connection
- Color temperatur: 2700K - Warm white
- Incl. replaceable LED lamp
LED Recessed luminaire Nova Coin Single Luminaire Swivelling round 84mm 50° Coin 6W 470lm 230V 2700K Matt white

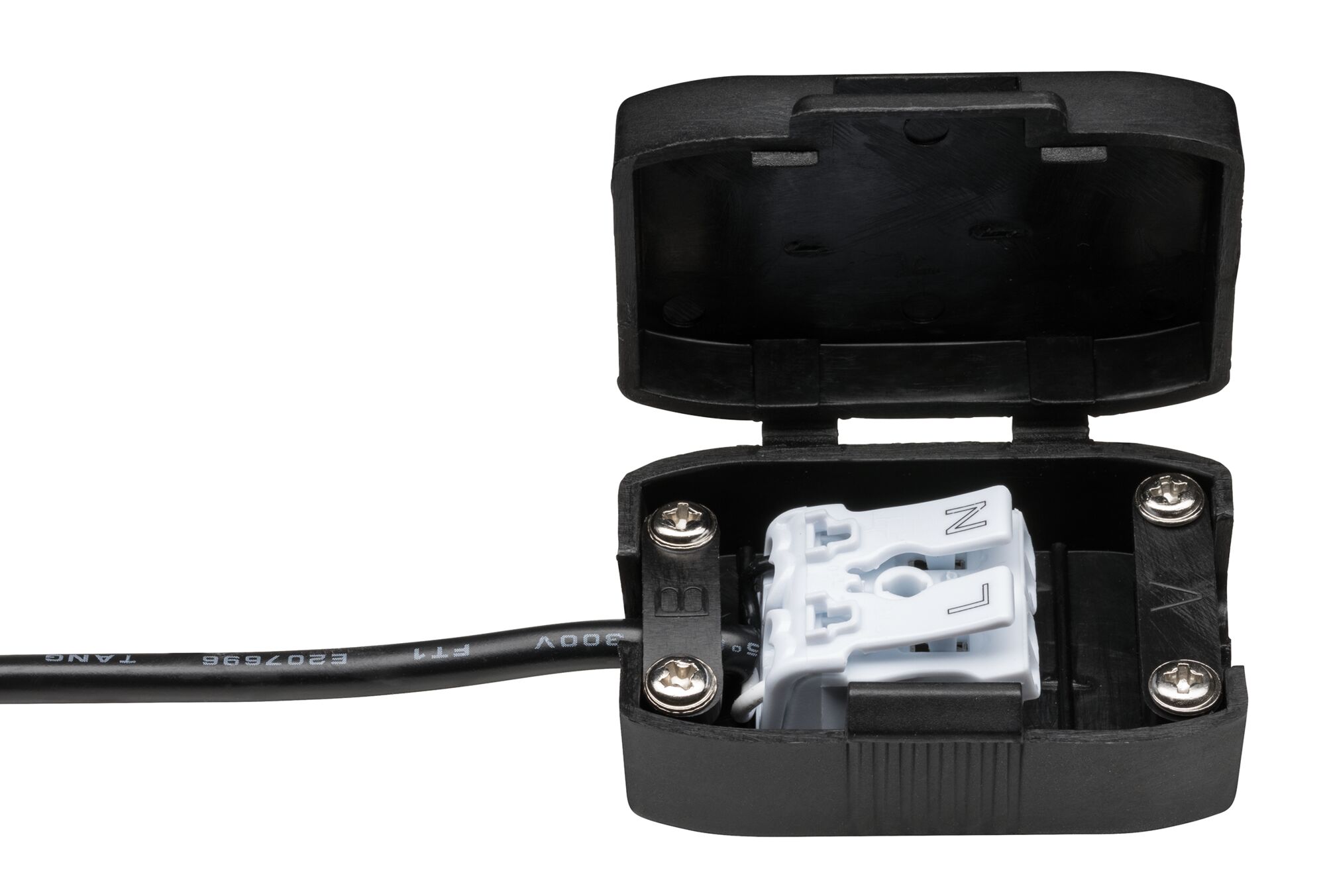

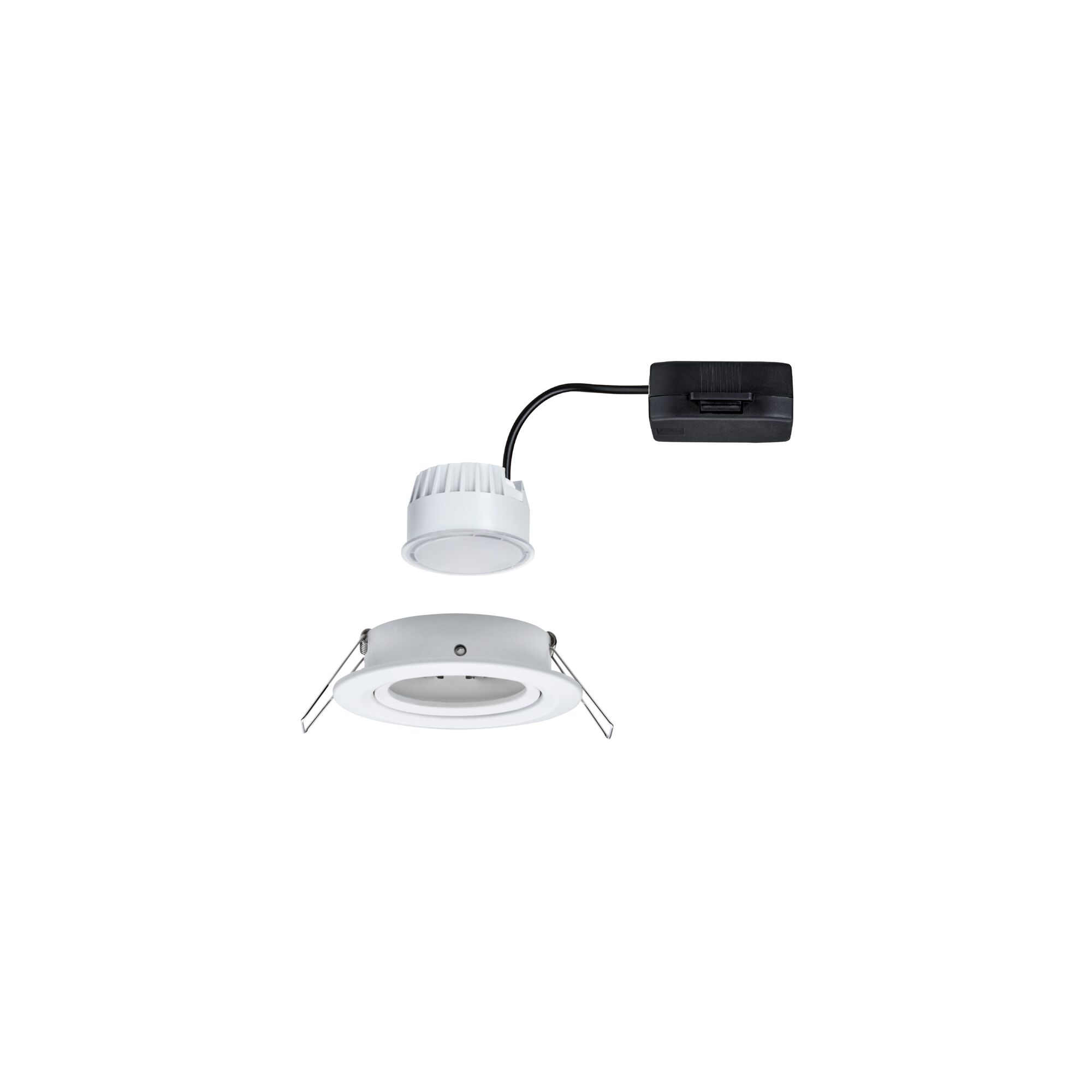

The round Nova recessed luminaire (3-piece set) in Matt white with a replaceable LED coin is suitable for new installations, as well as for replacing existing installations. It is exceptionally flat, and can therefore be installed in ceilings with a cavity of only 30 millimetres. As the single luminaires can be easily linked together with quick clips, the installation is quick and easy. The spot emits both a warm white work light and cosy feel-good lighting in one. Thanks to the swivelling function, the spot can be individually directed.
- For 230 V direct connection
- Color temperatur: 2700K - Warm white
- Incl. replaceable LED lamp
| Dimension | |
|---|---|
| Diameter | 84 mm |
| Built-in diameter | 68 mm |
| Mounting depth | 45 mm |
| Depth of hollow wall | 30 mm |
| Design and Material | |
|---|---|
| Form | round |
| Type | Coin |
| Colour | Matt white |
| Material | Aluminium |
| Stainless | stainless alu |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 470 lm |
| Colour consistency (SDCM) | 6 |
| Color rendering index | > 85 Ra |
| Beam angle | 100 ° |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Swivel range | 50 ° |
| Incandescent Equivalent | 40 W |
| IP protection | IP23 ceiling mounting |
| Protection class | Protection class II |
| Base/Socket | Coin |
| Technique | LED |
| Component parts | 6 W |
| Number of component parts | 1x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Adjustability | swivelling/tilting |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
Downloads
- LED Module recessed luminaire
