Article-No.:
94752
Plug & Shine
LED Recessed floor luminaire
Smart Home Zigbee 3.0
Floor 3-piece set
IP67 RGBW+ 3x2W 21VA Stainless steel
IP67 RGBW+ 3x2W 21VA Stainless steel
- Can be controlled with the Smart Home Zigbee remote control
- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion
Plug & Shine LED Recessed floor luminaire Smart Home Zigbee 3.0 Floor RGBW 3-piece set IP67 RGBW+ 3x2W 21VA Stainless steel

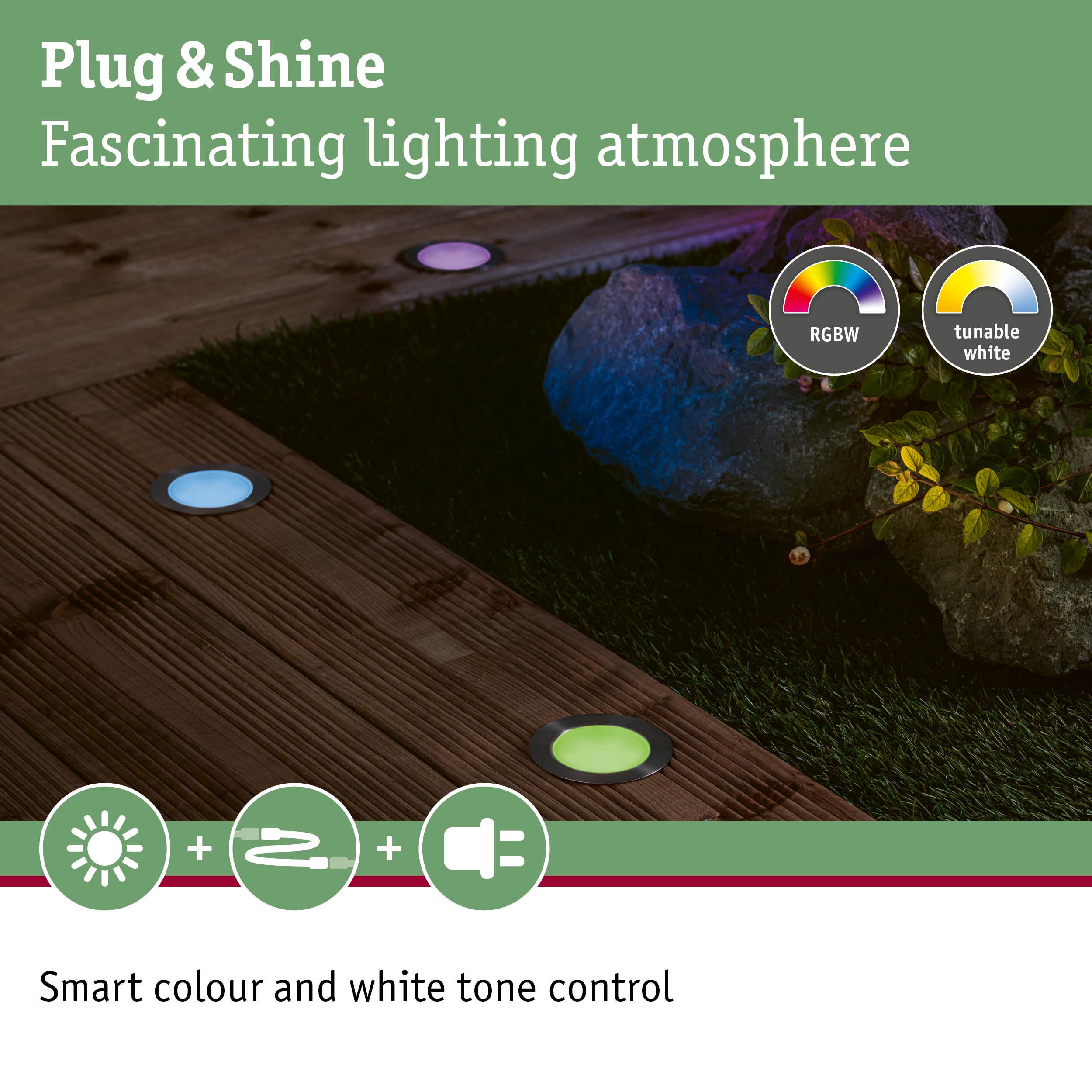

The round Plug & Shine in-ground spotlights with a 70 mm diameter create decorative light points along foot paths or patio boundaries. This starter set contains three luminaires, one plug-in transformer and a connecting cable with sockets. The permanently installed LED modules deliver coloured or white light depending on your choice. Colour settings are done via Zigbee 3.0. As a result, additional control elements like the Plug & Shine controller are not needed. The spotlights are perfectly suited for an integration in wood floor patios.
- Can be controlled with the Smart Home Zigbee remote control
- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion
- LED lamp (fixed) included in scope of delivery
- RGBW multicolour colour change
| Dimension | |
|---|---|
| Depth of hollow wall | 35 mm, 35 mm |
| Total Mounting depth | 50 mm |
| Dimensions (Height x Width x Depth) | H: 30 mm |
| Ø | 70 mm |
| Mounting hole | 63 mm |
| Length | 5 m |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Stainless steel |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann 501.34 Smart Switch, Paulmann SmartHome Zigbee Gent2 501.40 |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Contour Plug (Typ C-CEE 7/17) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Colour change | Color change RGBW, Tunable White |
| Beam angle | 90 ° |
| Usable luminous flux | 65 lm |
| Luminous flux LED module | 100 lm |
| color temp | 3000 - 6500 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 2 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| IP protection | IP67 |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 5.5 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 2 W |
| Transformer | |
|---|---|
| Transformer power | 21 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Certification planned |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 10 m |
