Article-No.:
93485
LED Recessed luminaire3-Step-Dim
Nova Coin Basic Set Swivelling
round 84mm 50° Coin 3x6W 3x470lm 230V dimmable 2700K Matt white
round 84mm 50° Coin 3x6W 3x470lm 230V dimmable 2700K Matt white

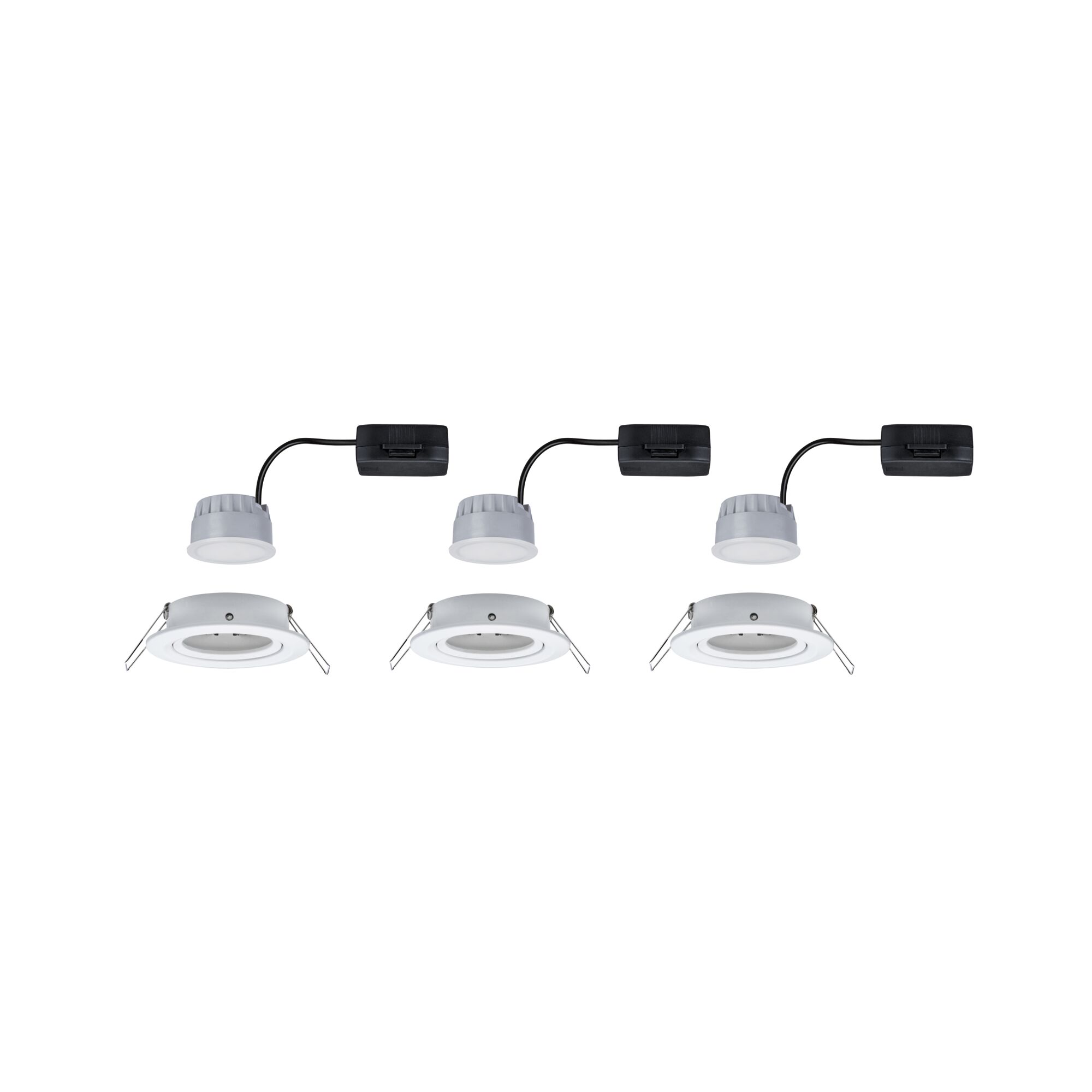

- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white
- For 230 V direct connection
LED Recessed luminaire 3-Step-Dim Nova Coin Basic Set Swivelling round 84mm 50° Coin 3x6W 3x470lm 230V dimmable 2700K Matt white
With their modern design, Nova recessed spotlights blend in with all styles of furnishing. Efficient, long-lasting LED lamps are included, and guarantee a comfortable atmosphere with their warm white light. They can easily be fixed using a clamp in the inside of the mounting ring - snap rings are thus not required.
- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white
- For 230 V direct connection
- Can be dimmed with a standard light switch, with 3 dimming levels
| Dimension | |
|---|---|
| Diameter | 84 mm |
| Built-in diameter | 68 mm |
| Mounting depth | 45 mm |
| Depth of hollow wall | 30 mm |
| Design and Material | |
|---|---|
| Form | round |
| Type | Coin |
| Colour | Matt white |
| Material | Aluminium |
| Stainless | stainless alu |
| Recycled material included | no |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 470 lm |
| Colour consistency (SDCM) | 6 |
| Color rendering index | > 85 Ra |
| Beam angle | 100 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | Dimmable in 3 steps with normal light switch |
| Inclusive lamp | yes |
| light source property | Without light source |
| Swivel range | 50 ° |
| Incandescent Equivalent | 40 W |
| IP protection | IP23 ceiling mounting |
| Protection class | Protection class II |
| Base/Socket | Coin |
| Technique | LED |
| Component parts | 6 W |
| Number of component parts | 3x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Adjustability | swivelling/tilting |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
Downloads
- LED Module recessed luminaire
