Article-No.:
79864
MaxLED 250
LED Strip
Basic set 3m RGBW+
3m 20W 270lm/m 30 LEDs/m RGBW+ 36VA
3m 20W 270lm/m 30 LEDs/m RGBW+ 36VA
- Complete set incl. strip, power supply and remote control

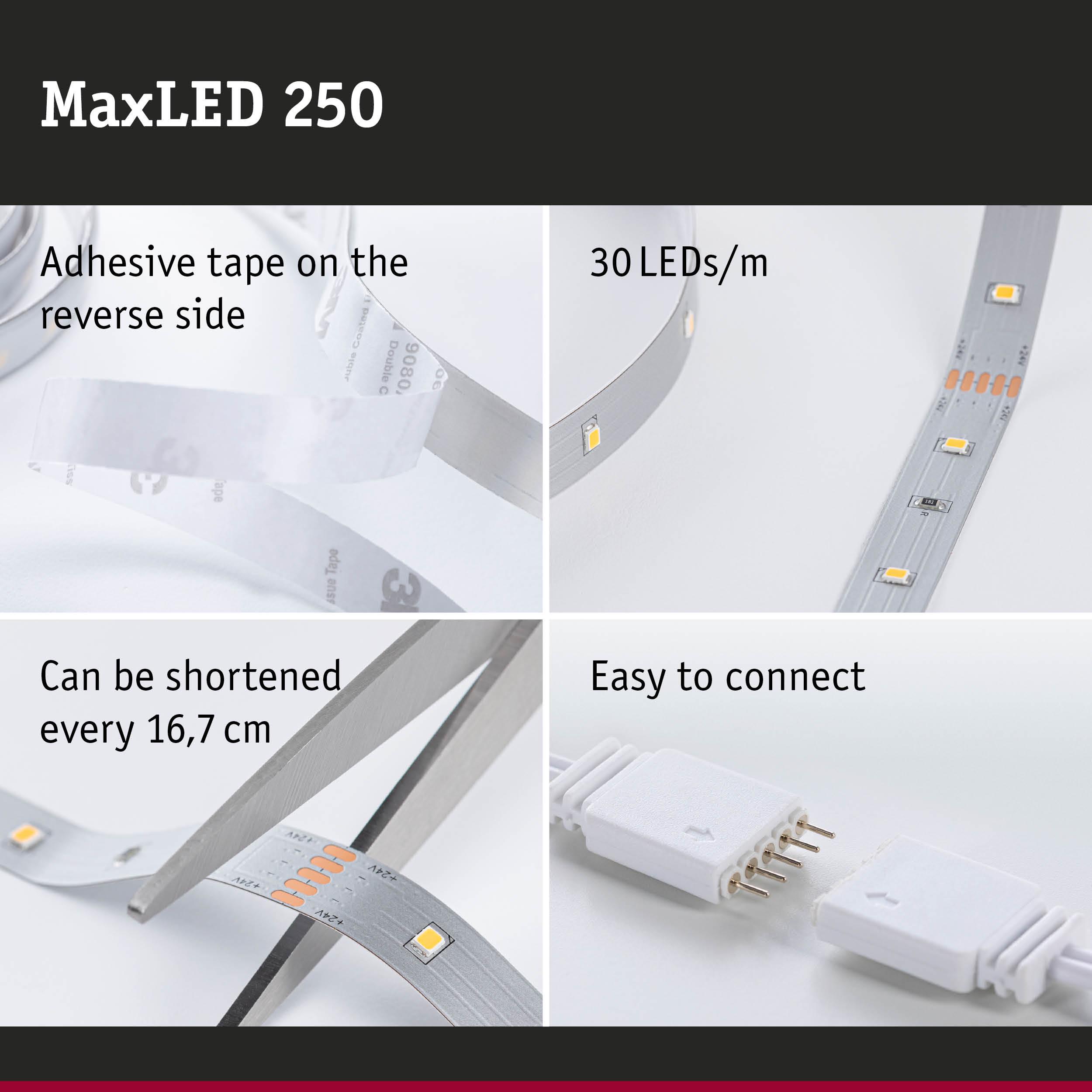

- Can be shortened as required
- Rear self-adhesive for simple installation
MaxLED 250 LED Strip Basic set 3m RGBW+ 3m 20W 270lm/m 30 LEDs/m RGBW+ 36VA

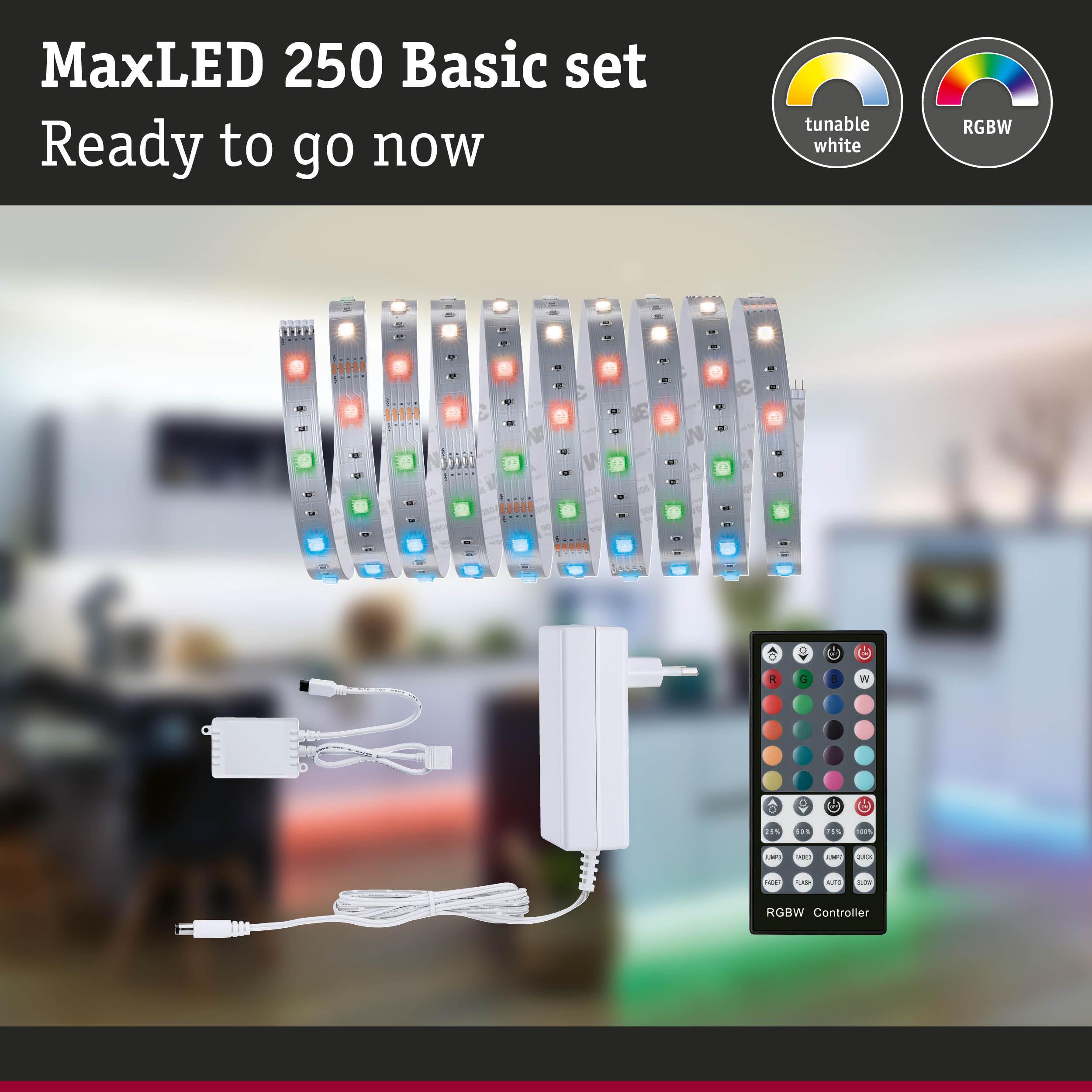

The MaxLED 250 basic set not only contains a 3m strip, but also a suitable ballast and a control unit with infra-red remote control. With an output of 20 watts, MaxLED 250 strips, are so powerful that they can be easily used for room lighting. They are real highlights especially in profiles. The mood-setting colour-change function allows you to create your own living atmosphere – ranging from monochrome continuous lighting to multi-coloured light effects. A diode in white (W) additionally provides a cosy warm white light and makes it unnecessary to mix a white tone from the colours red, green and blue (RGB). Depending on your needs, it can also be extended with additional strips and connectors.
- Complete set incl. strip, power supply and remote control
- Can be shortened as required
- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces
- RGB colour change
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Incl. 5-pin plug for easy connection of the strips
- Simple plug-in system for easy installation
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x B: 3010 x T: 12,5 mm |
| Length | 3 m |
| Shortenability Strips | 167 mm |
| net weight | 263 g |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 5 m |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 810 lm |
| Colour change | coloured light with Tunable White function (RGBW), Tunable White |
| Color rendering index | > 80 Ra |
| Lumens per metre | 270 lm/m |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 810 lm |
| Lamp Features | |
|---|---|
| Dimming Control | with remote control |
| Inclusive lamp | yes |
| Component parts | 20 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 26 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP20 |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Number of LED's per meter | 30 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 22,3 W |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 36 VA |
| Transformer height | 68,2 mm |
| Transformer width | 61,2 mm |
| Transformer depth | 100 mm |
| Accessories | |
|---|---|
| Radio control included | yes |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
