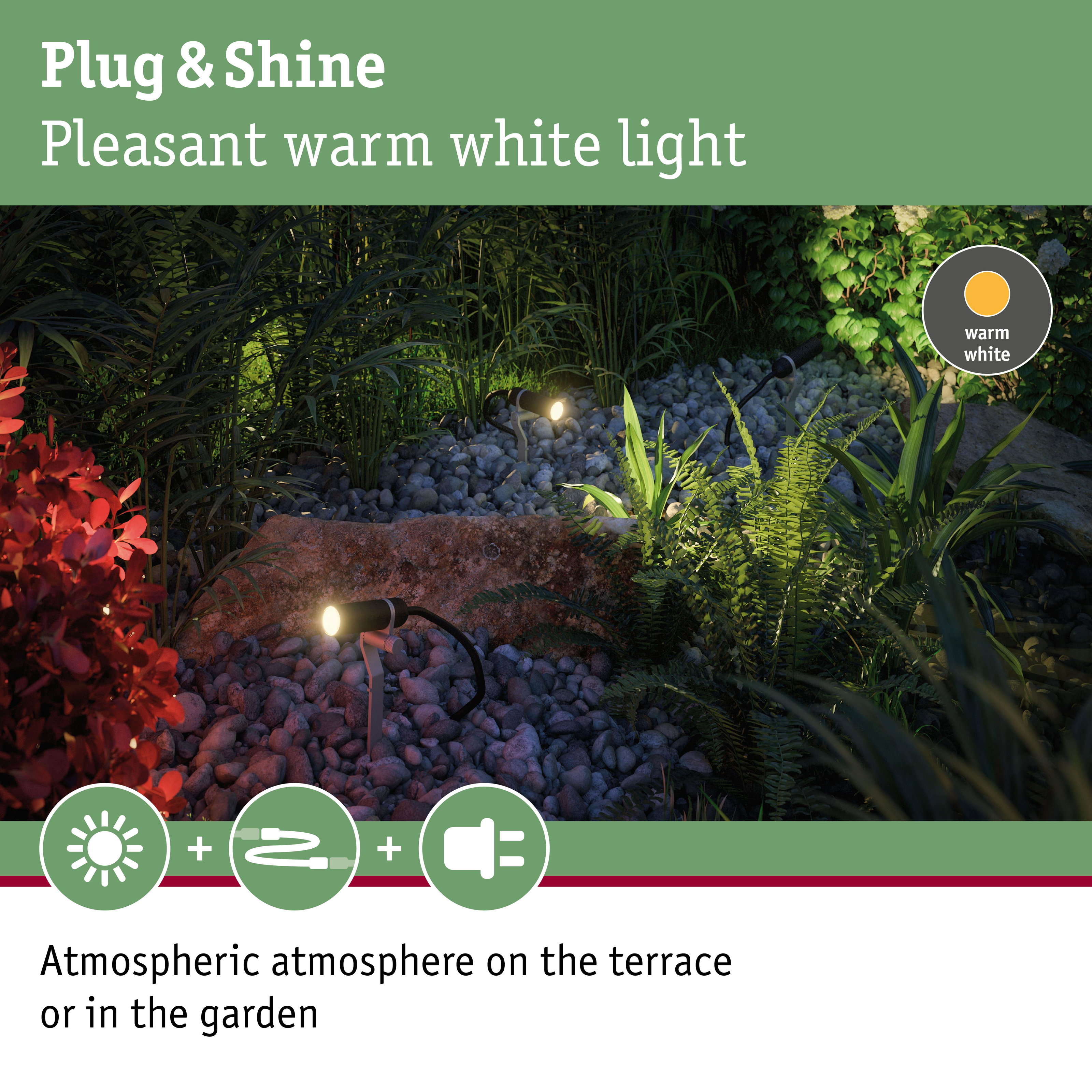

Plug & ShineLED Garden spotlight
Plantini Basic Set Basic set
IP65 3000K 3x2W 21VA Anthracite
IP65 3000K 3x2W 21VA Anthracite

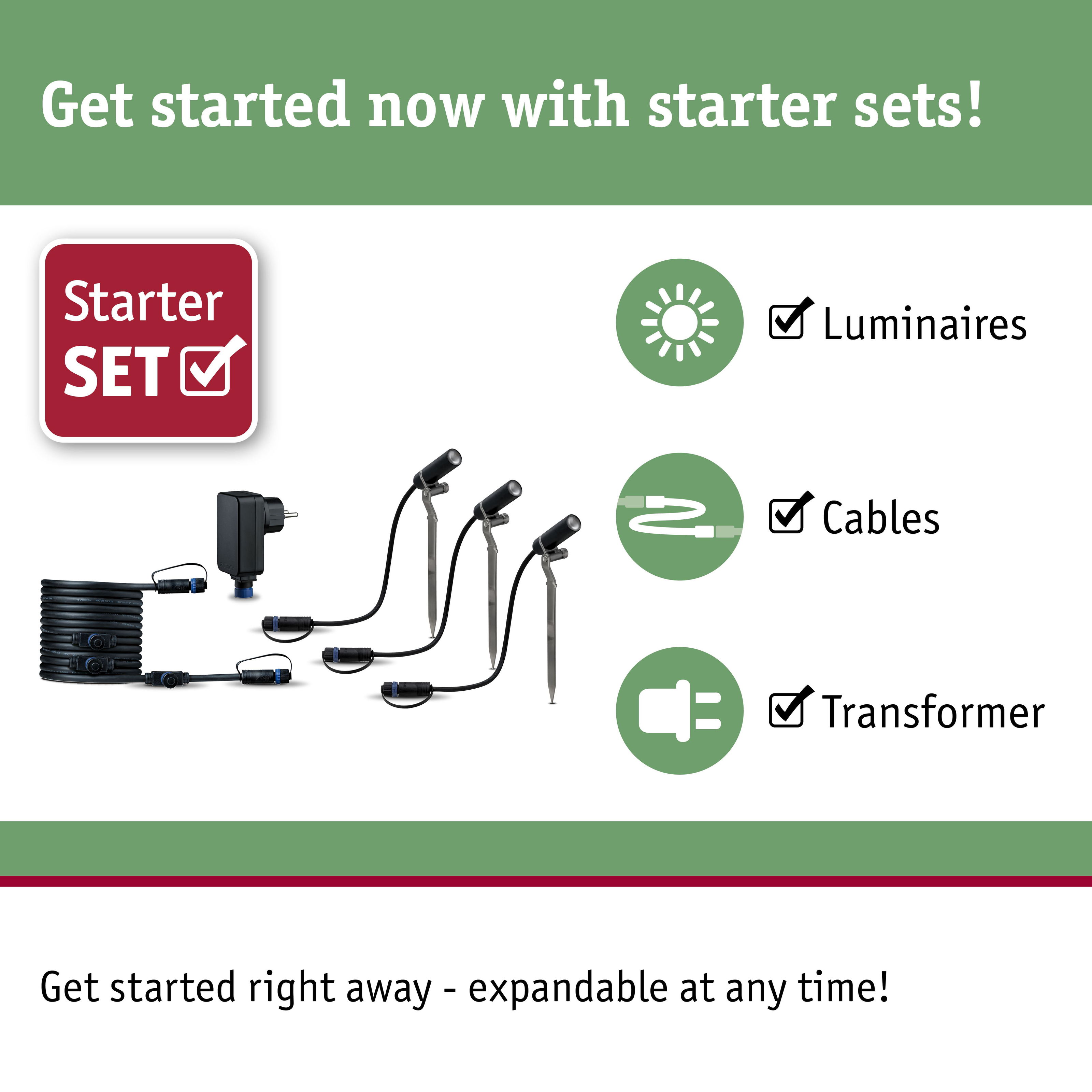

- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer
- Compatible with all luminaires and accessories in the Plug & Shine series
- Color temperatur: 3000K - Warm white
Plug & Shine LED Garden spotlight Plantini Basic Set Basic set IP65 3000K 3x2W 21VA Anthracite
- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer
- Compatible with all luminaires and accessories in the Plug & Shine series
- Color temperatur: 3000K - Warm white
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 223 x T: 77 mm |
| Diameter | 21 mm |
| Length | 5 m |
| Plug depth | 48 mm |
| Design and Material | |
|---|---|
| Form | cylindrical |
| Colour | Anthracite |
| Material | Aluminium |
| Stainless | stainless |
| Recycled material included | no |
| Installation | |
|---|---|
| Application | For virtually invisible illumination of reeds, small plants or inside flower pots |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Contour Plug (Typ C-CEE 7/17) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 90 lm |
| Luminous flux LED module | 180 lm |
| Beam angle | 45 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with dimmer |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 26 W |
| IP protection | IP65 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 2 W |
| Number of component parts | 3x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 7,5 W |
| Adjustability | swivelling/tilting |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 21 VA |
| Transformer height | 103 mm |
| Transformer width | 50 mm |
| Transformer depth | 30 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
