Article-No.:
93697
Plug & ShineLED Recessed floor luminaire
Floor Mini Basic Set
IP67 3000K 3x2,5W 21VA Silver
IP67 3000K 3x2,5W 21VA Silver

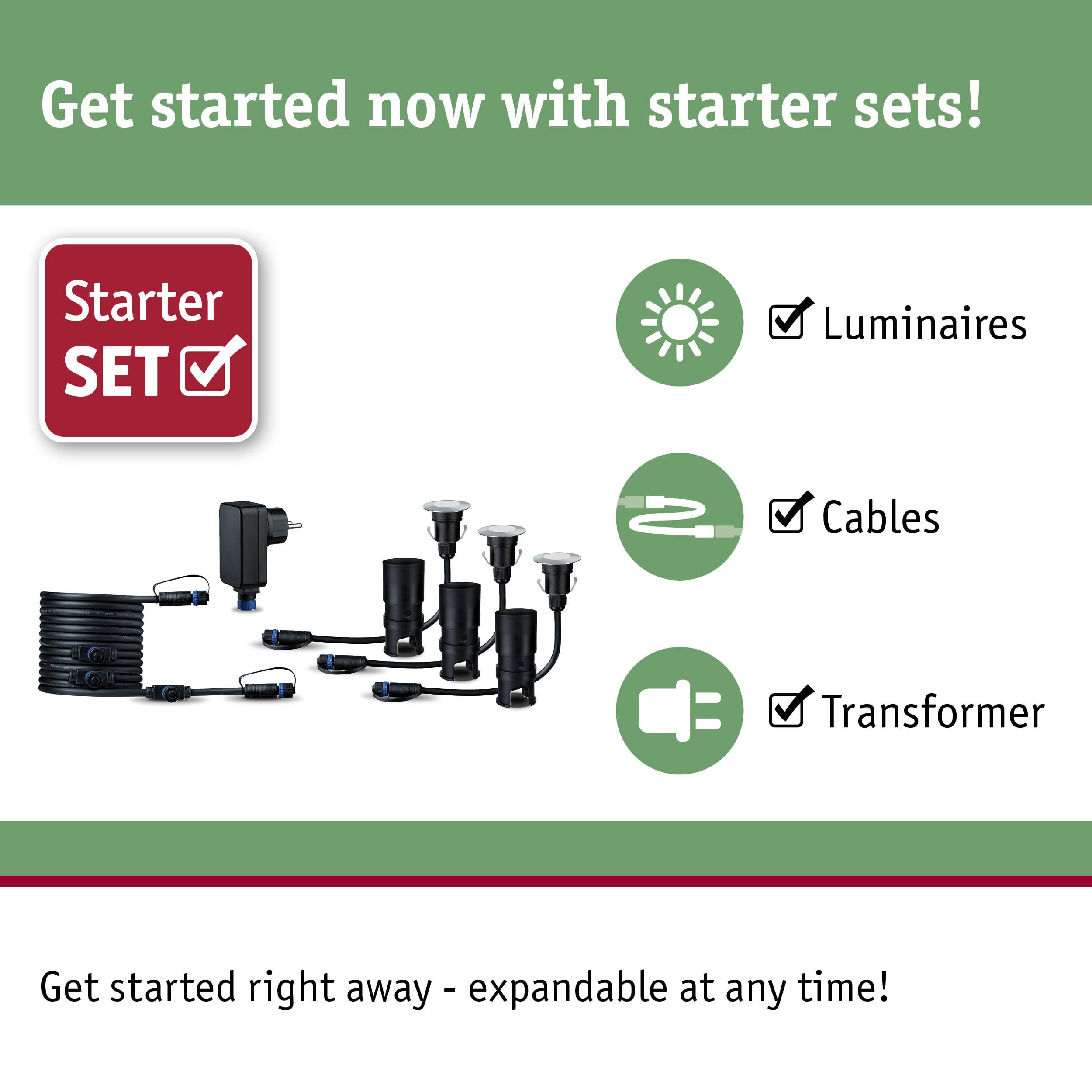

- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer
- Compatible with all luminaires and accessories in the Plug & Shine series
- Color temperatur: 3000K - Warm white
Plug & Shine LED Recessed floor luminaire Floor Mini Basic Set IP67 3000K 3x2,5W 21VA Silver

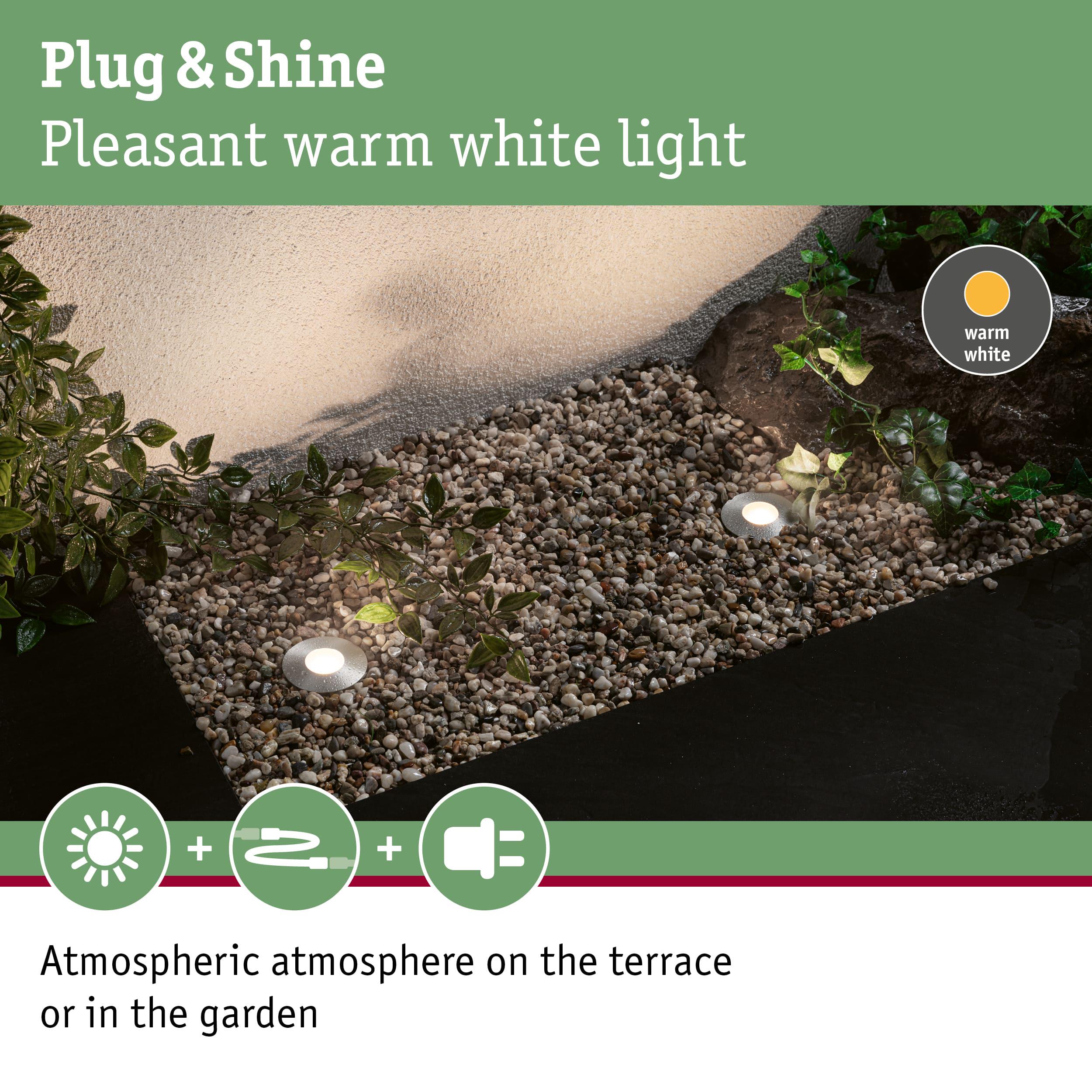

Just unpack, plug in, and illuminate your garden: the Plug & Shine Floor Mini starter set consisting of three warm white floor recessed spotlights, transformer and connecting cable offers you the ideal start into outdoor lighting. The luminaires create decorative light points on paths, driveways and patios. If required, the system can be expanded with additional Plug & Shine components. It can't be walked on or driven over.
- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer
- Compatible with all luminaires and accessories in the Plug & Shine series
- Color temperatur: 3000K - Warm white
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.
- IP Protection: IP67 - protected against temporary immersion
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 90 mm |
| Diameter | 55 mm |
| Plug depth | 48 mm |
| Built-in diameter | 40 mm |
| Mounting depth | 55 mm |
| installation depth to | 105 mm |
| Depth of hollow wall | 40-90 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Silver |
| Material | Plastic, Stainless steel |
| Stainless | stainless |
| Installation | |
|---|---|
| Installation site (recommendation) | Floor mounting |
| Application | For decorative light points on paths, driveways and patios |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Contour Plug (Typ C-CEE 7/17) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 50 lm |
| Luminous flux LED module | 250 lm |
| Beam angle | 95 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with dimmer |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 10 W |
| IP protection | IP67 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 2,5 W |
| Number of component parts | 3x |
| Maximum load | 500 kg |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 7,5 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 21 VA |
| Transformer height | 103 mm |
| Transformer width | 50 mm |
| Transformer depth | 30 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
