Article-No.:
70588
MaxLED 1000
LED Strip
Basic set 3m Warm white
35W 1100lm/m 2700K 60VA
35W 1100lm/m 2700K 60VA

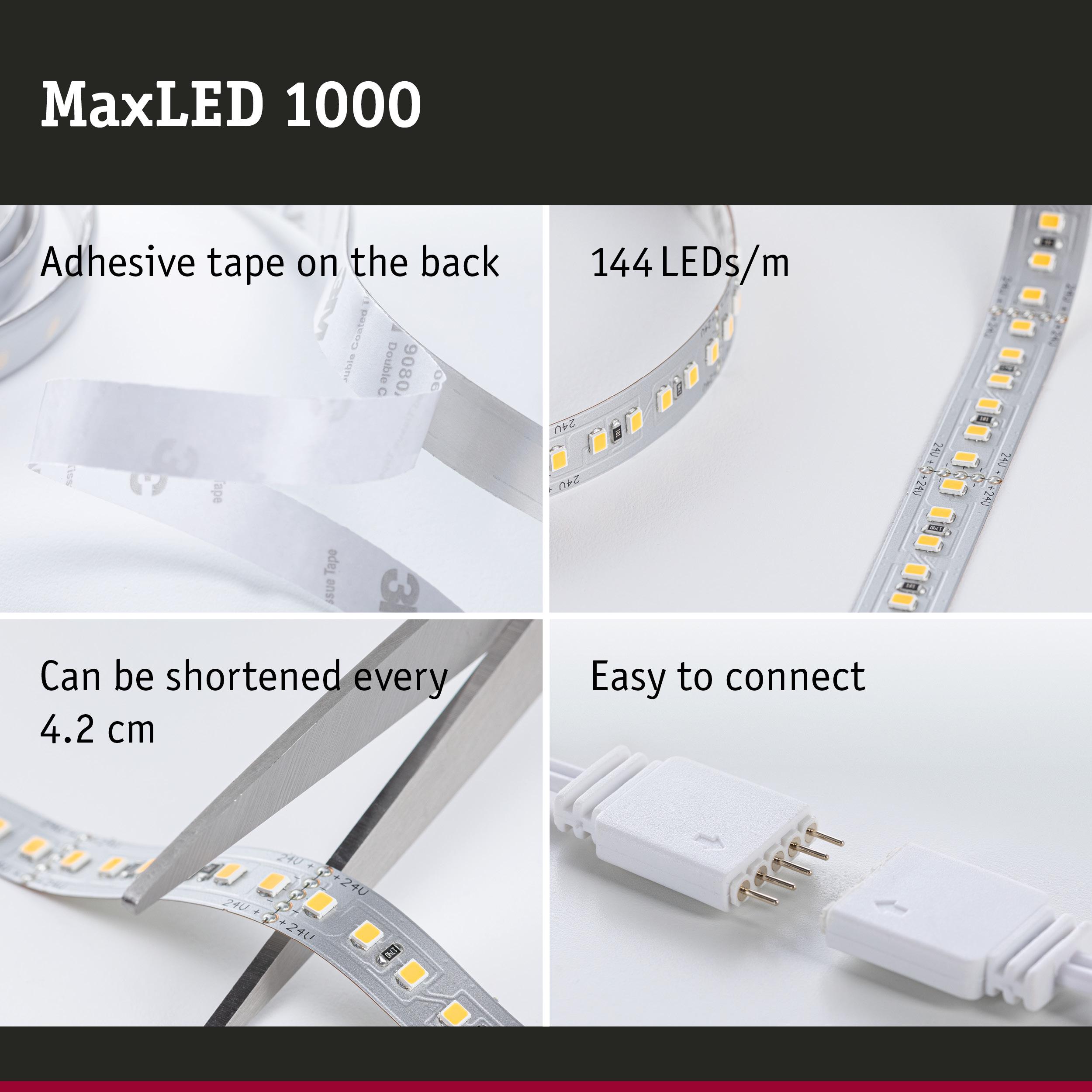

- Can be shortened as required
- Rear self-adhesive for simple installation
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)
MaxLED 1000 LED Strip Basic set 3m Warm white 35W 1100lm/m 2700K 60VA

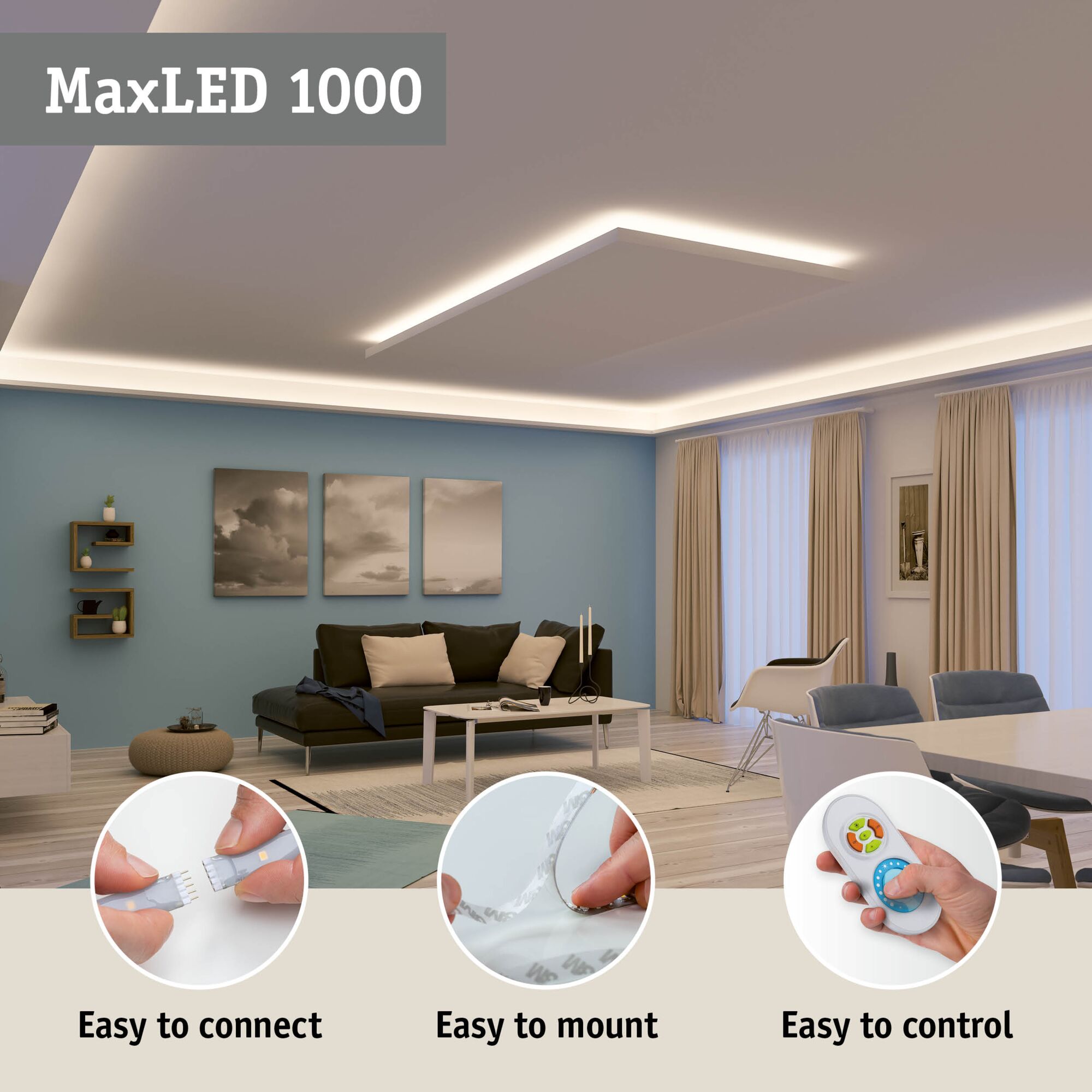

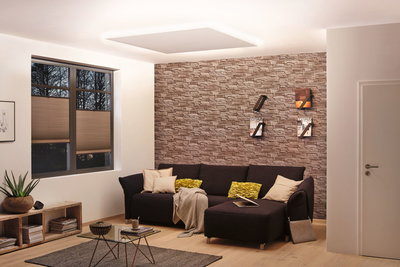

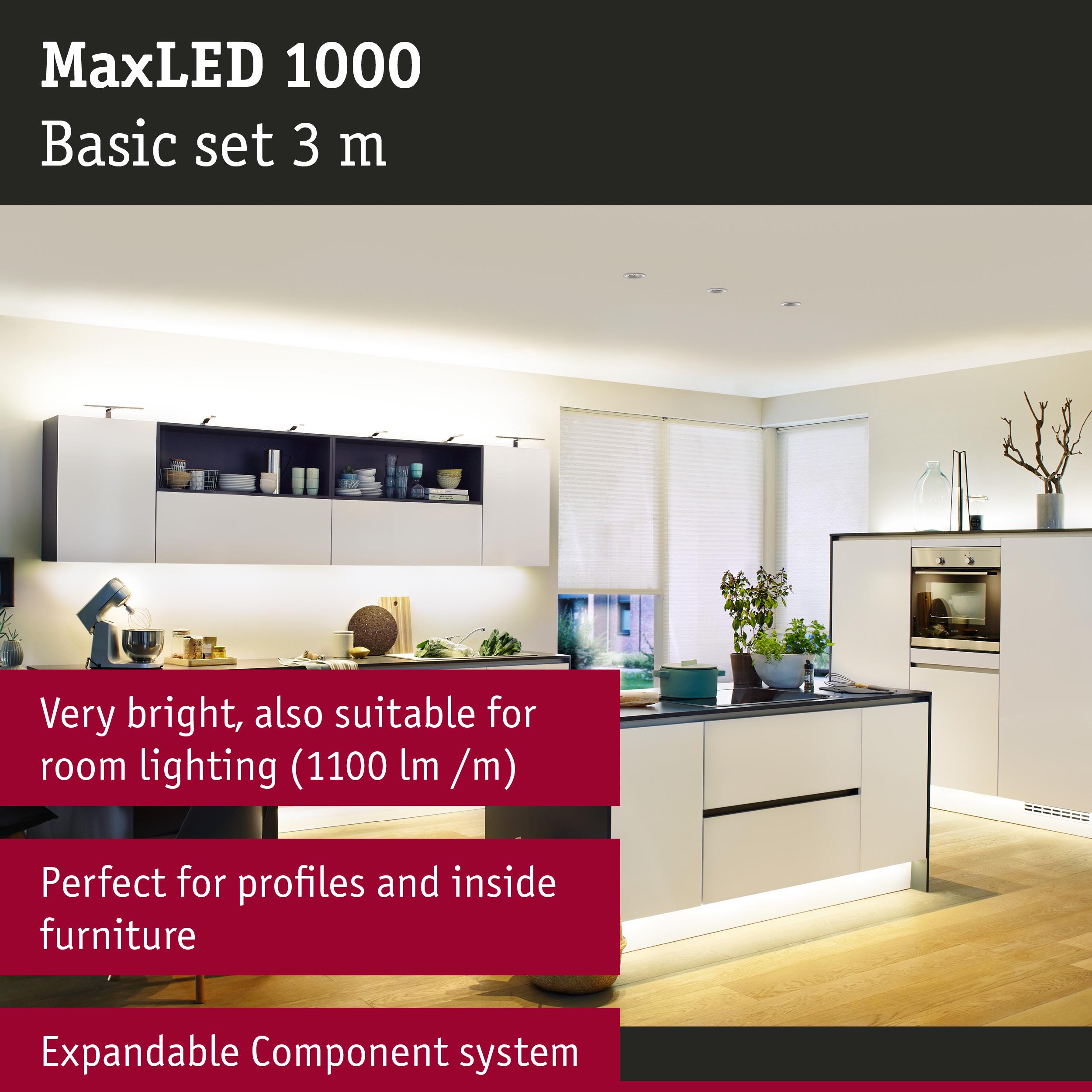

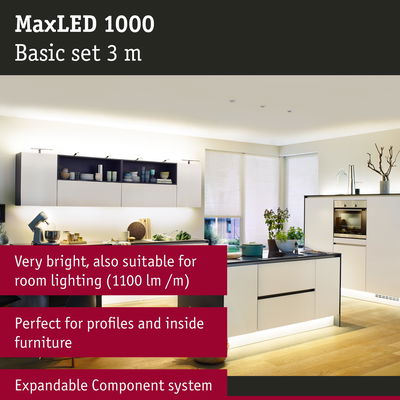

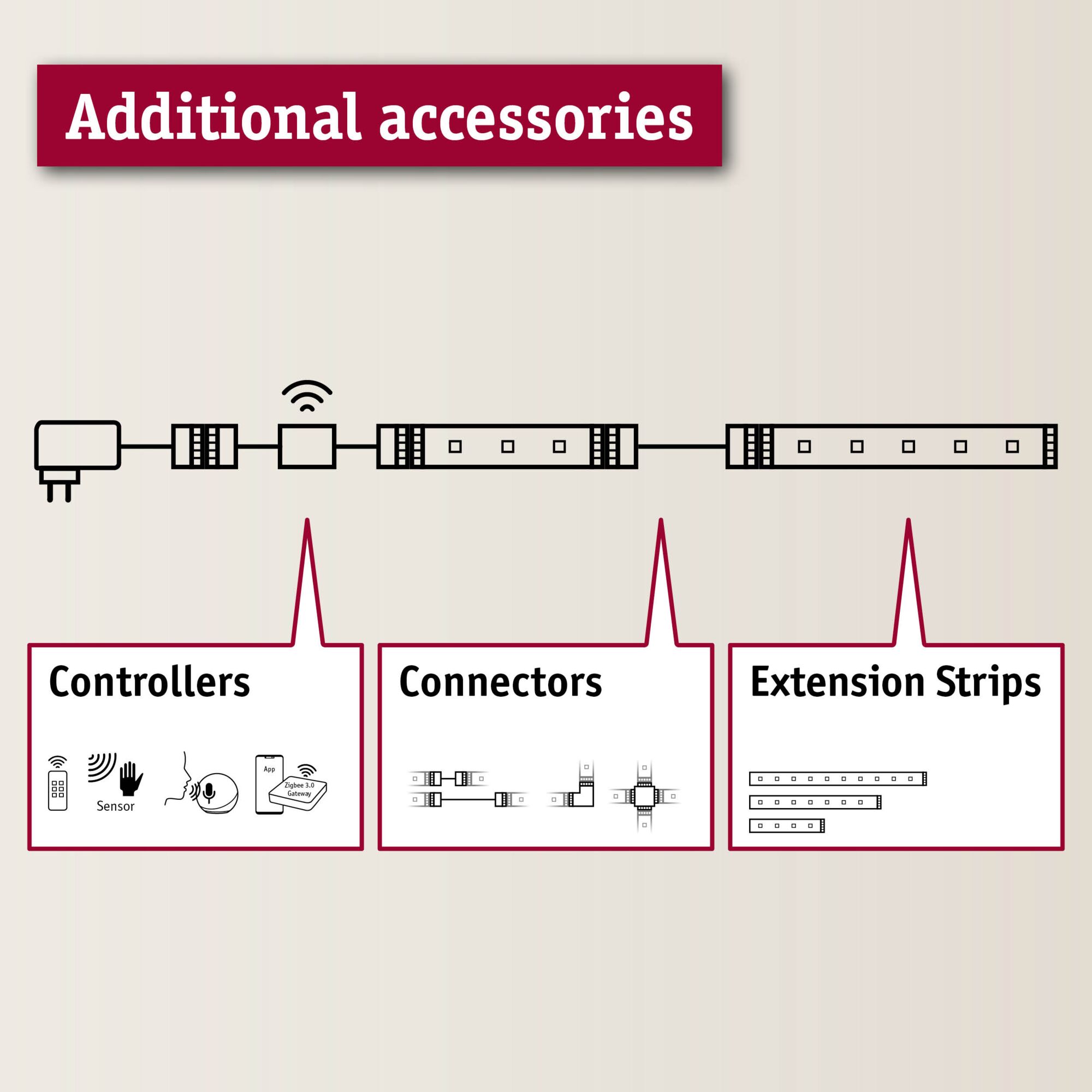

MaxLED strips are so powerful that they can easily be used as room lighting. They are real highlights especially in profiles. Warm white strips provide a cosy and relaxed room and workplace light. Where required, you can extend your basic set using single strips. Please note in your planning the maximum length specified for the basic set, which must not be exceeded.
- Can be shortened as required
- Rear self-adhesive for simple installation
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)
- Dimmable with MaxLED dim/switch controller
- Incl. 5-pin plug for easy connection of the strips
- Simple plug-in system for easy installation
- Colour temperature: 2700K - Warm white
- Flexible material for mounting on flat or curved surfaces

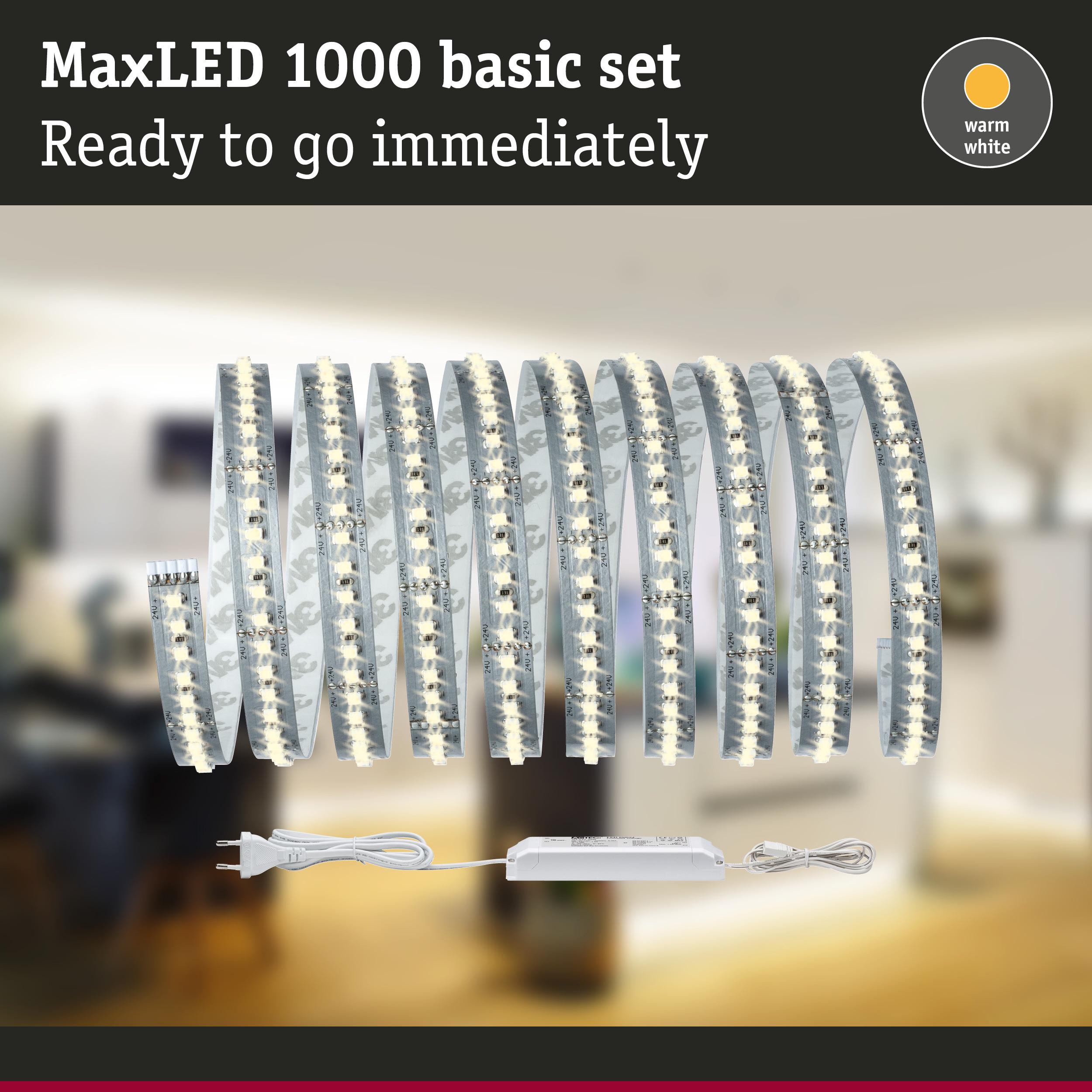

- Complete set incl. strip and power supply
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x T: 12,5 mm |
| Length | 3 m |
| Shortenability Strips | 41.5 mm |
| Net weight | 375 g |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Metal |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 5,5 m |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 35 W |
| light source property | Light source integrated (non-replacable) |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Number of LED's per meter | 144 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 40 W |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 60 VA |
| Transformer height | 32 mm |
| Transformer width | 50 mm |
| Transformer depth | 166 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 3300 lm |
| Color rendering index | > 80 Ra |
| Lumens per metre | 1100 lm/m |
| Colour temperature | Warm white, 2700 K |
| Luminous flux LED module | 3300 lm |
| Rechargeable battery / battery data | |
|---|---|
| Dimensions (Height x Width x Depth) | 3 x 12,5 mm |
