Article-No.:
70565
MaxLED 500
LED Strip
Smart Home Bluetooth
Basic set 10m Tunable White
47W 550lm/m Tunable White 80VA
47W 550lm/m Tunable White 80VA
- Convenient control via the Paulmann Boss remote control

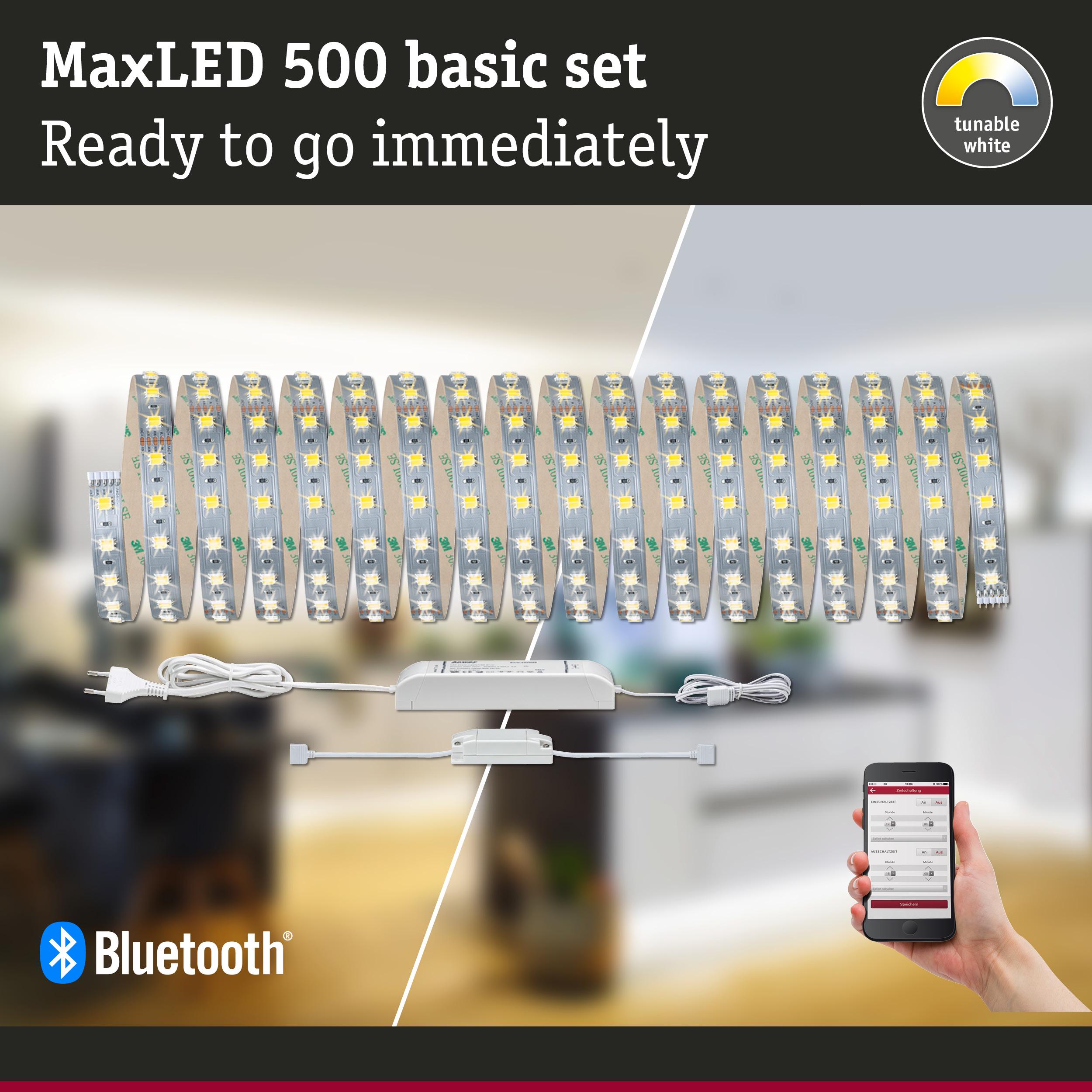

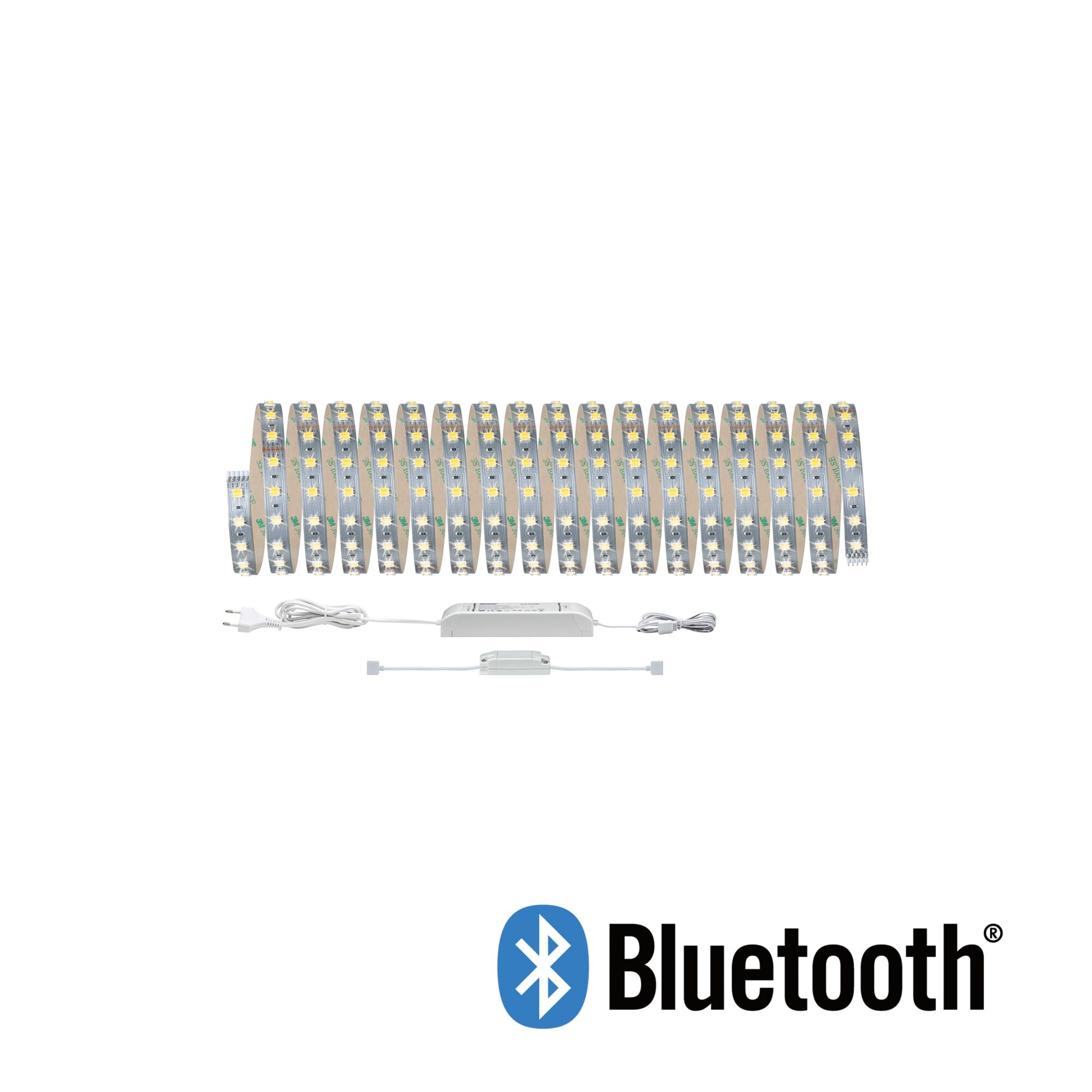

- Complete set incl. strip, power supply and tunable white controller
- With white-light control (Tunable White)
MaxLED 500 LED Strip Smart Home Bluetooth Basic set 10m Tunable White 47W 550lm/m Tunable White 80VA

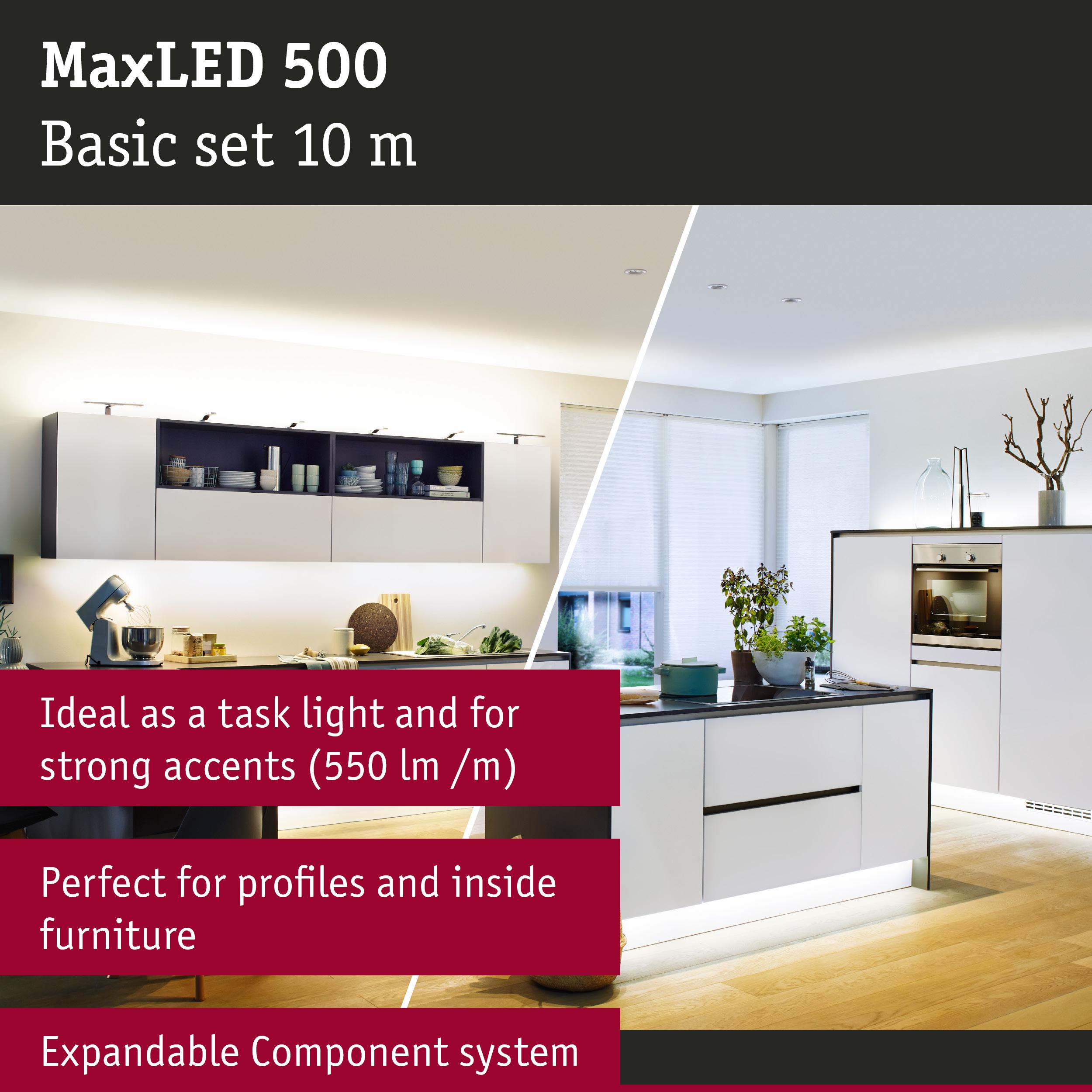

MaxLED-Strips 500 are so powerful with 47W and 550lm/m that they can be used for room illumination without any problems. They are real highlights, especially in profiles. Thanks to the intelligent Tunable White white light control, the light color of the strips can be individually varied - from daylight white working light to warm white relaxation lighting, everything is possible. In addition to the strip with a length of 10m, the set includes a matching ballast and the MaxLED dimming/switching controller from the Smart Home series. This allows the strip to be switched and dimmed. The controller is controlled via Bluetooth - control is convenient via the Paulmann Boss remote control.
- Convenient control via the Paulmann Boss remote control
- Complete set incl. strip, power supply and tunable white controller
- With white-light control (Tunable White)
- Colour temperature: 3000 K - Warm white up to 6500 K - Daylight white

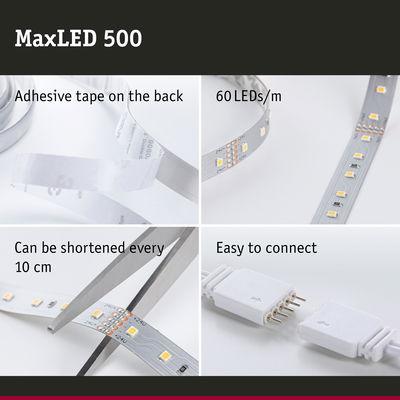

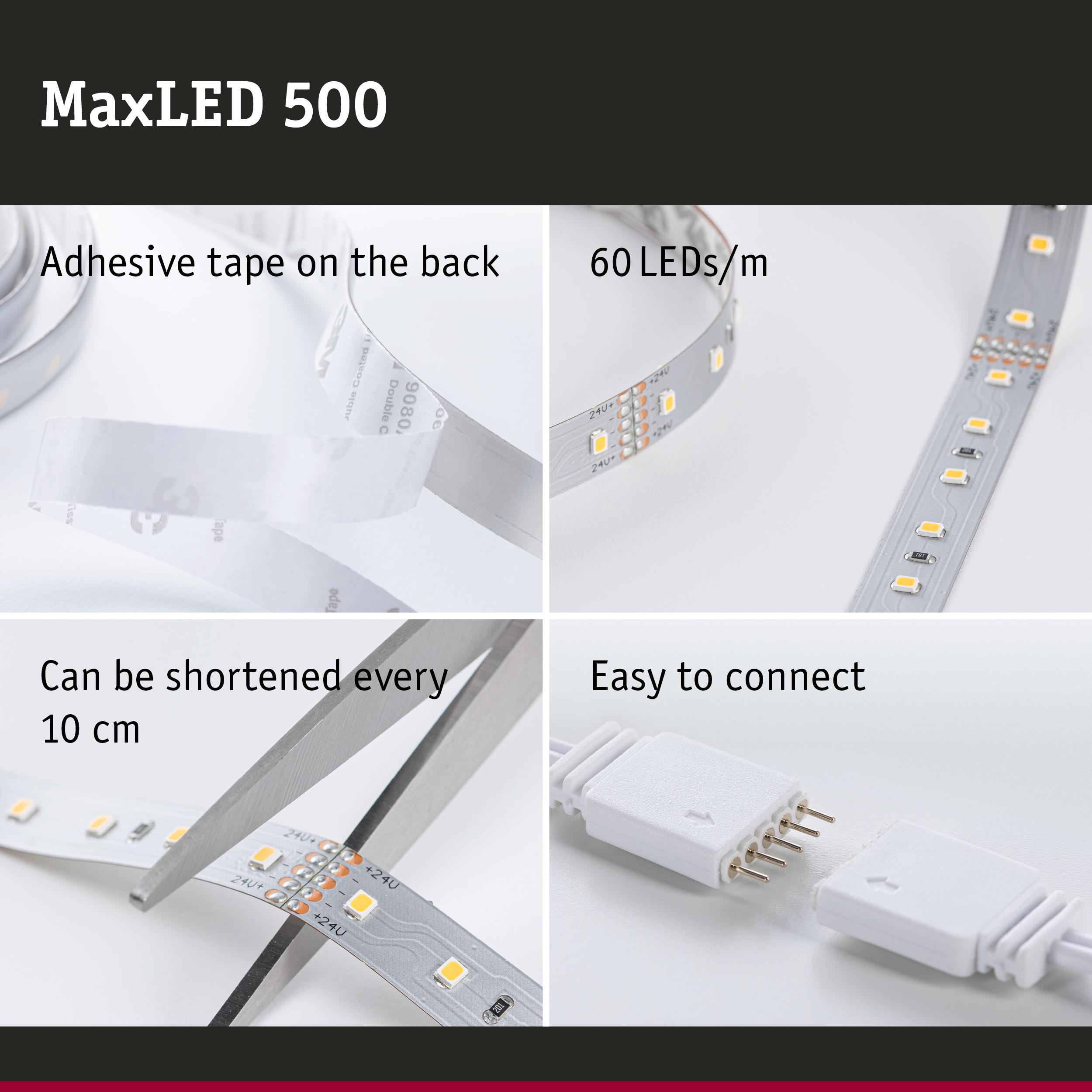

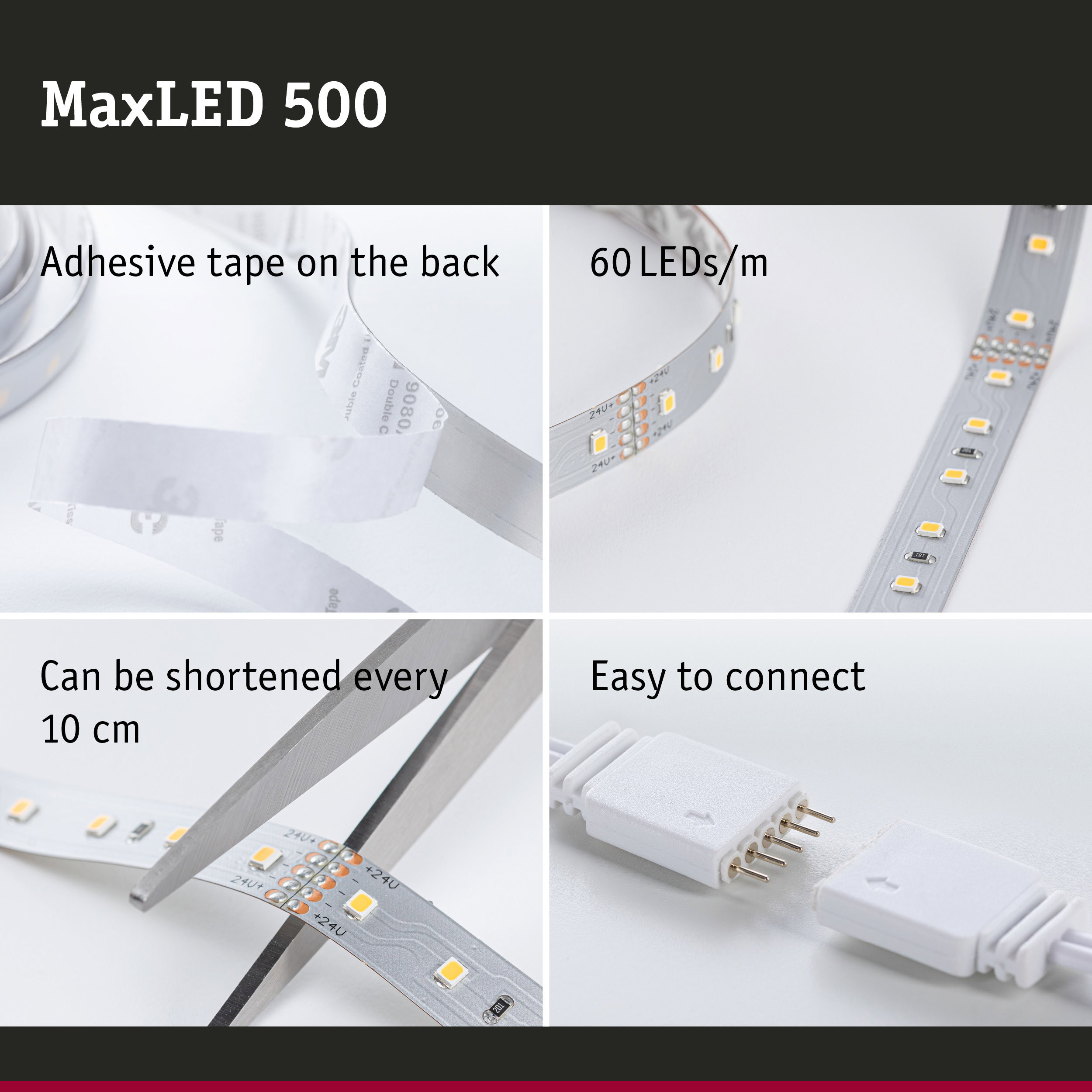

- Can be shortened as required
- No memory effect with 230 V separation (switch)
- Simple plug-in system for easy installation
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x T: 12,5 mm |
| Length | 10 m |
| Shortenability Strips | 100 mm |
| net weight | 667 g |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 5500 lm |
| Colour change | Tunable White |
| Color rendering index | > 80 Ra |
| Beam angle | 120 ° |
| Lumens per metre | 550 lm/m |
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 3000 K |
| Luminous flux LED module | 5500 lm |
| Lamp Features | |
|---|---|
| Dimming Control | with Smart Home |
| Inclusive lamp | yes |
| Component parts | 47 W |
| light source property | Light source integrated (non-replacable) |
| Compatible Smart Home technology | Bluetooth & BLE |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Number of LED's per meter | 60 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 53 W |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 80 VA |
| apparent power | 55.2 VA |
| Transformer height | 33 mm |
| Transformer width | 60 mm |
| Transformer depth | 190 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | BLE 4.0 Letaron |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 10 m |
