Article-No.:
70641

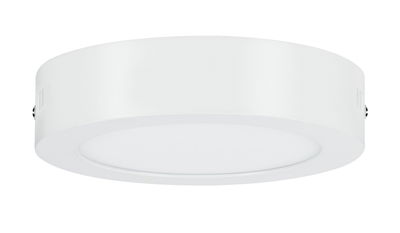

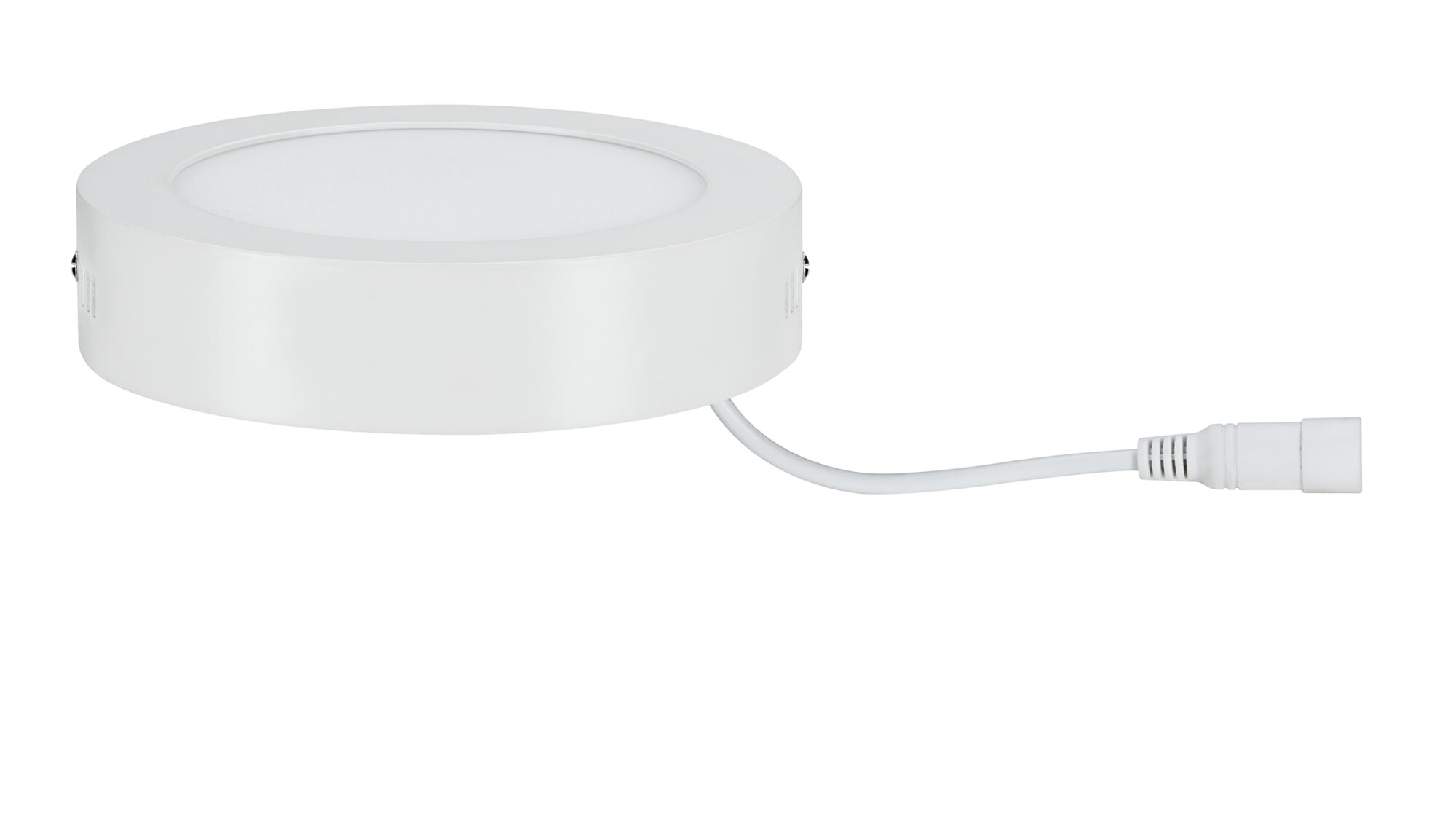

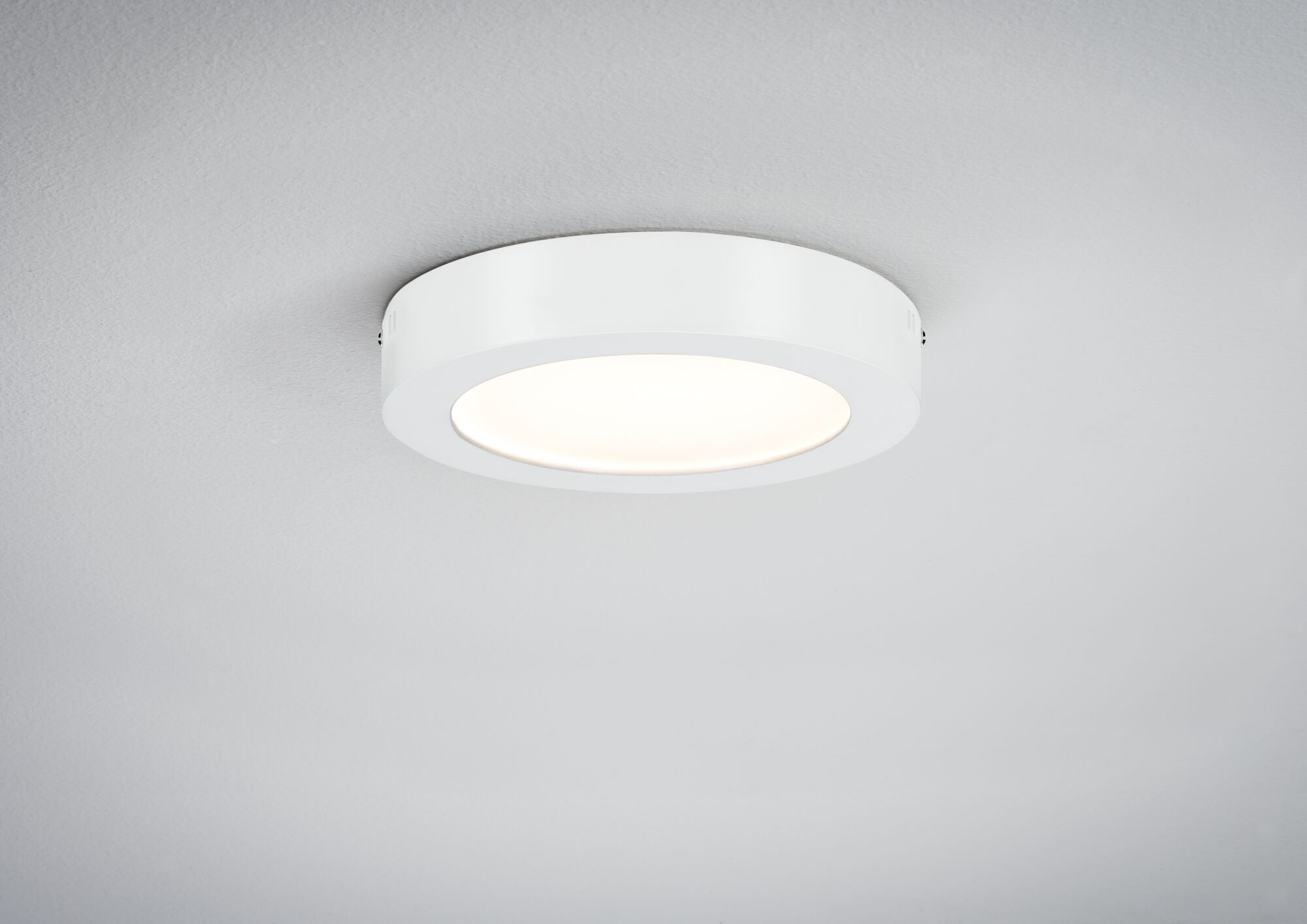

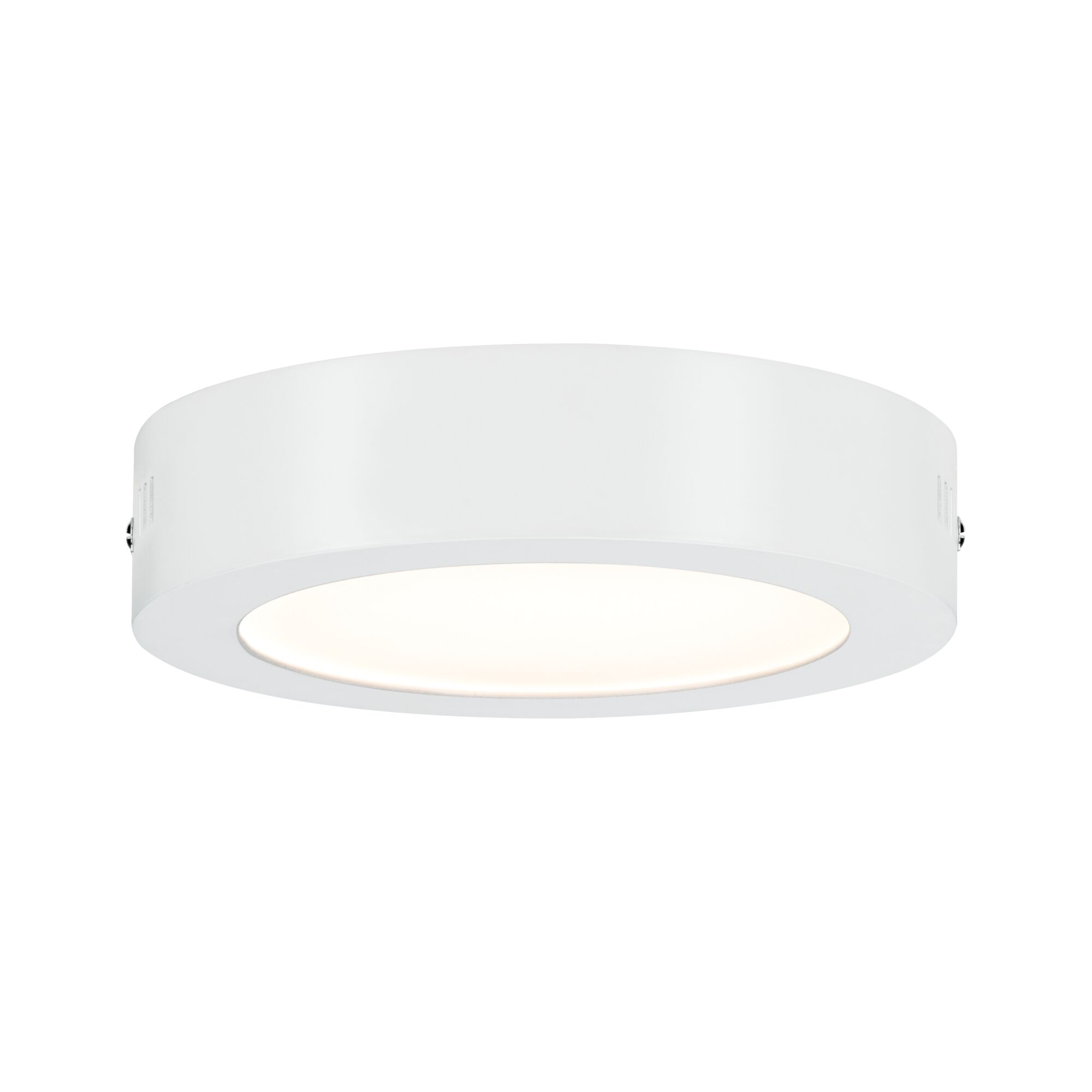

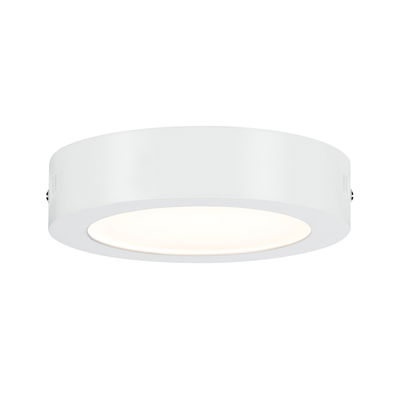

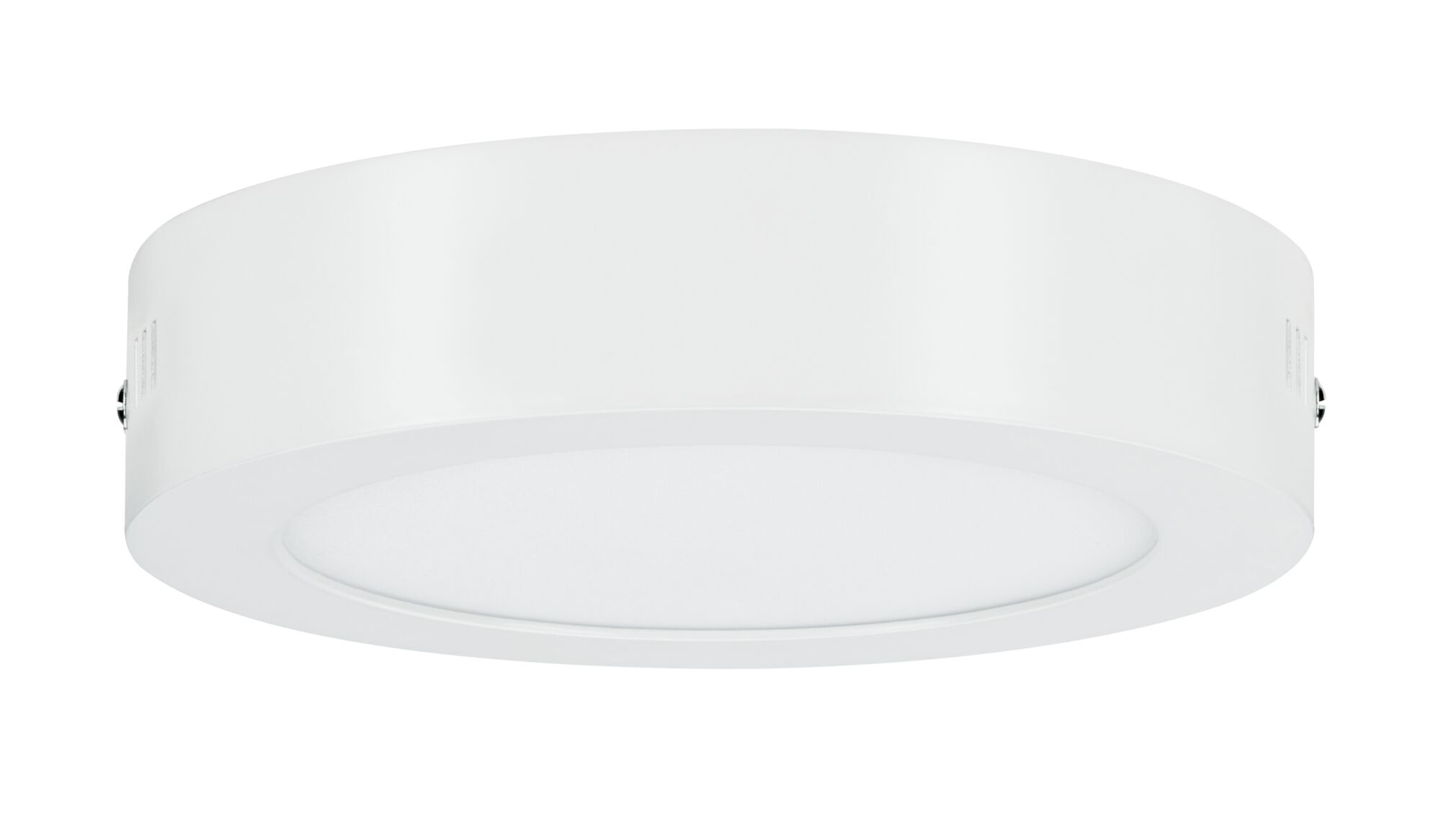

LED Panel
Lunar
round 170mm 11W 760lm 3000K White
round 170mm 11W 760lm 3000K White
- Especially flat construction in round design
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)
- Even room light based on cutting-edge LED technology
LED Panel Lunar round 170mm 11W 760lm 3000K White
With the Lunar wall and ceiling luminaires, modern LED technology enables a combination of very flat assembly and very even light distribution. The quiet, sleek design will harmonise with comfortable modern styles as well as interiors with more daring architectural features.
- Especially flat construction in round design
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)
- Even room light based on cutting-edge LED technology
- High light yield for area lighting
- For 230 V direct connection
- With integrated LED bulb
- Satined plastic cover for fine diffusion of light
- Can be mounted on wall or ceiling
- Pleasant warm white light
- Durable, thanks to the high-quality, attractive metal frame
| Dimension | |
|---|---|

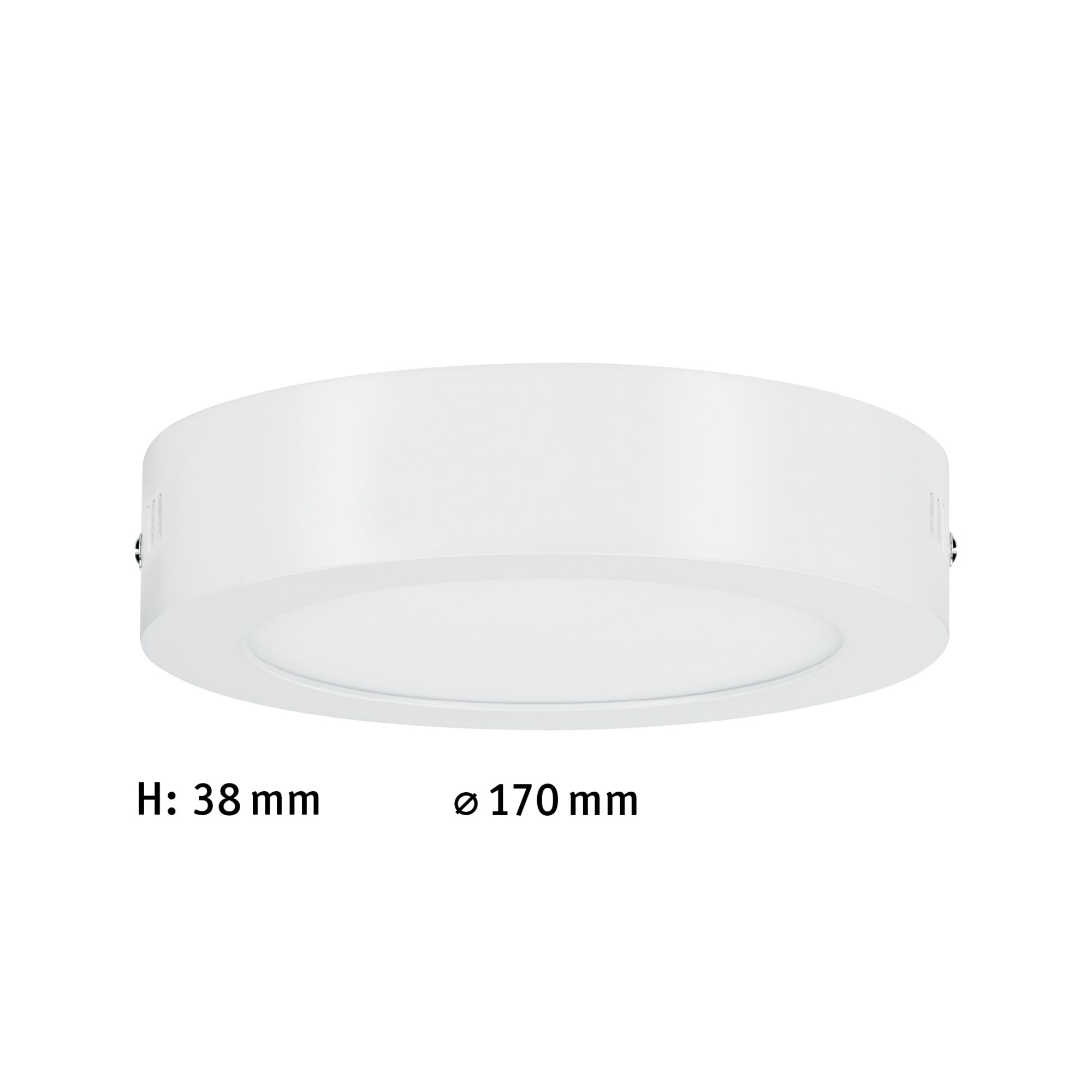

| Dimensions (Height x Width x Depth) | H: 38 mm |
| Diameter | 170 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | White |
| Material | Aluminium |
| Stainless | stainless alu |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 760 lm |
| Luminous flux LED module | 1300 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 88 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 11 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 13 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| Transformer power range | 14,5 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
