Article-No.:
71155
LED Panel
Atria Shine
IP44 angular 293x293mm 16W 1600lm 3000K White
IP44 angular 293x293mm 16W 1600lm 3000K White

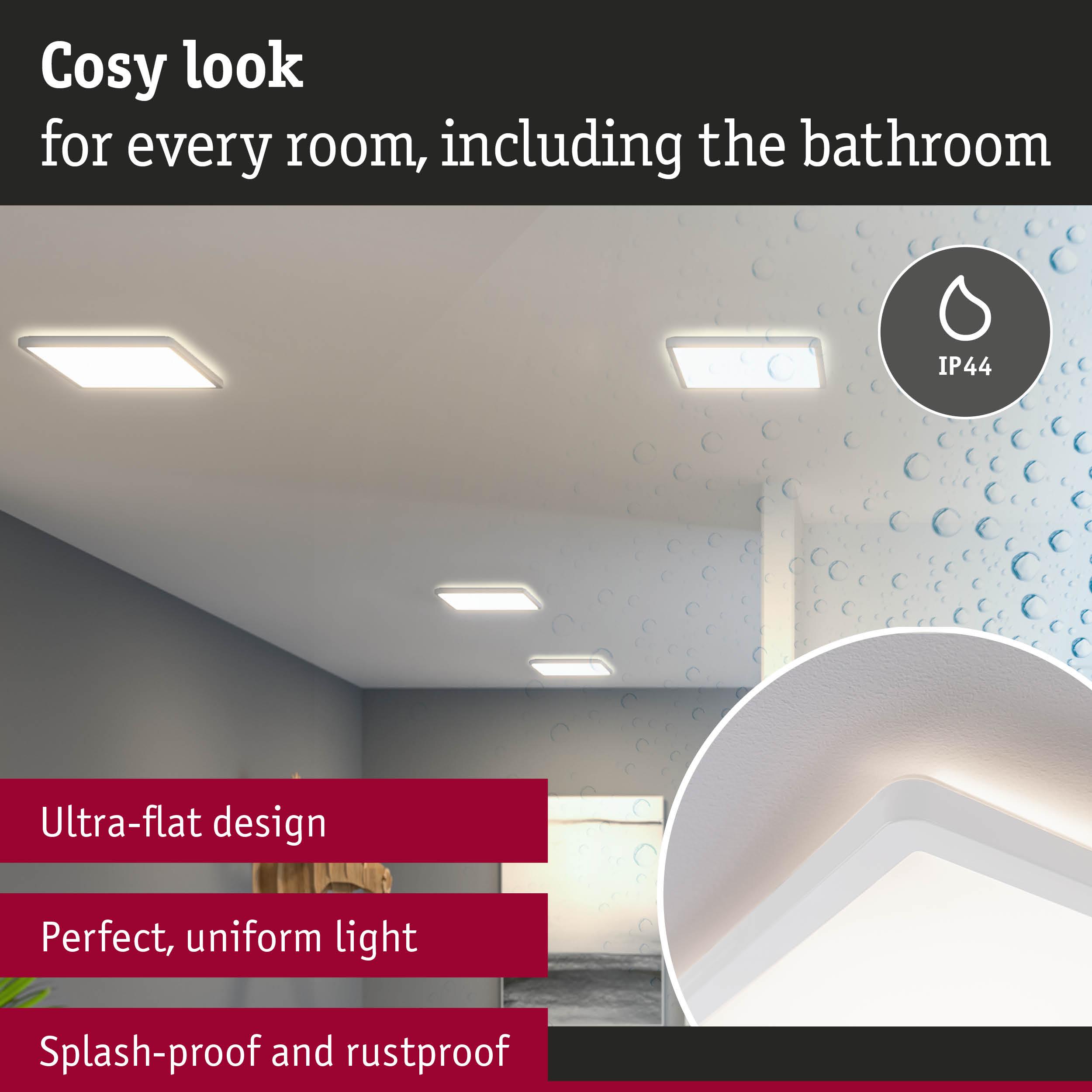

- IP44 splash-protected for bathrooms and similar rooms

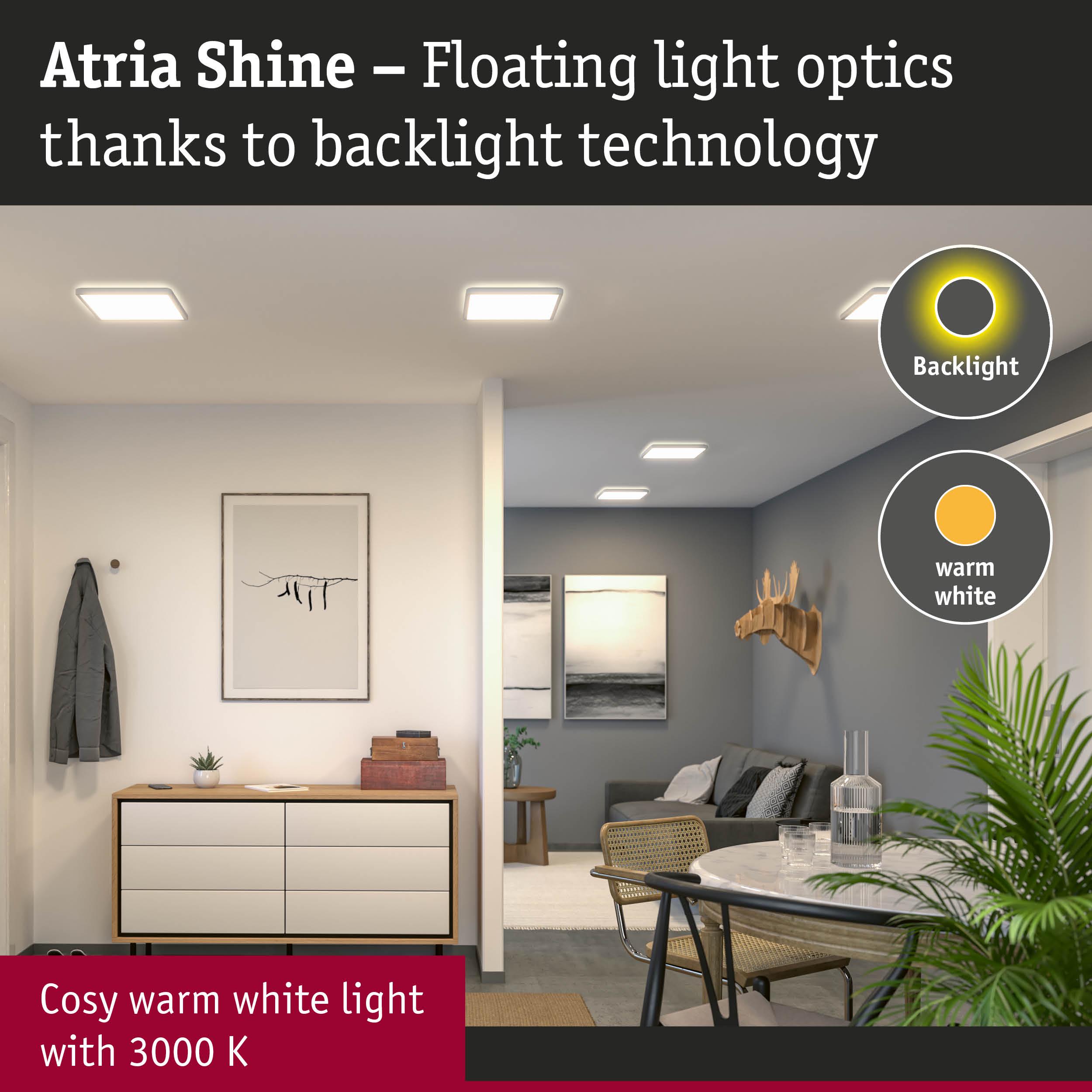

- Backlight technology for subtle, almost floating appearance of the light
- Ultra-flat design: Installation height of only 28 mm
LED Panel Atria Shine Backlight IP44 angular 293x293mm 16W 1600lm 3000K White
With an output of 16W, the angulare Atria Shine LED panel in White and 293x293mm is ideal for basic lighting in living rooms, bedrooms and kitchens. The warm white light of the panel creates uniform and wide-area room illumination. Additional backlight technology produces a magical feel-good atmosphere and gives the panel an almost floating luminous appearance. With a quick clip, a special twist lock and an ultra-flat installation height of 28 mm, the panel is very easy to install.
- IP44 splash-protected for bathrooms and similar rooms
- Backlight technology for subtle, almost floating appearance of the light
- Ultra-flat design: Installation height of only 28 mm
- Color temperatur: 3000K - Warm white
- Can be mounted on wall or ceiling
- Even room light based on cutting-edge LED technology
- Especially flat construction
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 30 x B: 293 x T: 293 mm |
| net weight | 790 g |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | White |
| Material | Plastic |
| Stainless | stainless |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | E |
| Features | |
|---|---|
| Backlight | Backlight |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 1600 lm |
| Color rendering index | > 80 Ra |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 2000 lm |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 16 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 125.7 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 19 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| Transformer power range | 26 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
