Article-No.:
94153
Cable system
Cardan Basic Set
GU5,3 max. 8x10W dimmable 230/12V Chrome matt/Chrome
GU5,3 max. 8x10W dimmable 230/12V Chrome matt/Chrome

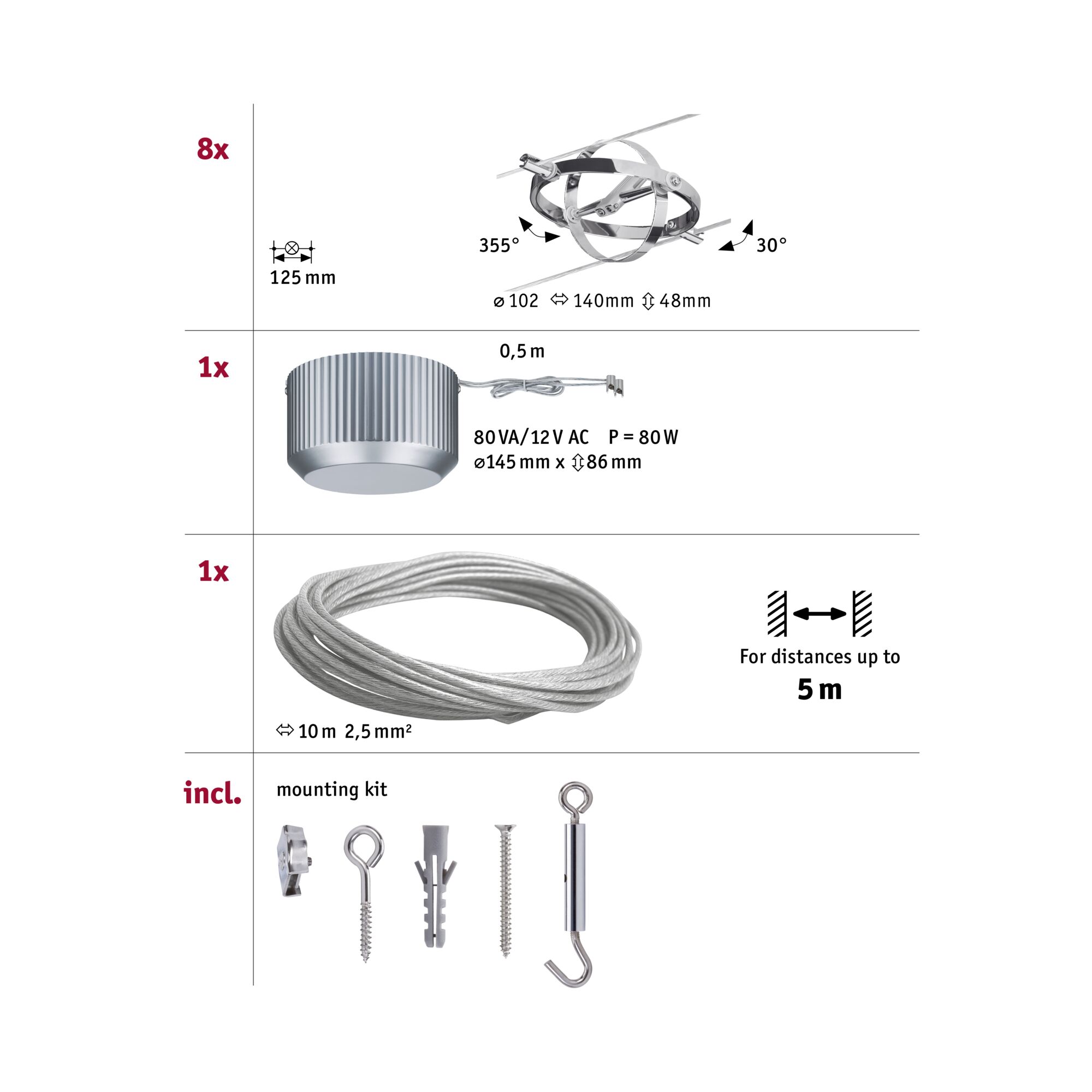

- Complete set consisting of transformer, cable, spots and installation instructions
- Ideal for illuminating large and angled spaces
- Freely selectable lamps
Cable system Cardan Basic Set GU5,3 max. 8x10W dimmable 230/12V Chrome matt/Chrome
Whether straight, pitched or angled – cable systems fit into every room. The Cardan basic set with 8 spot heads can be installed on the wall or on the ceiling, thus offering unlimited design possibilities. It can be individually supplemented with individual spots, deflectors and other accessories - please note the maximum transformer load.
- Complete set consisting of transformer, cable, spots and installation instructions
- Ideal for illuminating large and angled spaces
- Freely selectable lamps
- Suitable for wall and ceiling mounting
| Dimension | |
|---|---|
| Length | 10 m |
| Wire distance | 125 mm |
| Span width | 5 m |
| Design and Material | |
|---|---|
| Colour | Chrome, Chrome matt |
| Material | Metal |
| Lamp Features | |
|---|---|
| Dimmable | The luminaire is dimmable, and the dimming capability depends on the type of lamp used. |
| Inclusive lamp | no |
| Lamp property | Ohne Leuchtmittel |
| Maximum wattage range | max. 8x10 W |
| Protection class | Protection class I |
| Base/Socket | GU5,3 |
| Technique | Lamp without bulb |
| Number of component parts | 8x |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Adjustability | swivelling/tilting |
| Voltage | 230/12 V |
| Transformer | |
|---|---|
| Transformer power range | 80 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
