Plug & ShineLED Garden spotlightSmart Home Zigbee 3.0
Pike Basic Set
IP65 RGBW+ 3x4,2W 21VA Anthracite
IP65 RGBW+ 3x4,2W 21VA Anthracite
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- RGBW multicolour colour change
Plug & Shine LED Garden spotlight Smart Home Zigbee 3.0 Pike Basic Set IP65 RGBW+ 3x4,2W 21VA Anthracite
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- RGBW multicolour colour change

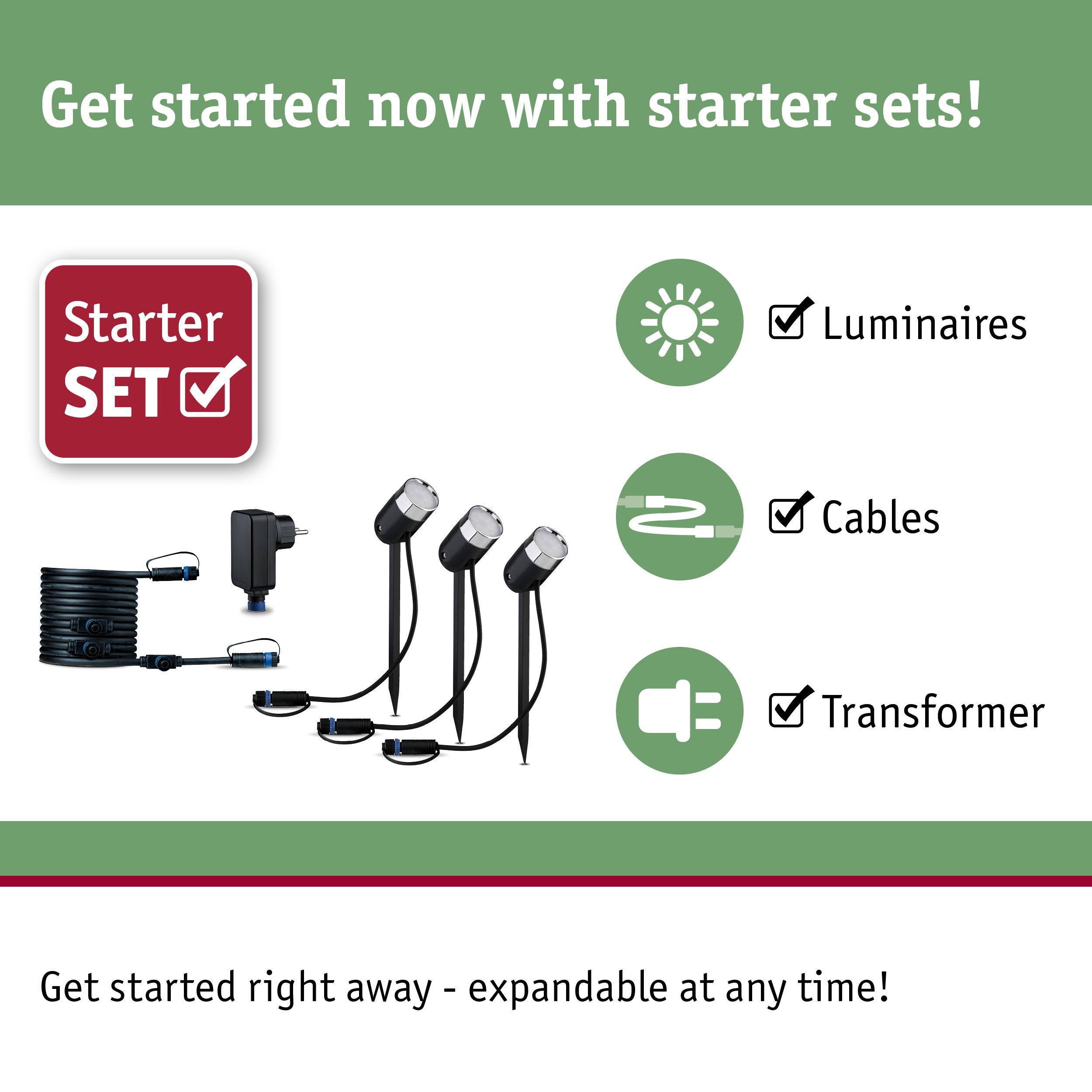

- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer
- Directed light
- LED lamp (fixed) included in scope of delivery
- Compatible with all accessories in the Plug & Shine series
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 313 x T: 82 mm |
| Diameter | 50 mm |
| Plug depth | 48 mm |
| Design and Material | |
|---|---|
| Form | cylindrical |
| Colour | Anthracite |
| Material | Plastic |
| Stainless | stainless |
| Recycled material included | no |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Contour Plug (Typ C-CEE 7/17) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 3000 K |
| Nominal luminous flux | 170 lm |
| Luminous flux LED module | 330 lm |
| Colour change | coloured light with Tunable White function (RGBW), Tunable White |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with Smart Home |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 25 W |
| IP protection | IP65 |
| Protection class | Protection class III |
| Technique | LED |
| Component parts | 4,2 W |
| Number of component parts | 3x |
| Compatible Smart Home technology | Zigbee |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 17 W |
| Adjustability | swivelling/tilting |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 21 VA |
| Transformer height | 103 mm |
| Transformer width | 50 mm |
| Transformer depth | 30 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 10 m |
