Article-No.:
98849
Plug & ShinePower Supply
Power Supply 230/24V DC
IP67 230/24V 75VA Silver
IP67 230/24V 75VA Silver
- 24 V power supply
- Compatible with all luminaires and accessories in the Plug & Shine series

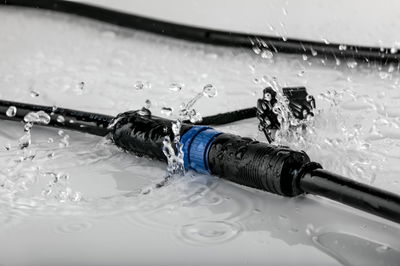

- IP67 - protected against temporary submersion (applies only to the transformer, not to the plug)

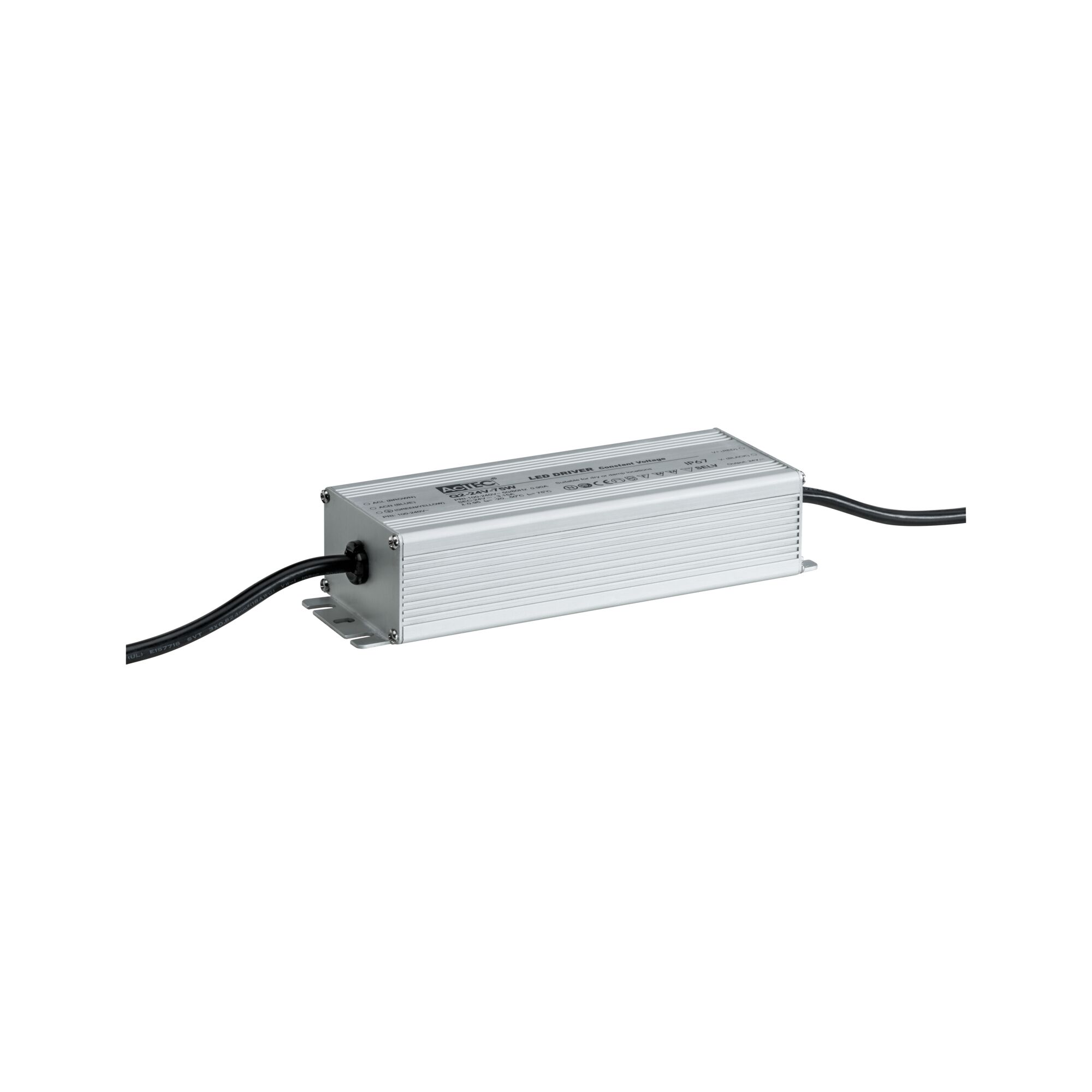

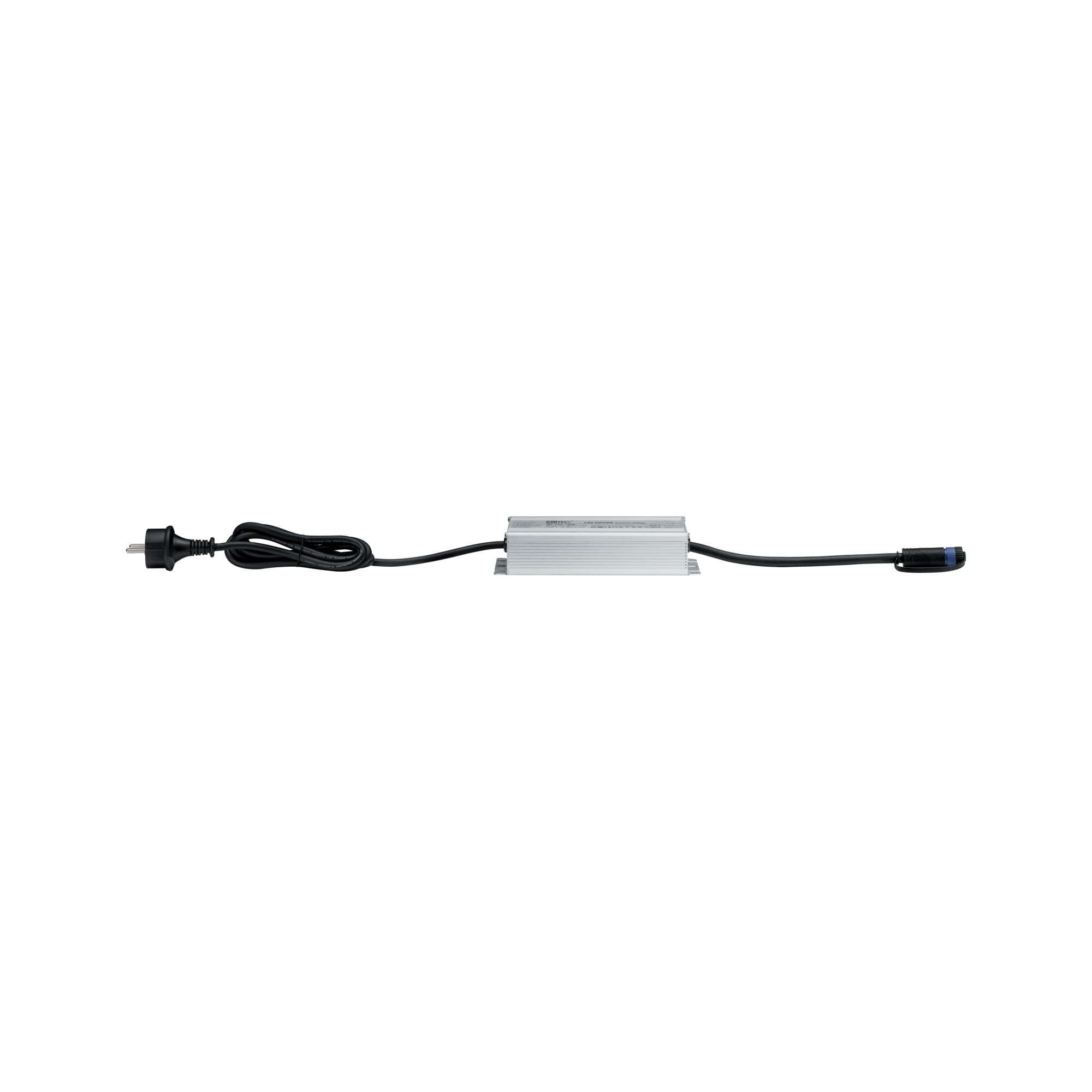

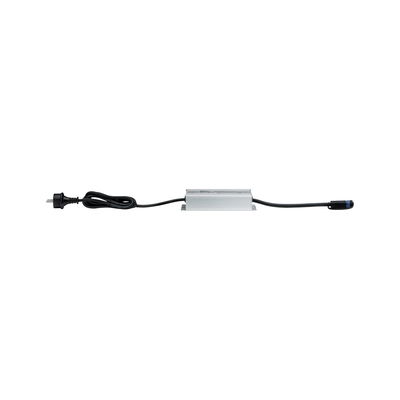

Plug & Shine Power Supply 230/24V DC IP67 230/24V 75VA Silver

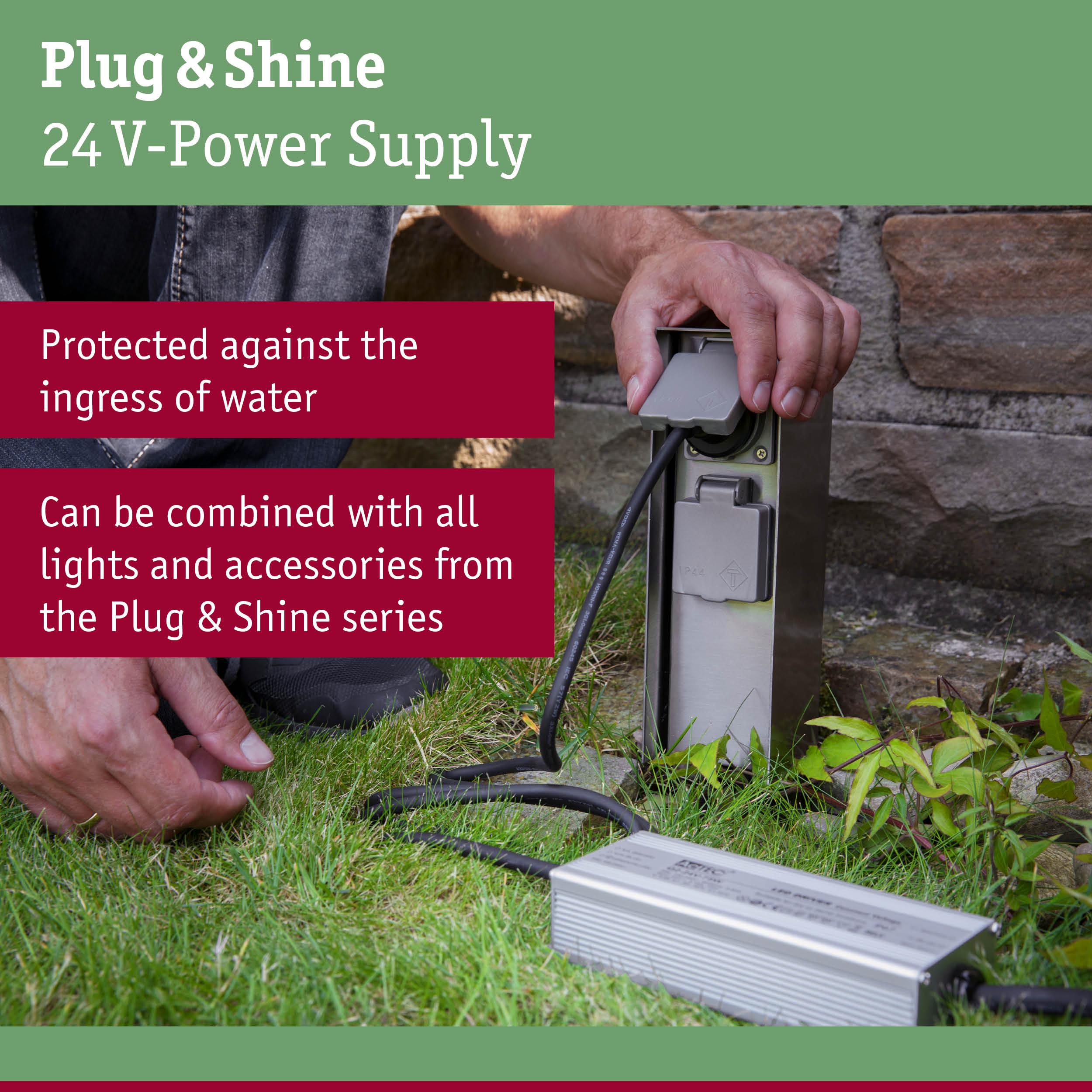

The Plug & Shine transformer with 75 watts is the ideal base for your outdoor lighting installation around the house, patio and garden. Combine different Plug & Shine luminaires and connectors any way you like, up to a maximum system length of 50 metres.
- 24 V power supply
- Compatible with all luminaires and accessories in the Plug & Shine series
- IP67 - protected against temporary submersion (applies only to the transformer, not to the plug)
| Dimension | |
|---|---|

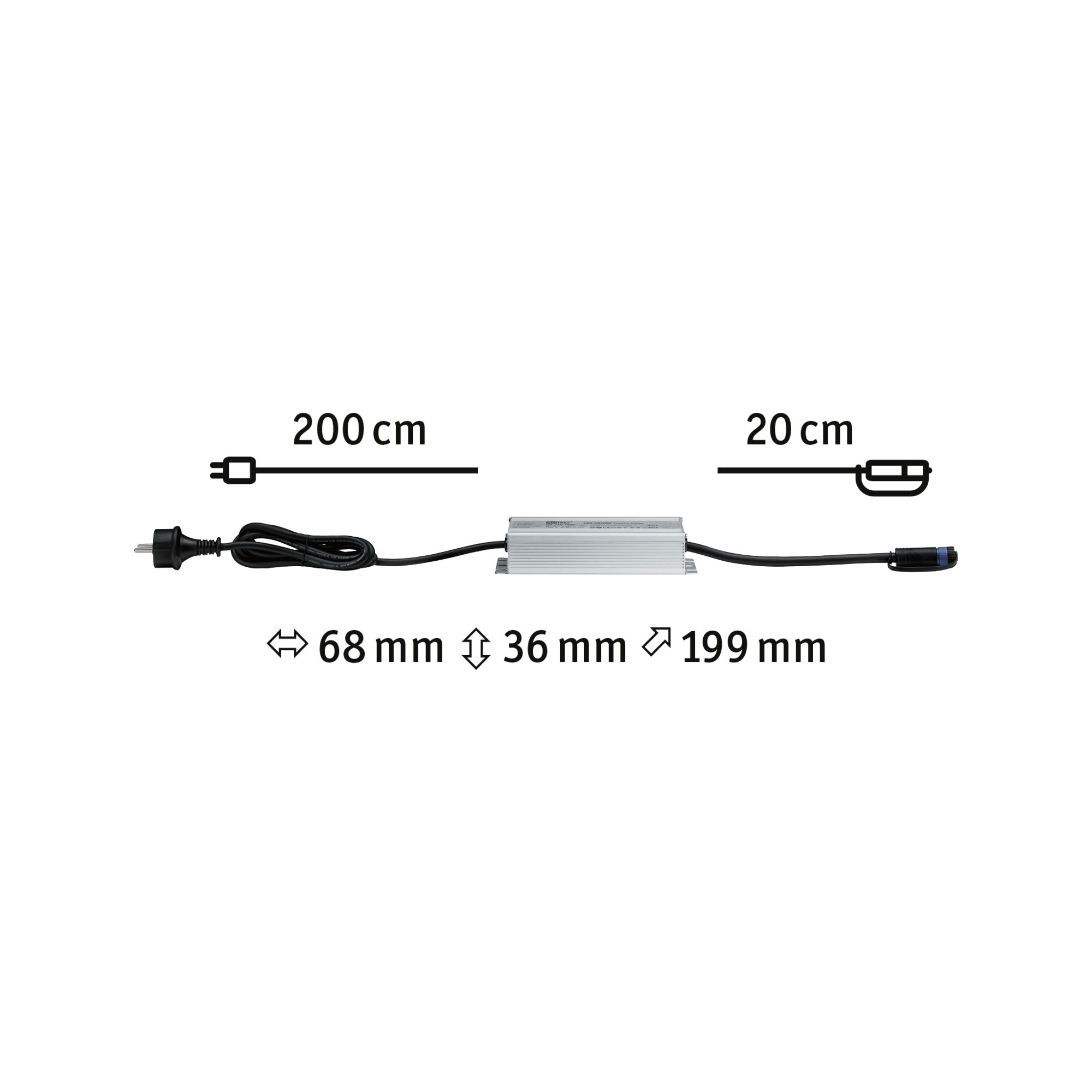

| Dimensions (Height x Width x Depth) | H: 36 x B: 68 x T: 199 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Aluminium |
| Recycled material included | no |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Maximum cable length | 50 m |
| Connections | |
|---|---|

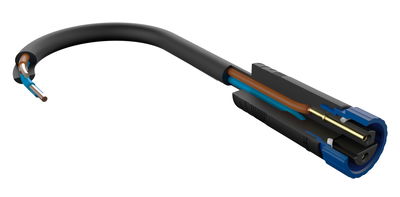

| Plug | Safety plug (type EF-CEE 7/7) |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | no |
| Lamp property | Ohne Leuchtmittel |
| Maximum wattage range | max. 75 W |
| IP protection | IP67 |
| Protection class | Protection class I |
| Technique | Accessories without bulbs |
| Replacable | 7 not concerned. |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 75 VA |
| Transformer height | 36 mm |
| Transformer width | 68 mm |
| Transformer depth | 199 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
